Focal · Speakers · In-wall & In-ceiling Speakers
1000 IWLCR Utopia
Focal's flagship in-wall LCR speaker, a 3-way bi-amplifiable design built for uncompromising home cinema front channels.
fig. 01 · speakers
1000 IWLCR Utopia
8 photographs · 5 shown
From Focal

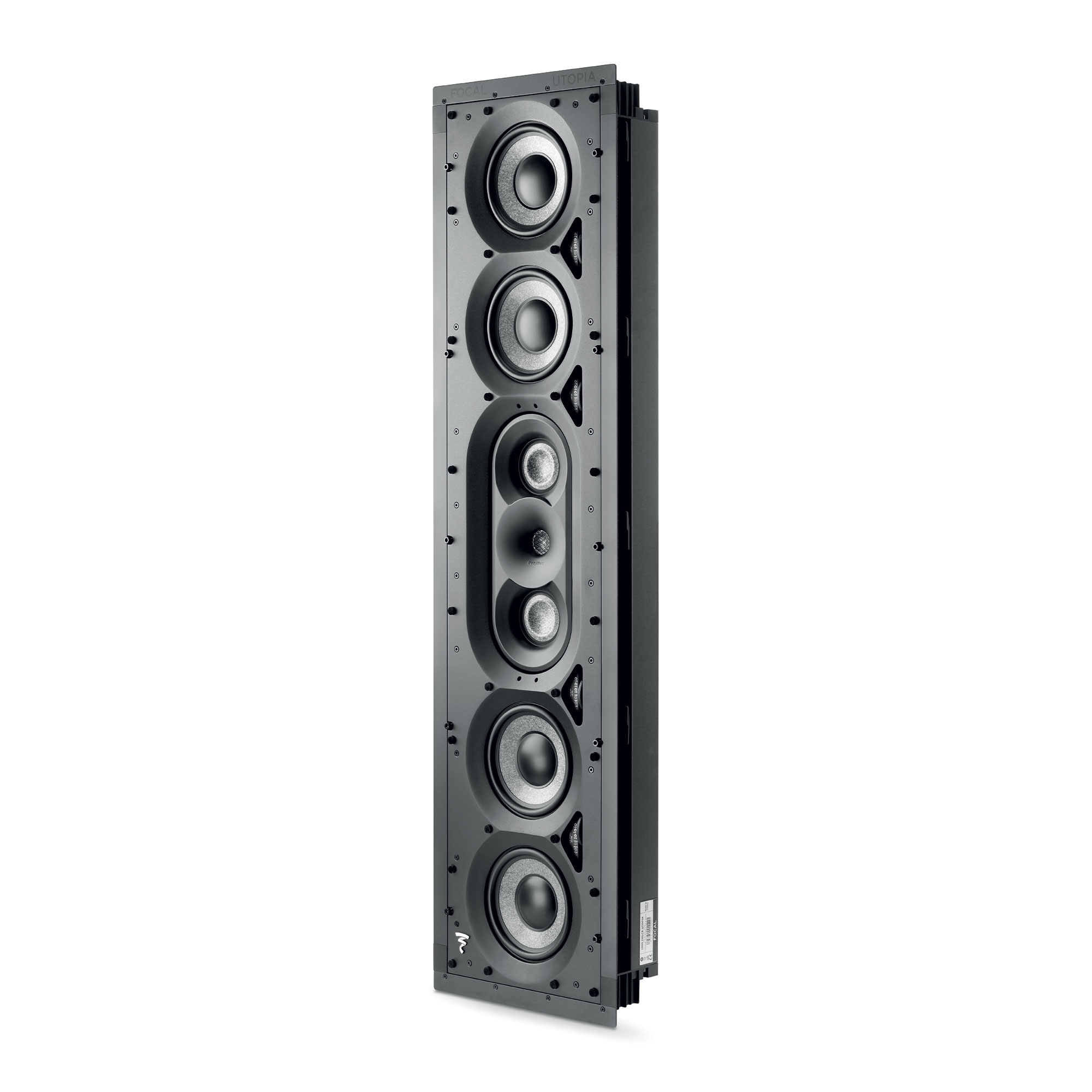

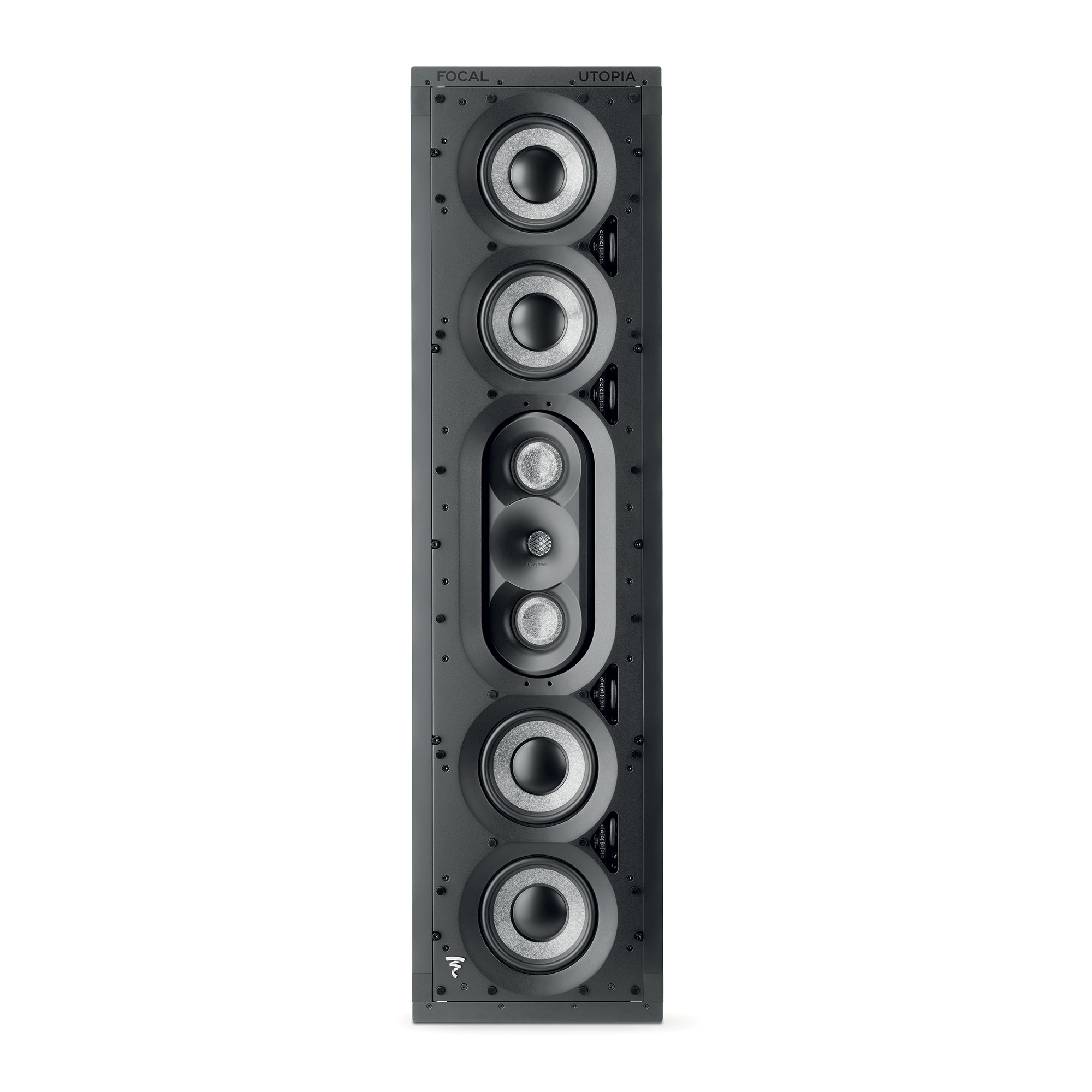

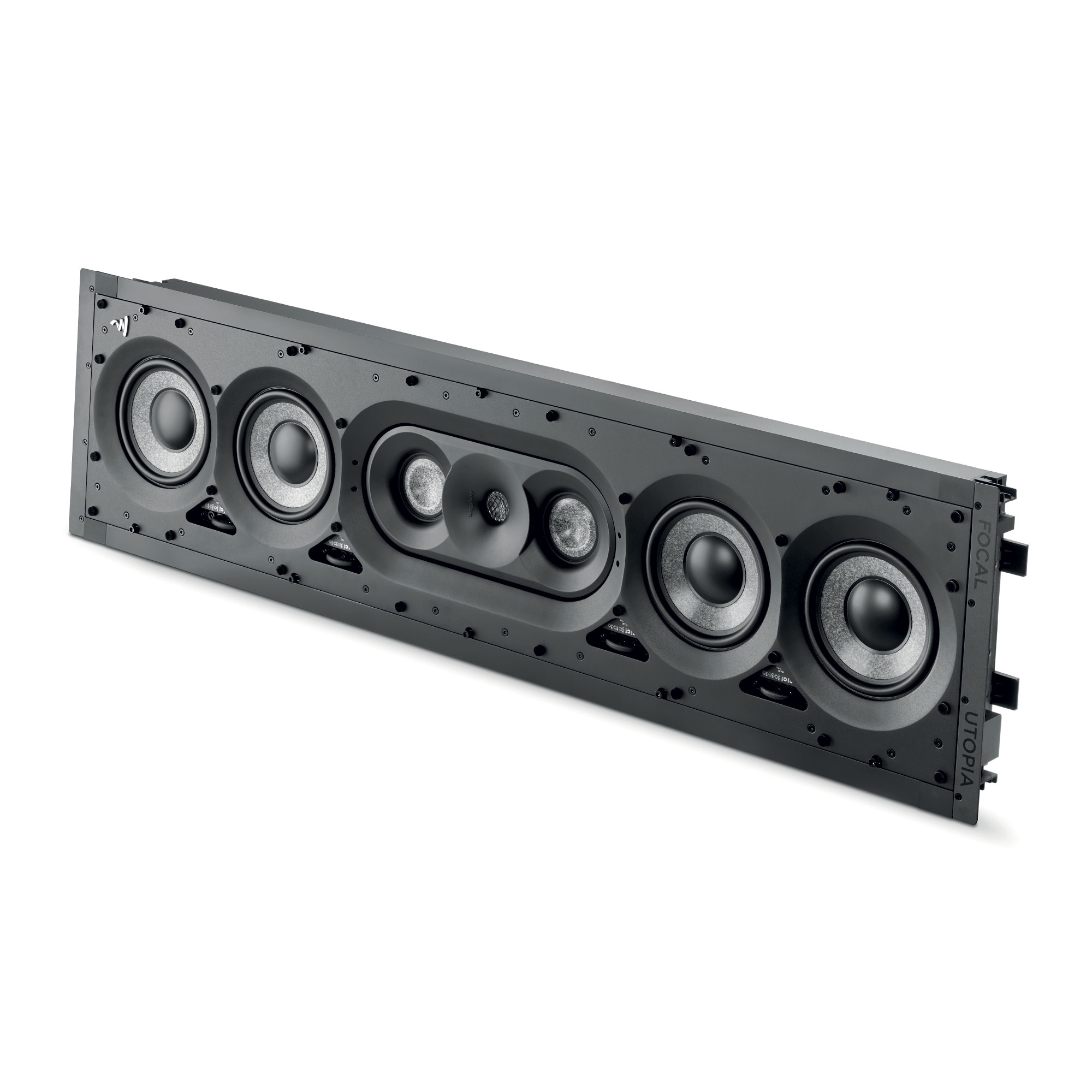

This 3-way in-wall speaker pairs four 6.5-inch W-cone bass drivers with two W-cone midranges in a d'Appolito layout and a pure Beryllium inverted dome tweeter. Its midrange-treble plate tilts 15 degrees to aim at the listening position, and it ships with a magnetically attached, paintable grille.
Specifications
| Type of speaker | 3-way closed-back in-wall |
|---|---|
| Speaker drivers | 4 \times 61/2'' (16.5cm) 'W' cone Bass; | 2 \times 31/8'' (8cm) 'W' cone 'M'-shaped midranges; | 1" (27mm) pure Beryllium inverted dome tweeter |
| Sensitivity (2.83V/3 feet - 1m) | 92dB |
| Bandwidth (+/-3dB) | 45Hz - 40kHz |
| Low-frequency cut-off (-6dB) | 40Hz |
| Nominal impedance | 8 Ω |
| Minimal impedance | 4.2 Ω |
| Recommended amp power | 100 - 750W (8 Ω) | 200 - 1500W (4 Ω) |
| Ext. size (H x L x D) | 45 3/4 x 12 x 4" (1162 x 305 x 102mm) |
| Mounting dimensions (H x L) | 44 5/8 x 10 7/8 " (1134 x 276mm) |
| Mounting depth | 4" (100mm) |
| Net weight (with grille) | 42.77lbs (19.4kg) |
| Box size (length x depth x height) | 17 7/8 x 52 x 8 1/2 " (455 x 1320 x 215mm) |
| Total weight (with packaging) | 50.7lbs (23kg) |
