Focal · Speakers · In-wall & In-ceiling Speakers
1000 IWLCR6
A 3-way in-wall LCR speaker from Focal's 1000 Series, built with a passive radiator and a pure Beryllium tweeter.
fig. 01 · speakers
1000 IWLCR6
8 photographs · 5 shown
From Focal

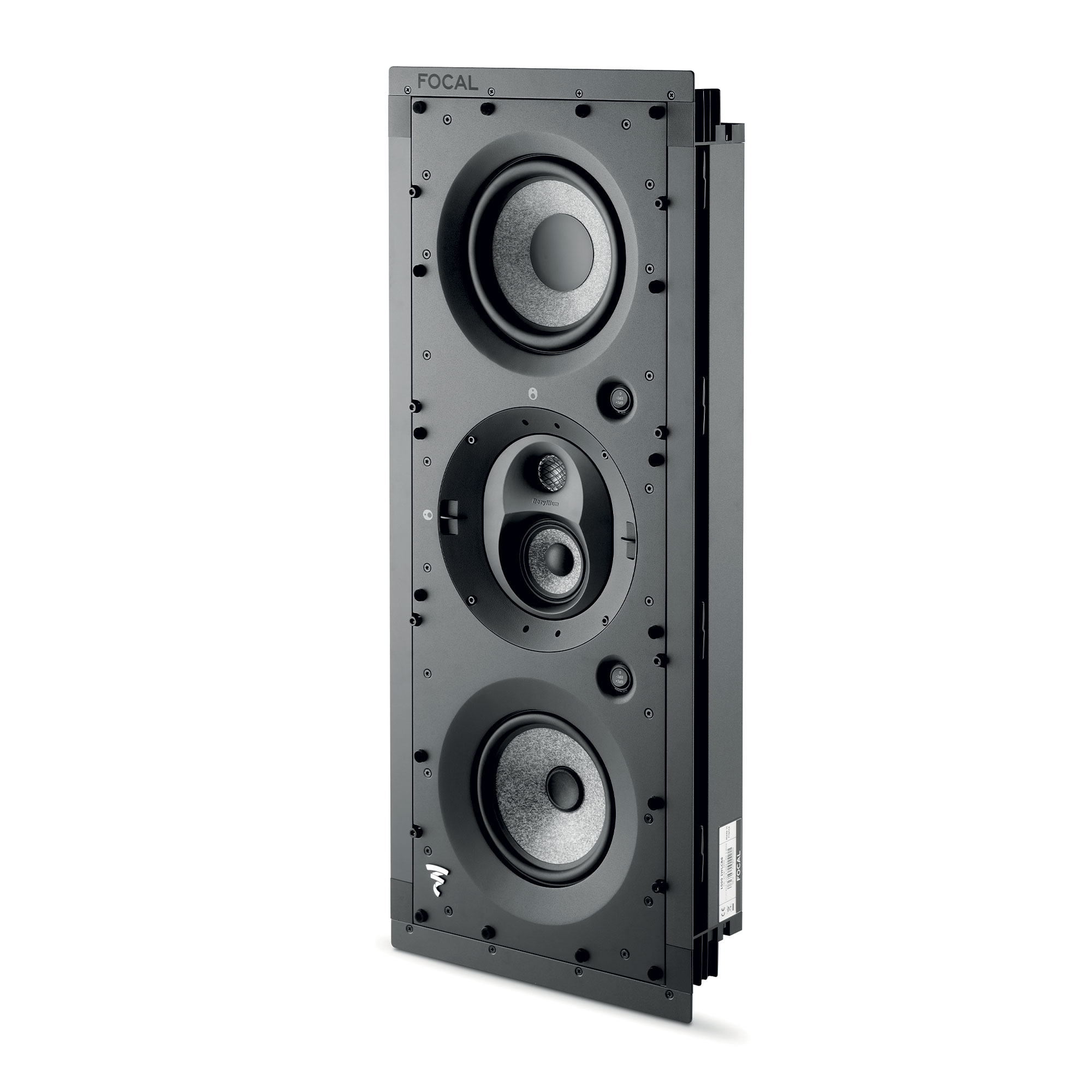

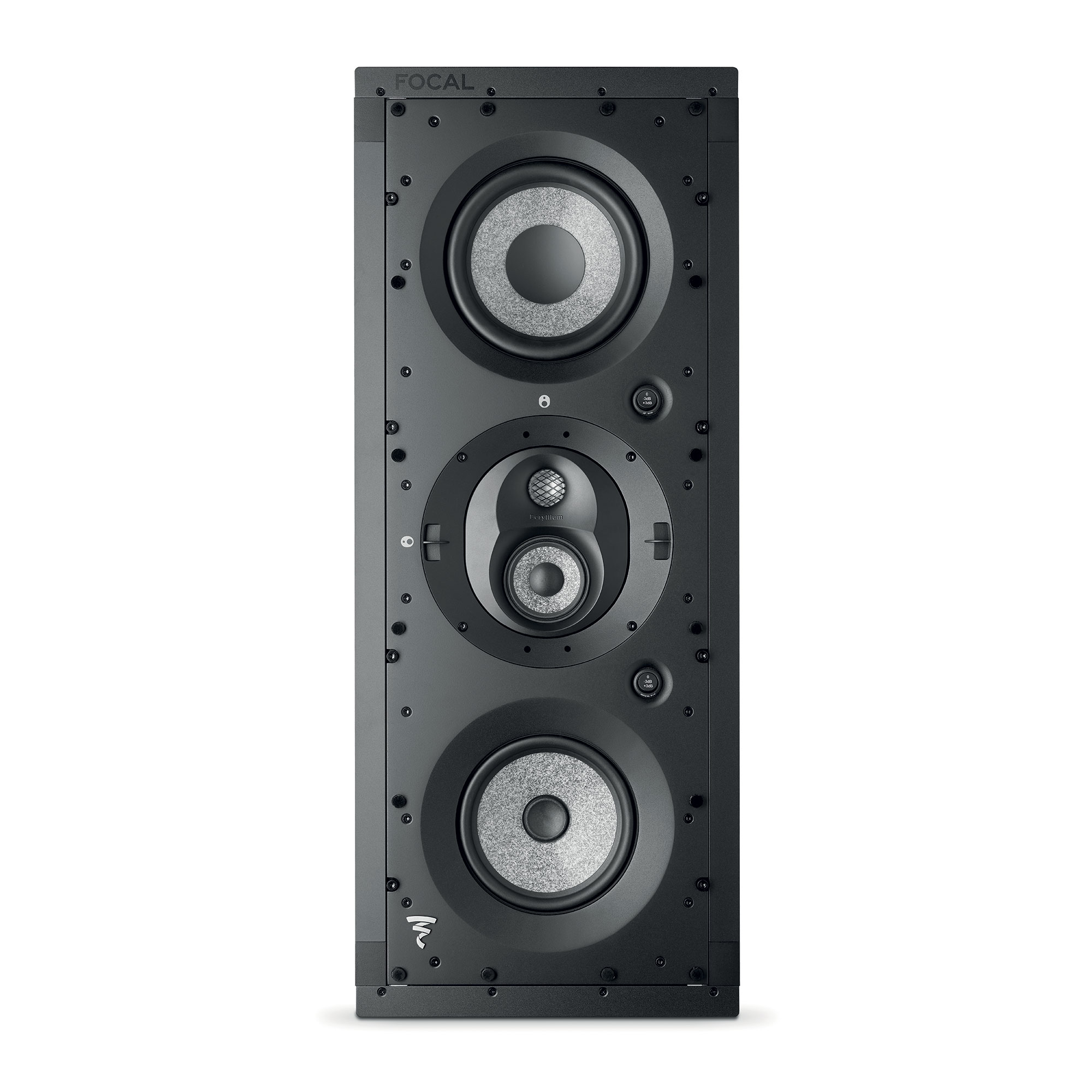

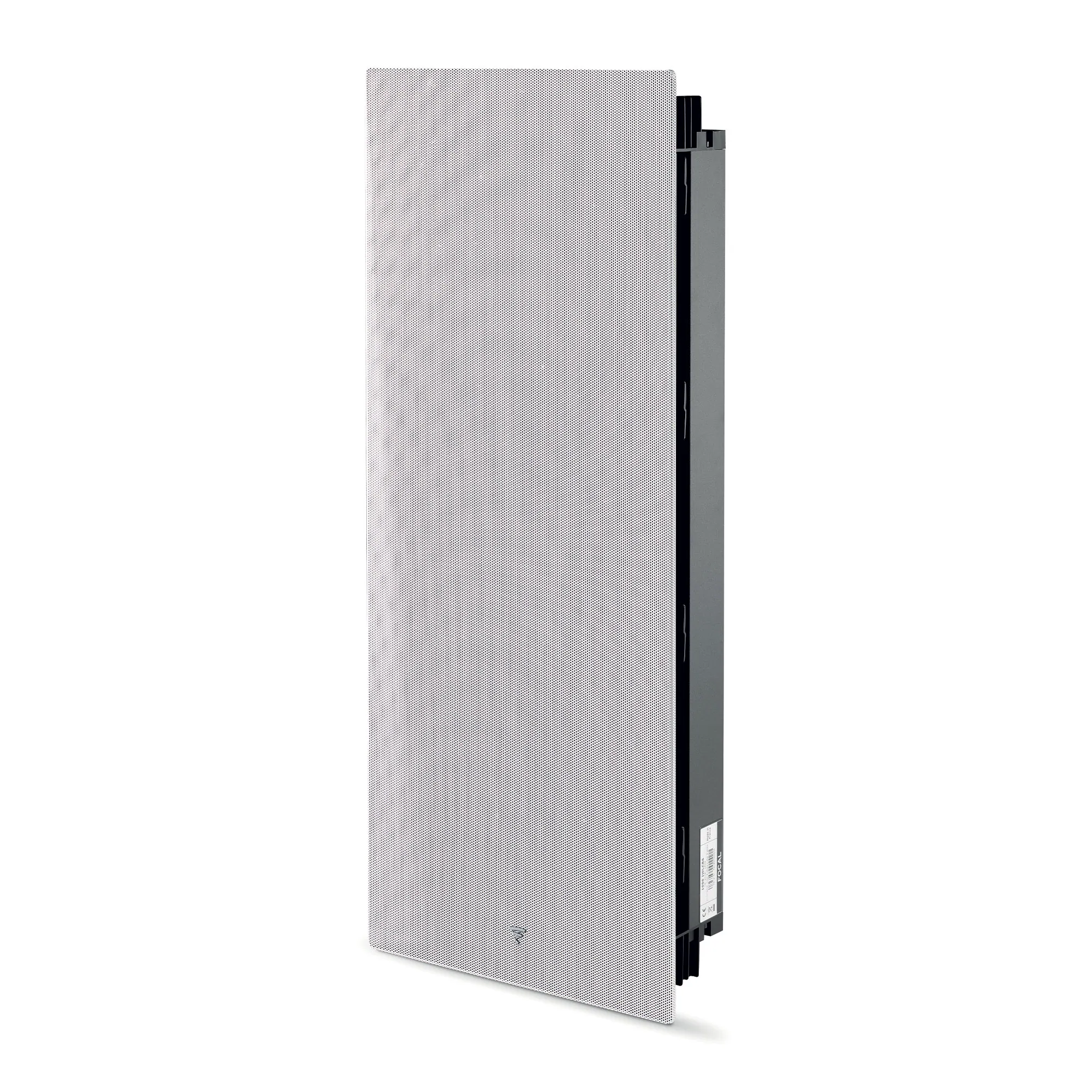

This 3-way in-wall speaker adds a passive radiator to its 6.5-inch W-cone bass driver, 3.125-inch W-cone midrange, and pure Beryllium tweeter. A rotatable mid-high plate targets the listening position, and the magnetically attached grille arrives ready to paint. Rated for left, center, or right duty.
Specifications
| Type of speaker | 3-way closed-back in-wall |
|---|---|
| Speaker drivers | 7 1/8 " (18cm) Passive radiator with 'W' cone | 6 1/2 " (16.5cm) Bass with 'W' cone, 3 1/8 " (8cm) | Midrange with 'W' cone | 1" (27mm) Pure Beryllium inverted dome tweeter |
| Sensitivity (2.83V/3 feet - 1m) | 91dB |
| Bandwidth (+/-3dB) | 48Hz - 40kHz |
| Low-frequency cut-off (-6dB) | 43Hz |
| Nominal impedance | 8 Ω |
| Minimal impedance | 2.9 Ω |
| Recommended amp power | 25 - 240W |
| Ext. size (H x L x D) | 29 3/4 x 12 x 4" (755 x 305 x 102mm) |
| Mounting dimensions (H x L) | 28 5/8 x 10 7/8 " (726 x 276mm) |
| Mounting depth | 4" (100mm) |
| Net weight (with grille) | 24.14lbs (10.95kg) |
| Box size (length x depth x height) | 15 3/8 x 35 7/8 x 8 1/2 " (390 x 910 x 215mm) |
| Total weight (with packaging) | 29.76lbs (13.5kg) |
