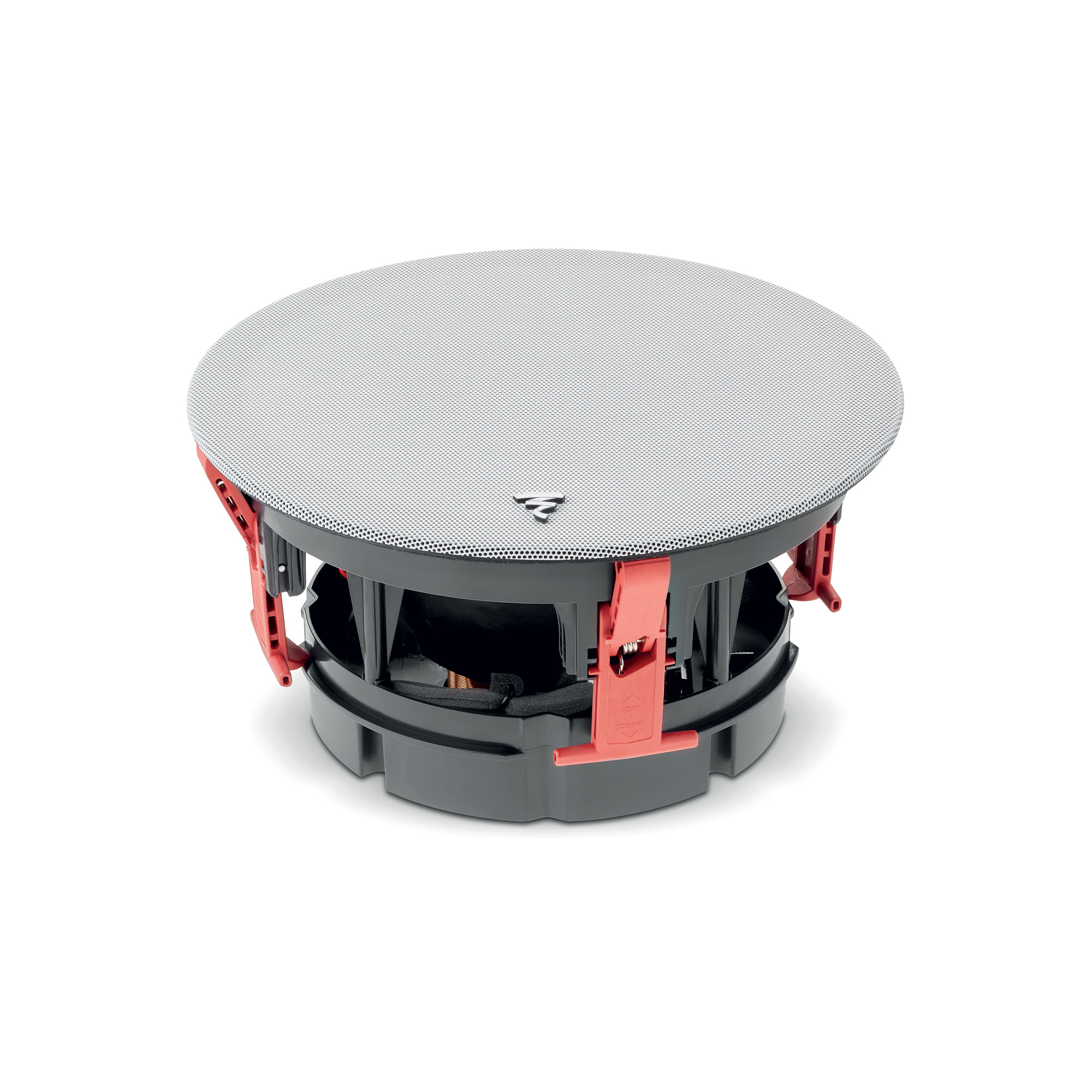

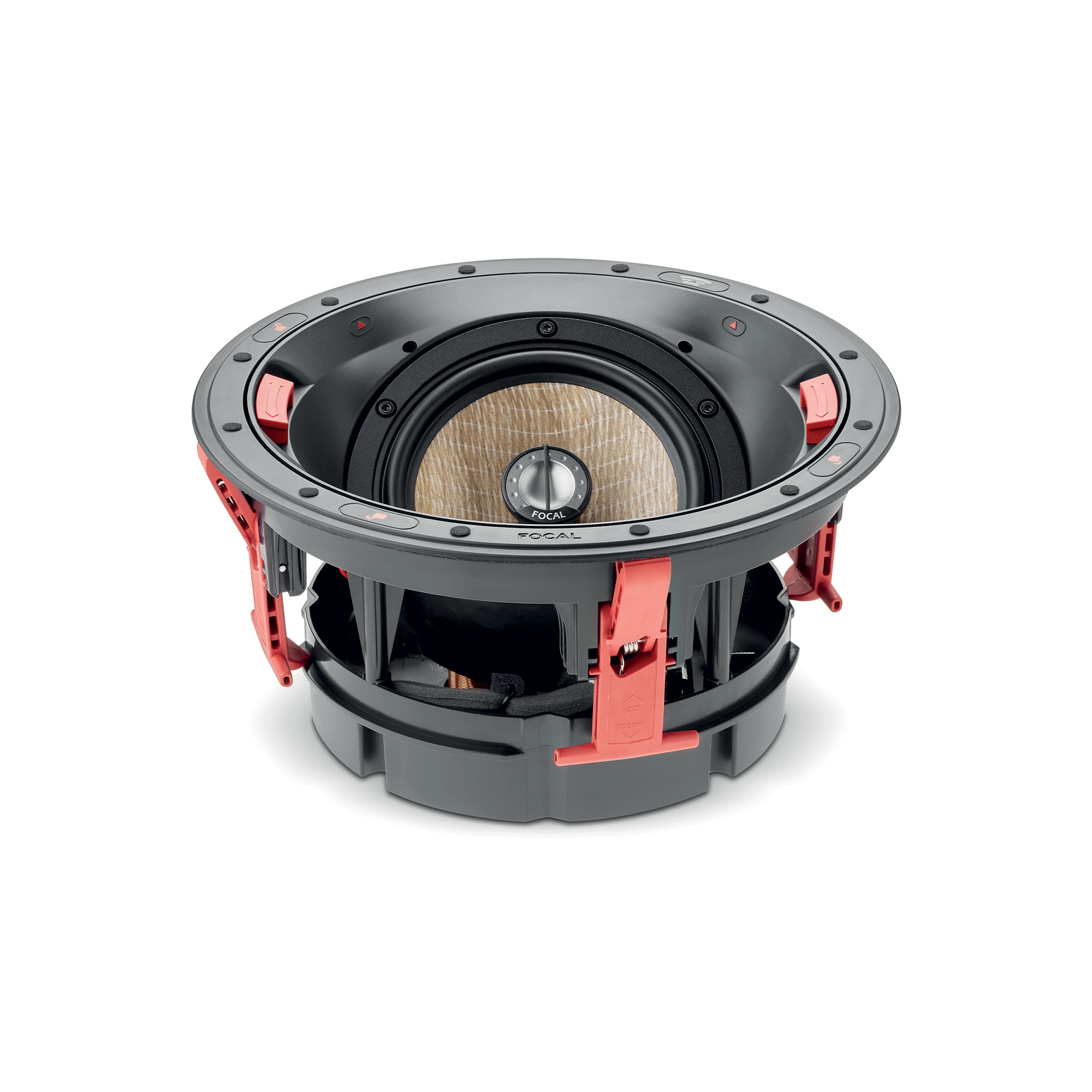

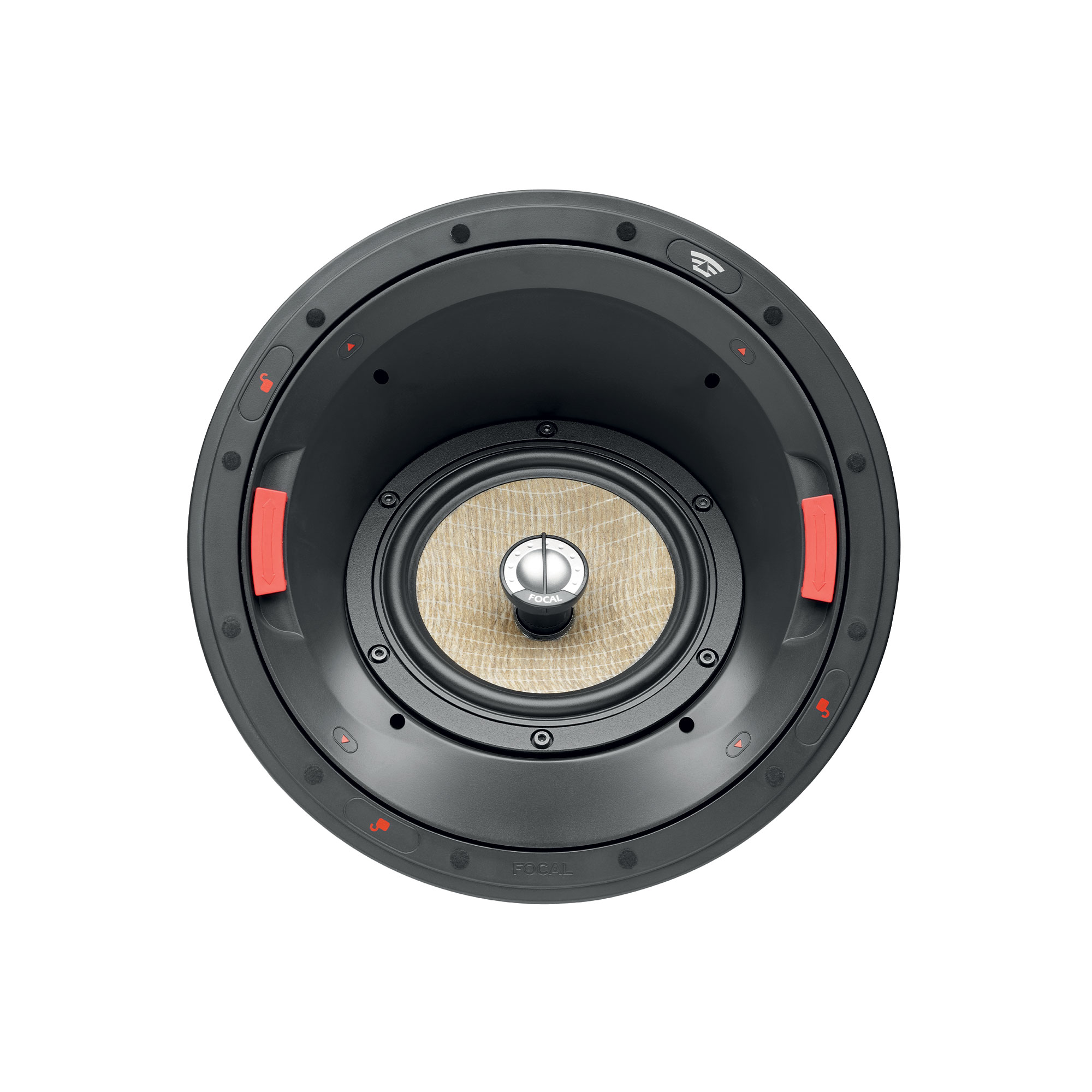

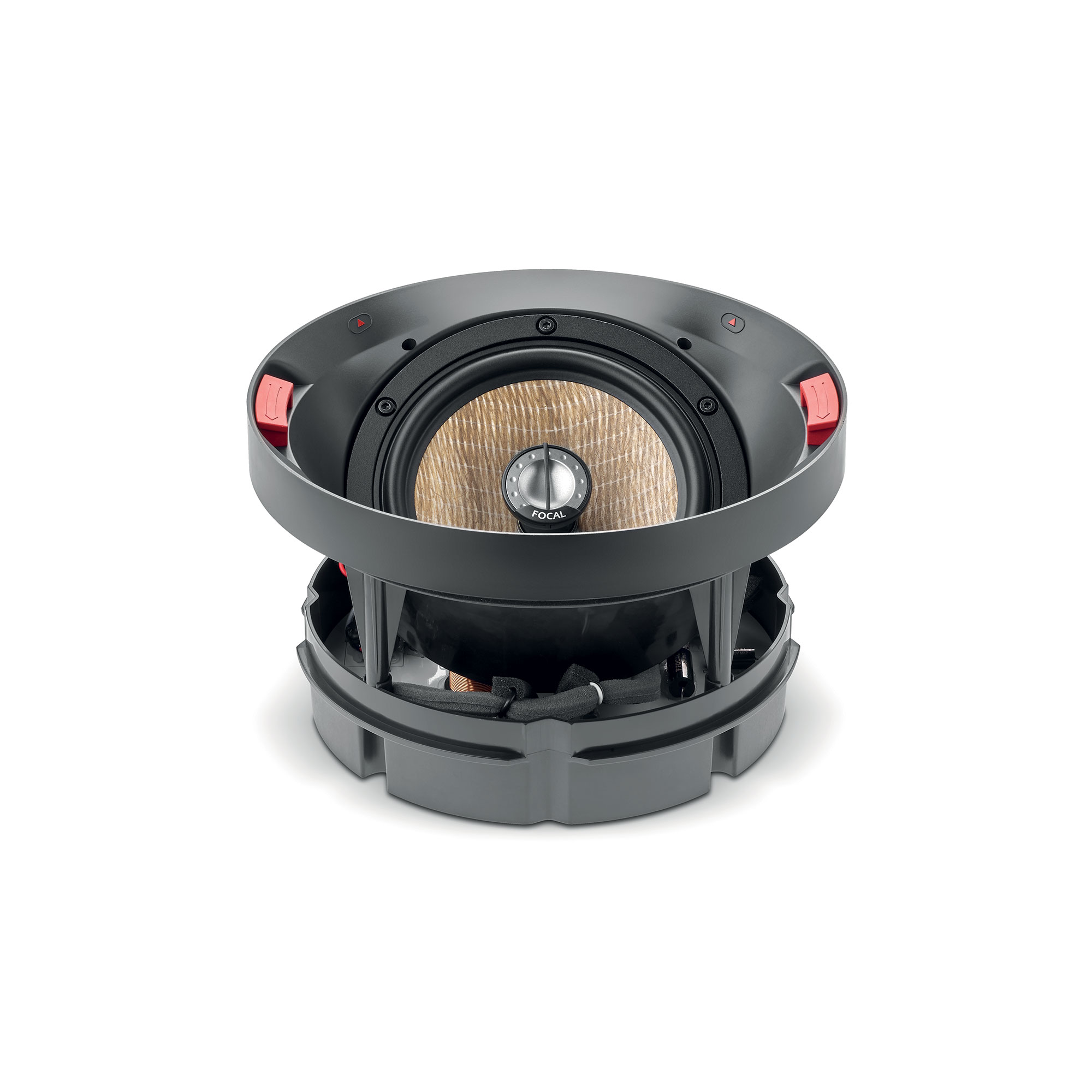

300 ICA6
An angled in-ceiling speaker with a 35-degree tilted driver, built for Dolby Atmos height channels.
fig. 01 · speakers
300 ICA6
6 photographs · 5 shown
From Focal
This 2-way in-ceiling coaxial speaker angles its 6.5-inch Flax mid-bass driver 35 degrees to aim sound at the listening position instead of straight down. Off-axis response control lets you adjust tweeter position and gain, and it installs without tools. Square and circular grilles arrive ready to paint.
Specifications
| Type of speaker | 2-way in-ceiling |
|---|---|
| Speaker drivers | 61/2" (16.5cm) Flax Mid-bass |
| Sensitivity (2.83V/1m) | 89.5dB |
| Bandwidth (+/-3dB) | 65Hz - 28kHz |
| Low-frequency cut-off (-6dB) | 45Hz |
| Nominal impedance | 8 Ω |
| Minimal impedance | 4.8 Ω |
| Recommended amp power | 25 - 130W |
| Size (Ø x depth) | 113/4x5" (299x127mm) |
| Mounting diameter (Ø) | 103/8" (264mm) |
| Depth from wall | 53/4" (146mm) |
| Ceiling thickness (min - max) | 3/8 - 13/8" (10mm - 35mm) |
| Net weight (with grille) | 6.6 lbs (3kg) |
| Box size (WxDxH) | 143/4x143/4x133/8" (375x375x340mm) |
| Total weight (with packaging) | 11.7 lbs (5.3kg) |
| Recommended Limiter Threshold | 6,1V RMS |
| Recommended Limiter Attack Time | 0ms |
| Recommended Limiter Release Time | 150ms |
| Recommanded High-pass filter | 35Hz Linkwitz-Riley 12 dB/octave |
