300 ICLCR 5
A 3-way in-ceiling LCR speaker with dual Flax woofers, built for home theater rooms with no rear wall for speakers.
fig. 01 · speakers
300 ICLCR 5
6 photographs · 5 shown
From Focal

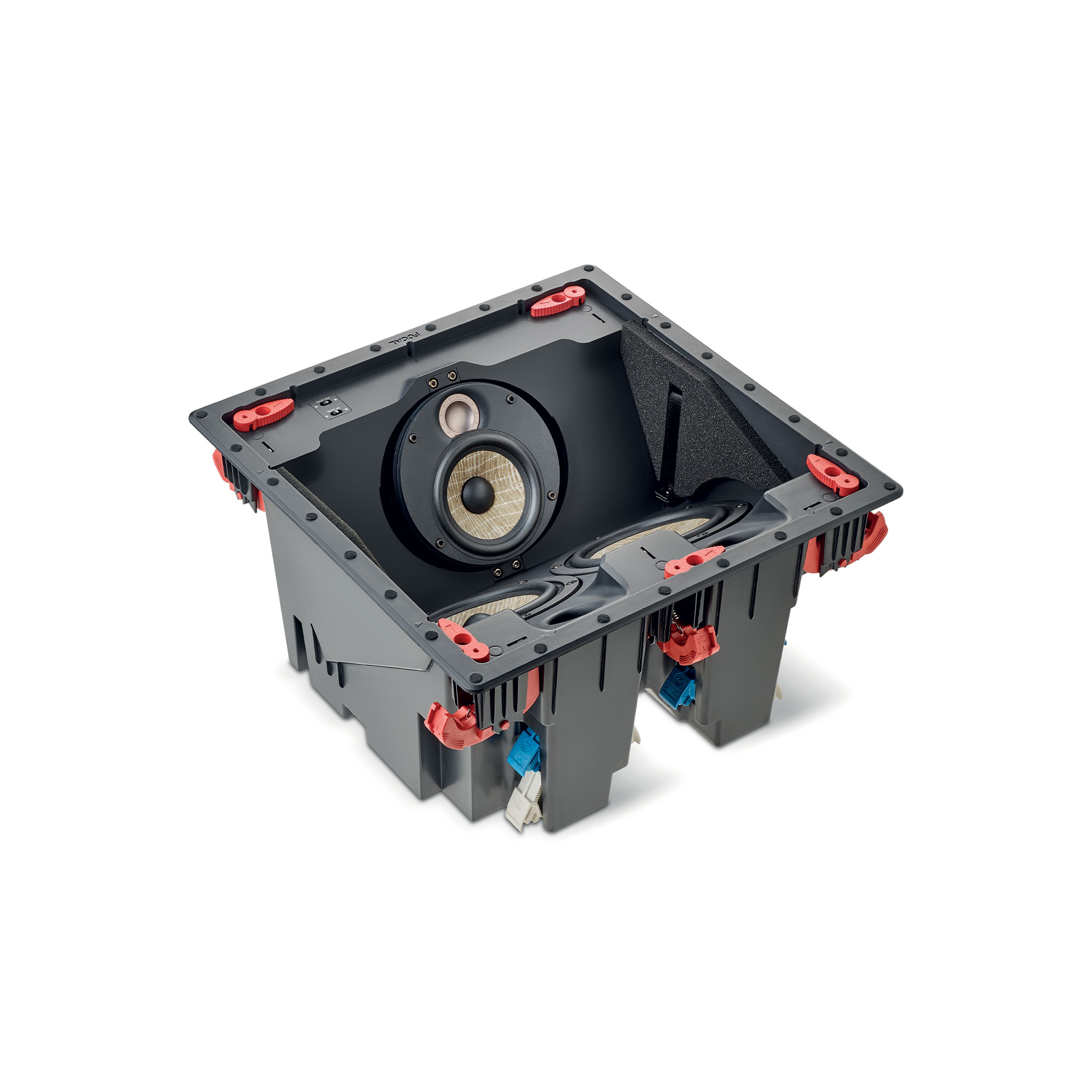

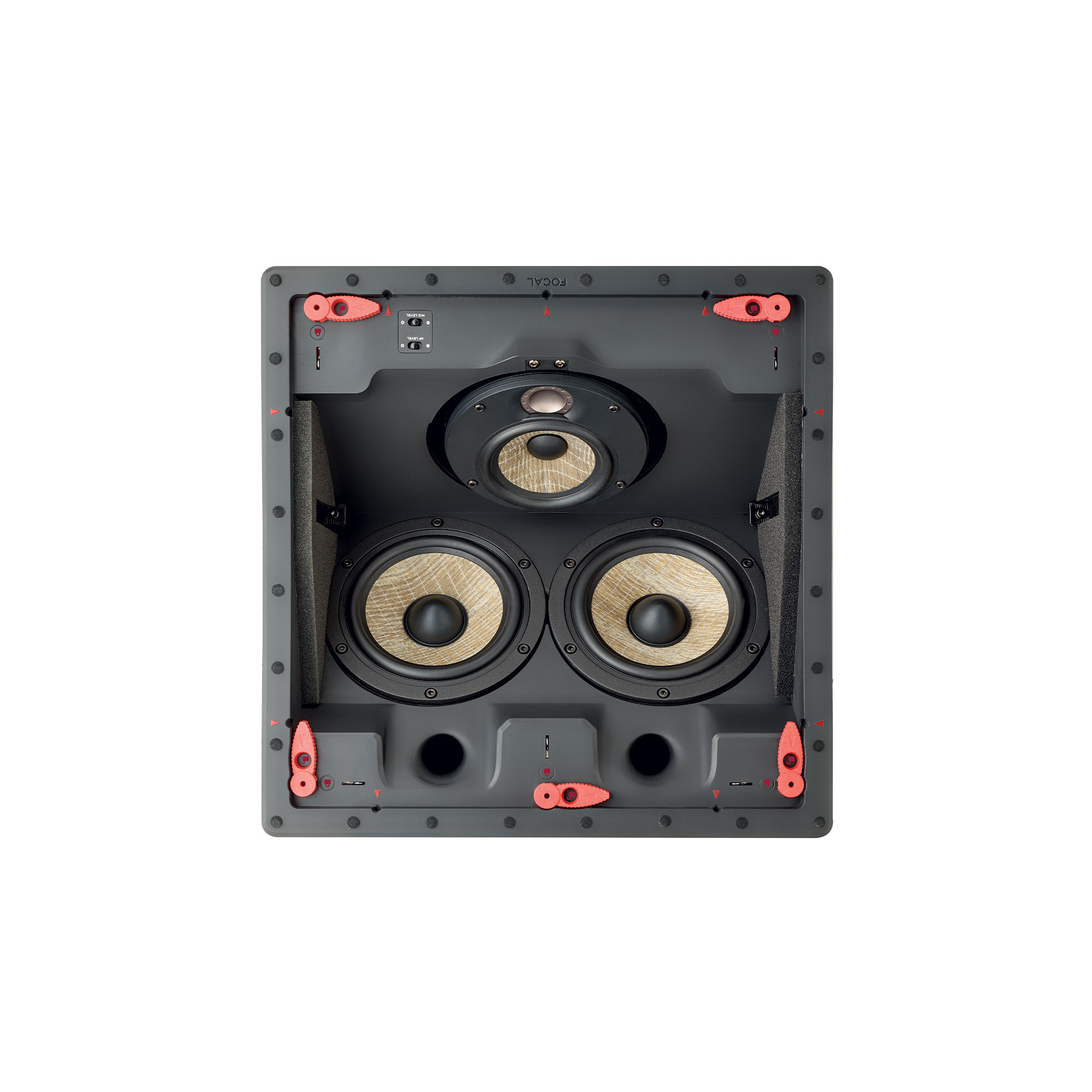

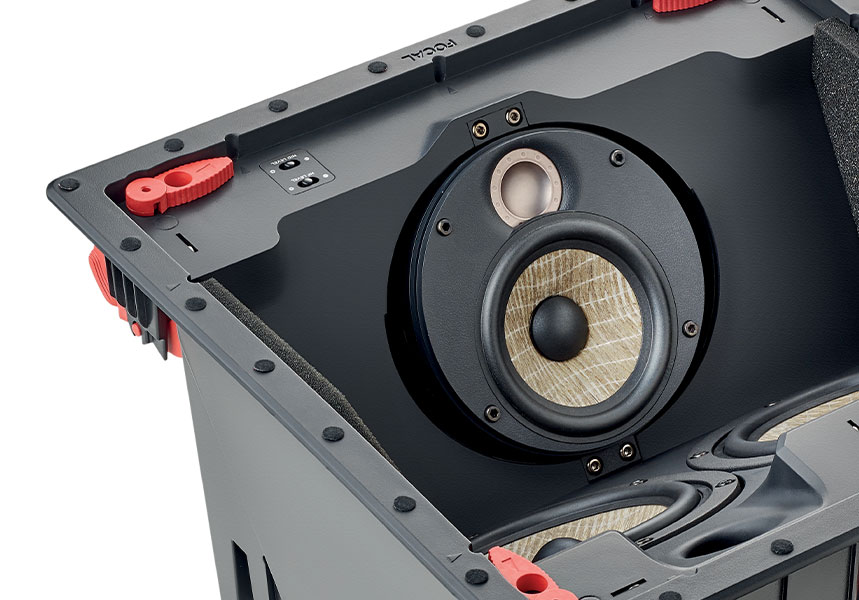

This 3-way in-ceiling speaker pairs two 5-inch Flax woofers and a 4-inch Flax midrange with an aluminum/magnesium tweeter. An adjustable mid-treble plate aims sound at the listening position, and it installs without tools. Rated for five roles: front left, center, or right, and rear left or right.
Specifications
| Type | 3-way in-ceiling |
|---|---|
| Drivers | 2 x 5" (13cm) Flax woofers, 4" (10cm) Flax midrange, | 1" (25mm) Al/Mg inverted dome tweeter |
| Sensitivity (2,83 V/1 m) | 91dB |
| Frequency response (+/-3 dB) | 55Hz - 28kHz |
| Low frequency point (-6 dB) | 45Hz |
| Nominal impedance | 8Ω |
| Minimal impedance | 2,9Ω |
| Recommended amplifier power | 50 - 150W |
| External dimensions (HxWxD)) | 149/16" x 149/16" x 711/16" (370 x 370 x 195mm) |
| Cut-Out diameter (HxL) | 133/8" x 133/8" (340 x 340mm) |
| Depth from wall | 71/2" (190mm) |
| Net weight (with front grille) | 16.3 lbs (7.4kg) |
| Packing dimensions (WxDxH) | 185/16" x 185/16" x 111/16" (465 x 465 x 281mm) |
| Total weight (with packaging) | 20.9 lbs (9.5kg) |
| Recommended Limiter Threshold | 15,2 V RMS |
| Recommended Limiter Attack Time | 0ms |
| Recommended Limiter Release Time | 150ms |
| Recommanded High-pass filter | 35 Hz Linkwitz-Riley 12 dB/octave |
