Focal · Speakers · In-wall & In-ceiling Speakers
300 ICW4

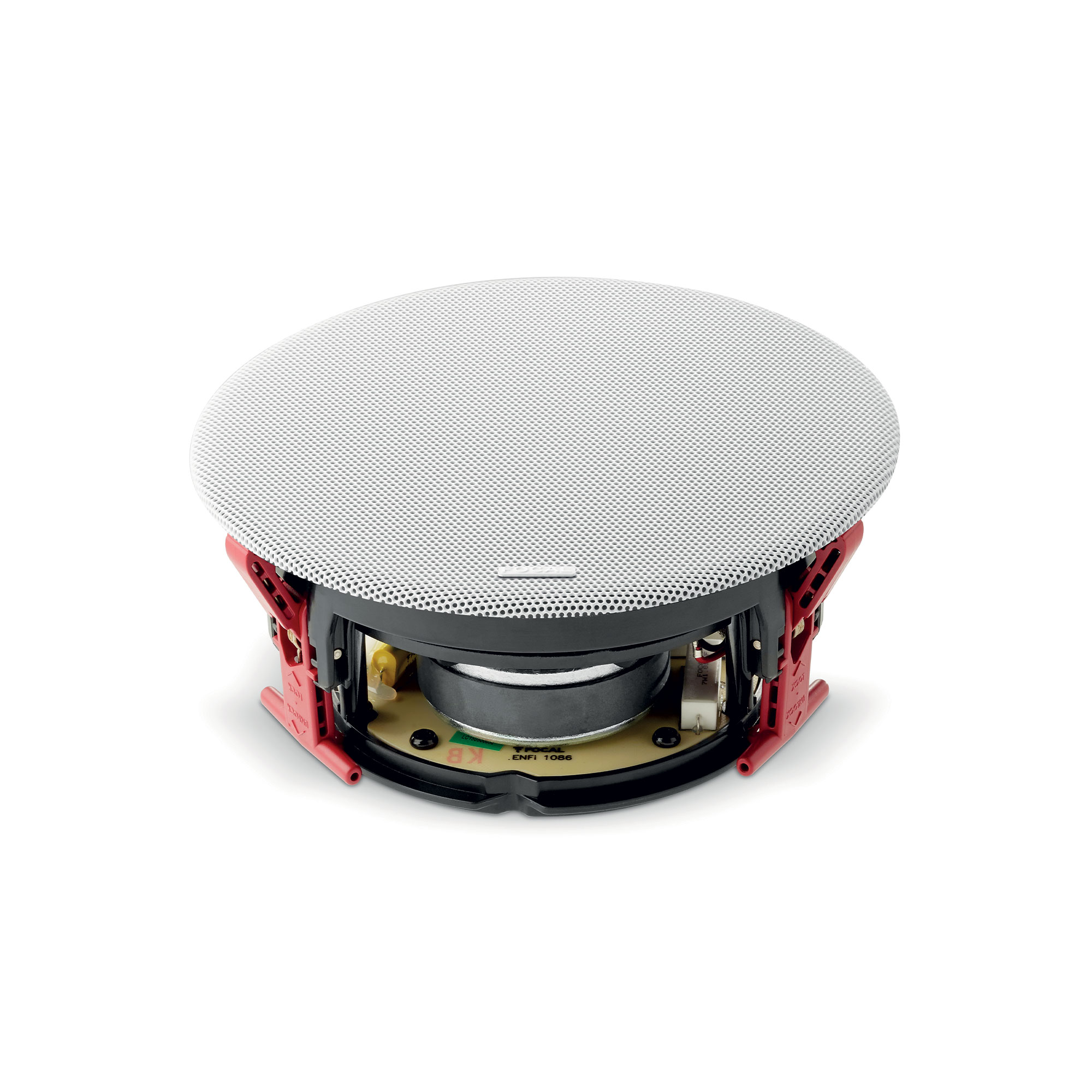

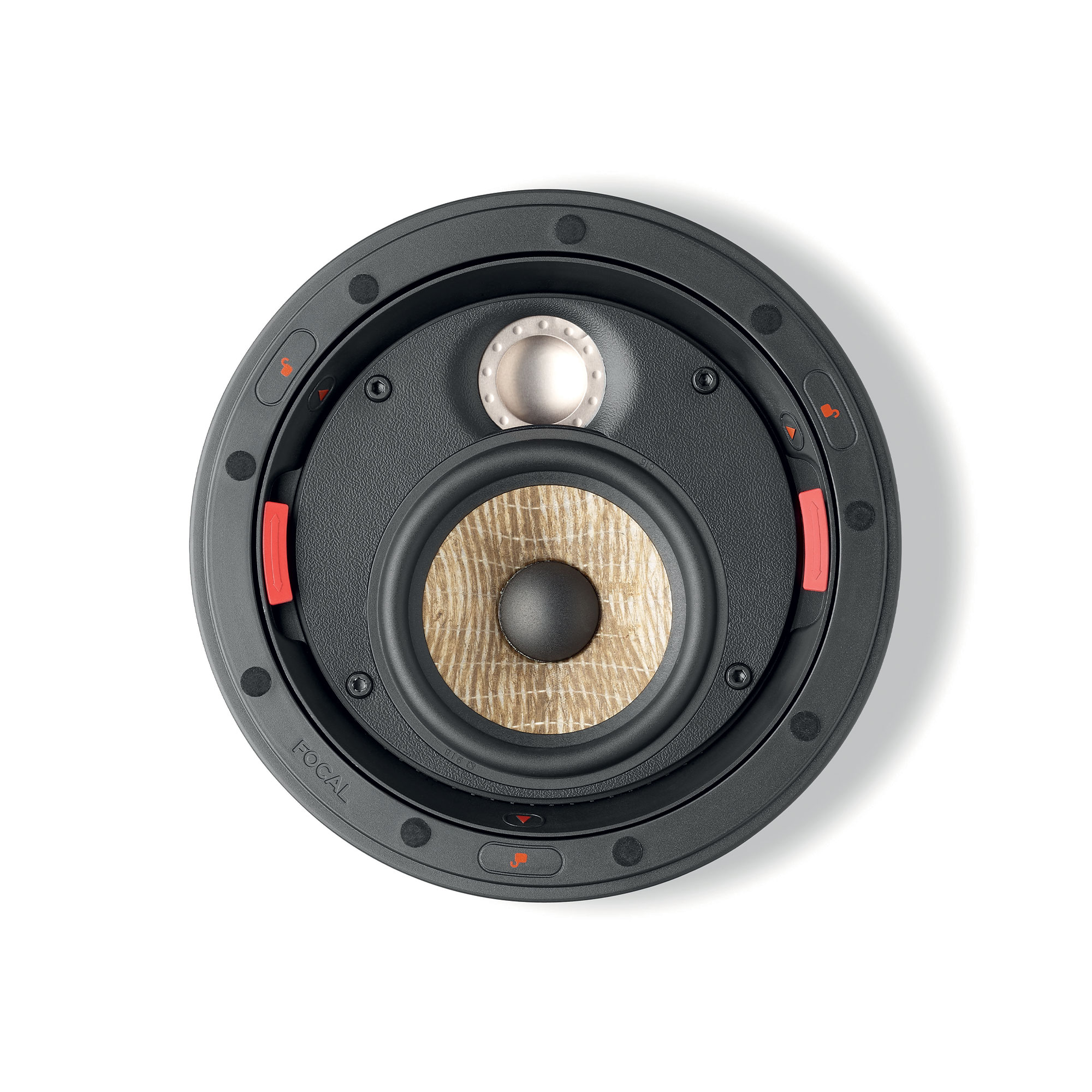

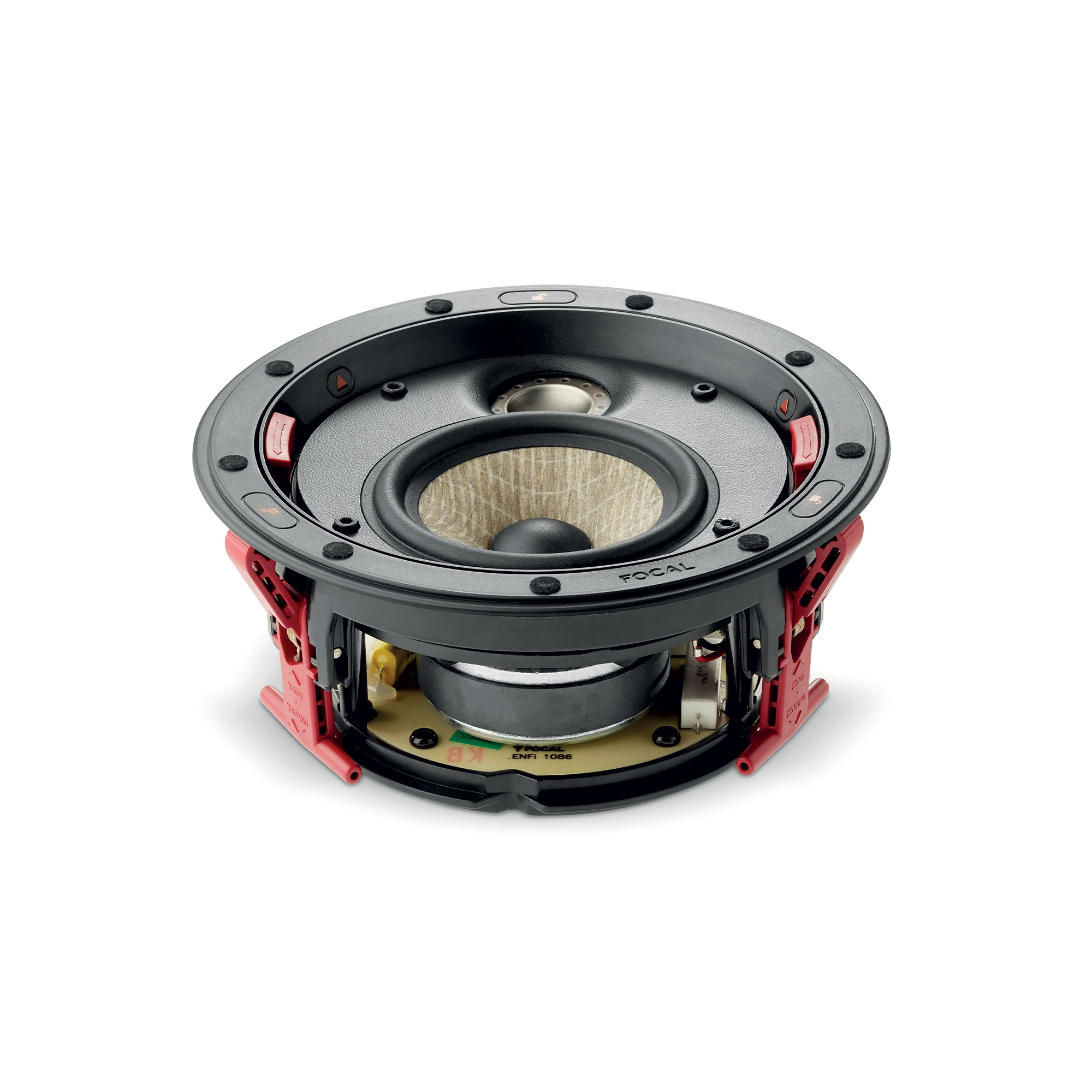

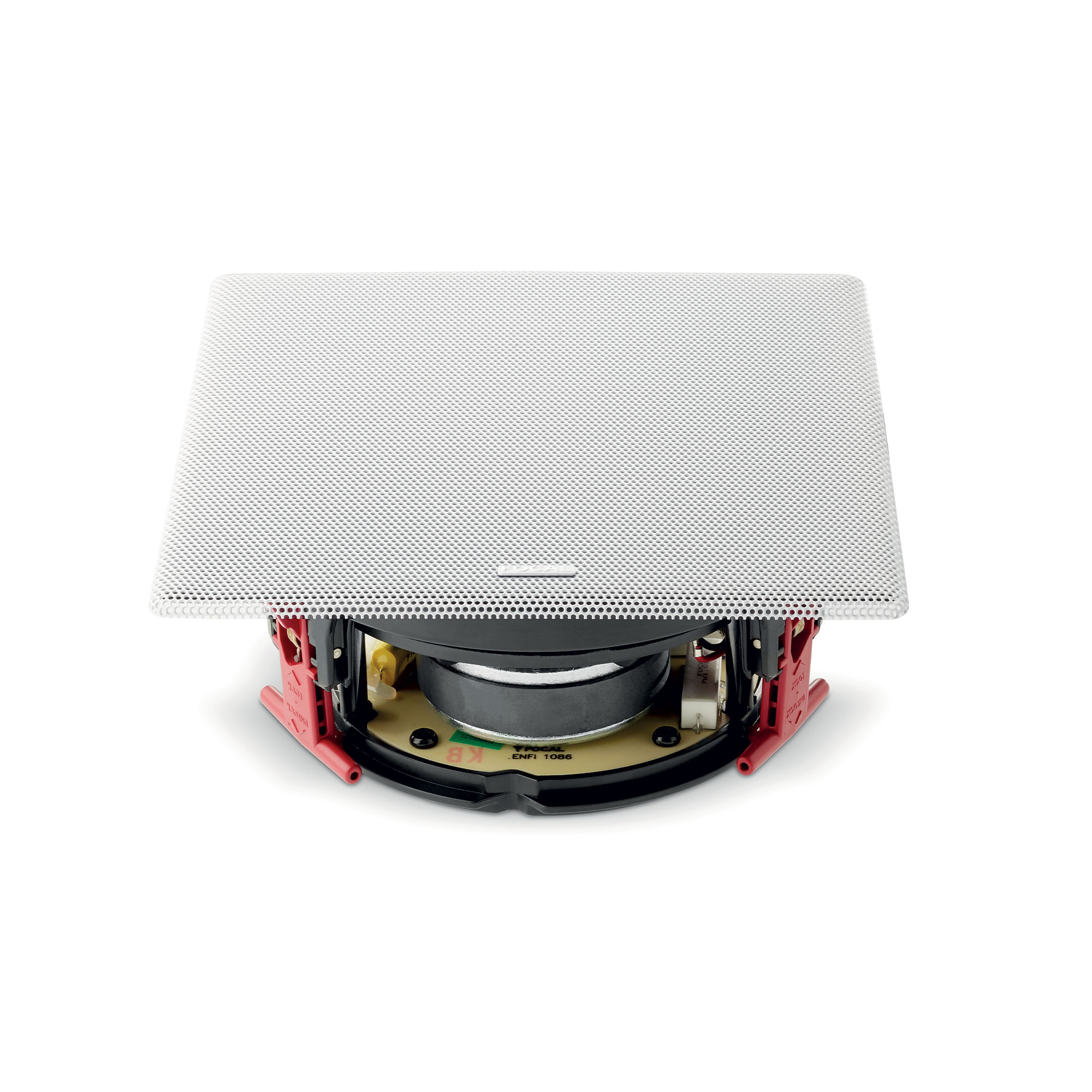

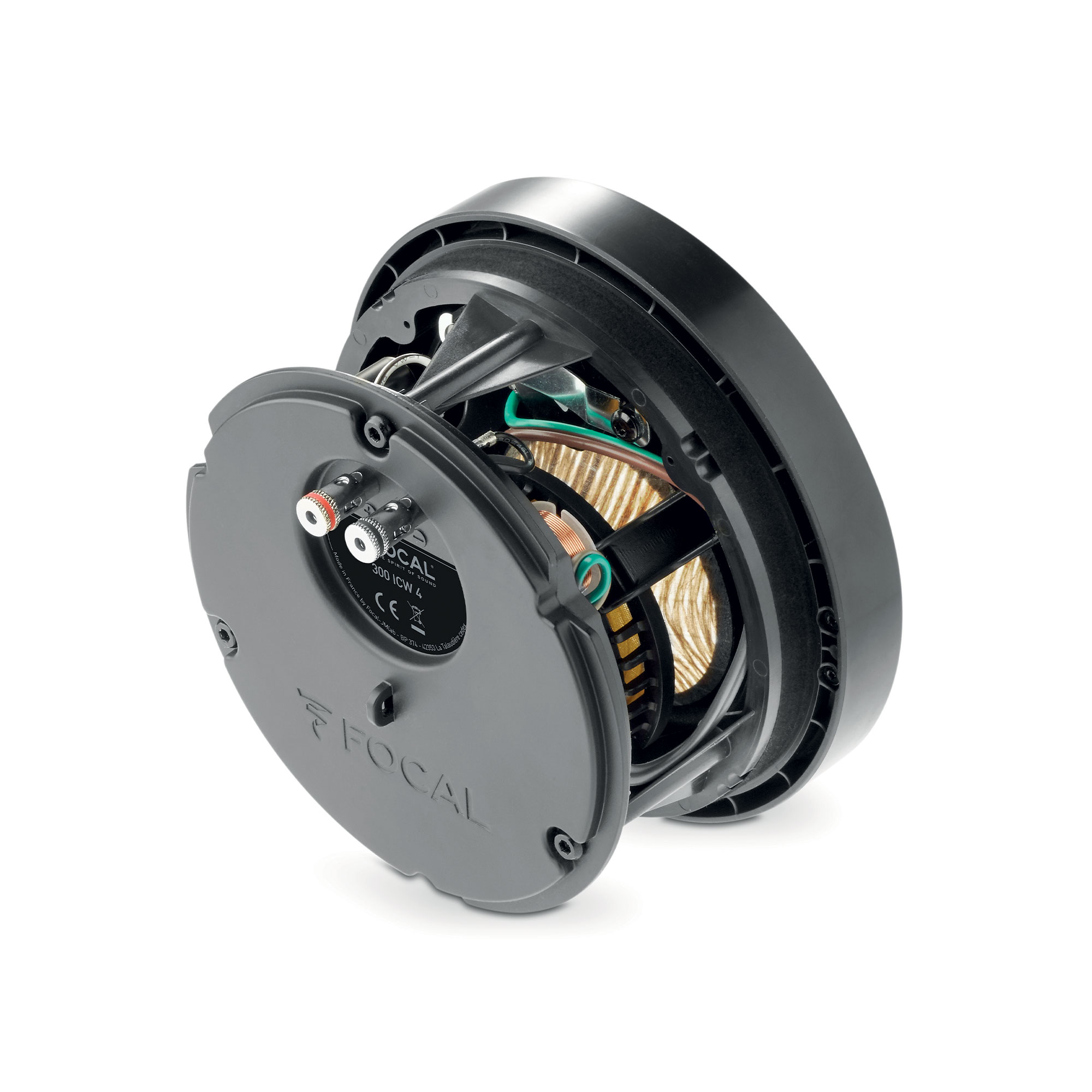

The 300 ICW4 is a compact 2-way speaker for flush mounting in walls or ceilings, built around a 4-inch Flax mid-bass driver.
fig. 01 · speakers
300 ICW4
6 photographs · 5 shown
From Focal
The 300 ICW4 is the most compact model in Focal's 300 Series, built for flush mounting in walls or ceilings. Its 4-inch Flax mid-bass driver and 2-way design deliver 88dB sensitivity. It installs without tools and ships with paintable round and square grilles.
Specifications
| Type of speaker | 2-way |
|---|---|
| Speaker drivers | 4" (10cm) Flax Mid-bass |
| Sensitivity (2.83V/1m) | 88dB |
| Frequençy response (+/-3dB) | 80Hz - 28kHz |
| Low-frequency cut-off (-6dB) | 72Hz |
| Nominal impedance | 8 Ω |
| Minimal impedance | 4.5 Ω |
| Recommended amp power | 25 - 100W |
| Dimensions (Ø/depth) | 79⁄16 x 355/64" (192x98mm) |
| Cut-Out diameter | 627/64" (163mm) |
| Depth behind surface | 321⁄32" (93mm) |
| Net weight (with grille) | 2.6 lbs (1.3kg) |
| Box size (WxDxH) | 1015⁄64 x 1015⁄64 x 927⁄32" (260x260x250mm) |
| Total weight (with packaging) | 5.07 lbs (2.3kg) |
| Recommended Limiter Threshold | 6,8V RMS |
| Recommended Limiter Attack Time | 0ms |
| Recommended Limiter Release Time | 150ms |
| Recommanded High-pass filter | 40Hz Linkwitz-Riley 12 dB/octave |
