Focal · Speakers · In-wall & In-ceiling Speakers
300 ICW6

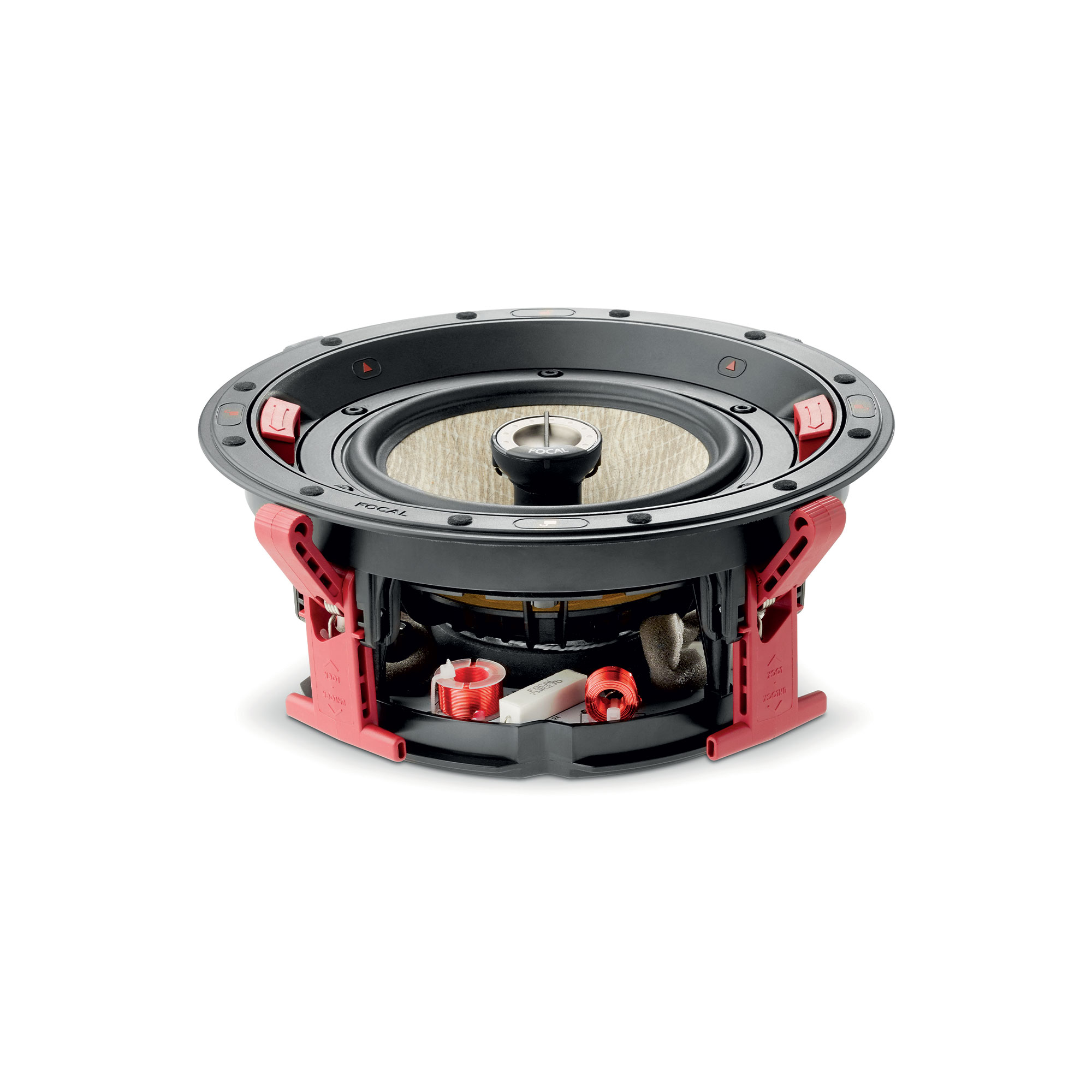

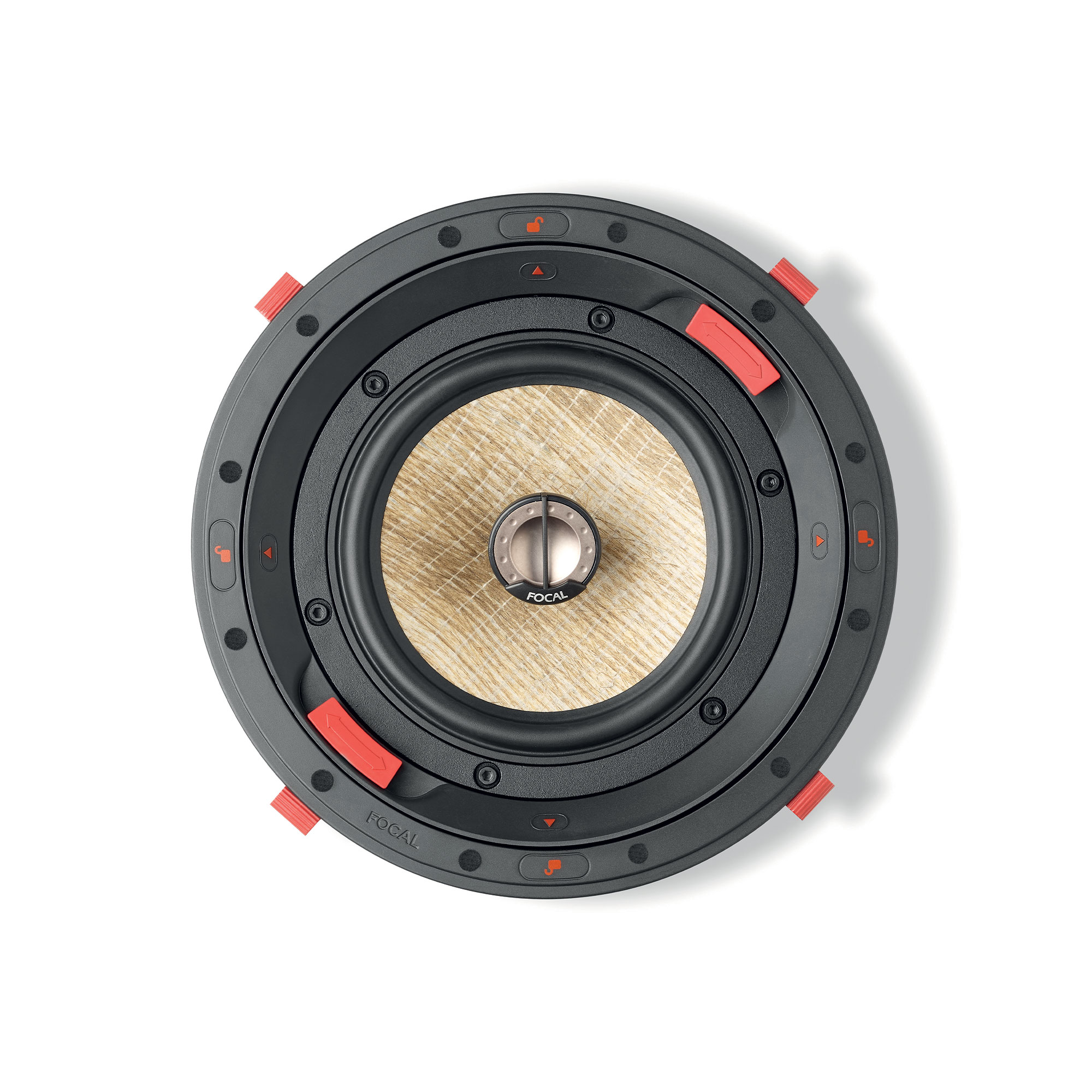

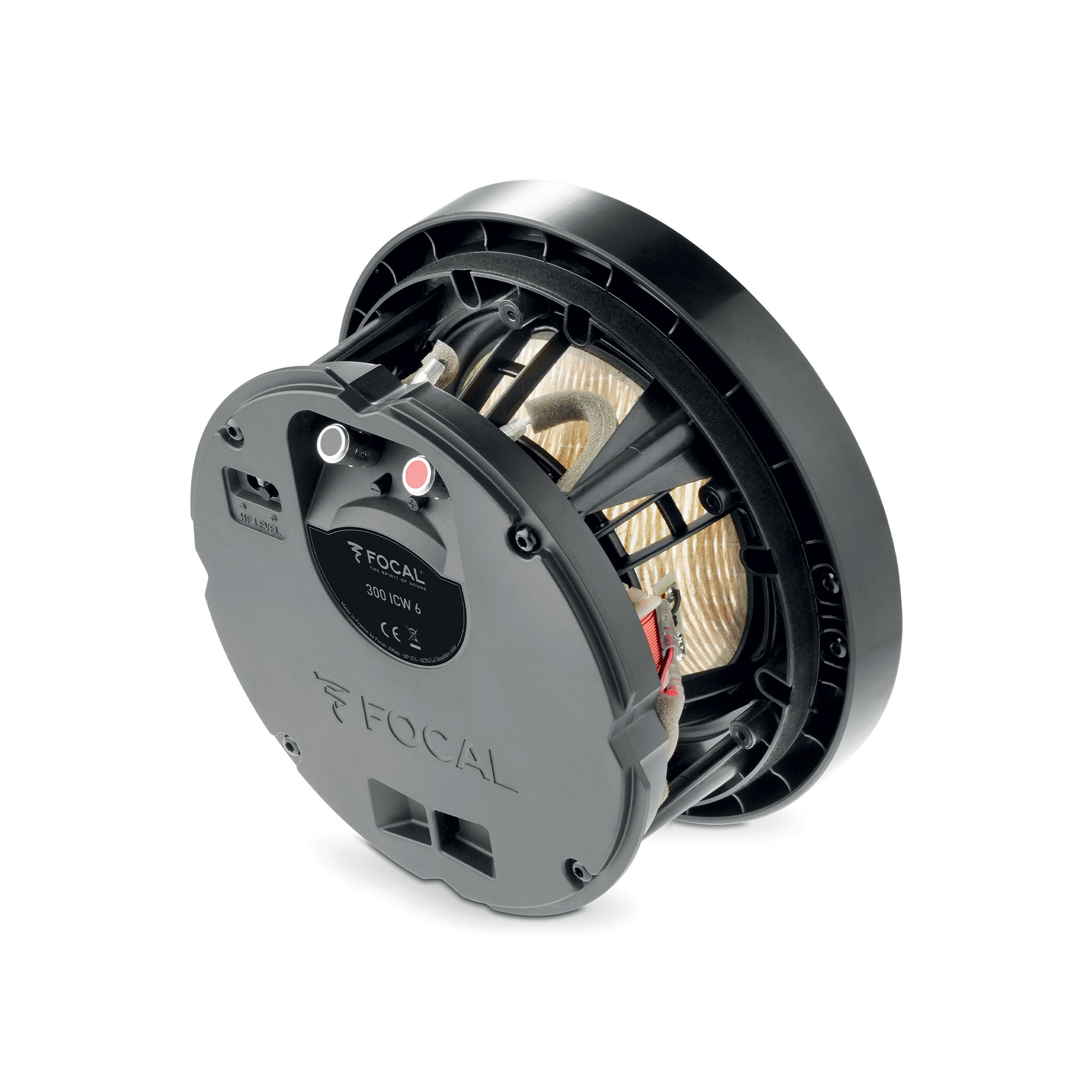

The 300 ICW6 is a 2-way speaker with a 6.5-inch Flax mid-bass driver that mounts flush in walls or ceilings alike.
fig. 01 · speakers
300 ICW6
6 photographs · 5 shown
From Focal

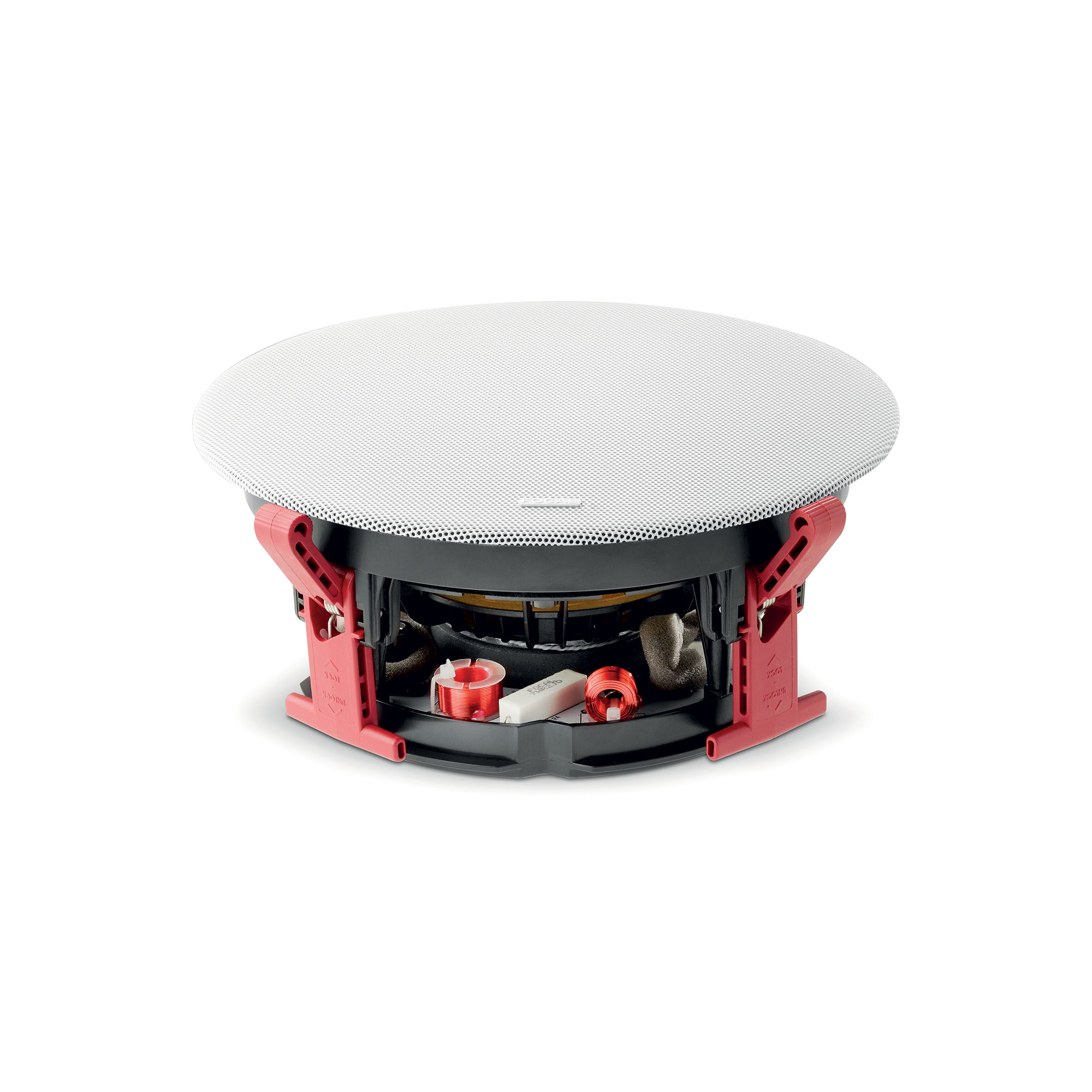

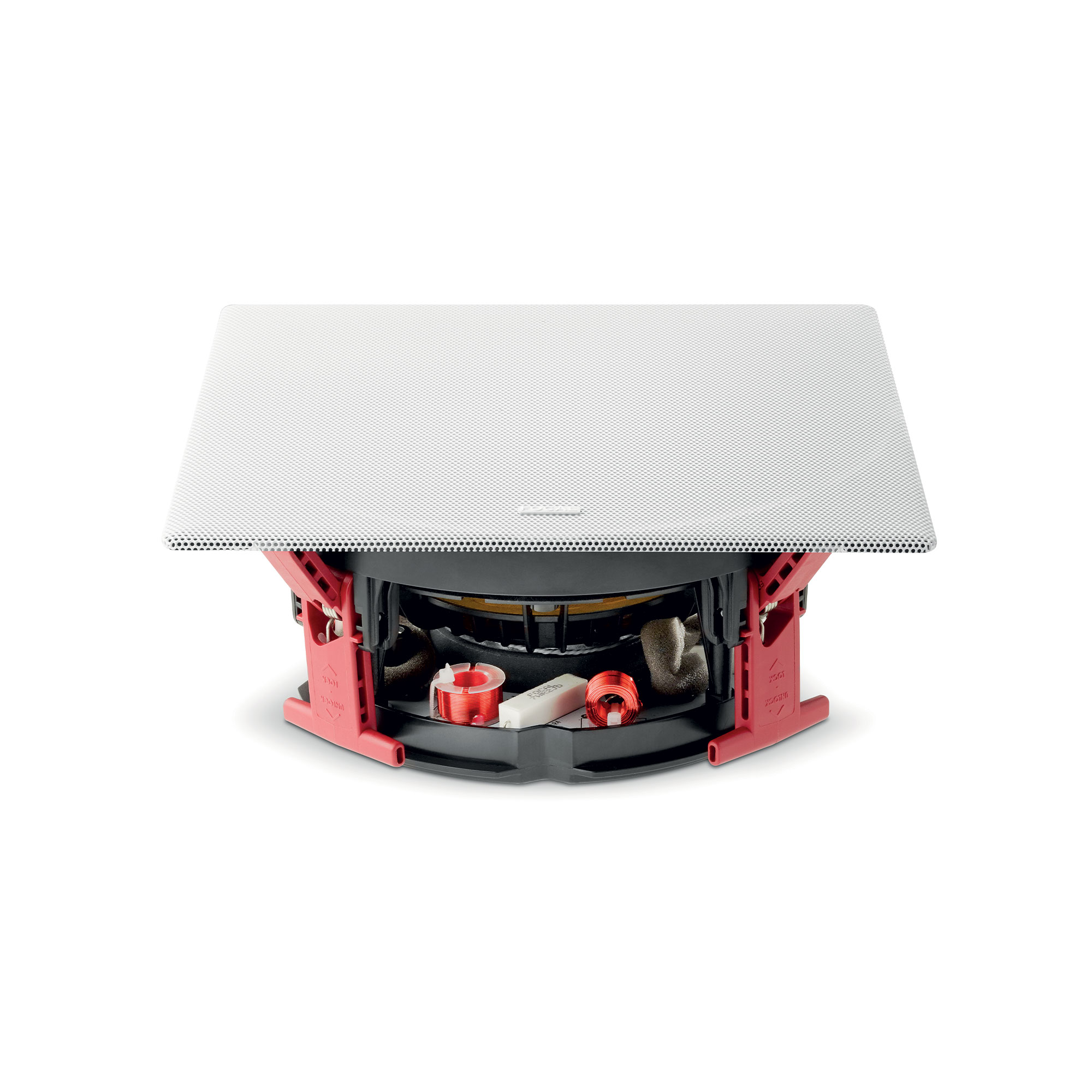

The 300 ICW6 installs in walls or ceilings for hi-fi or home theater rooms. Its 6.5-inch Flax mid-bass driver and 2-way design reach 89dB sensitivity, with a tweeter that rotates and adjusts gain for off-axis listening. It ships with paintable round and square grilles and needs no tools.
Specifications
| Type of speaker | 2-way |
|---|---|
| Speaker drivers | 61⁄2" (16.5cm) Flax Mid-bass |
| Sensitivity (2.83V/1m) | 89dB |
| Frequençy response (+/-3dB) | 65Hz - 28kHz |
| Low-frequency cut-off (-6dB) | 45Hz |
| Nominal impedance | 8 Ω |
| Minimal impedance | 4.8 Ω |
| Recommended amp power | 25 - 130W |
| Dimensions (Ø/depth) | 939⁄64 x 49⁄64" (244x105mm) |
| Cut-Out diameter | 81⁄2" (216mm) |
| Depth behind surface | 315⁄16" (100mm) |
| Net weight (with grille) | 5.29 lbs (2.4kg) |
| Box size (WxDxH) | 1213⁄64 x 1213⁄64 x 105⁄8 (310x310x270mm) |
| Total weight (with packaging) | 8.6 lbs (3.9kg) |
| Recommended Limiter Threshold | 7,6V RMS |
| Recommended Limiter Attack Time | 0ms |
| Recommended Limiter Release Time | 150ms |
| Recommanded High-pass filter | 35Hz Linkwitz-Riley 12 dB/octave |
