300 ICW8
The 300 ICW8 is a 2-way speaker with an 8-inch Flax driver and adjustable aluminum/magnesium tweeter, for walls or ceilings.
fig. 01 · speakers

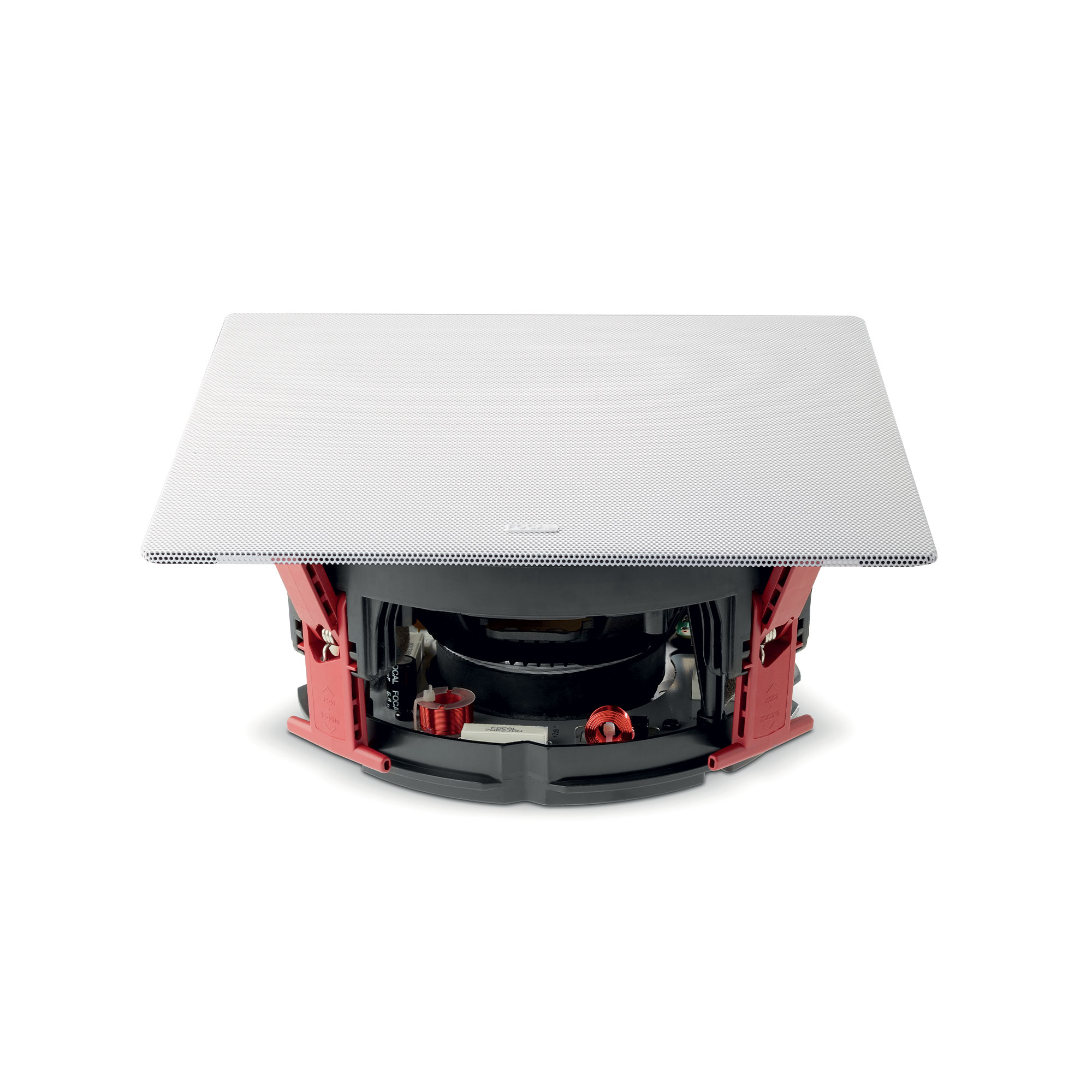

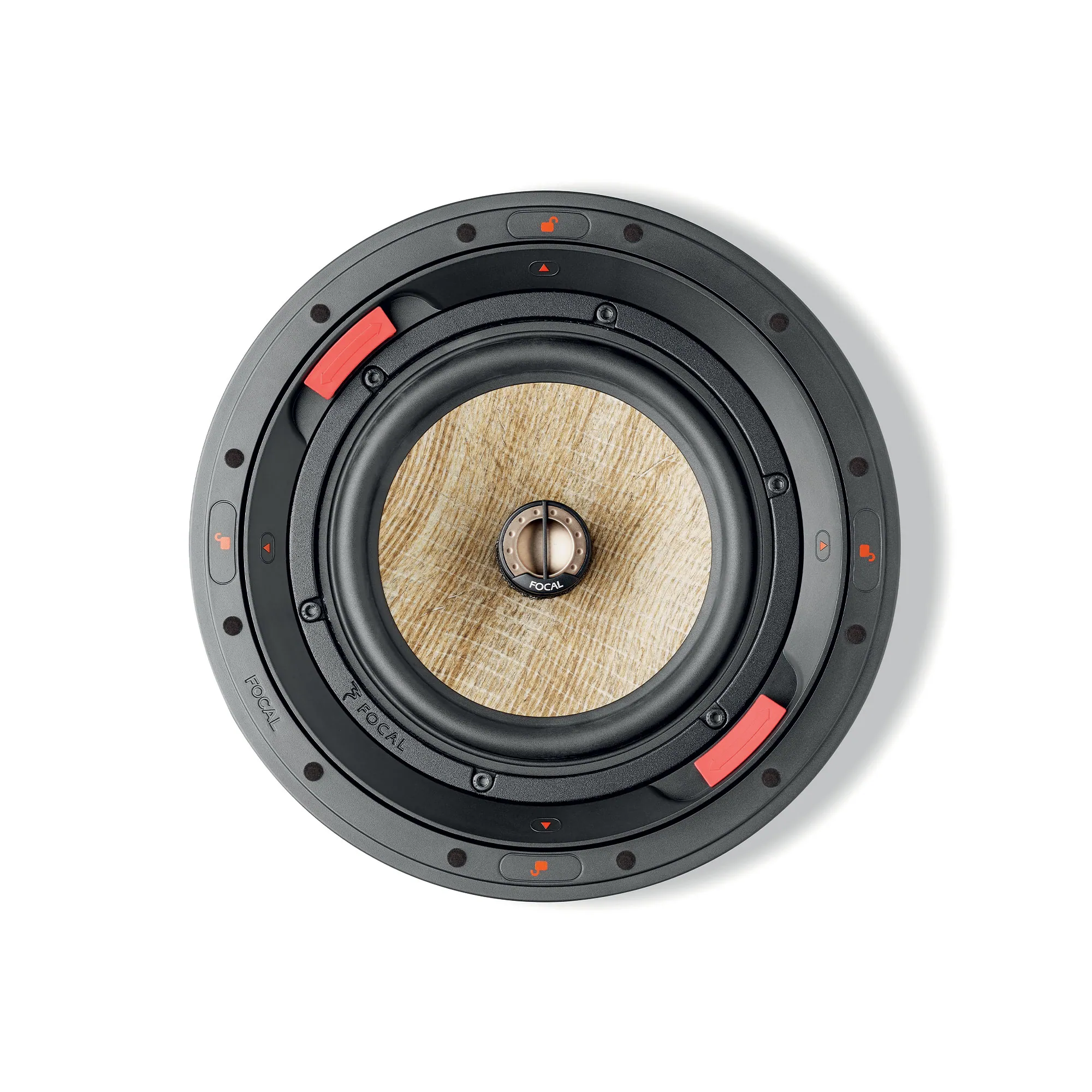

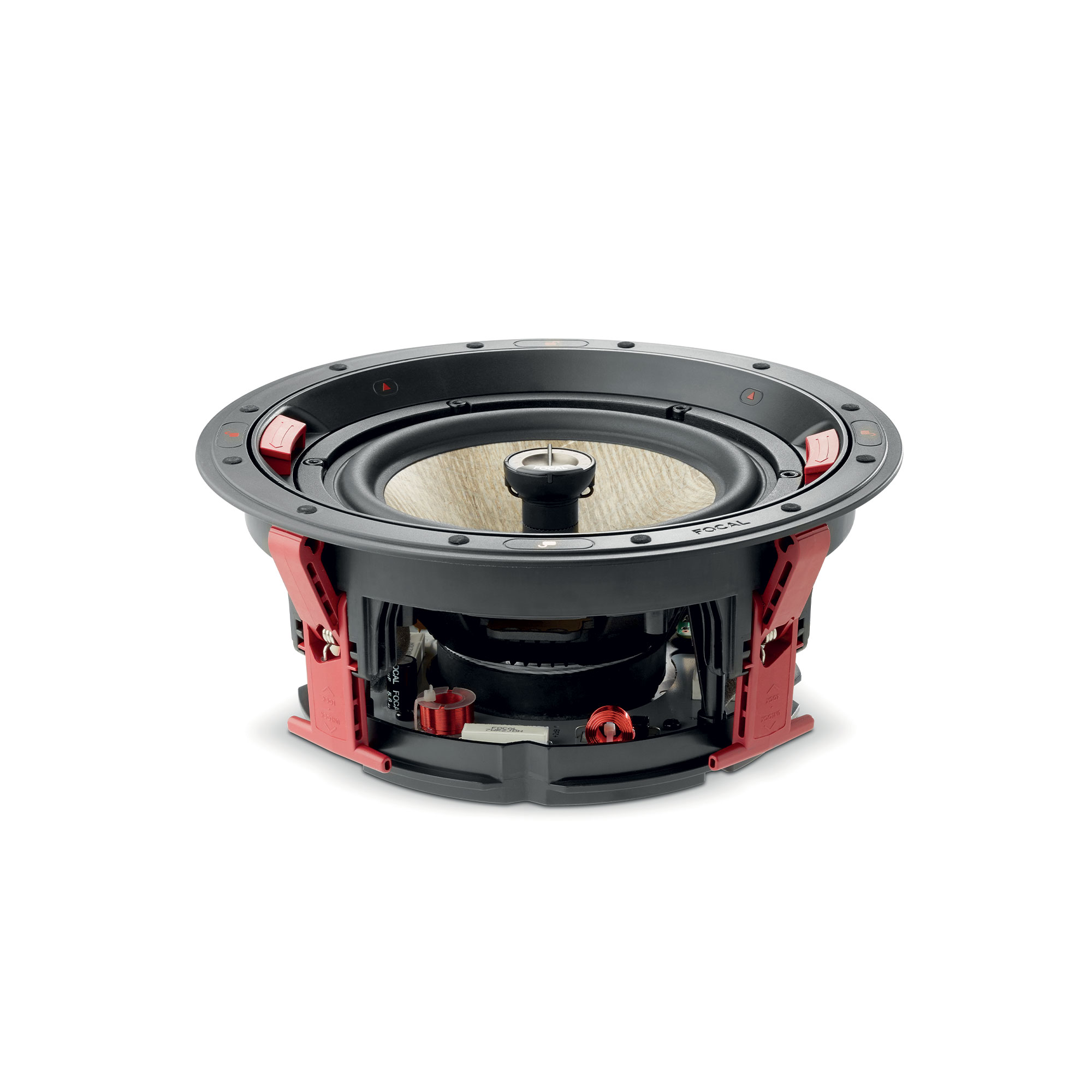

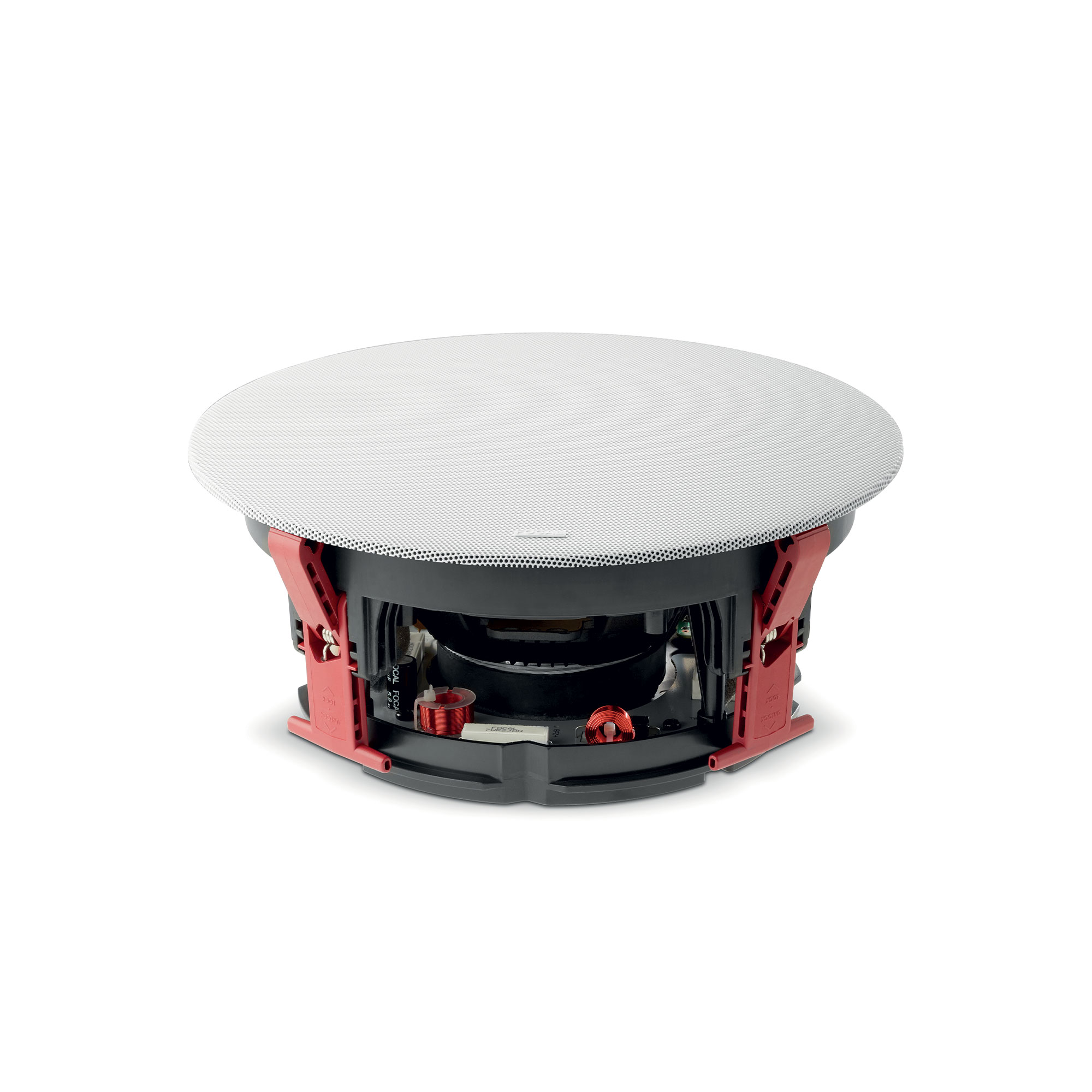

300 ICW8
6 photographs · 5 shown
From Focal

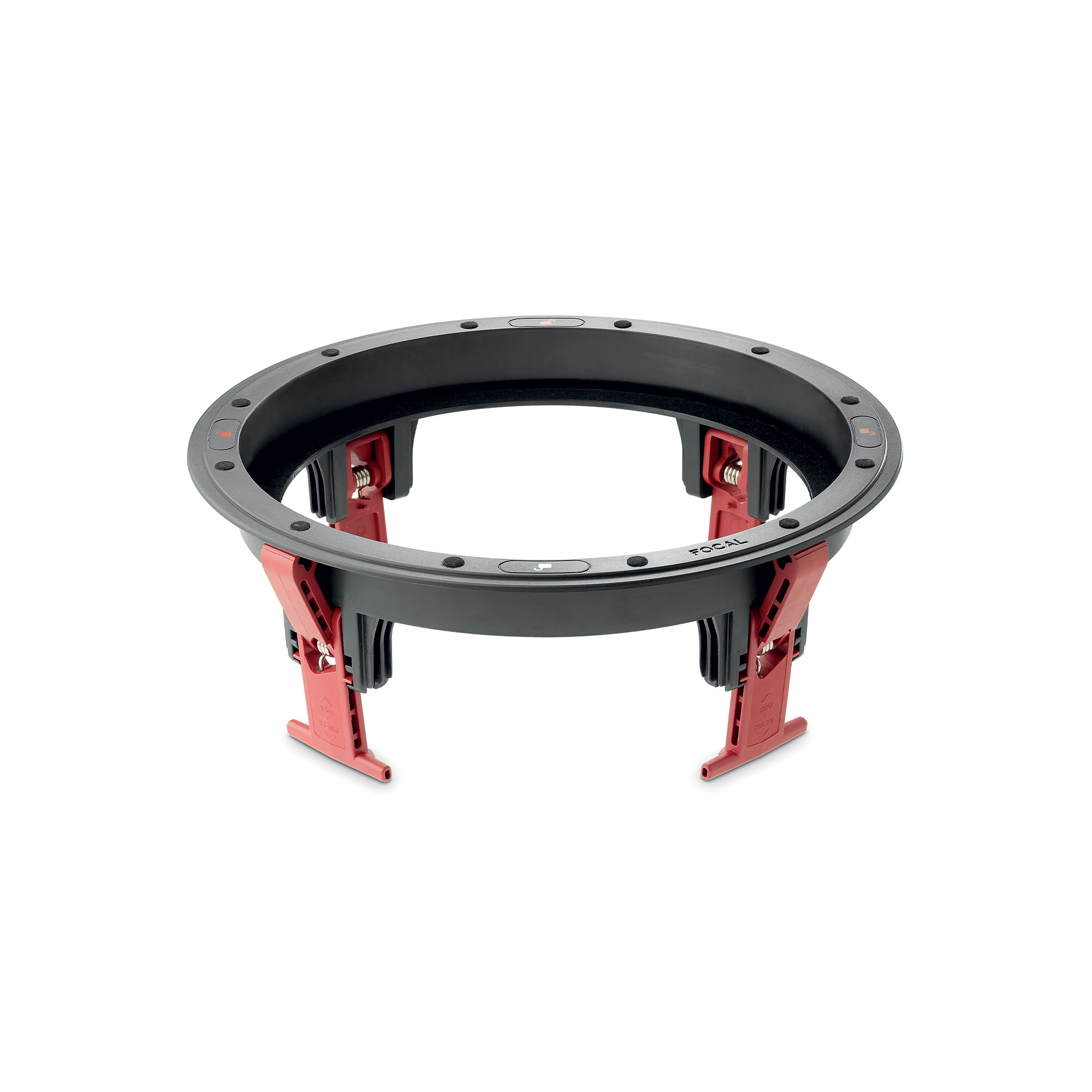

The 300 ICW8 mounts flush in walls or ceilings and reaches 90dB sensitivity for hi-fi or home theater use. Its 8-inch Flax mid-bass driver pairs with an aluminum/magnesium inverted-dome tweeter that rotates and adjusts gain. It installs without tools and ships with paintable round and square grilles.
Specifications
| Type of speaker | 2-way in-ceiling |
|---|---|
| Speaker drivers | 8" (21cm) Flax Mid-bass |
| Sensitivity (2.83V/1m) | 90dB |
| Bandwidth (+/-3dB) | 48Hz - 28kHz |
| Low-frequency cut-off (-6dB) | 35Hz |
| Nominal impedance | 8 Ω |
| Minimal impedance | 4.5 Ω |
| Recommended amp power | 25 - 150W |
| Size (Ø x depth) | 113/4x5" (299x127mm) |
| Mounting diameter (Ø) | 103/8" (264mm) |
| Depth from wall | 43/4" (122mm) |
| Net weight (with grille) | 7.05 lbs (3.2kg) |
| Box size (WxDxH) | 143/4x143/4x121/4" (375x375x310mm) |
| Total weight (with packaging) | 11.24 lbs (5.1kg) |
| Recommended Limiter Threshold | 9,6V RMS |
| Recommended Limiter Attack Time | 0ms |
| Recommended Limiter Release Time | 150ms |
| Recommanded High-pass filter | 30Hz Linkwitz-Riley 12 dB/octave |
