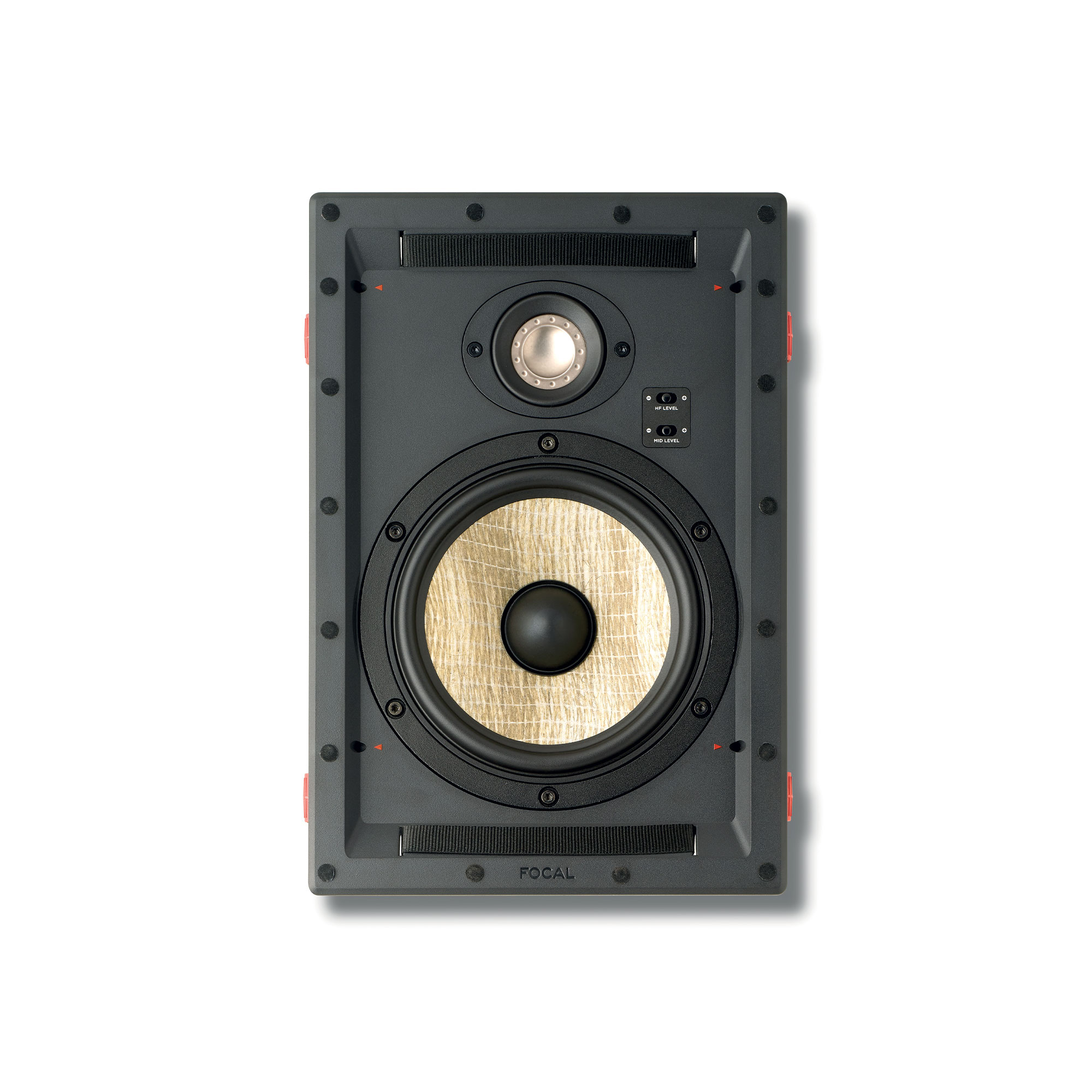

300 IW6
The 300 IW6 is a 2-way in-wall speaker with a 6.5-inch Flax woofer and adjustable tweeter, built for home cinema or hi-fi.
fig. 01 · speakers
300 IW6
8 photographs · 5 shown
From Focal

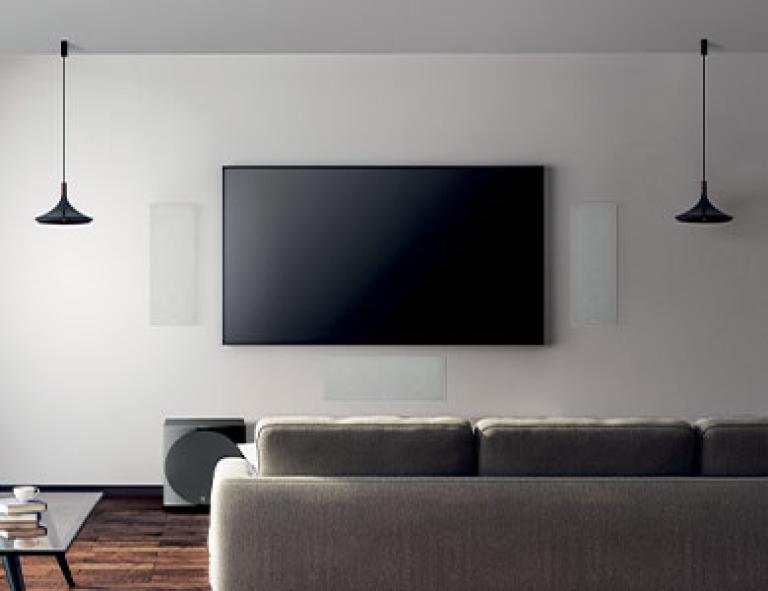

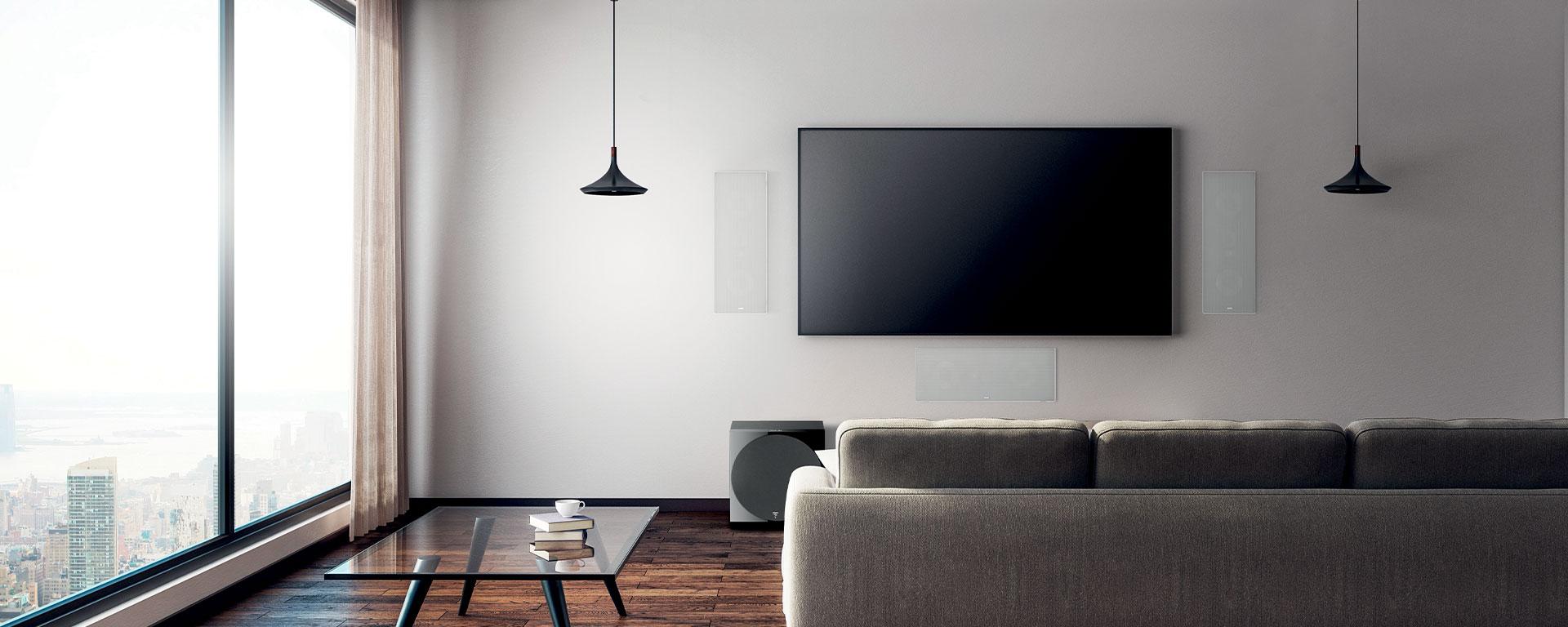

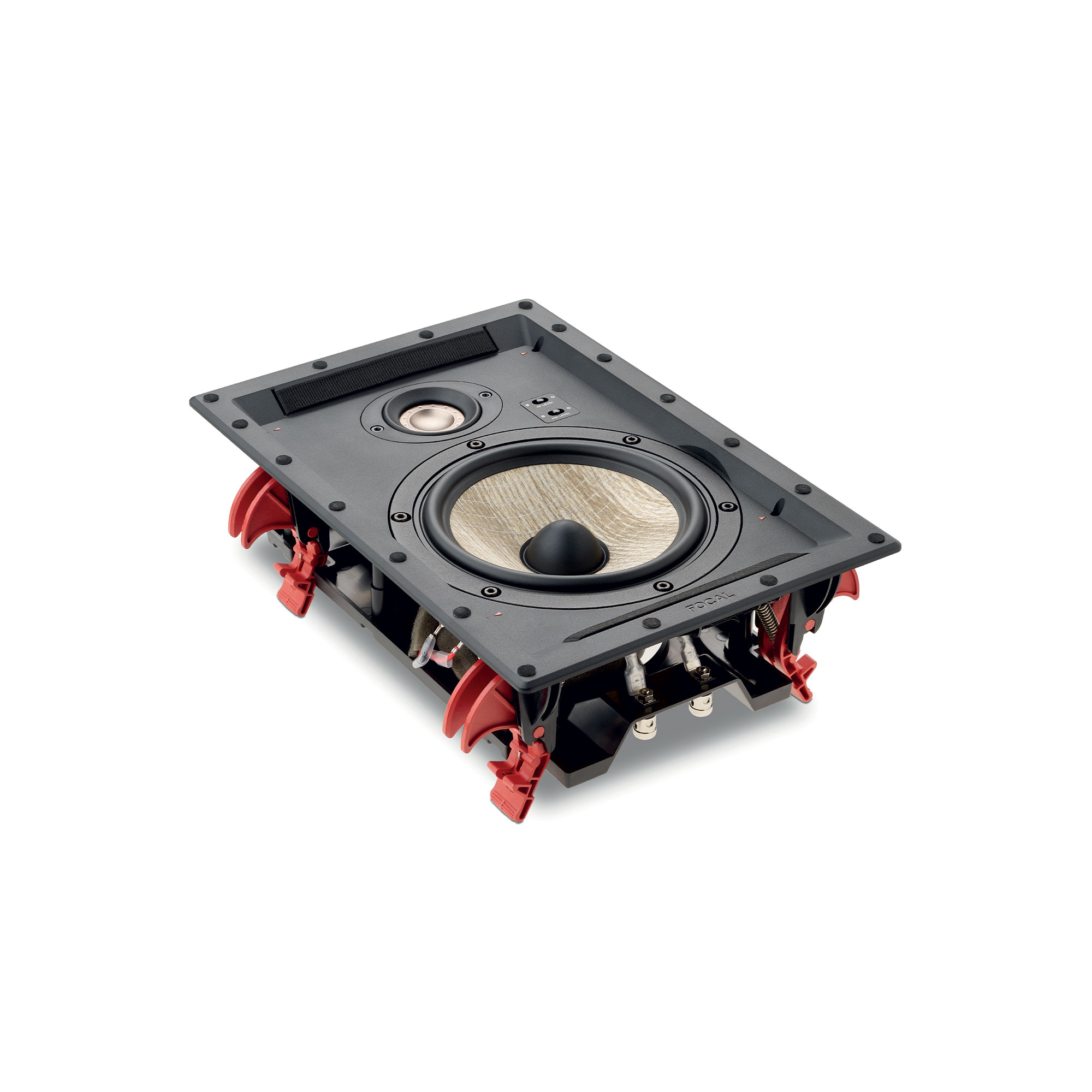

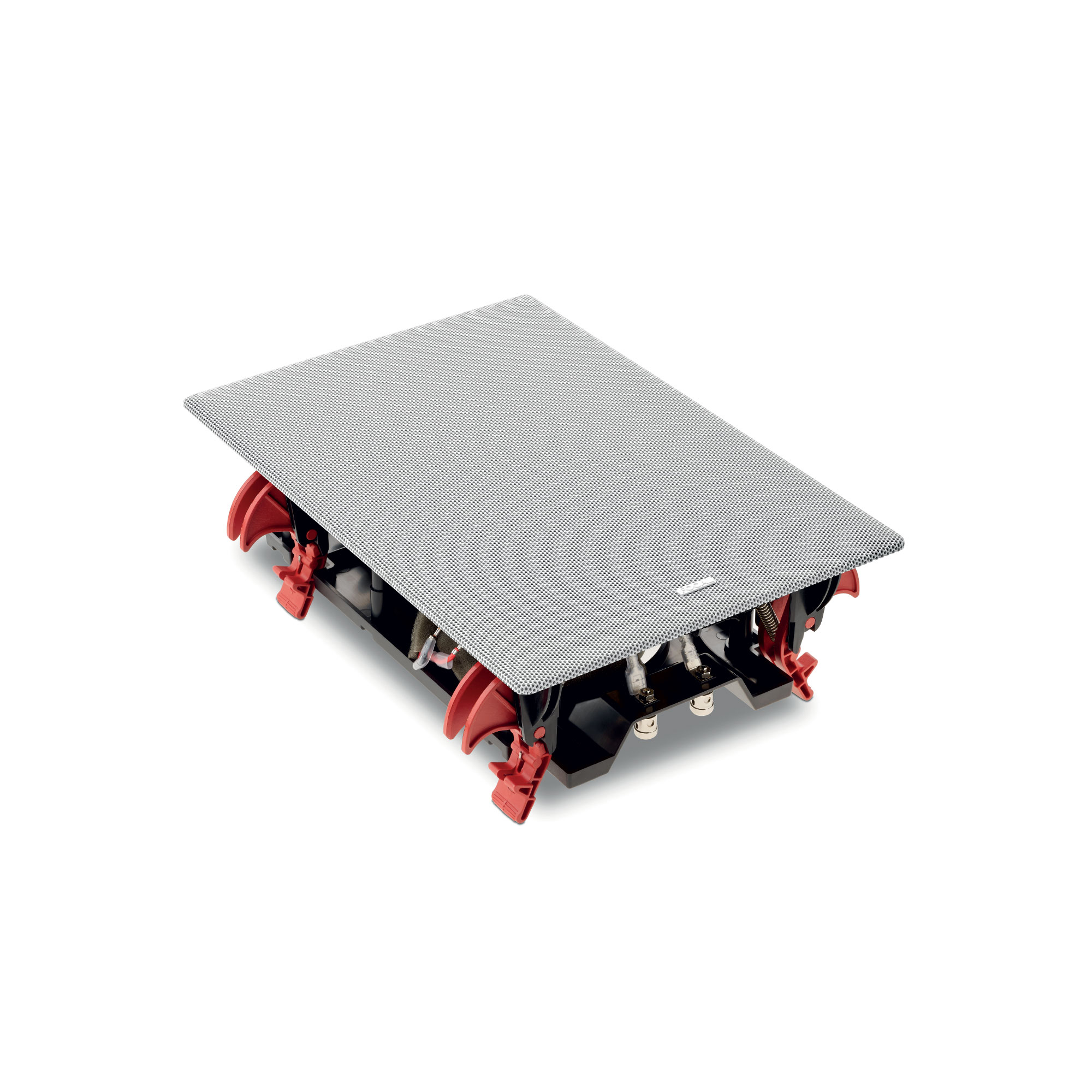

The 300 IW6 is an in-wall speaker for home cinema, or as a complement to a hi-fi system. Its 6.5-inch Flax cone woofer and adjustable aluminum/magnesium tweeter reach 90dB sensitivity with a balanced mid-range that sharpens dialogue. It installs without tools and ships with a magnetic, paintable grille.
Specifications
| Type | 2-way In-wall |
|---|---|
| Drivers | 61/2" (16.5cm) flax cone woofer, |
| Sensitivity (2,83 V/1 m) | 90dB |
| Frequency response (+/-3 dB) | 55Hz - 28kHz |
| Low frequency point (-6 dB) | 45Hz |
| Nominal impedance | 8Ω |
| Minimal impedance | 4,5Ω |
| Recommended amplifier power | 25 - 130W |
| External dimensions (HxWxD)) | 123/4" x 811/16" x 37/8" (323 x 220 x 98mm) |
| Cut-Out diameter (HxL) | 111/2" x 71/2" (292 x 191mm) |
| Depth from wall | 311/16" (93mm) |
| Net weight (with front grille) | 4.9lbs (2.25kg) |
| Packing dimensions (WxDxH) | 163/16" x 121/8" x 71/4" (411 x 308 x 184mm) |
| Total weight (with packaging) | 8.49 lbs (3.85kg) |
| Recommended Limiter Threshold | 6,8V RMS |
| Recommended Limiter Attack Time | 0ms |
| Recommended Limiter Release Time | 150ms |
| Recommanded High-pass filter | 45 Hz Linkwitz-Riley 12 dB/octave |
