300 IWLCR 6

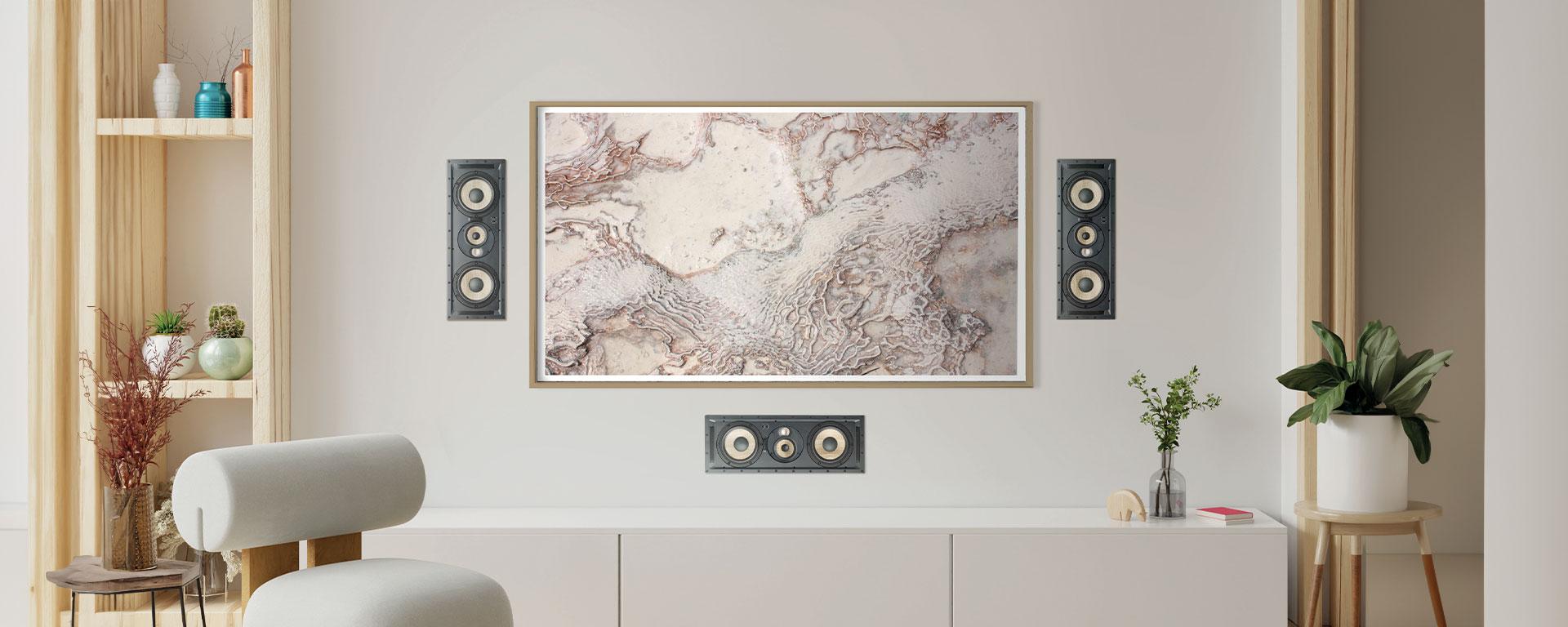

A 3-way in-wall LCR speaker built for discreet left, center, or right duty in home cinema systems.
fig. 01 · speakers
300 IWLCR 6
8 photographs · 5 shown
From Focal

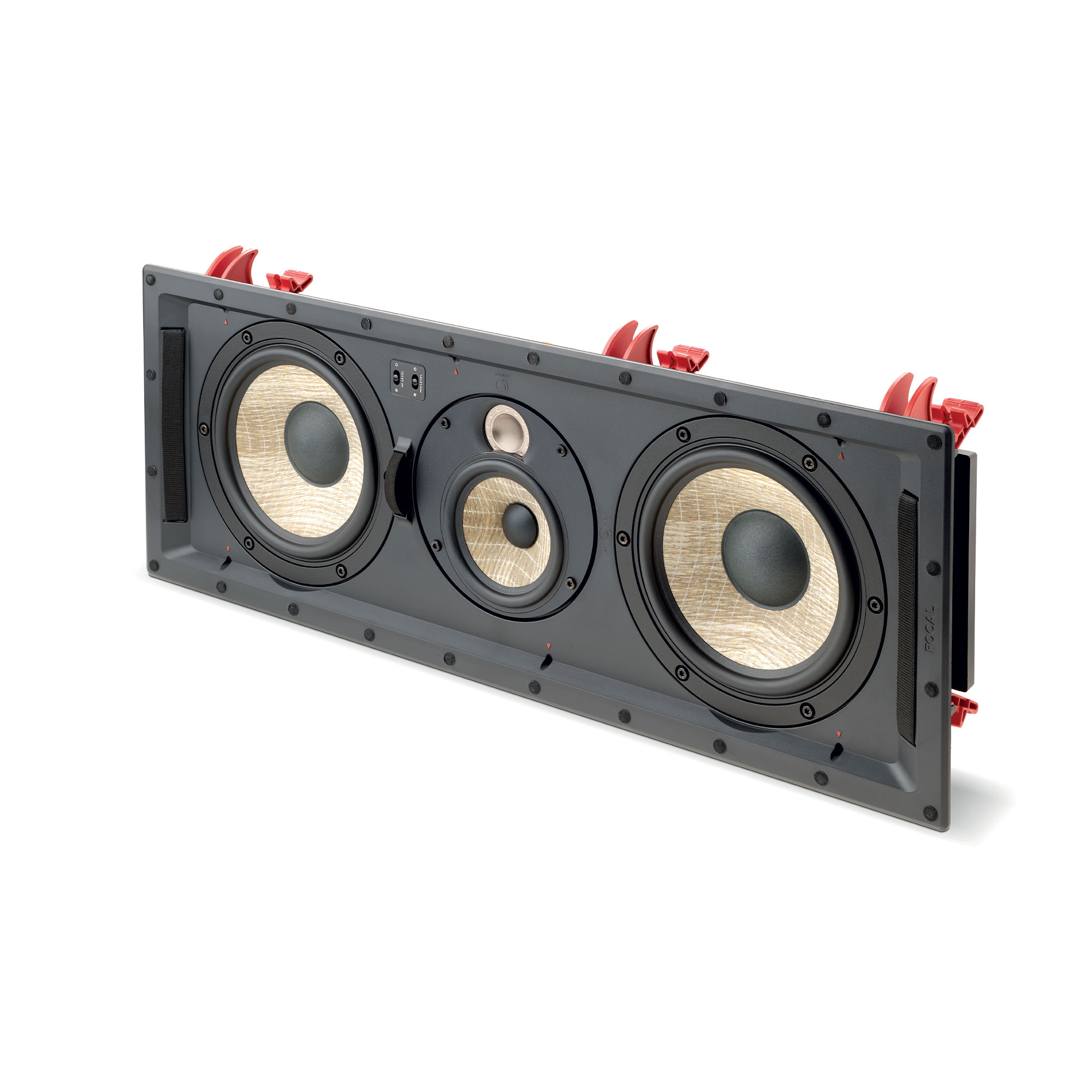

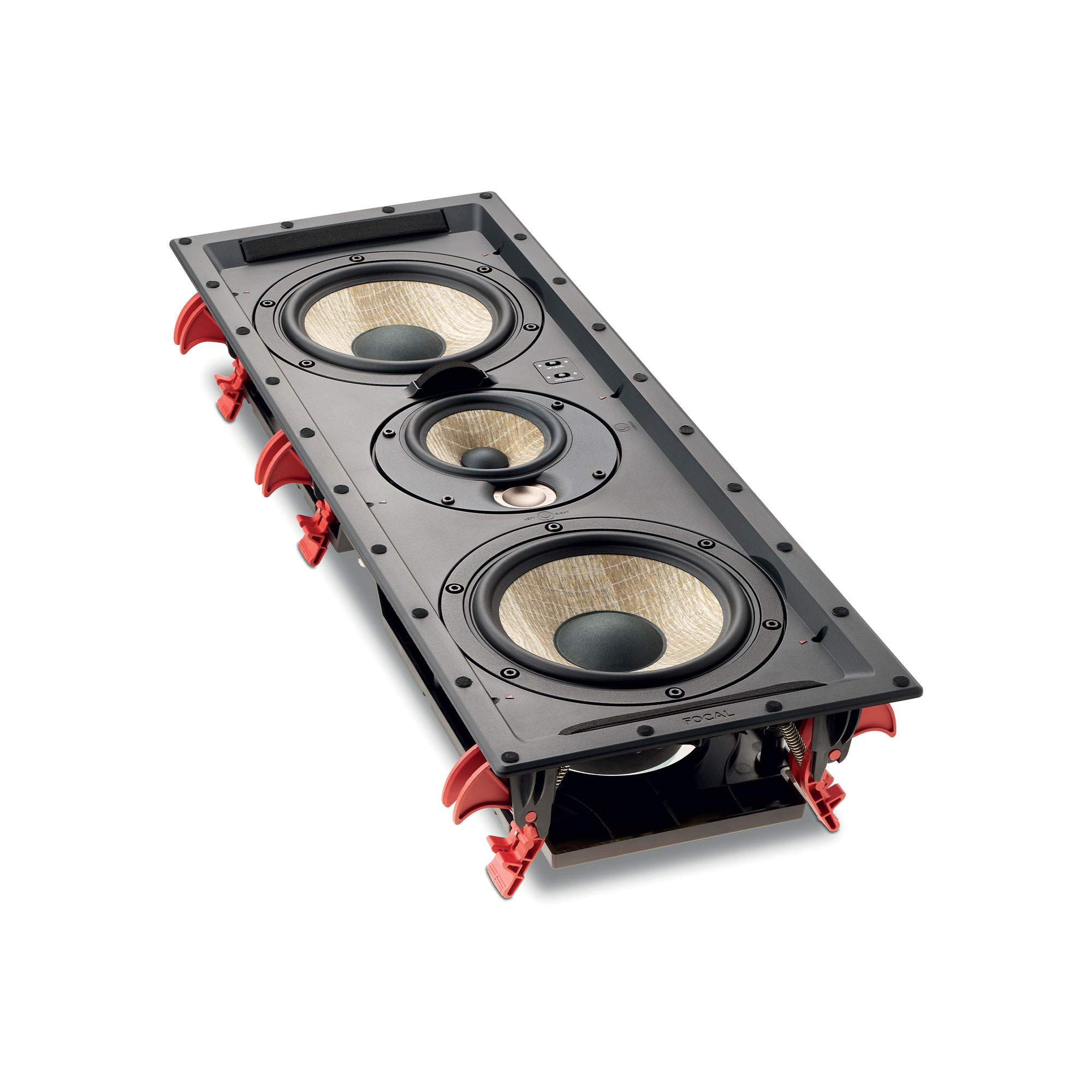

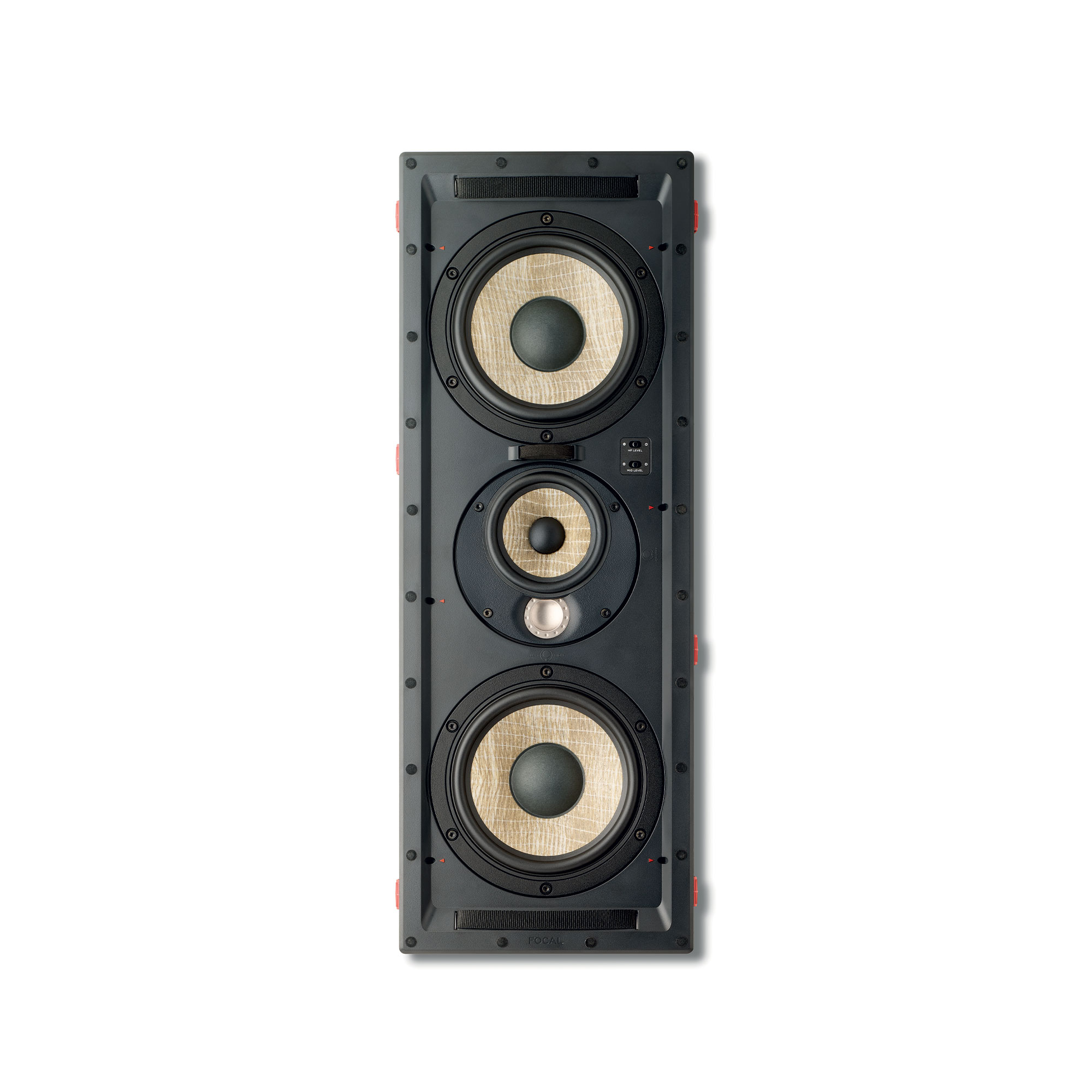

The 300 IWLCR 6 is a 3-way in-wall speaker for left, center, or right duty in home cinema setups. Two 6.5 inch woofers, a Flax midrange, and an inverted dome tweeter span 40Hz to 28kHz. An adjustable mid-treble plate aims sound at the listening position, and the grille is paintable.
Specifications
| Type | 3-way In-wall |
|---|---|
| Drivers | 2 x 61/2" (16.5cm) woofers, 4" (10cm) Flax midrange, 1" | (25mm) Al/Mg inverted dome tweeter |
| Sensitivity (2,83 V/1 m) | 92dB |
| Frequency response (+/-3 dB) | 40Hz - 28kHz |
| Low frequency point (-6 dB) | 33Hz |
| Nominal impedance | 8Ω |
| Minimal impedance | 2,9Ω |
| Recommended amplifier power | 50 - 150W |
| External dimensions (HxWxD)) | 235/8" x 811/16" x 37/8" (600 x 220 x 98mm) |
| Cut-Out diameter (HxL) | 223/8" 71/2" (568 x 191mm) |
| Depth from wall | 311/16" (93mm) |
| Net weight (with front grille) | 12.4lbs (5.65kg) |
| Packing dimensions (WxDxH) | 271/16" x 121/8" x 71/4" (688 x 308 x 184mm) |
| Total weight (with packaging) | 17.4 lbs (7.9kg) |
| Recommended Limiter Threshold | 8,6V RMS |
| Recommended Limiter Attack Time | 0ms |
| Recommended Limiter Release Time | 150ms |
| Recommanded High-pass filter | 40 Hz Linkwitz-Riley 12 dB/octave |
