Alpha 65 Evo

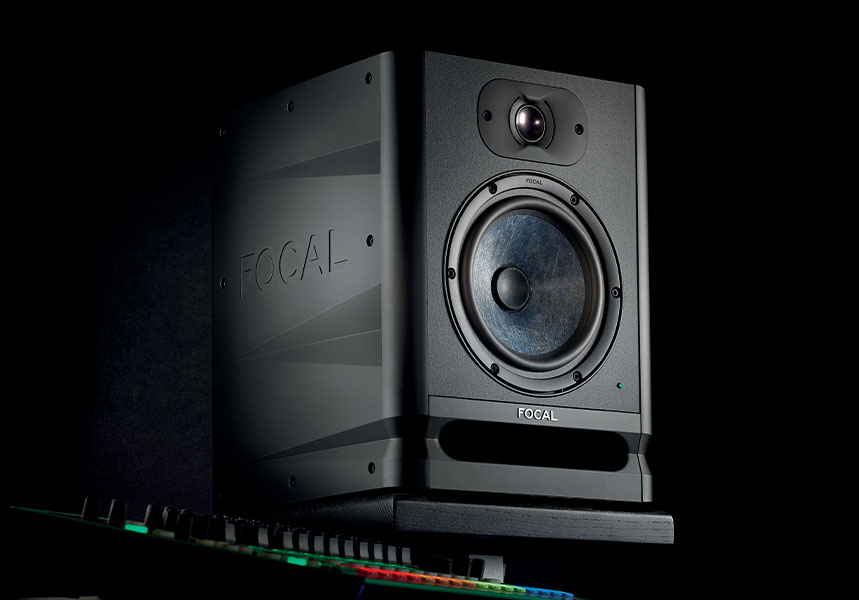

The Alpha 65 Evo is a compact 6.5-inch active nearfield monitor built as an all-around workhorse for project studios and control rooms.
fig. 01 · studio monitors
Alpha 65 Evo
From Focal

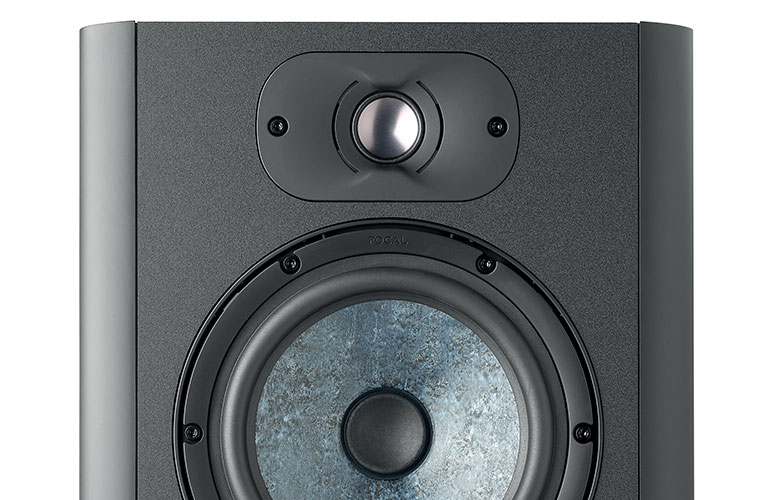

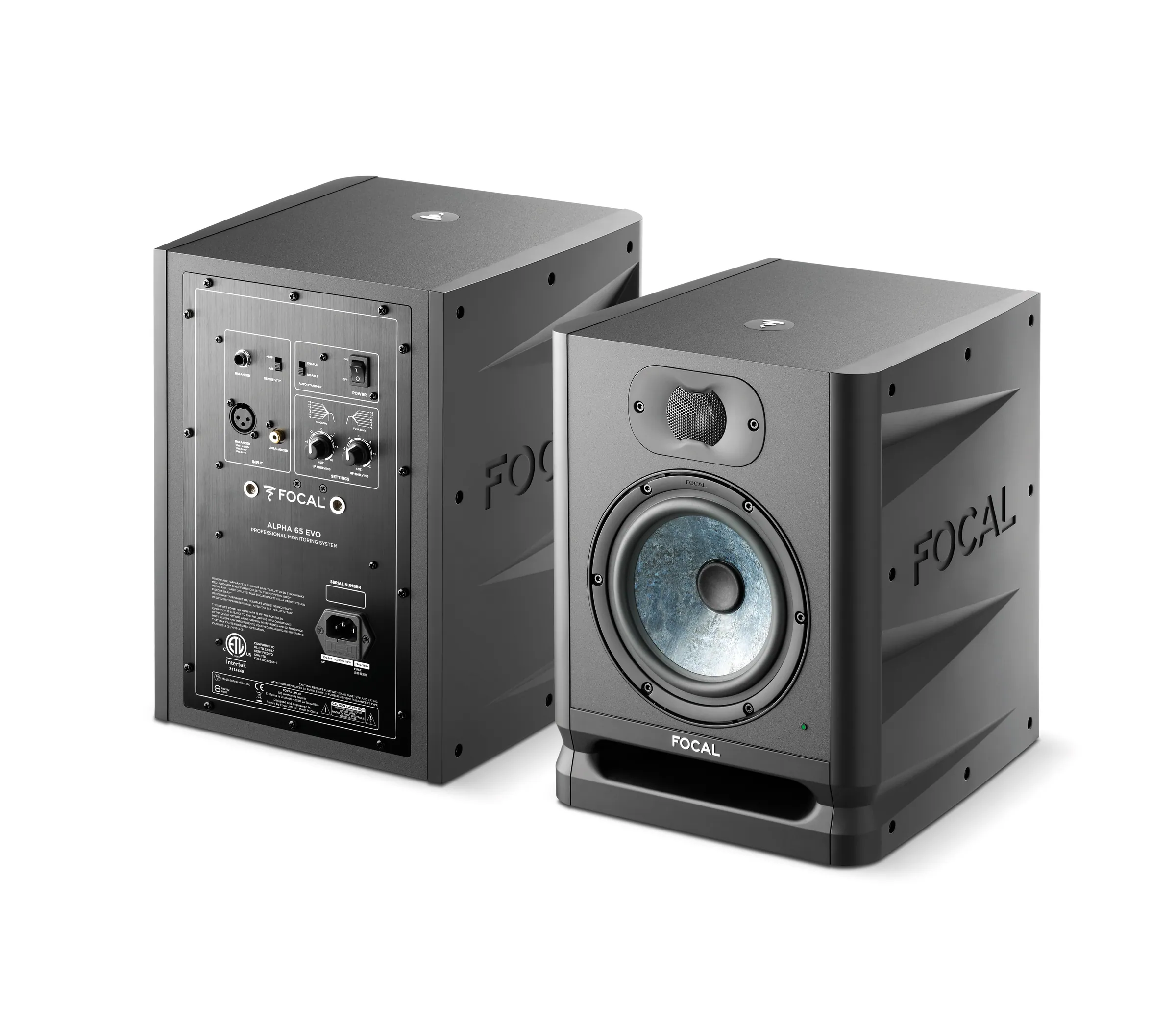

A 16.5cm Slatefiber woofer and 25mm aluminium inverted-dome tweeter run on 55W and 25W class D amplifiers for 40Hz-22kHz response and 104dB peak SPL. TRS, XLR, and RCA inputs and rear-panel bass and treble trim adapt it to nearfield setups of any size.
Specifications
| Type | Alpha 65 Evo Monitoring |
|---|---|
| Frequency response (± 3dB) | 40Hz - 22kHz |
| Maximum SPL | 104dB SPL (peak @39 3/8 " (1m)) |
| Inputs Connectors | TRS: symmetrical 10kOhms | XLR: symmetrical 10kOhms | RCA: asymmetrical 10kOhms | with compensated sensitivity |
| Medium and low frequency amplifier | 55W (music), class D |
| High frequency amplifier | 25W (music), class D |
| Automatic stand-by mode | After around 15 minutes of no use | By signal detection >6mV |
| Power supply | 100 - 240V~ | (T2AL fuse/250V) |
| Connection | IEC socket and detachable power cable |
| Sensitivity | Adjustable, 0 or +6dB |
| Level midrange/bass (0 - 300Hz) | Adjustable, ±6dB |
| Treble level (4.5 - 22kHz) | Adjustable, ±3dB |
| Power on/off | On/off switch on the rear panel |
| Stand-by consumption | <0.5W |
| Views and controls | On and off LED - Stand-by LED |
| Woofer | 6.5" (16.5cm) | Slatefiber cone |
| Tweeter | 25mm (1") with aluminium inverted dome |
| Construction | 0.6" (15mm) MDF |
| Finish | Black vinyl and paint |
| Dimensions with 4 rubber feet (H x W x D) | 13.35 x 10.28 x 11.38" | (339 x 261 x 289 mm) |
| Weight | 16.8lbs (7.6kg) |
