Focal · Studio Monitors
Alpha 80 Evo

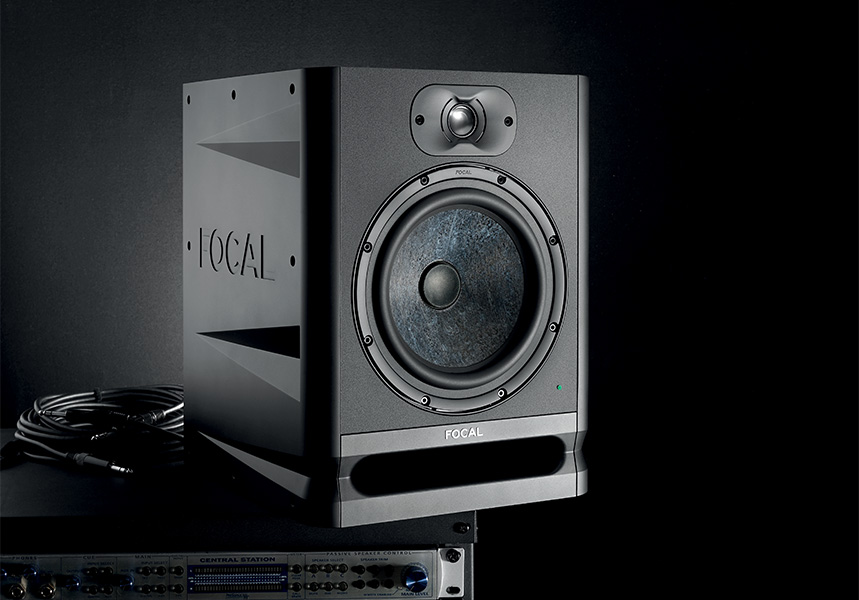

The Alpha 80 Evo is an 8-inch active nearfield monitor built for higher SPL and extended low end, the benchmark of the Alpha Evo line.
fig. 01 · studio monitors
Alpha 80 Evo
From Focal

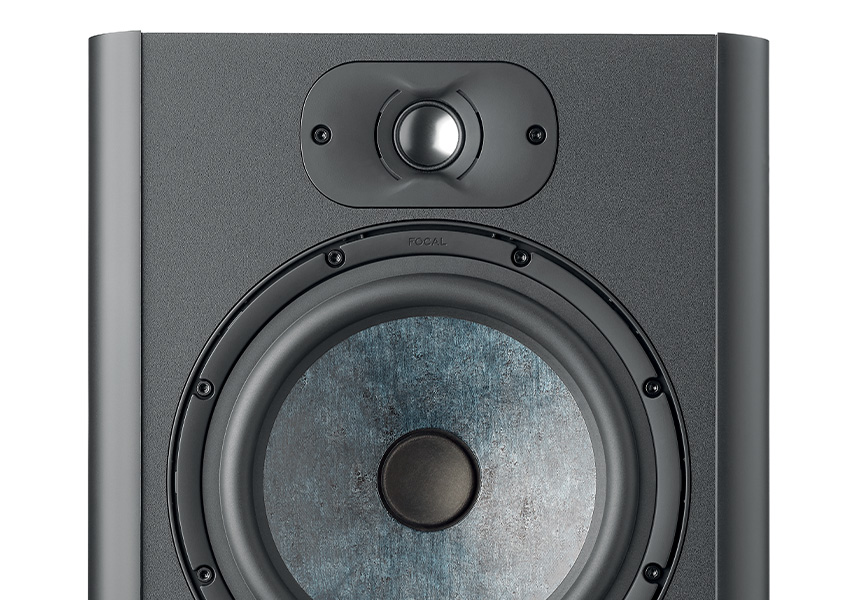

An 8-inch (20cm) Slatefiber woofer and 25mm aluminium inverted-dome tweeter run on 80W and 35W class D amplification for 38Hz-22kHz response and 106dB peak SPL. TRS, XLR, and RCA inputs and rear-panel bass and treble trim suit high-SPL work and extended low end in demanding mix rooms.
Specifications
| Type | Alpha 80 Evo Monitoring |
|---|---|
| Frequency response (±3dB) | 38Hz - 22kHz |
| Maximum SPL | 106dB SPL (peak @ 1m) |
| Inputs Connectors | TRS: symmetrical 10kOhms | XLR: symmetrical 10kOhms | RCA: asymmetrical 10kOhms | with compensated sensitivity |
| Medium and low frequency amplifier | 80W |
| High frequency amplifier | 35W |
| Automatic stand-by mode | After around 15 minutes of no use | By signal detection >6mV |
| Power supply | 100 - 240V~ | (T2AL fuse/250V) |
| Connection | IEC socket and detachable power cable |
| Sensitivity | Adjustable, 0 or +6dB |
| evel midrange/bass 0 - 250Hz) | Adjustable, ±6dB |
| Treble level (4.5 - 35kHz) | Adjustable, ±3dB |
| Power on/off | On/off switch on the rear panel |
| Stand-by consumption | <0.5W |
| Views and controls | On and off LED - Stand-by LED |
| Woofer | 8" (20cm) | Slatefiber cone |
| Tweeter | 25mm (1") with aluminium inverted dome |
| Construction | 0.6" (15mm) MDF |
| Finish | Black vinyl and paint |
| Dimensions with 4 rubber feet (H x W x D) | 15.35 x 11.65 x 13" | (390 x 296 x 330mm) |
| Weight | 21.6lbs (9.8kg) |
