Focal · Speakers · In-wall & In-ceiling Speakers
Cinema LCR

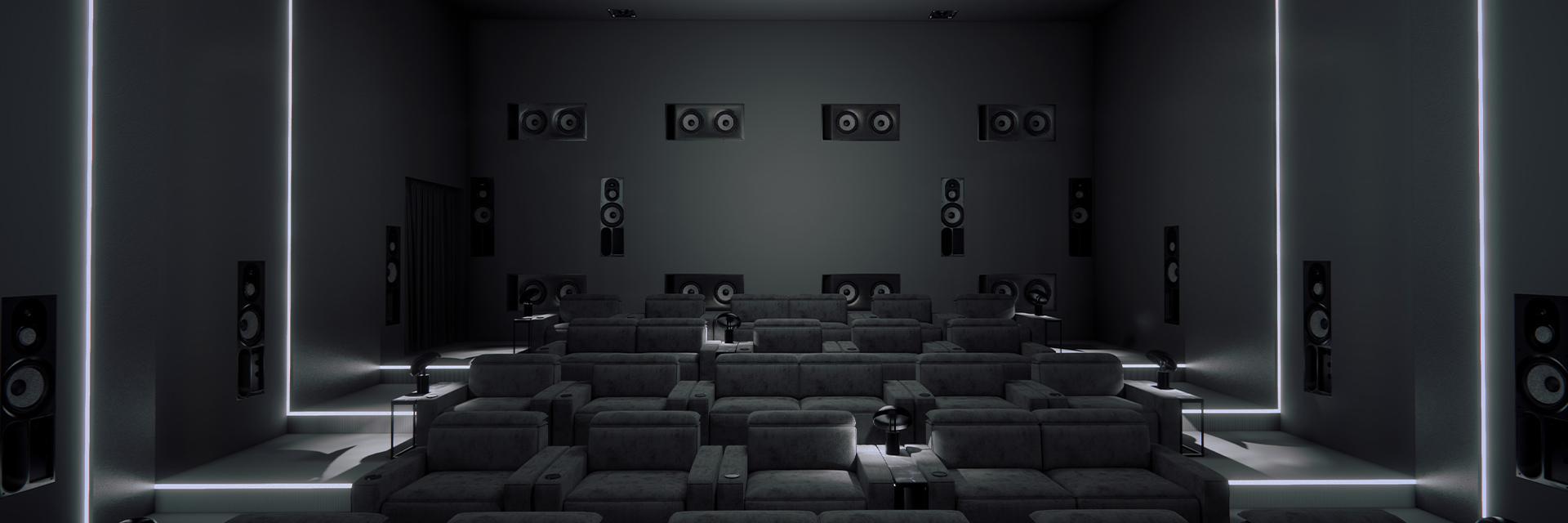

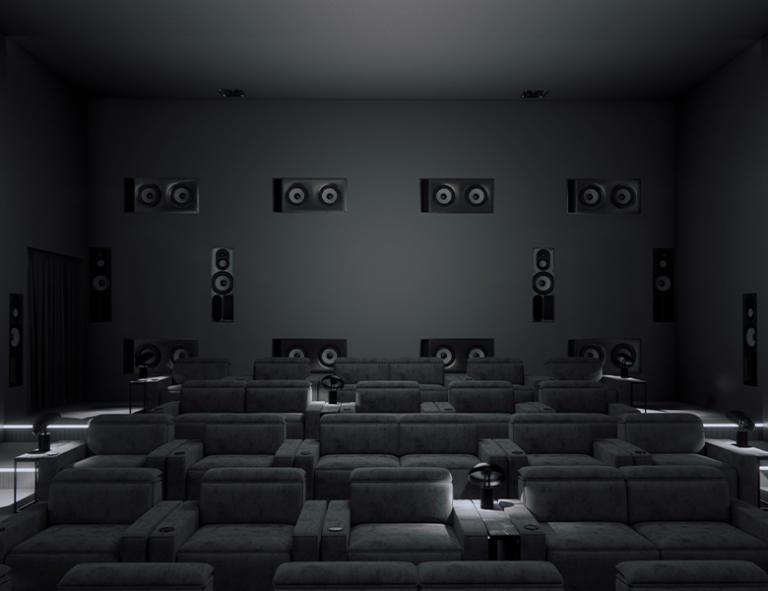

Cinema LCR is Focal's Utopia Cinema reference LCR speaker, built for private cinema rooms up to 2,153 square feet.
fig. 01 · speakers
Cinema LCR
8 photographs · 5 shown
From Focal
This 3-way bass-reflex LCR speaker from the Utopia Cinema line mounts on or into the wall, horizontally or vertically. A 13 inch woofer, midrange, and beryllium tweeter cover 35Hz to 50kHz, driven by amps up to 800W. Midbass, midrange, and tweeter levels adjust to the room, with a 30 degree listening option.
Specifications
| Type | 3-way bass-reflex loudspeaker | In-wall / On-wall / Freestanding |
|---|---|
| Tuned port | 35Hz |
| Speaker drivers | 13'' 'W' cone woofer | 5'' 'M'-shaped midrange with 'W' cone | 1.5'' 'M'-shaped beryllium tweeter |
| Sensivity (2.83V/3feet - 1m) | 93dB (250Hz) |
| Bandwidth (-3dB) 2Pi | 35Hz-50kHz |
| Low-frequency cut-off (-6dB) | 30Hz-50kHz |
| Nominal impedance | 8Ω |
| Minimal impedance | 3.5Ω to 150Hz |
| Crossover | 360Hz / 2600Hz |
| Midbass level adjustement | -2.5dB / 0dB / ±2.5dB (100Hz - 400Hz) |
| Midrange level adjustement | -1.5dB / 0dB / ±2dB (400Hz - 2.5kHz) |
| Tweeter level adjustement | -3dB / 0dB / ±2.5dB (2.5kHz - 10kHz) |
| Listening position adjustement | 0° / 30° |
| Rated power | 150W RMS (8Ω) |
| Recommended amp power | Max 400W (8Ω) / Max 800W (4Ω) |
| Dimensions (HxWxD) | 457/8''x137/8''x1213/16'' (116.5x35.2x32.6cm) |
| Net weight | 114.64lbs (52kg) |
