Focal · Subwoofers
Cub Evo
Cub Evo pairs an 8.25-inch Polyflex woofer with a built-in 200W Class-D amplifier for compact home cinema bass.
fig. 01 · subwoofers
Cub Evo
7 photographs · 5 shown
From Focal

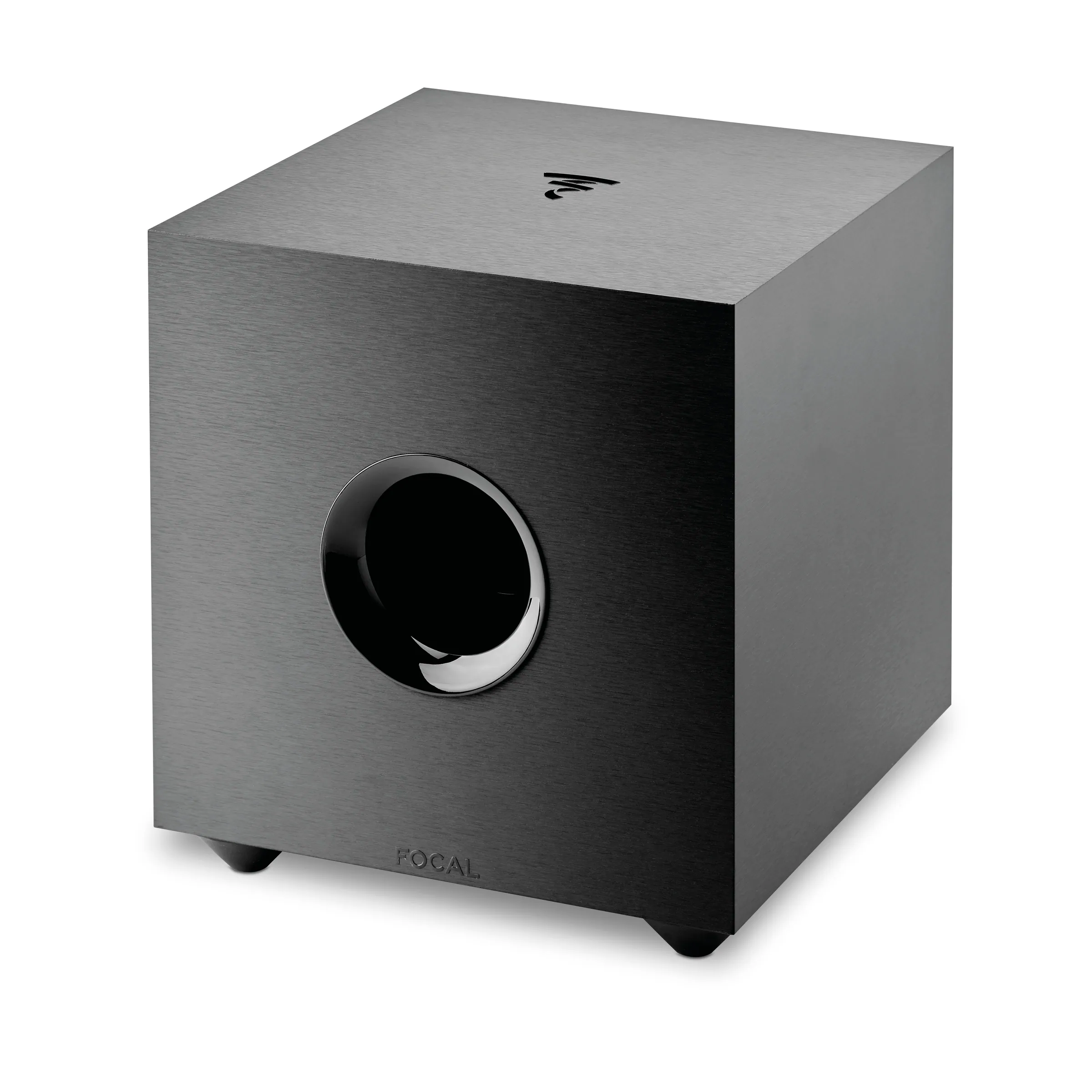

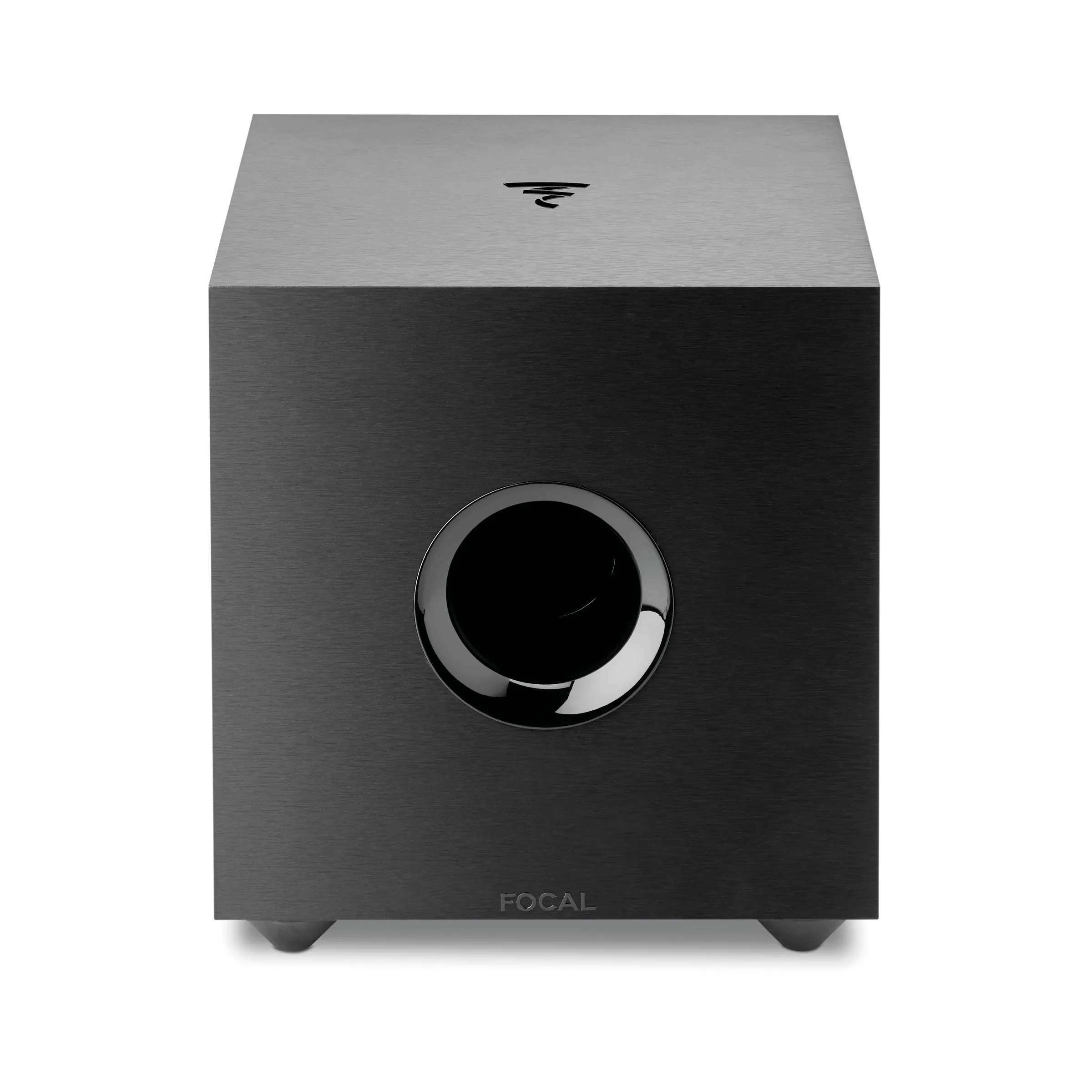

Cub Evo is a self-powered bass-reflex subwoofer built to complement Sib Evo satellites in a home cinema system. Its 8.25-inch (21cm) Polyflex woofer reaches down to 30Hz (-6dB), driven by a built-in 200W Class-D amplifier. Right, left, and LFE RCA inputs and 0°/180° phase switching complete setup.
Specifications
| Type of loudspeaker | Active bass-reflex subwoofer |
|---|---|
| Speaker | 8 1/4 " (21cm) Polyflex woofer |
| Frequency response (+/-3dB) | 35Hz - 150Hz |
| Cutoff frequency (-6dB) | 30Hz |

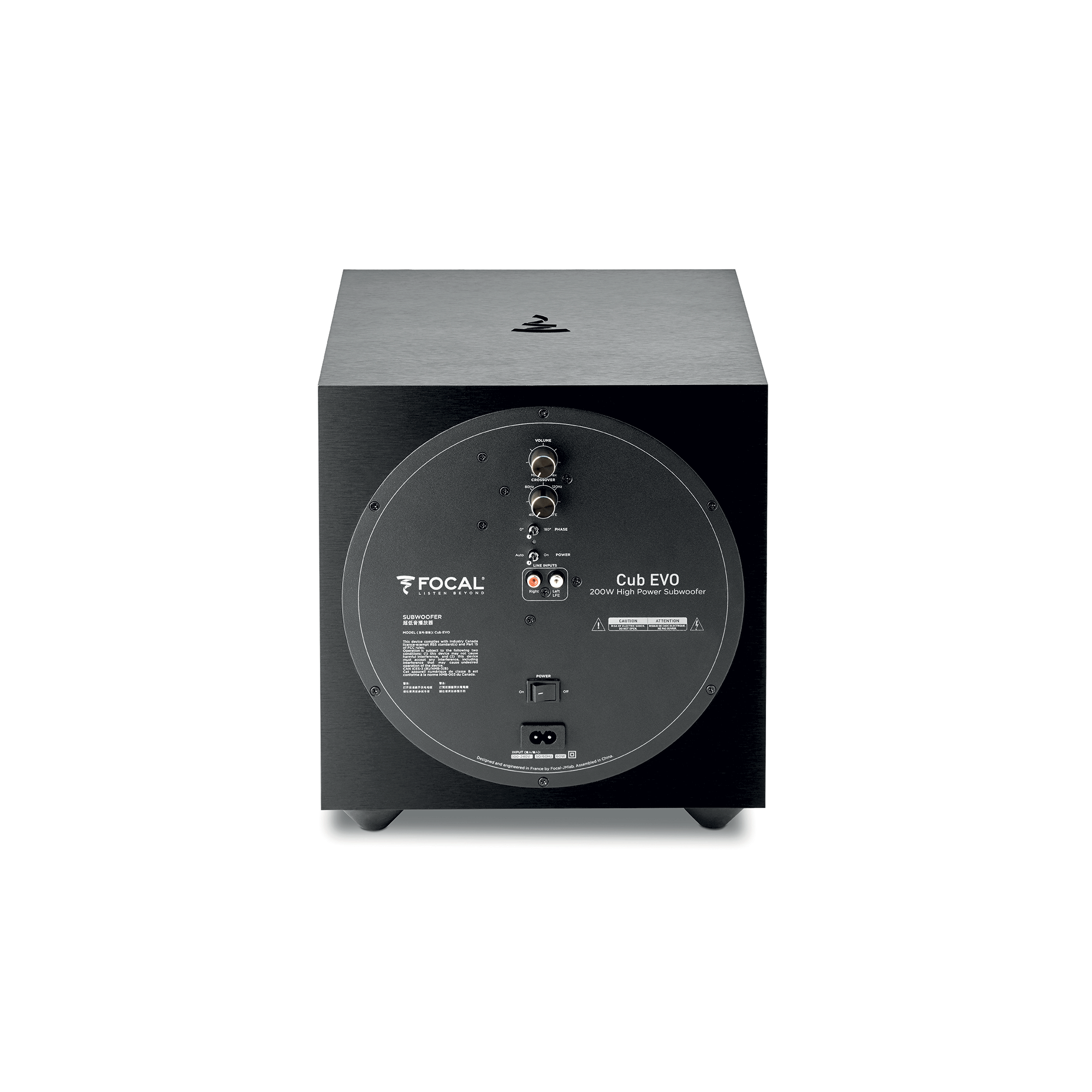

| RCA input | Right, left LFE |
| Cut-off frequency | 3.5kHz |
| Phase adjustment | Phase inverter 0° / 180° |
| Amplifier power | 200W Class-D amplifier |
| Power mode | On / Autopower (0.5W) |
| Dimensions (H x W x D) | 2" x 11 1/8 " x 11 3/4 " (305x282x299mm) |
| Weight (per unit) | 17.5lbs (8kg) |
