Dôme Flax Pack 5.1

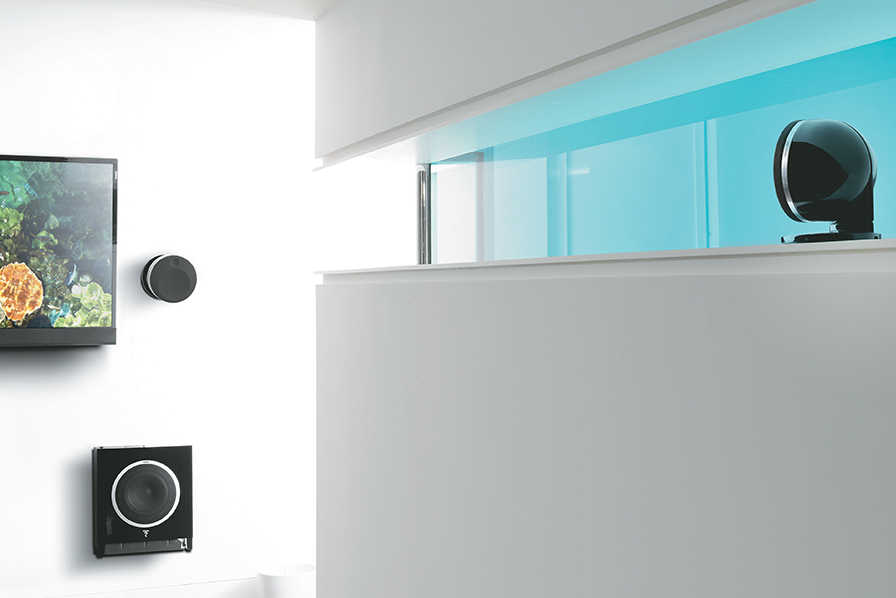

A complete 5.1 home-cinema system pairing five compact Dôme Flax satellites with a wireless Sub Air subwoofer.
fig. 01 · speakers
Dôme Flax Pack 5.1
From Focal

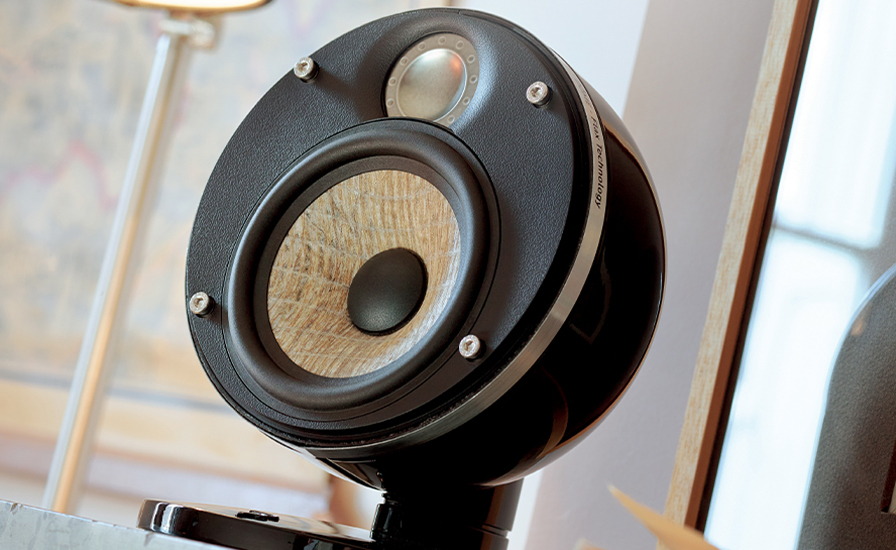

This 5.1 system pairs five Dôme Flax satellites with a Sub Air subwoofer, connected wirelessly and powered by a built-in 150W BASH amp. Each satellite uses a flax composite cone with a 4-inch mid-bass driver and a 1-inch aluminum/magnesium inverted-dome tweeter. Made in France.
Specifications
| Type | 2-way compact sealed speaker | SUB AIR, Flat bass-reflex subwoofer, | integrated 150W BASH® amp | Wireless connection |
|---|---|
| Drivers | 4" (10cm) Flax mid-bass | 1" (25mm) Al/Mg inverted dome tweeter |
| Frequency response (±3dB) | 80Hz - 28kHz |
| Low frequency point (-6dB) | 72Hz |
| Sensitivity (2.83V/1m) | 88dB |
| Nominale impedance | 8 Ohms |
| Minimum impedance | 4 Ohms |
| Crossover frequency | 2500Hz |
| Recommended amplifier power | 25 - 100W |
| Dimensions (HxWxD) | 63/4x511/16x55/8" (172x144x143mm) | 16.1"x14.2"x6.3" (410mmx360mmx160mm) |
| Net weight | 1,9 kg |
| Speaker driver (diameter) | 8" (21cm) |
| Bass cutoff frequency (-6dB) | 35Hz |
| Frequency response (+/- 3dB) | 40Hz-200Hz |
| Crossover cutoff frequency | variable 50 Hz - 200 Hz |
| Input panel | Left Right / LFE |
| Continuous power output | 110 W |
| Peak power | 150 W |
| Phase adjustment | 0 - 180° switch |
| Power functions | ON Auto (1 W) OFF (0,5 W) |
| Weight | 17 lbs (7,65 Kg) |
| Range in Meter | 15 meters (in a room) |
| Sound Sampling | 16 bits |
| Sampling Frequency | 44,1kHz |
| Coding delay (latency) | 13ms |
| Radio transmission powers or sensitivity | 0dBm |
| Radio transmission frequency band | 2,4Ghz ISM band |
