Focal · Speakers · Outdoor Speakers
Littora 1000 ICW 8

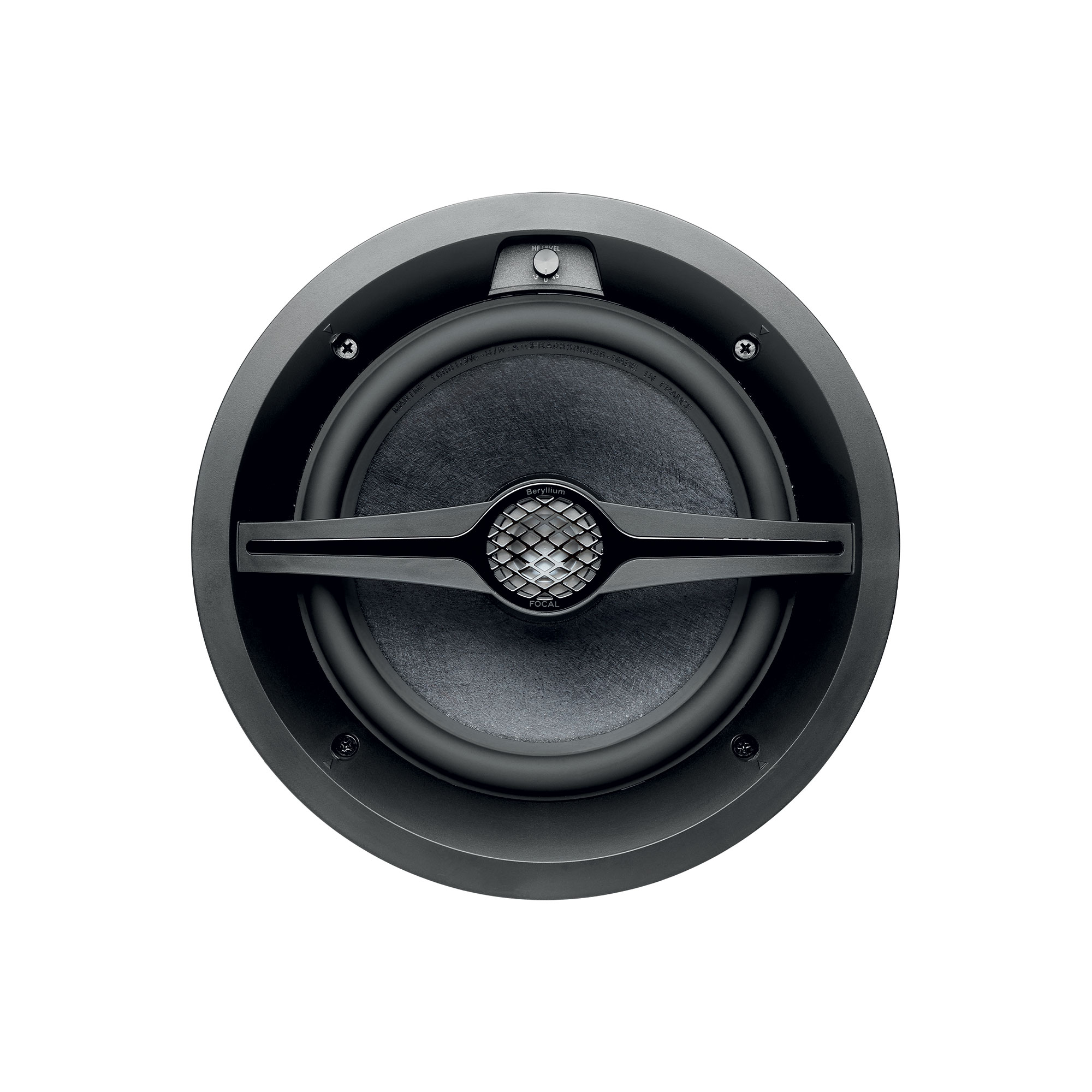

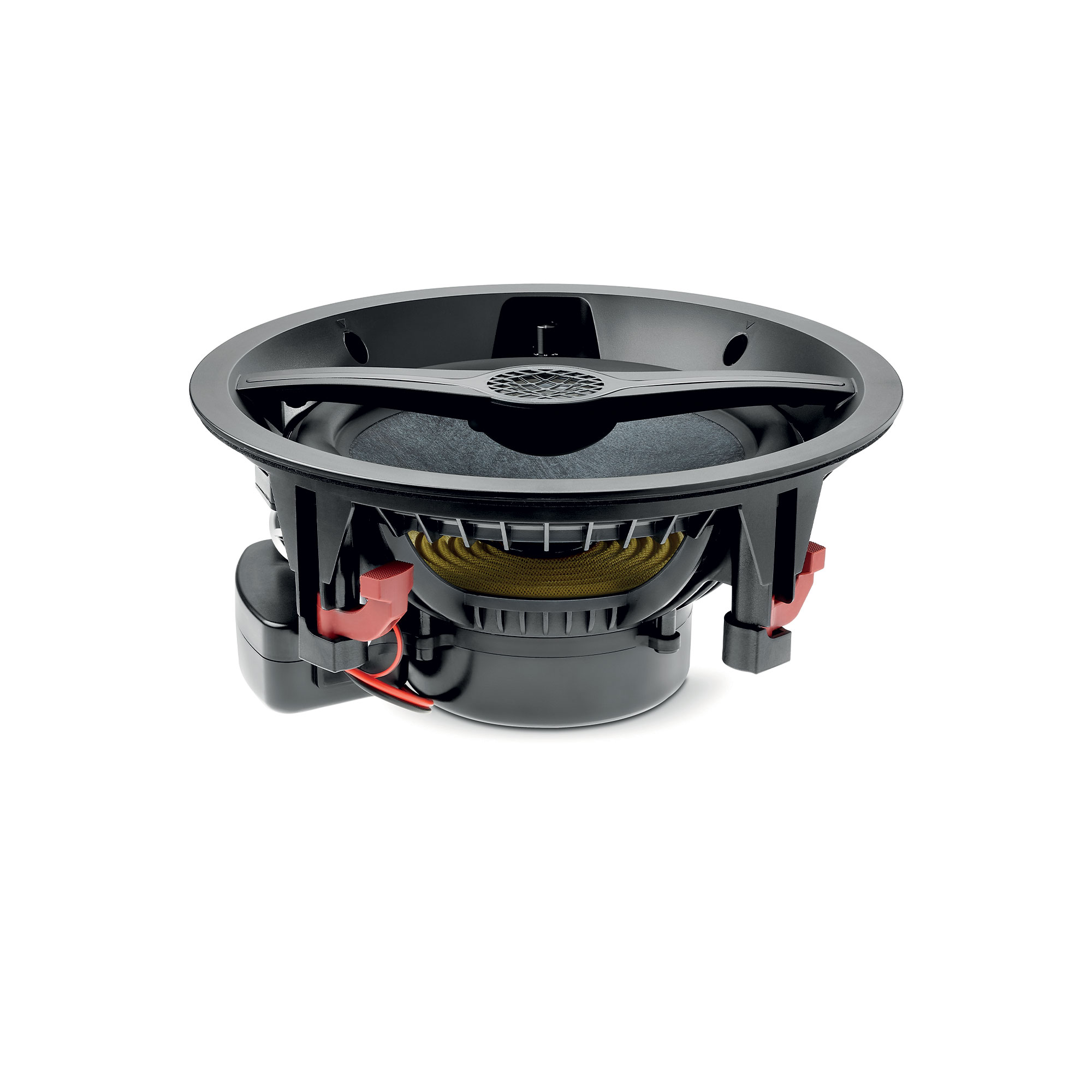

The Littora 1000 ICW8 flush-mounts in walls or ceilings with an indoor/outdoor crossover switch and an 8-inch beryllium-tweeter driver.
fig. 01 · speakers
Littora 1000 ICW 8
8 photographs · 5 shown
From Focal
This 8-inch outdoor speaker switches between indoor and outdoor crossover settings, with treble adjustment to match the room. Its beryllium tweeter and IP65-rated build hold up from -25°C to 90°C, and the ready-to-paint grille resists UV. An optional inclined support lets you angle the sound. Made in France.
Specifications
| Type of speaker | LITTORA 1000 ICW8 |
|---|---|
| Diameter | 8" |
| Recommended amp power | 50 – 180W |
| Nominal impedance | 8Ω |
| Minimal impedance | 4.3Ω at 150Hz |
| Sensitivity (2.83V/1m) | 91dB |
| Frequency response | 45Hz – 40kHz |
| High-pass, slope | 70Hz, 24dB/Oct - 70Hz, 24dB/Oct |
| Closed box volume 1, F -3dB | 10L, 72Hz |
| Closed box volume 2, F -3dB | 8L, 74Hz |
| Free air, F -3dB | 66Hz |
| Tweeter | Beryllium |
| IP certification | IP65 (ASTMB117) |
| Tweeter setting | -3/0/+3dB |
| Crossover setting | Indoor/Outoor switch |

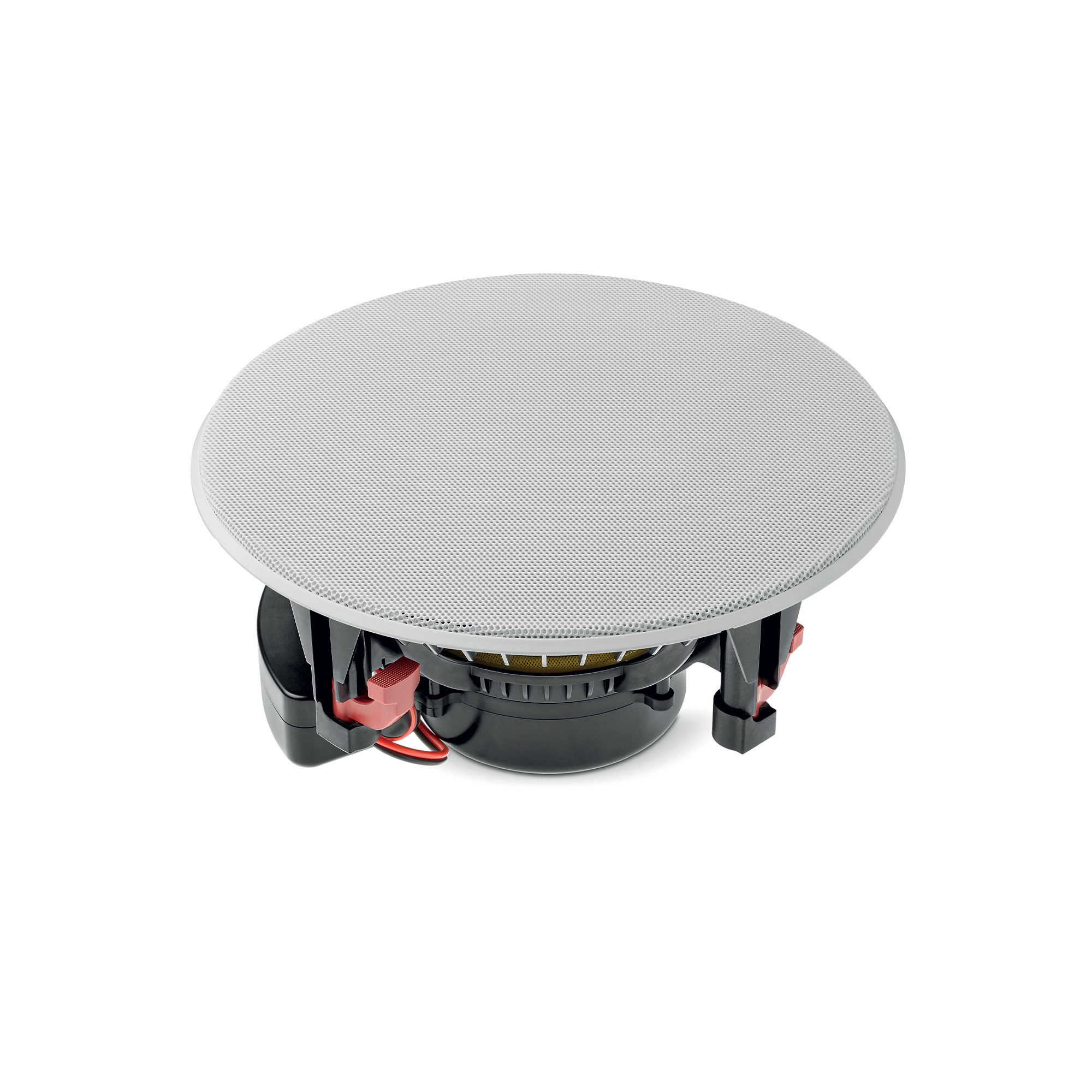

| Grille | Ready-to-paint aluminium |
| UV resistance | Yes (ASTMG53) |
| Operating temperatures | -25°C to 90°C |
| Number of mounting points | 4 |
| Connector | DT06-2S sealed |
| Mounting depth | 41/2" (112.7mm) |
| Certifications | ROHS, ROHS 2, CHINA ROHS, REACH |
| Weight | 3.6kg |
