Littora 1000 ICW SUB10
A 10" in-ceiling/in-wall passive subwoofer rated IP65, built for yachts and other wet, outdoor installs.
fig. 01 · subwoofers

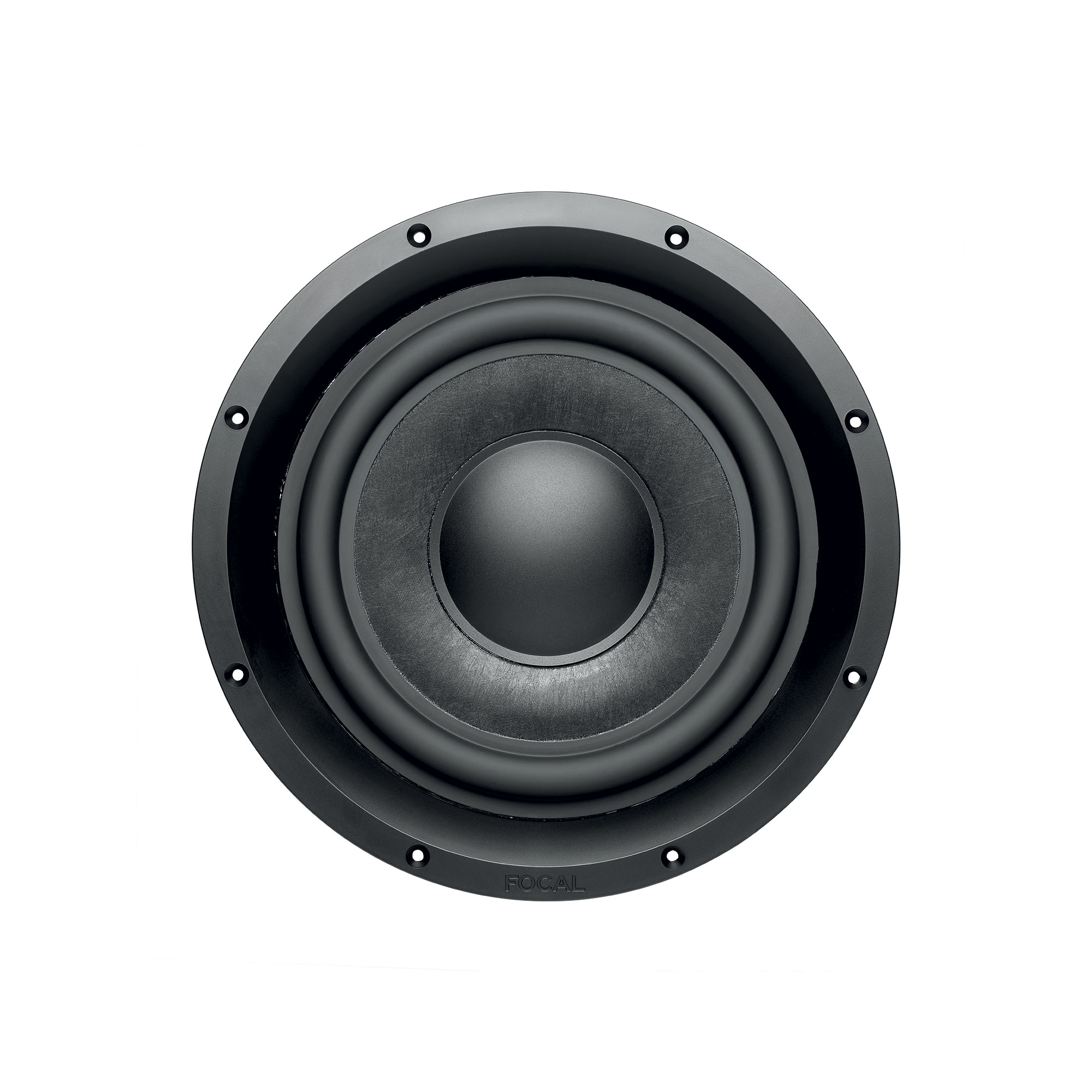

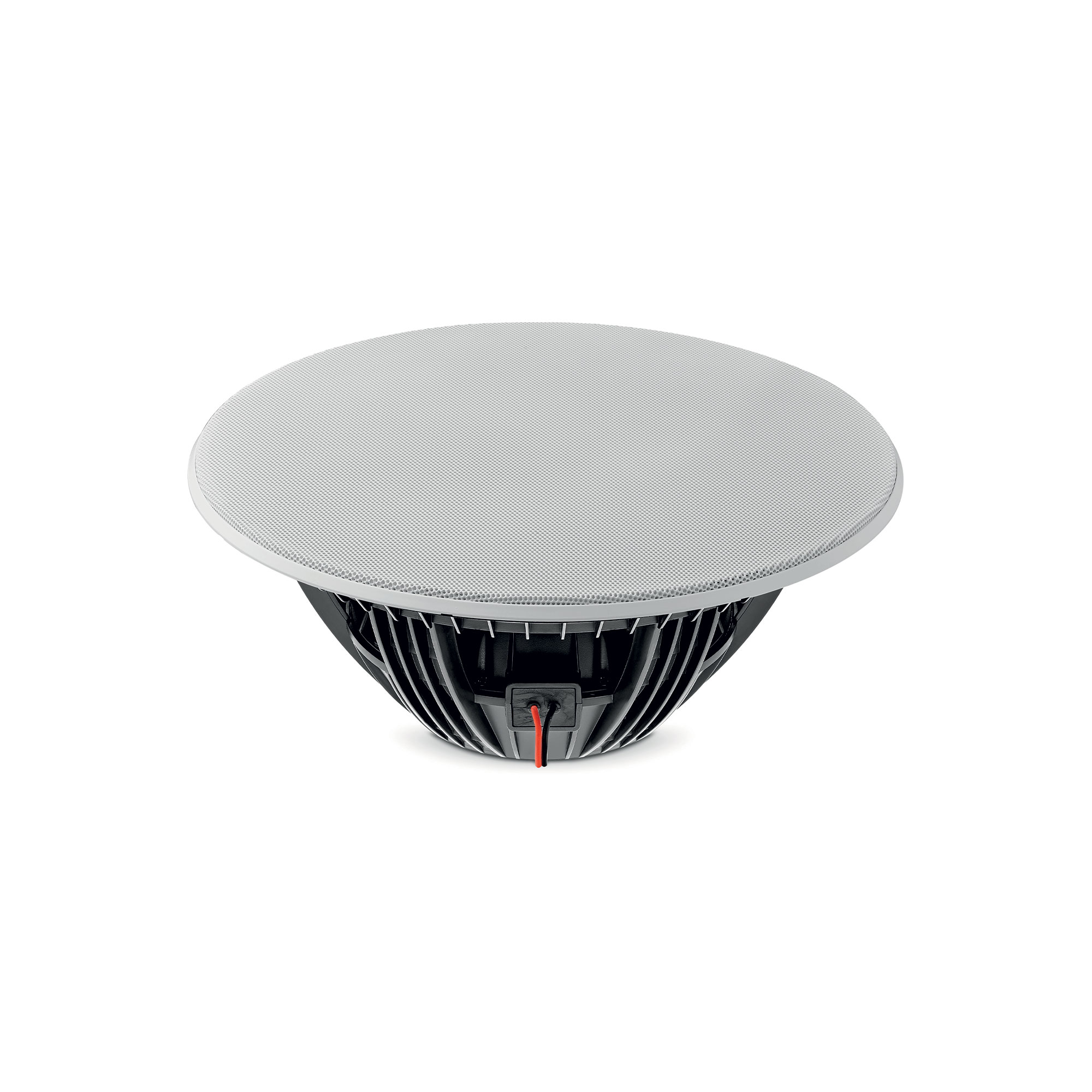

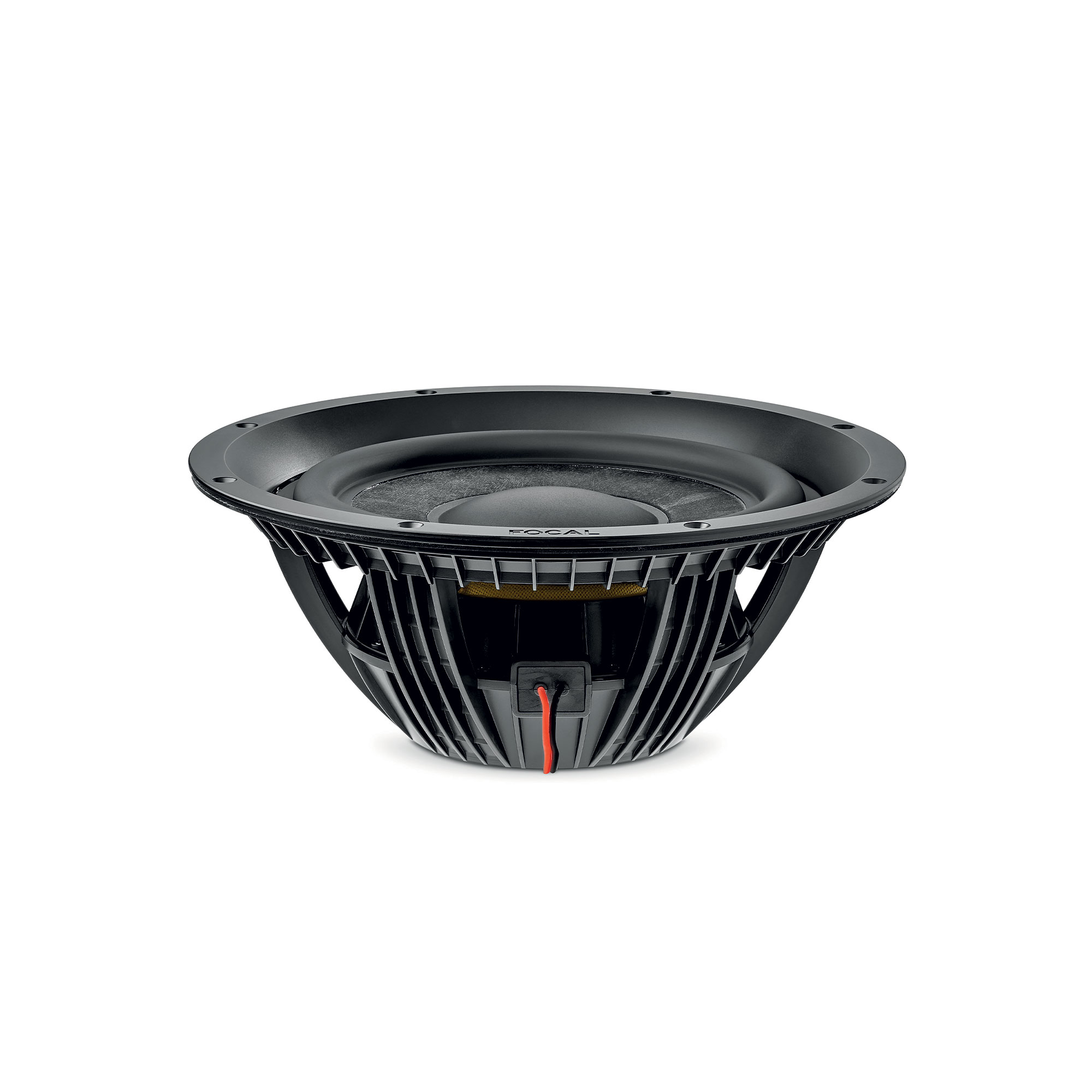

Littora 1000 ICW SUB10
8 photographs · 5 shown
From Focal

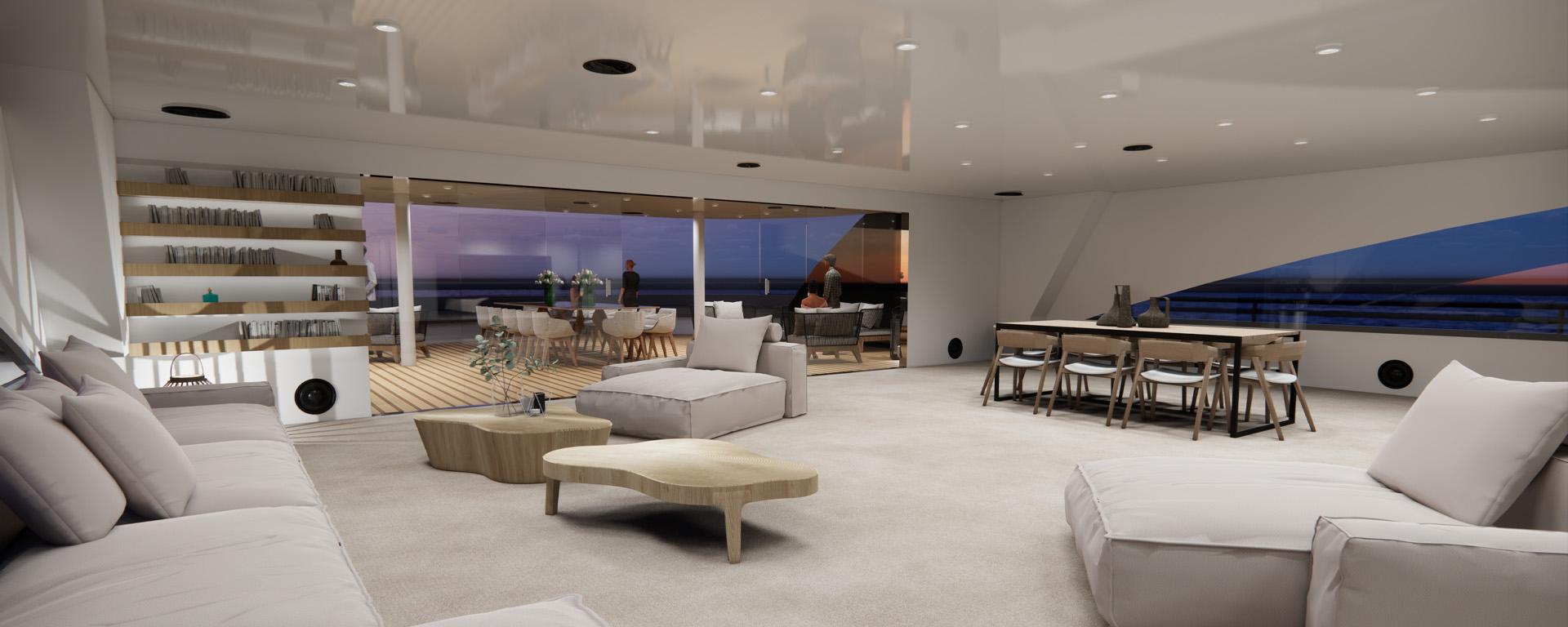

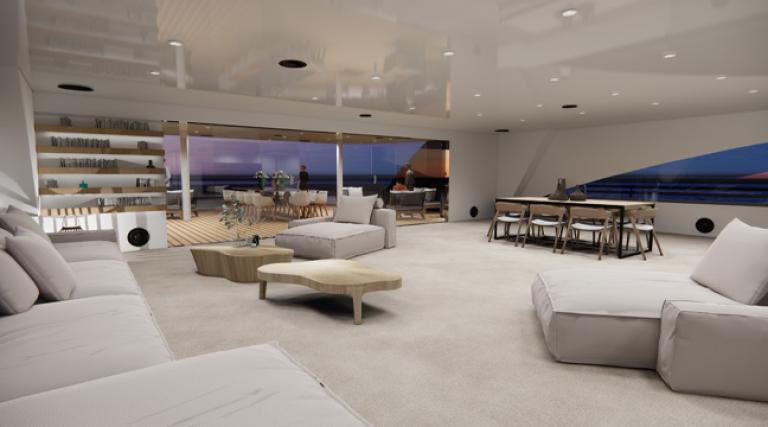

This 10" passive subwoofer needs an external 100-300W amp at 8 ohms and completes a 1000 ICW8 or ICW10 install with power at high volume. IP65-certified and UV-resistant, it handles yacht decks and wet outdoor spaces from -25°C to 90°C. Its shallow 123mm depth and ready-to-paint grille suit tight in-wall installs.
Specifications
| Type of speaker | LITTORA 1000 ICW SUB10 |
|---|---|
| Diameter | 10'' |
| Recommended amplifier power | 100 - 300W |
| Nominal impedance | 8Ω |
| Minimal impedance | 4Ω at 85Hz |
| Sensitivity (2.83V/1m) | 90dB |
| Frequency response | 25Hz - 500Hz |
| Closed box volume 1, F -3dB | 35L - 32Hz |
| Closed box volume 2, F -3dB | 22L - 36Hz |
| Free air, F -3dB | 30Hz |
| IP certification | IP65 (ASTMB117) |
| Grille | Aluminium ready-to-paint |
| UV resistance | Yes (ASTMG53) |
| Operating temperatures | -25°C to 90°C |
| Number of mounting points | 8 |
| Connector | Etanche DT06-2S |
| Mounting depth | 47/8" (123mm) |
| Certifications | ROHS, ROHS 2, ROHS CHINE, REACH |
| Weight | 5kg |
