Littora 200 ICW 8
The Littora 200 ICW8 flush-mounts in walls or ceilings, using a multi-point mounting system and an 8-inch driver for wide sound coverage.
fig. 01 · speakers
Littora 200 ICW 8
7 photographs · 5 shown
From Focal
This 8-inch outdoor speaker mounts quickly and reliably on a multi-point system, and its shallow depth delivers wide sound coverage in walls or ceilings. An 'M'-shaped aluminium dome tweeter and IP65-rated waterproofing hold up outdoors from -25°C to 90°C. The grille is ready to paint. Developed in France.
Specifications
| Type of speaker | LITTORA 200 ICW8 |
|---|---|
| Diameter | 8" |
| Recommended amp power | 25 – 150W |
| Nominal impedance | 8Ω |
| Minimal impedance | 4.2Ω at 150Hz |
| Sensitivity (2.83V/1m) | 90dB |
| Frequency response | 48Hz – 28kHz |
| High-pass, slope | 70Hz, 24dB/Oct - 70Hz, 24dB/Oct |
| Closed box volume 1, F -3dB | 10L, 72Hz |
| Closed box volume 2, F -3dB | 8L, 76Hz |
| Free air, F -3dB | 70Hz |
| Tweeter | 'M'-shaped aluminium dome |
| IP certification | IP65 (ASTMB117) |

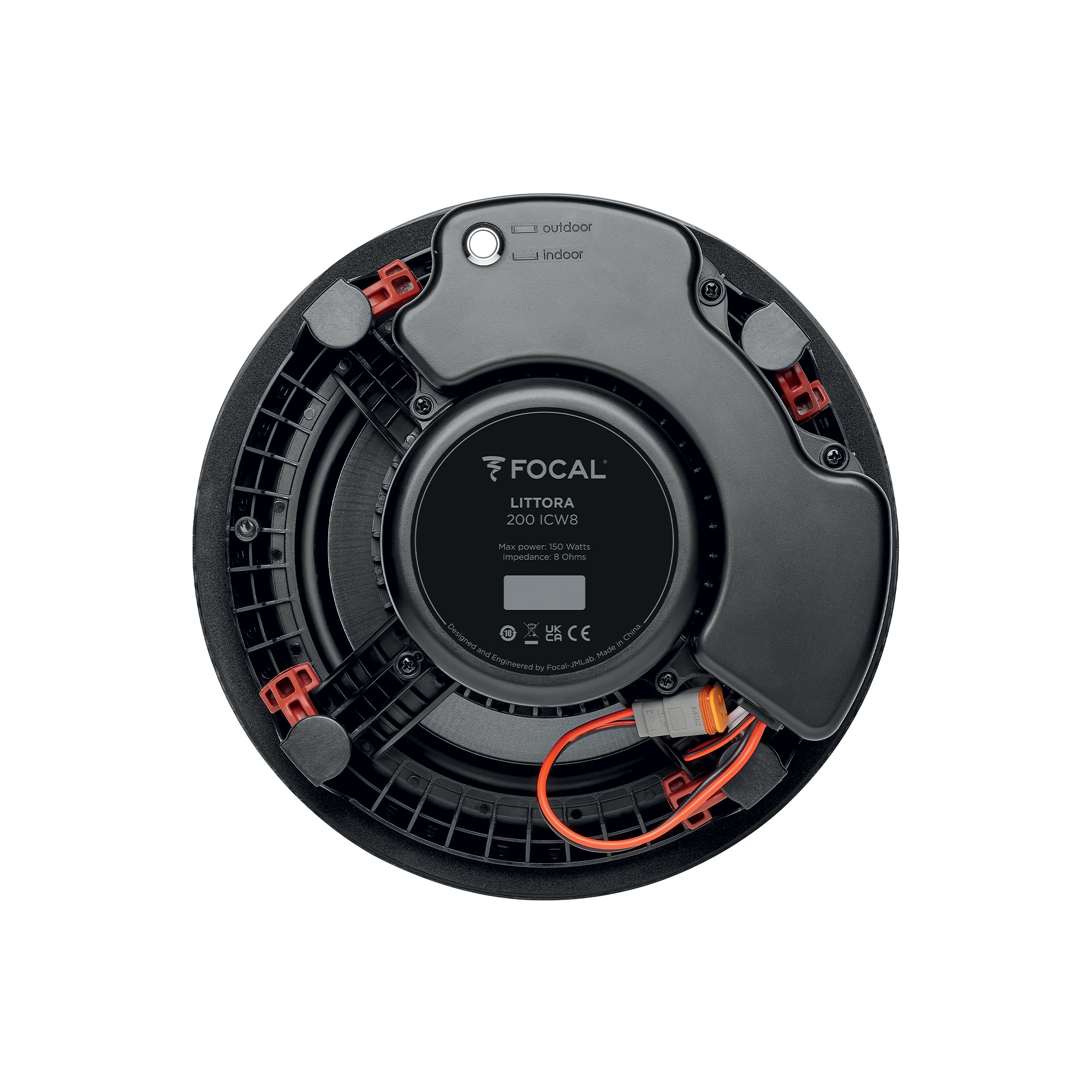

| Crossover setting | Indoor/Outoor switch |

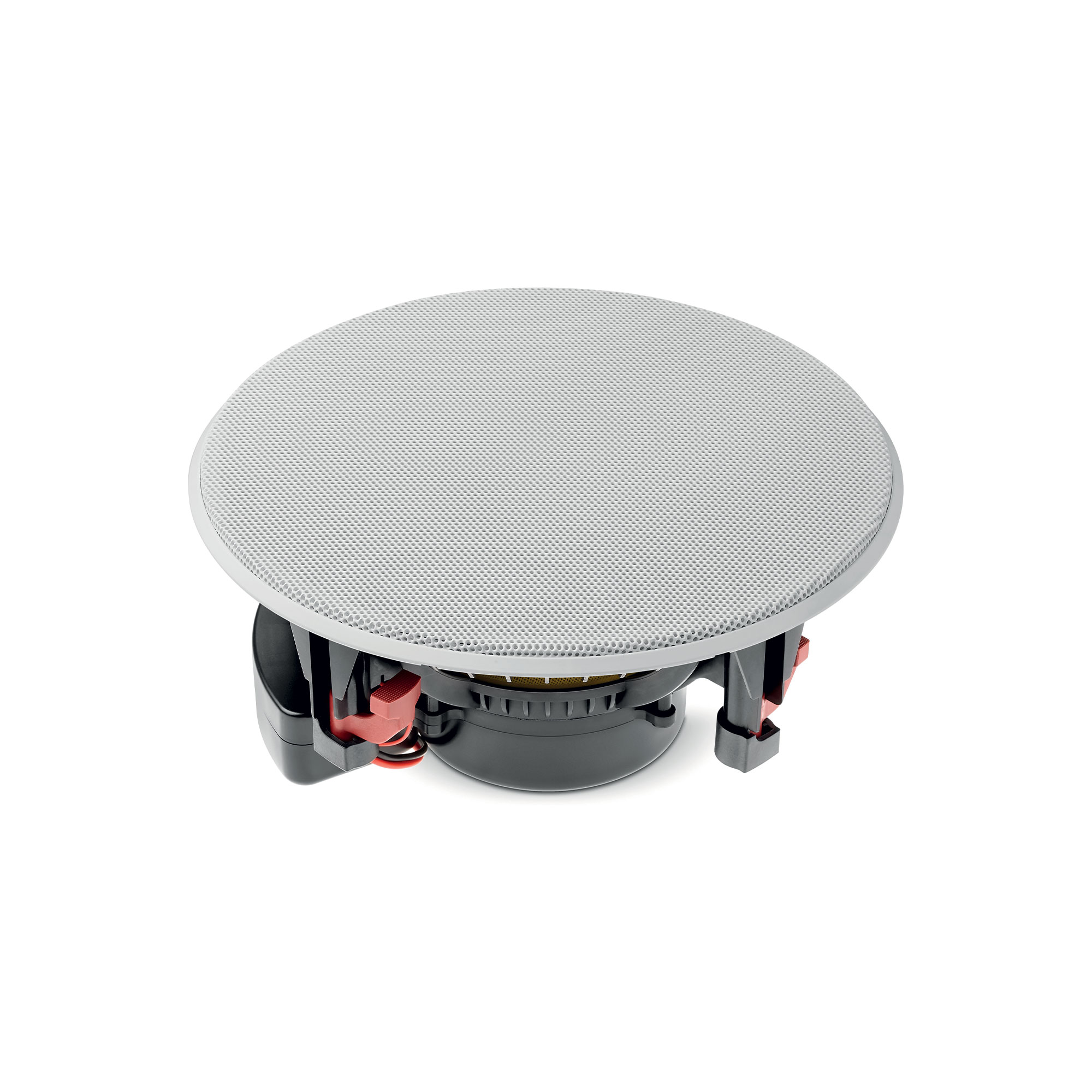

| Grille | Ready-to-paint aluminium |
| UV resistance | Yes (ASTMG53) |
| Operating temperatures | -25°C to 90°C |
| Number of mounting points | 4 |
| Connector | DT06-2S sealed |
| Mounting depth | 41/2" (113mm) |
| Certifications | ROHS, ROHS 2, CHINA ROHS, REACH |
| Weight | 3.5kg |
