OD 4.1

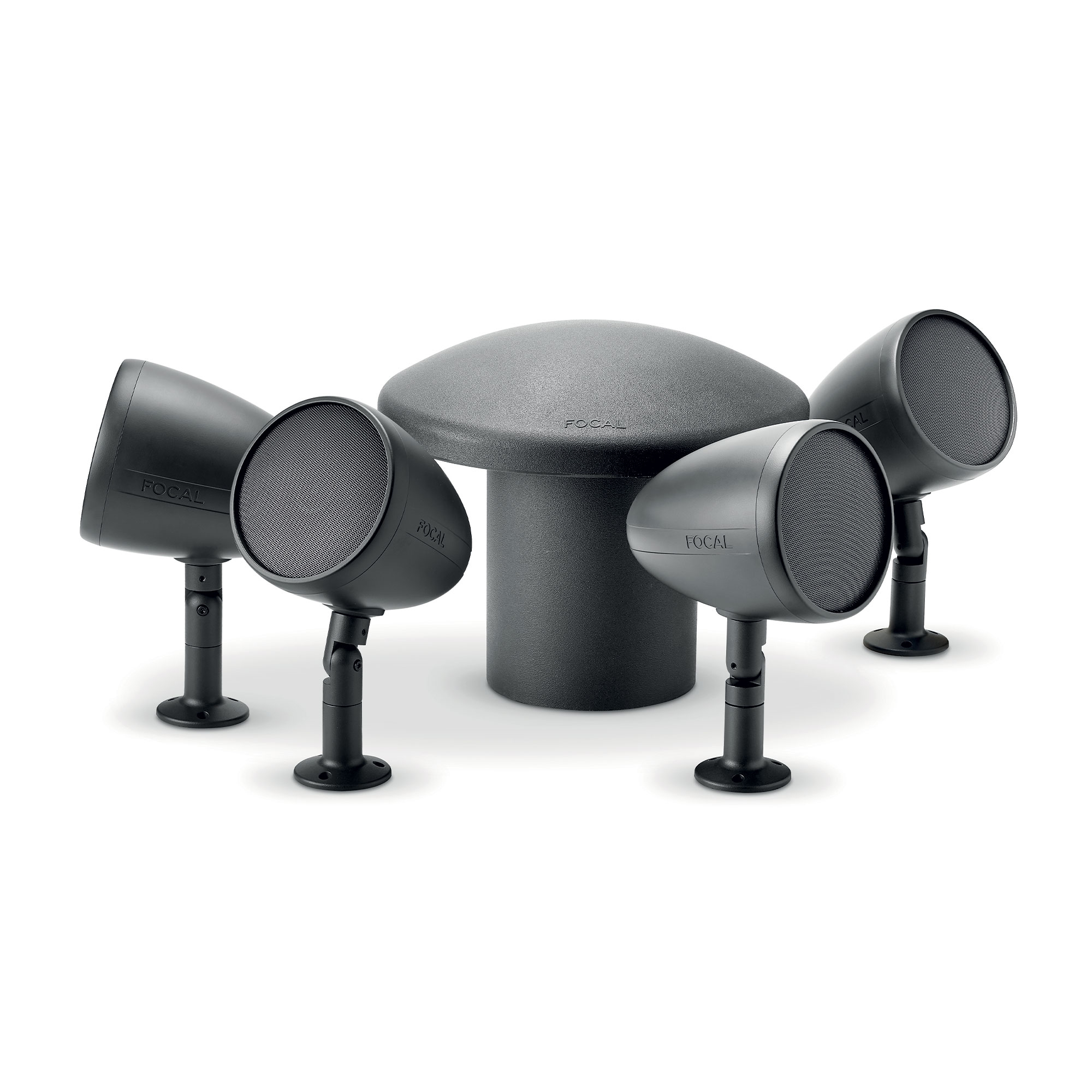

A complete outdoor sound system: four OD Sat 5 satellites paired with one OD Sub 12 subwoofer for gardens and terraces.
fig. 01 · speakers
OD 4.1
From Focal
This system pairs four OD Sat 5 satellites with one OD Sub 12 subwoofer for outdoor sound across a garden or terrace. Every speaker carries an IP55 rating for water and dust and tolerates -20 to 65 C. Brackets are supplied for in-ground or in-wall mounting, and the system runs on 8 ohm or 70V/100V setups.
Specifications
| Type of speaker | OD SAT 5 | OD SUB 12 |
|---|---|
| Speaker drivers | OD SAT 5: 5" (13cm) Bass/Midrange, Iris IP cone | 1" (2.5cm) Aluminium 'M'-shaped tweeter | OD SUB 12: 12" (30cm) woofer with Iris IP cone |
| Bandwidth | OD SAT 5: 90Hz - 28kHz | OD SUB 12: 40Hz - 120Hz |
| Impedance | 8Ω |
| Minimal impedance | OD SAT 5: 5.2Ω - 250Hz | OD SUB 12: 5Ω - 55Hz |
| Sensitivity | OD SAT 5: 88dB | OD SUB 12: 90dB |
| Power | OD SAT 5: 50W RMS - 100W Peak | OD SUB 12: 100W RMS - 400W Peak |
| Recommended amp power 8Ω | OD SAT 5: 20W - 100W | OD SUB 12: 50W - 300W |
| Recommended RMS power 70/100V | OD SAT 5: 40W | OD SUB 12: 150W |
| Maximum power (70/100V) | OD SAT 5: X | OD SUB 12: 300W (150W RMS) |
| High-pass, roll-off | OD SAT 5: 100Hz, 24dB/Oct - 100Hz, 24dB/Oct | OD SUB 12: X |
| Transformer positions | OD SAT 5: 70V - 100V/5W, 10W, 20W, 40W | OD SUB 12: X |
| Temperature tolerance | -20°/65° |
| IP rating | IP55 |
| Angle coverage | OD SAT 5: 90° | OD SUB 12: 360° |
| Dimensions (L x H x D) | OD SAT 5: 12 5/8 x 12 5/8 x 8 1/4 " (32 x 32 x 21cm) | OD SUB 12: 15 x 36 1/4 x 22" (38 x 92 x 56cm) |
| Weight | OD SAT 5: 5.5lbs (2.5kg) | OD SUB 12: 41.8lbs (19kg) |
