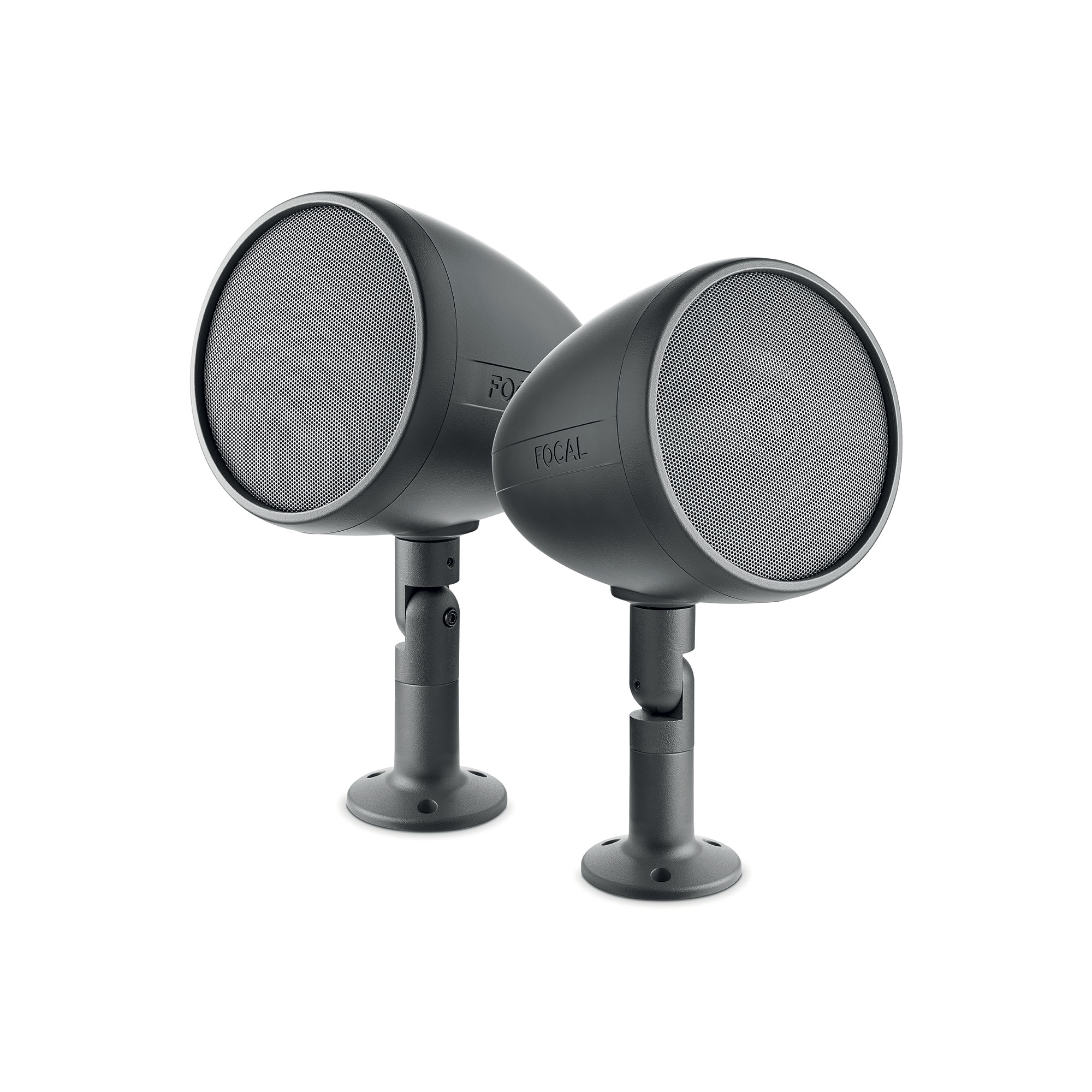

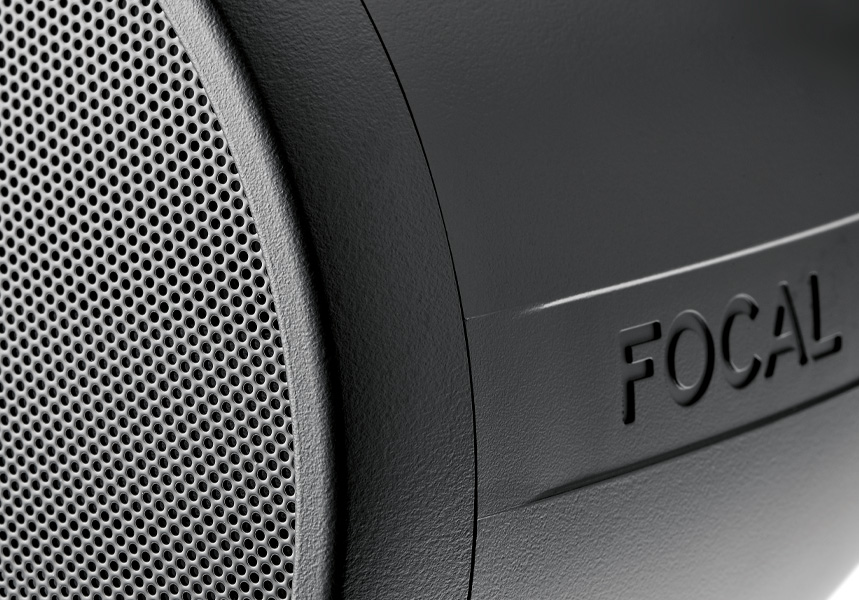

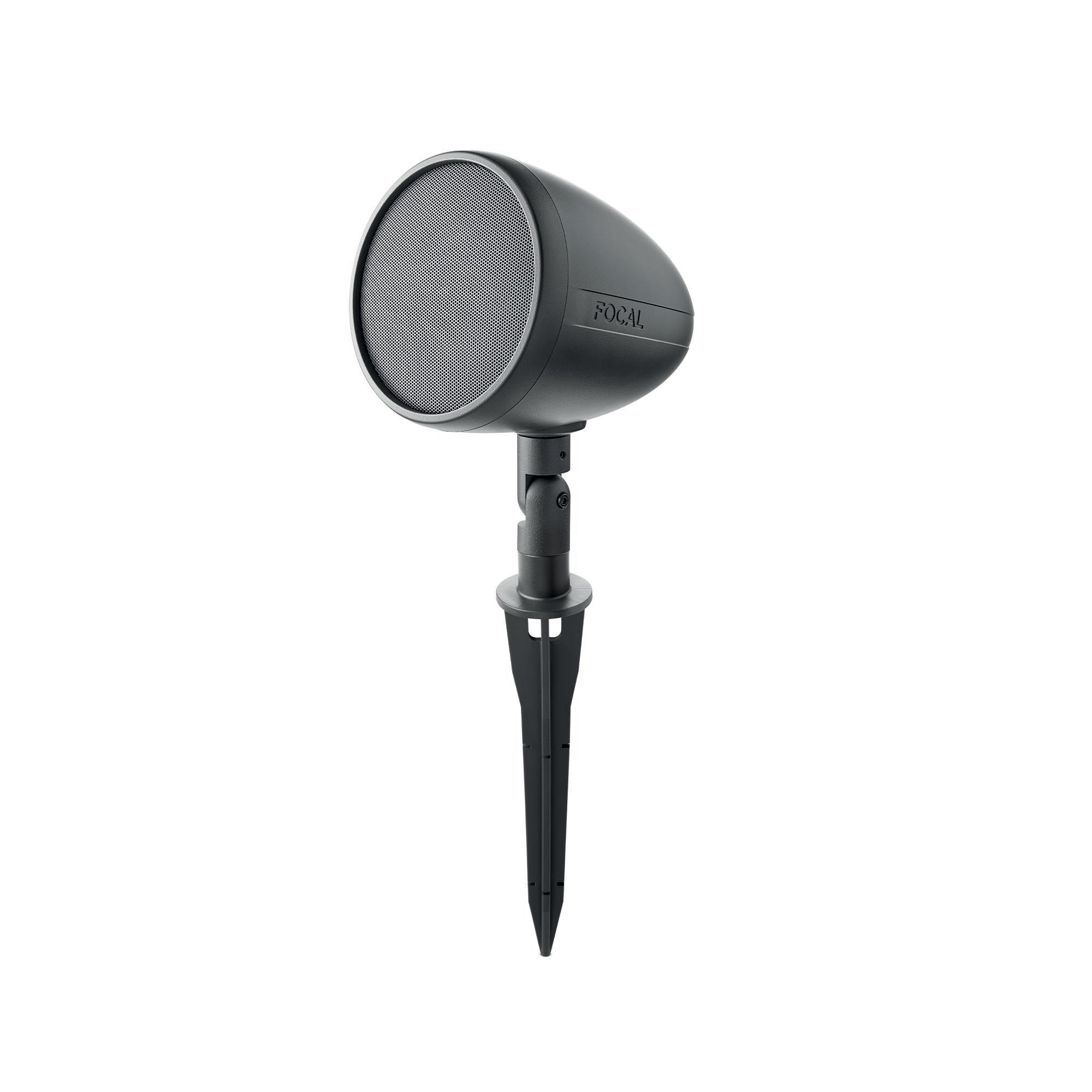

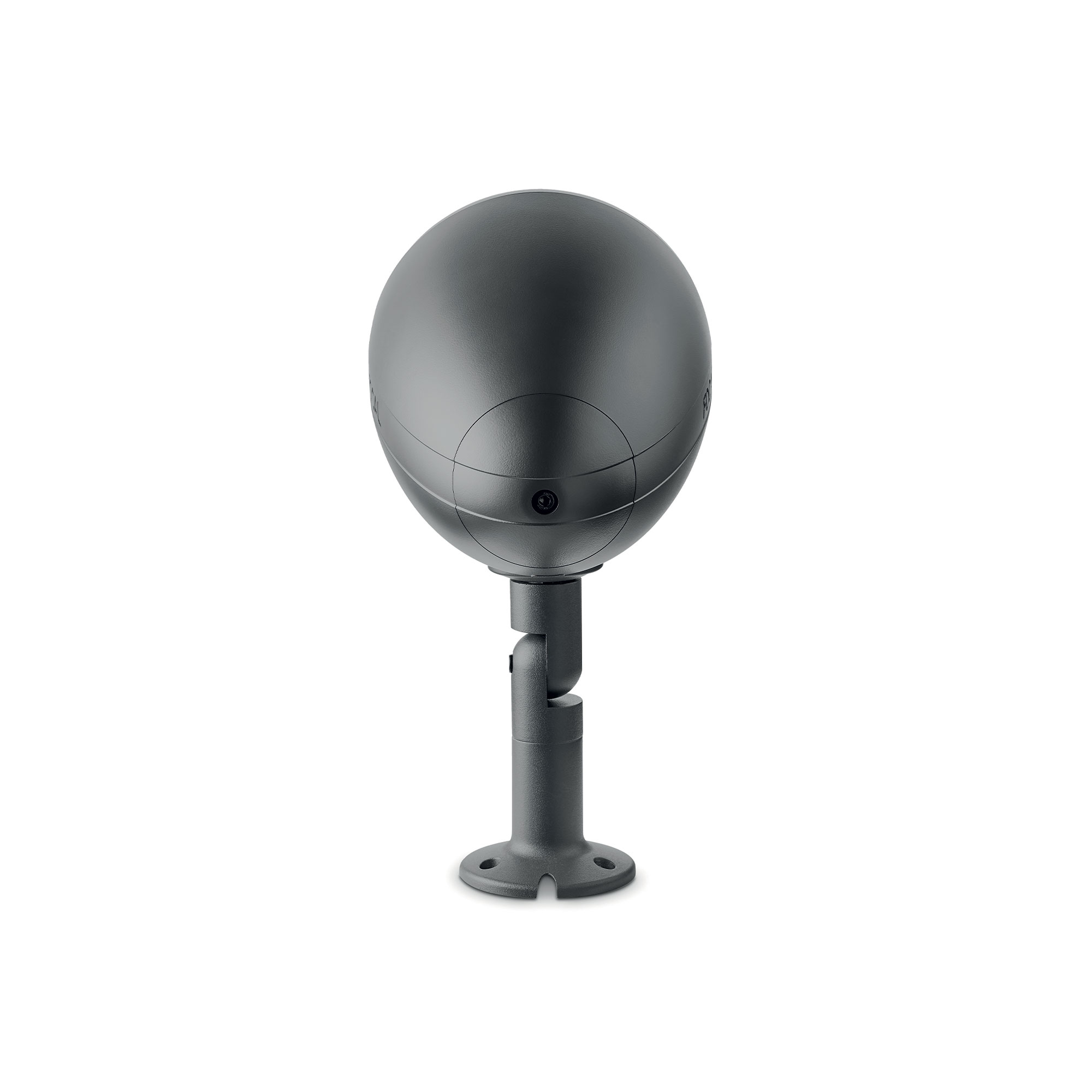

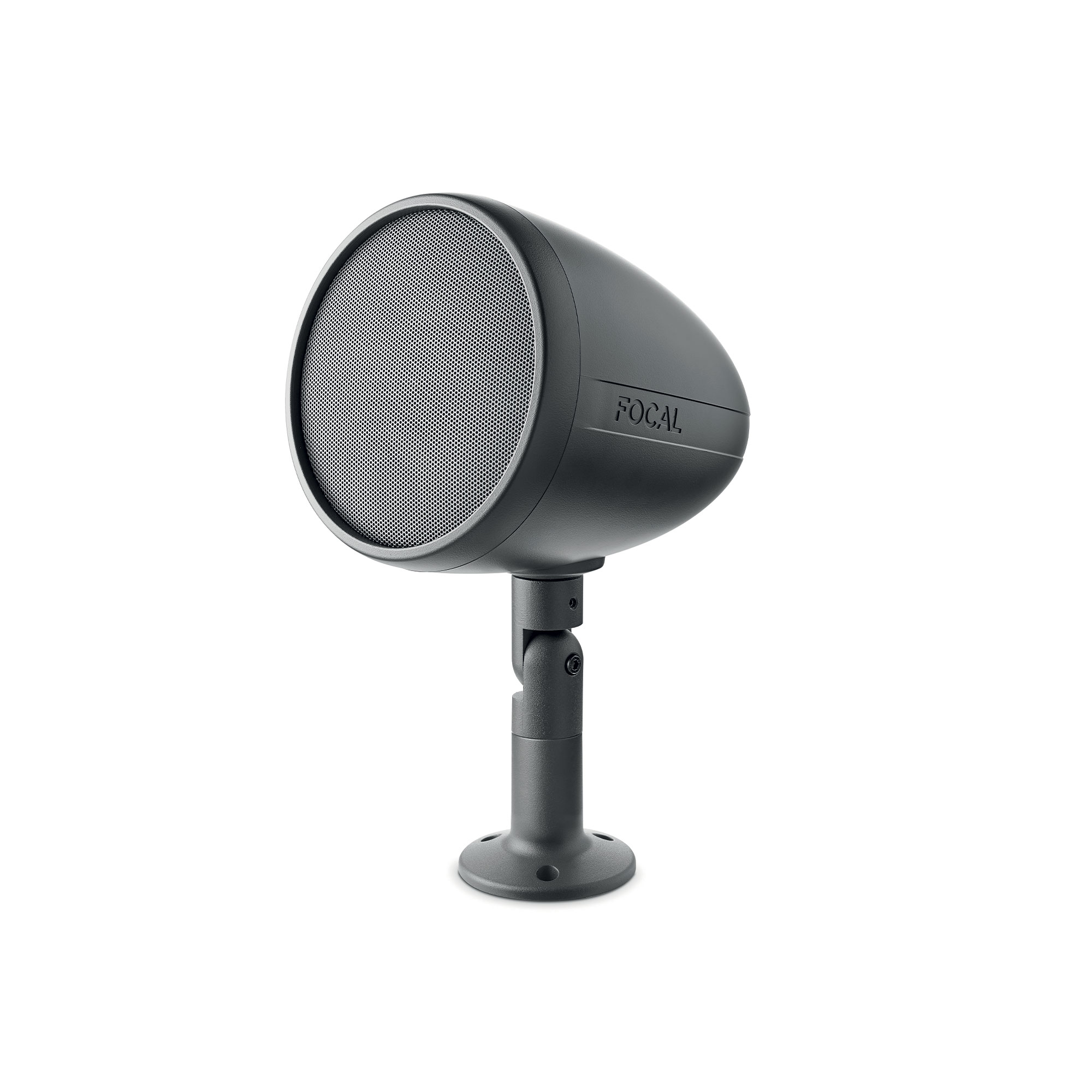

OD Sat 5
OD Sat 5 is a compact 2-way outdoor speaker built to pair with the OD Sub 12 for garden and terrace sound.
fig. 01 · speakers
OD Sat 5
8 photographs · 5 shown
From Focal
This 2-way speaker pairs a 5-inch midbass with an Iris IP cone and a 1-inch aluminum tweeter, covering 90Hz to 28kHz. It carries an IP55 rating for water and dust, tolerates -20 to 65 C, and runs on 8 ohm or 70V/100V lines. One unit covers roughly 30 square meters of garden or terrace.
Specifications
| Type of speaker | 2-way outdoor speaker |
|---|---|
| Speaker drivers | 5" (13cm) Midbass, Iris IP cone | 1" (2.5cm) Aluminium 'M'-shaped tweete |
| Bandwidth | 90Hz - 28kHz |
| Impedance | 8Ω |
| Minimal impedance | 5.2Ω at 250Hz |
| Sensitivity | 88dB |
| Power | 50W RMS - 100W Peak |
| Recommended amp power 8Ω | 20W - 100W |
| Recommended RMS power 70/100V | 40W |
| High-pass, slope | 100Hz, 24dB/Oct - 90Hz, 24dB/Oct |
| Transformer positions | 70V - 100V/5W, 10W, 20W, 40W |
| Temperature tolerance | -20°/65° |
| IP rating | IP55 |
| Angle coverage | 90° |
| Dimensions (W x D x H) | 12 5/8 x 12 5/8 x 8 1/4 " (32 x 32 x 21cm) |
| Weight | 5.5lbs (2.5kg) |
| Area | Recommended quantities |
| 30m2 | 1 |
| 70m2 | 2 |
| 115m2 | 3 |
| 150m2 | 4 |
