Focal · Subwoofers · Outdoor Speakers · Speakers
OD SUB 12

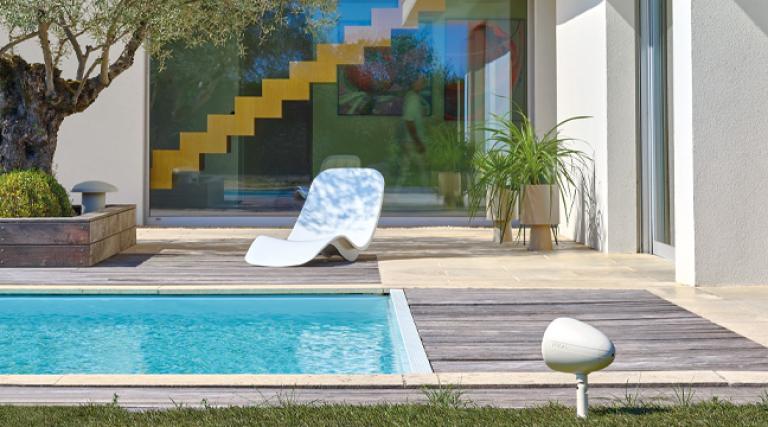

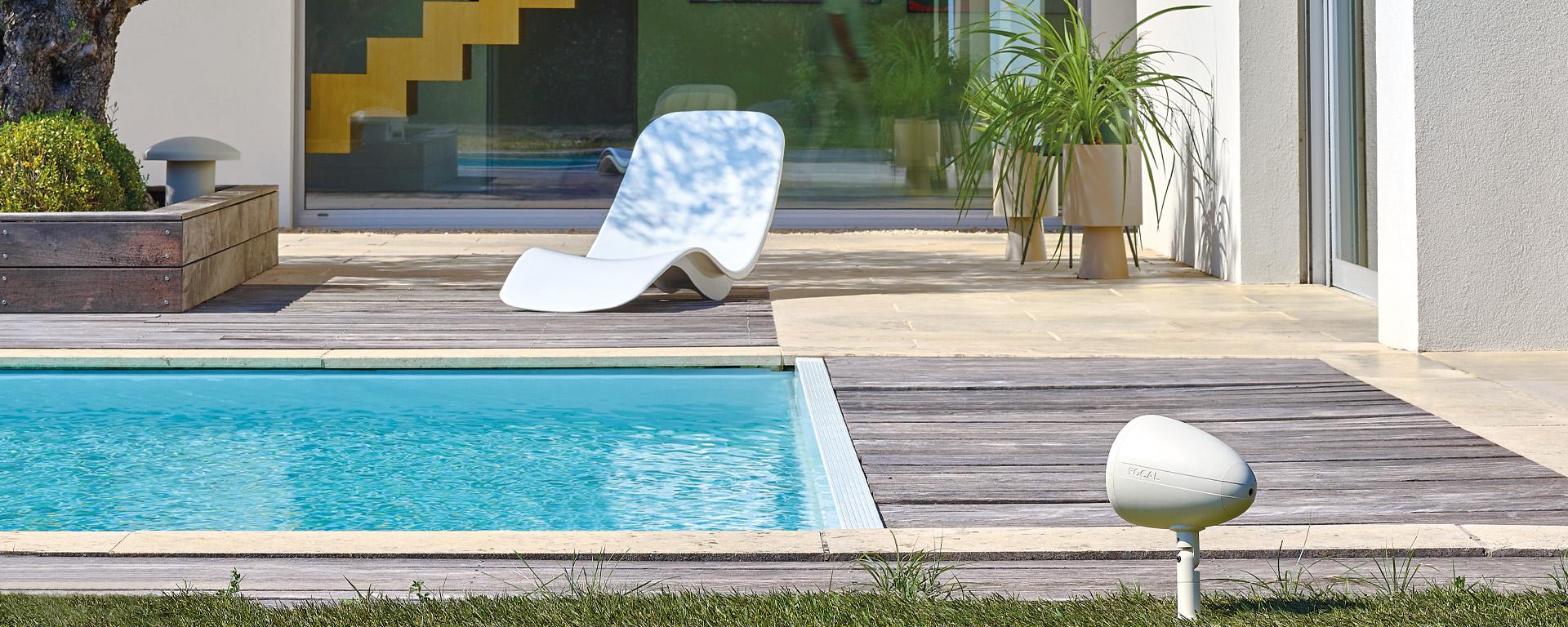

A 12" in-ground passive subwoofer for gardens and pools, wired to an external amp or a 70V/100V distributed line.
fig. 01 · subwoofers
OD SUB 12
8 photographs · 5 shown
From Focal

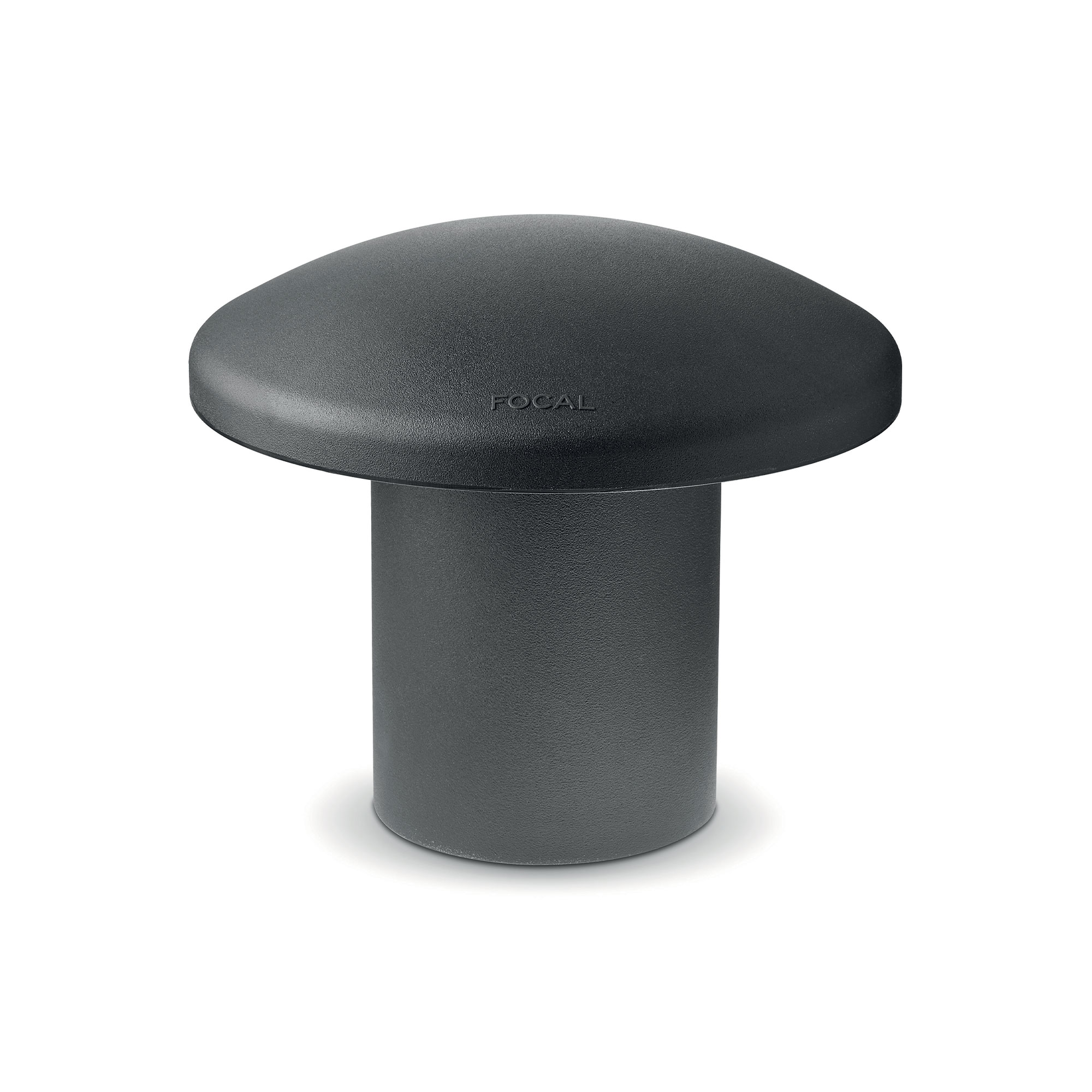

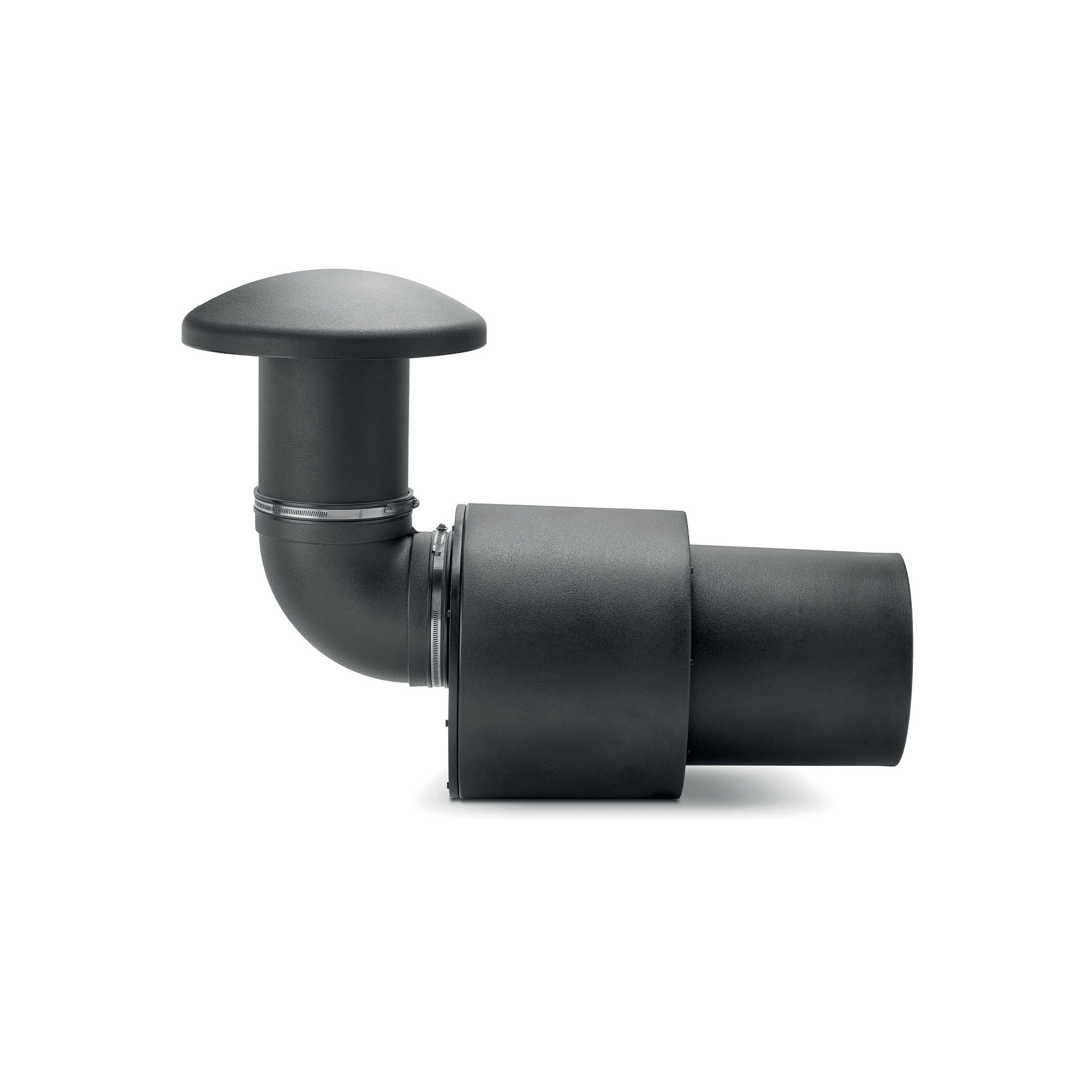

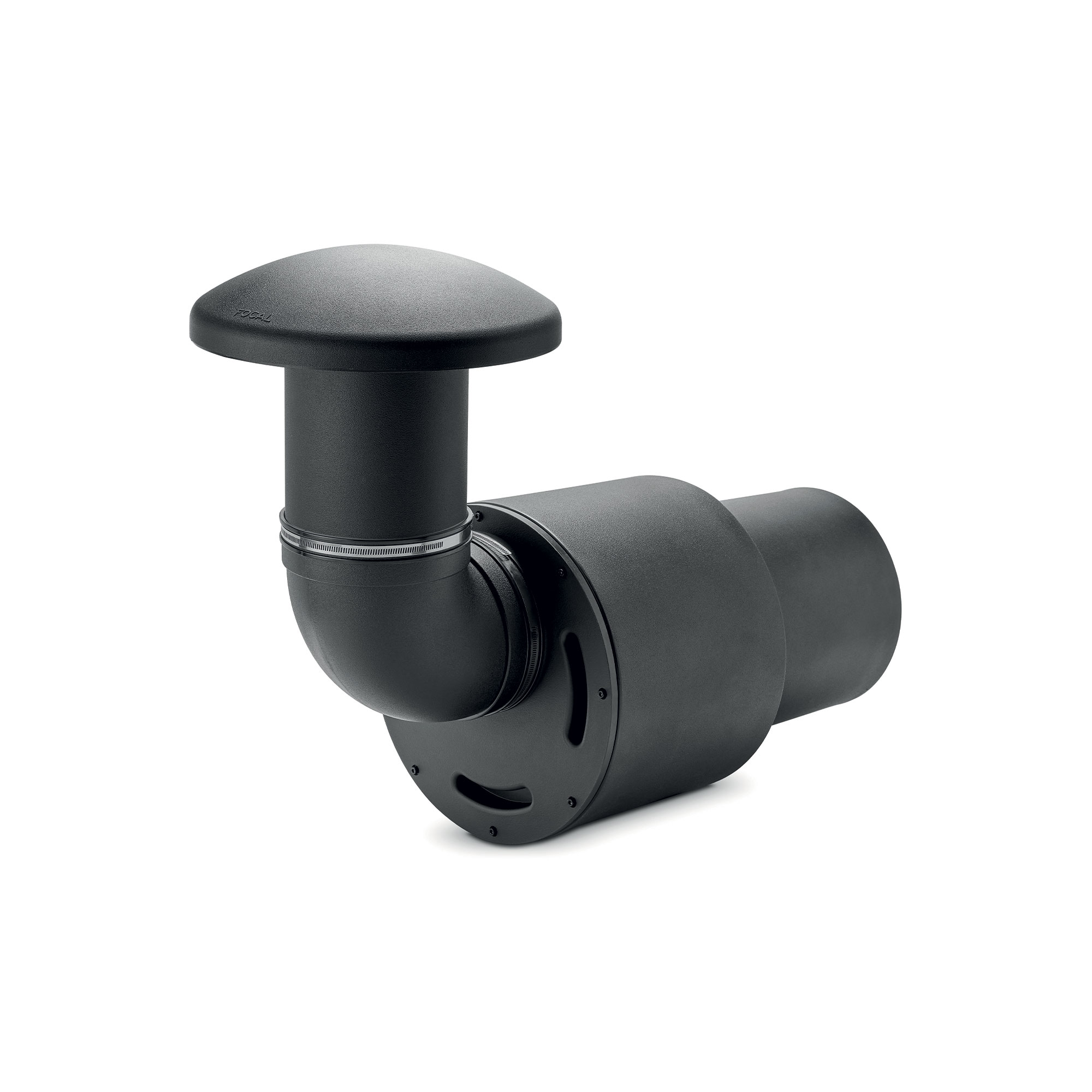

This 12-inch passive subwoofer runs a 30cm Iris IP driver rated 100W RMS, 400W peak. It needs external amplification (50-300W recommended) or a 70V/100V line through its built-in transformer, so it covers a wide garden or poolside. IP55-rated for weather, it pairs with the OD Sat 5 for outdoor sound.
Specifications
| Type of speaker | Outdoor subwoofer |
|---|---|
| Speaker drivers | 12" (30cm) woofer with Iris IP cond |
| Bandwidth | 40Hz - 120Hz |
| Impedance | 6Ω |
| Minimal impedance | 5Ω at 55Hz |
| Sensitivity | 90dB |
| Power | 100W RMS - 400W Peak |
| Recommended amp power 8Ω | 50W - 300W |
| Recommended RMS power 70V/100V | 150W |
| Maximum power (70/100V) | 300W (150W RMS) |
| Temperature tolerance | -20°/65° |
| IP rating | IP55 |
| Dimensions (W x D x H) | 15" x 36 1/4 " x 22" (38 x 92 x 56cm) |
| Weight | 41.89lbs (19kg) |
