Focal · Speakers · In-wall & In-ceiling Speakers

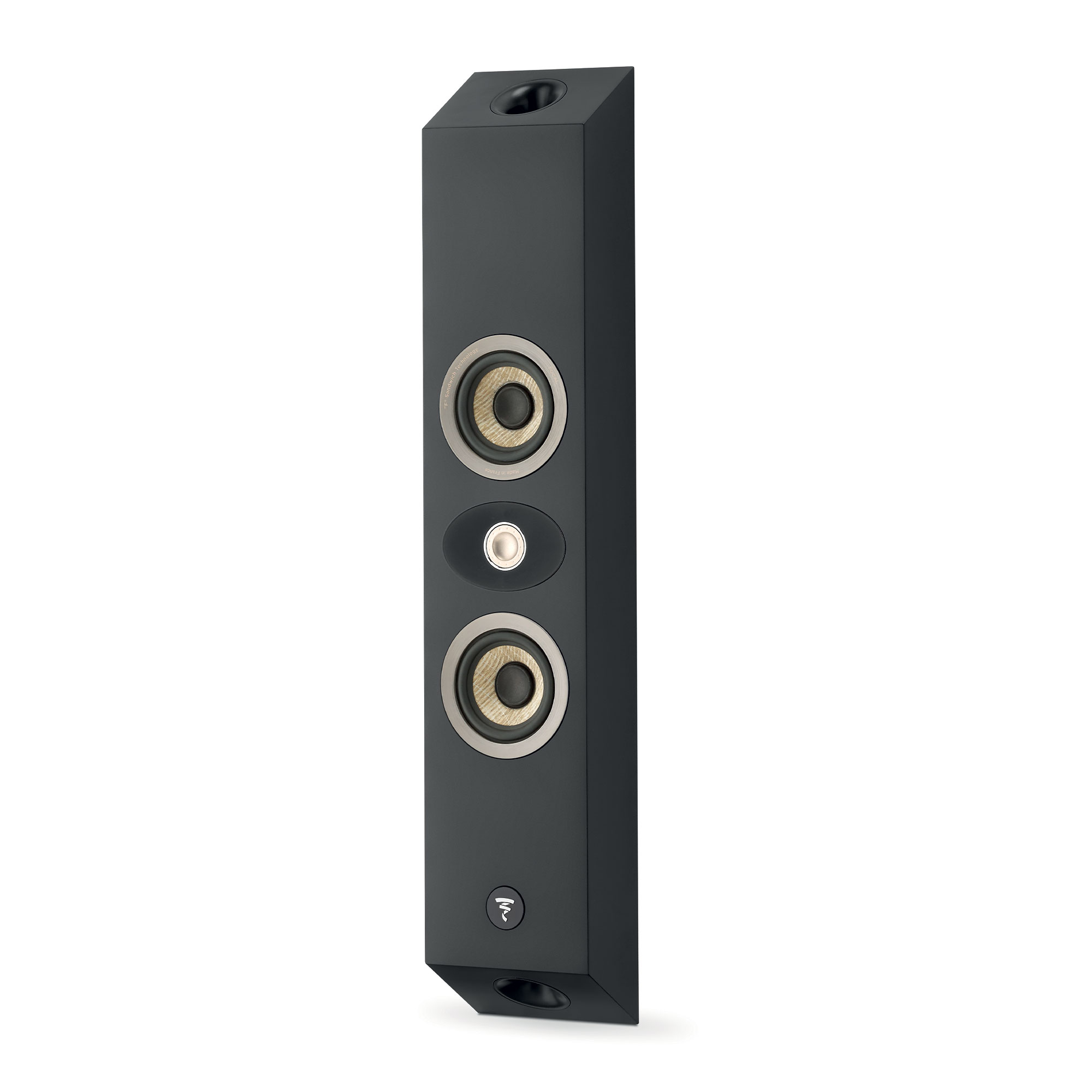

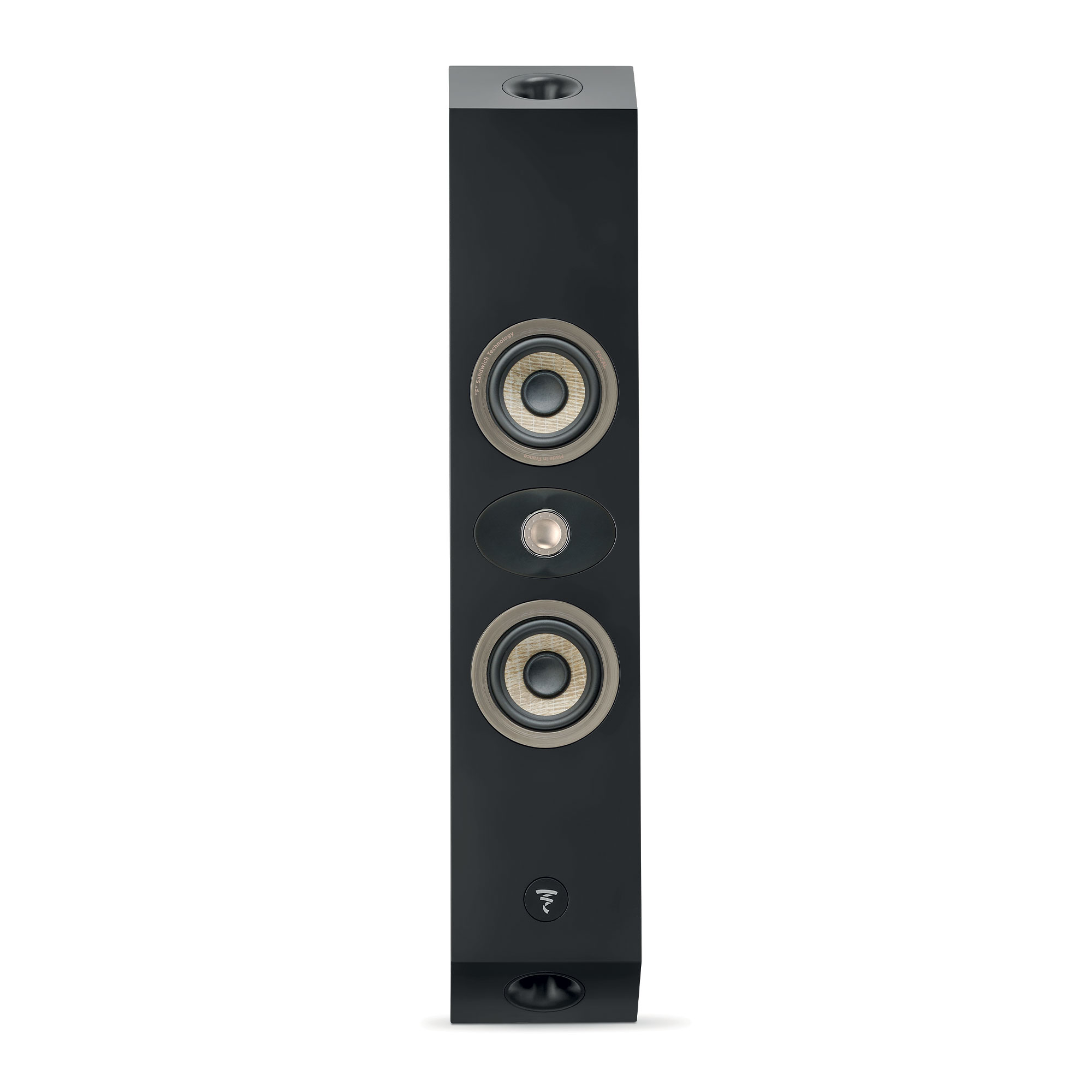

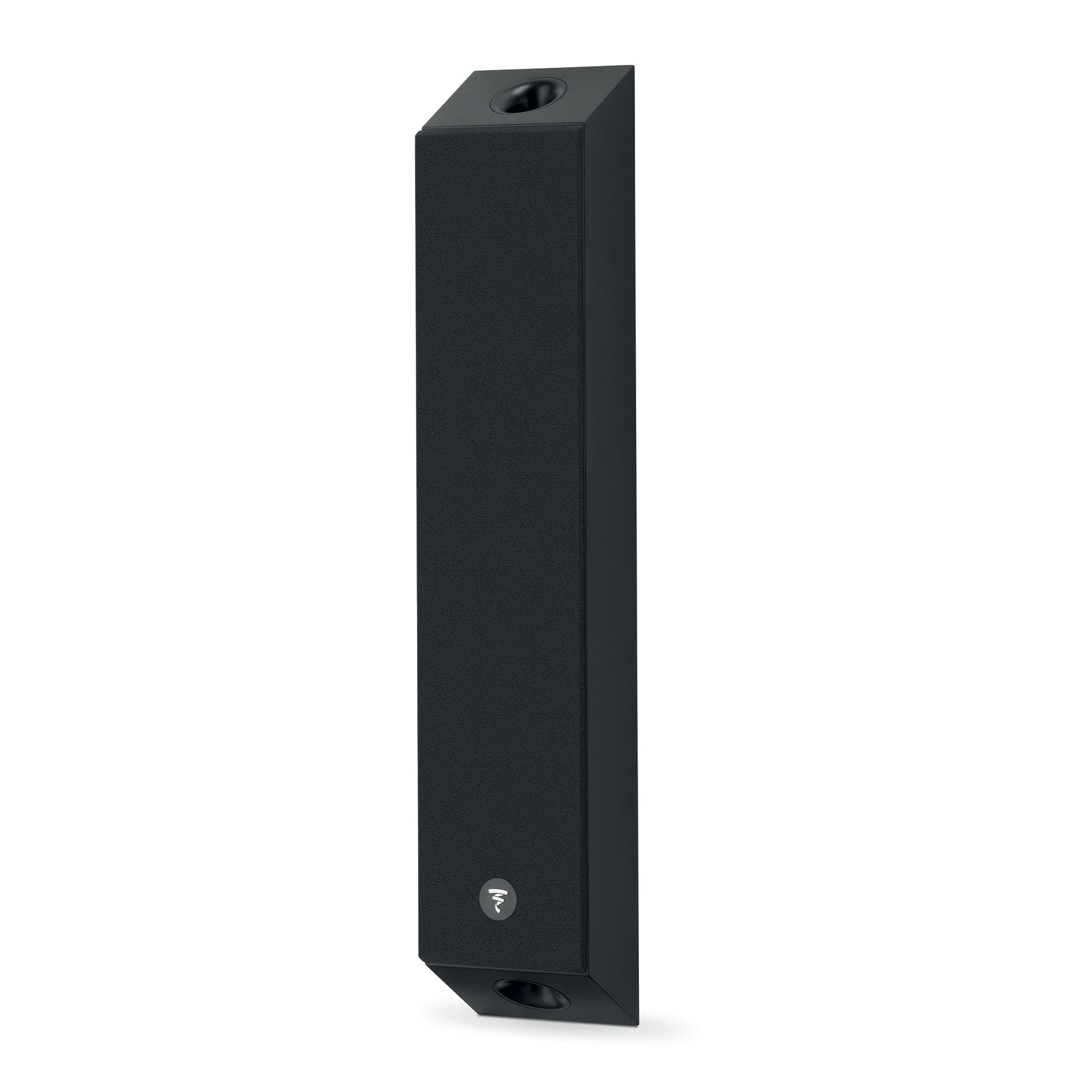

On Wall 301
On Wall 301 is a slim, surface-mounted on-wall speaker for center, left, or right duty around TVs up to 60 inches.
fig. 01 · speakers
On Wall 301
8 photographs · 5 shown
From Focal

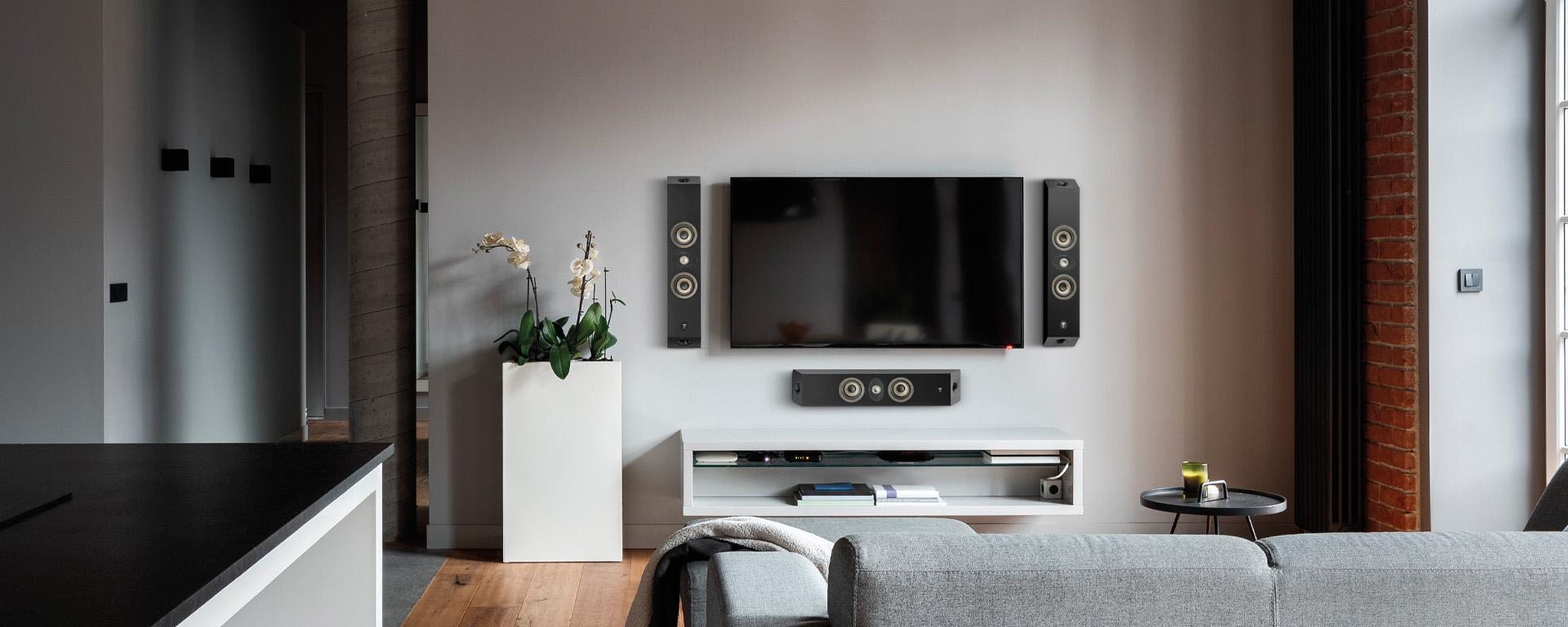

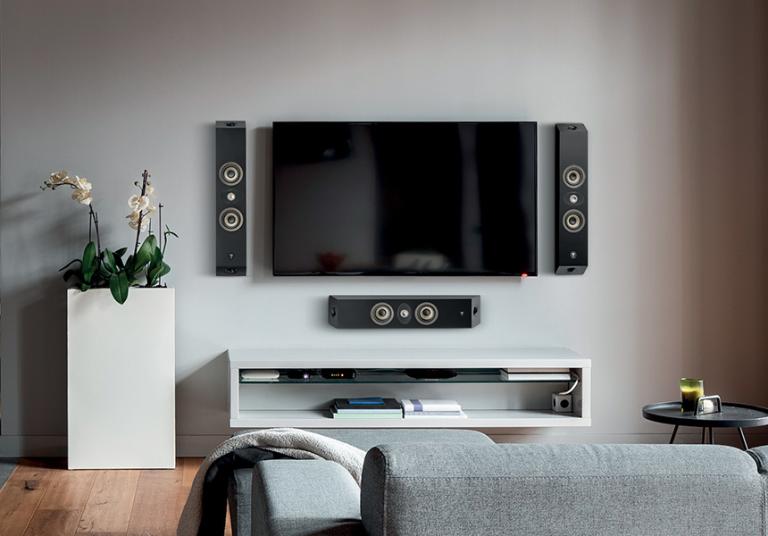

This 2-way on-wall speaker mounts to the wall or sits on optional stands, and works horizontally as a center channel around the TV. Two 4 inch Flax midbass drivers and a tweeter cover 53Hz to 28kHz, sized for screens up to 60 inches. It comes in white high gloss or black satin.
Specifications
| Type | 2-way loudspeaker |
|---|---|
| Drivers | 2 x 4" (100mm) Flax MidBass | 1 x 1" (25mm) Tweeter TNF |
| Sensitivity (2.83V/1m) | 87dB |
| Frequency response (±3dB) | 53Hz - 28kHz |
| Low frequency point (-6dB) | 44Hz |
| Nominal impedance | 8 Ω |
| Minimum impedance | 5.5 Ω |
| Recommanded amplifier power | 25 - 130W |
| Crossover frequency | 2,500Hz |
| Dimensions (HxWxD) | 31 1/2 x6 1/8 x3 9/16 " (80x15.5x9cm) |
| Net weight (unit with grille) | 13lbs (5.9kg) |
| Packaging dimensions (HxWxD) | 35 13/16 x11 13/16 x9 1/16 " |
| Net weight (with packaging) | 7.7kg |
