Shape 40

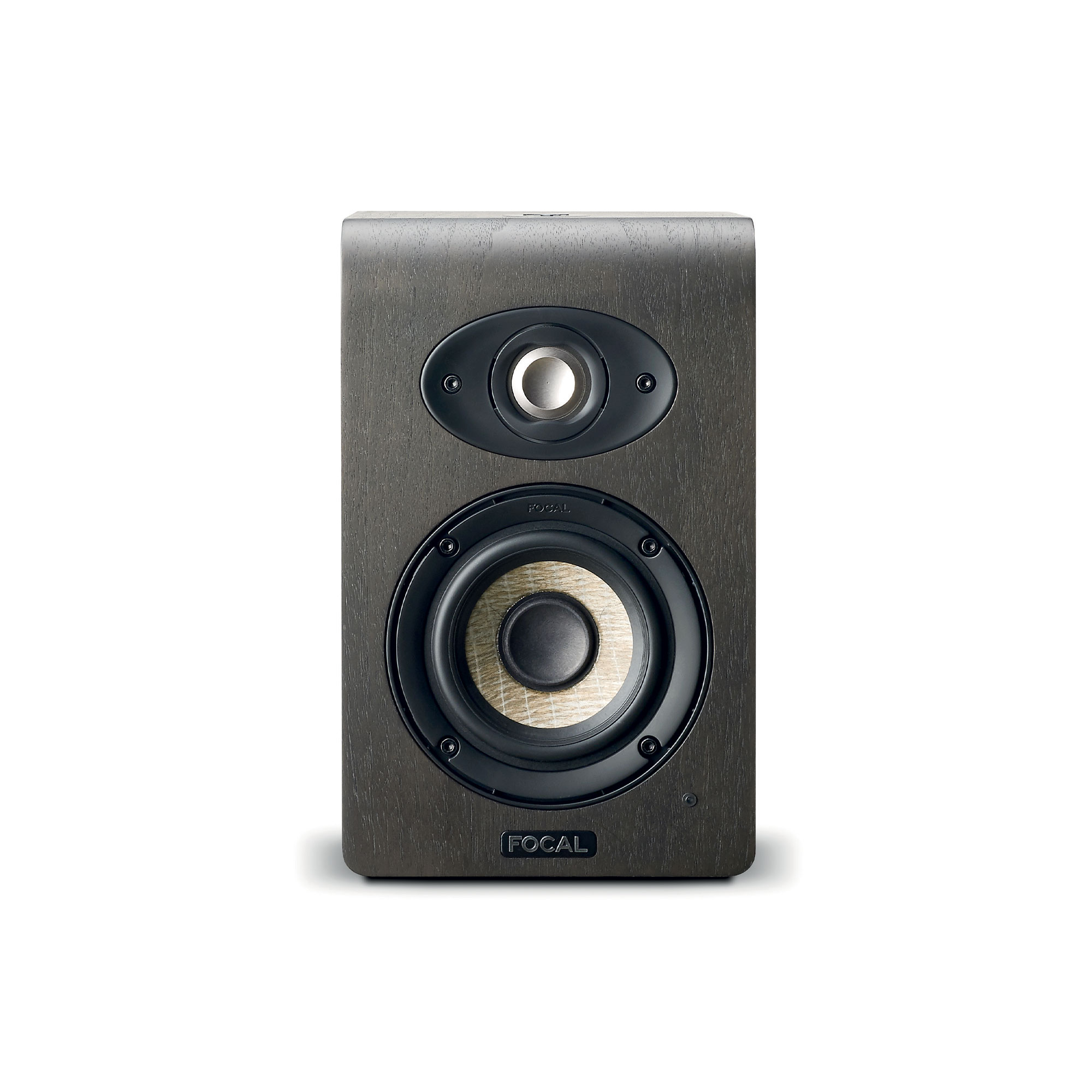

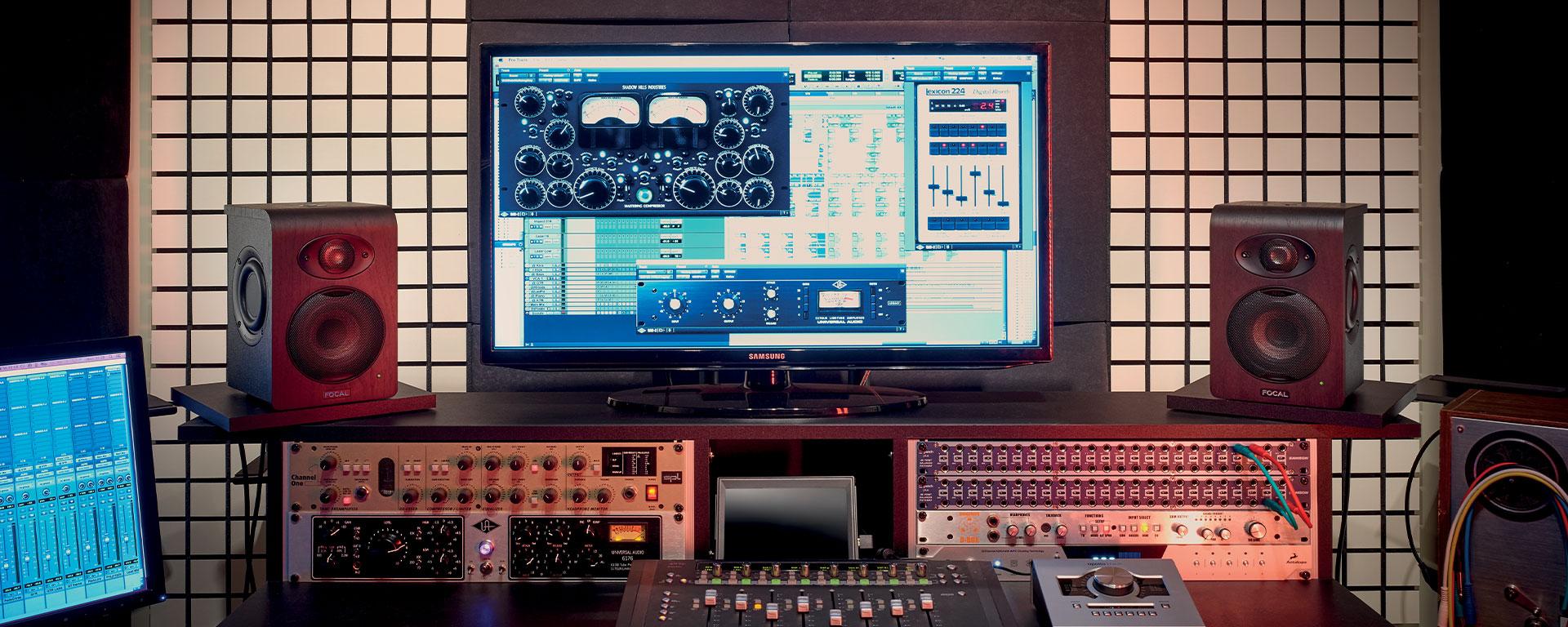

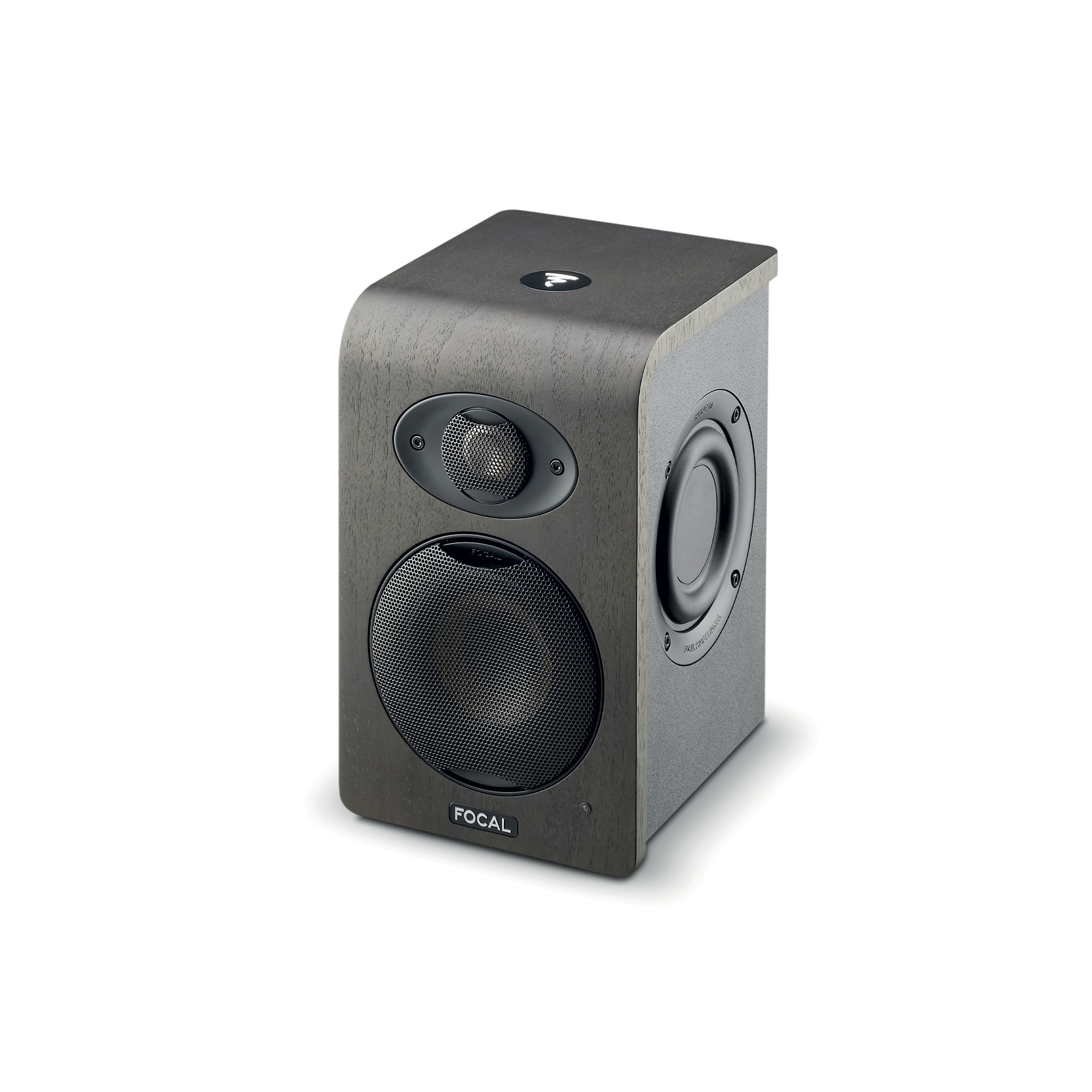

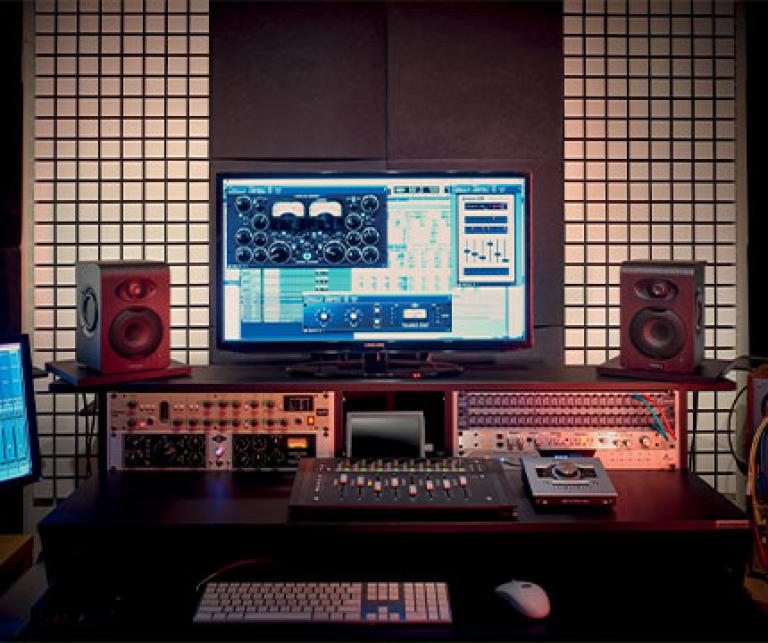

The Shape 40 is a compact active nearfield monitor built for close monitoring in rooms under 10 m2 or tight installs.

fig. 01 · studio monitors

Shape 40

From Focal

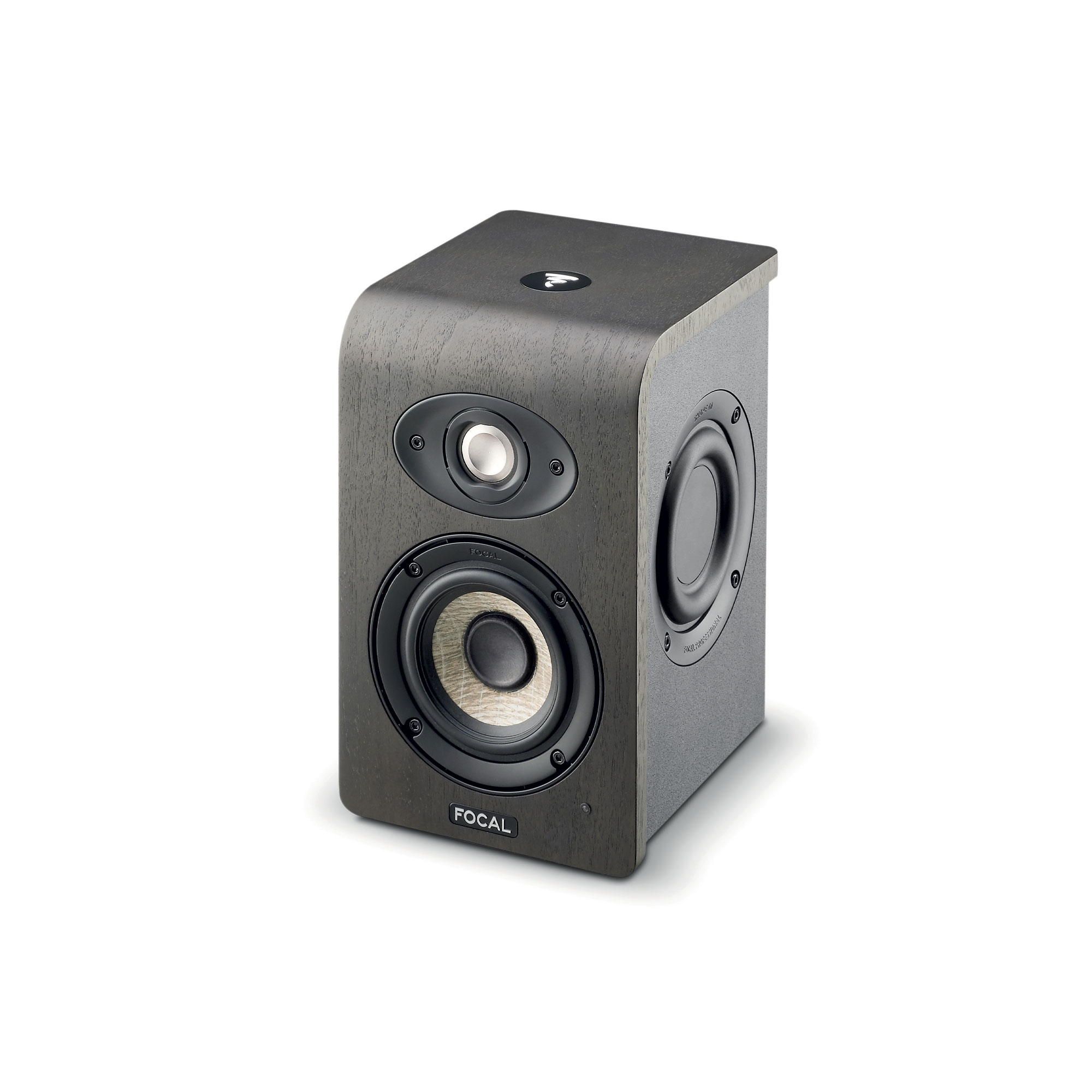

A 4-inch (10cm) Flax cone woofer and 'M'-profile aluminum-magnesium tweeter run on dual 25W Class AB amps, giving 60Hz-35kHz response and 102dB SPL. The portless cabinet's double passive radiator lets it sit near a wall, with rear-panel EQ for bass, midrange, and treble in rooms under 10 m2.

Specifications

System	SHAPE 40
Frequency response (±3dB)	60Hz - 35kHz
Maximum SPL (musical signal)	102dB SPL (peak @ 1m)
Inputs / Impedance (Type)	XLR: balanced 10kΩ
Inputs / Impedance (Connectors)	RCA: unbalanced 10kΩ \| with sensitivity compensation
Midrange and low frequency amplifier	25W, Class AB
High frequency amplifier	25W, Class AB
Automatic standby (Standby on)	After approximately 30 minutes \| with no signal
Automatic standby (Standby off)	Signal detection > 3 mV
Electrical supply (Voltages)	220-240V (T500mAL / 250V \| fuse) \| or 100-120V (T1.6AL / 250V fuse)
Electrical supply (Connection)	IEC plug and detachable power \| cord
Settings (High pass filter)	Adjustable Full range / 80Hz
Settings (Bass (0 - 250Hz))	Adjustable, ±6dB
Settings (Midrange / Bass (160Hz, Q=1))	Adjustable, ±3dB
Settings (High (4.5 - 35kHz))	Adjustable, ±3dB
Settings (Power On / Power Off)	On/Off switch on rear panel
Standby consumption	< 0.5W
Displays and controls	LED for power On / Off \| and standby
Woofer	4" (10cm) Flax Cone
Tweeter	1" (25mm) 'M' profile \| Aluminum - Magnesium
Construction	0.5" (12mm) MDF
Finish	Vinyl, real walnut \| and black painting
Dimensions with four rubber feet (H x W x D)	10.1 x 6.3 x 7.9" \| (257 x 161 x 200mm)
Weight	11lbs (5kg)
Wall mount	K&M® Fixing kit 24471
Ceiling mount	K&M* Fixing kit 24496
Table stand / Microphone stand	K&M® Fixing kit 232
