Shape 50
The Shape 50 is a versatile active nearfield monitor usable from 80cm, sized for rooms under 12 m2.
fig. 01 · studio monitors
Shape 50
8 photographs · 5 shown
From Focal

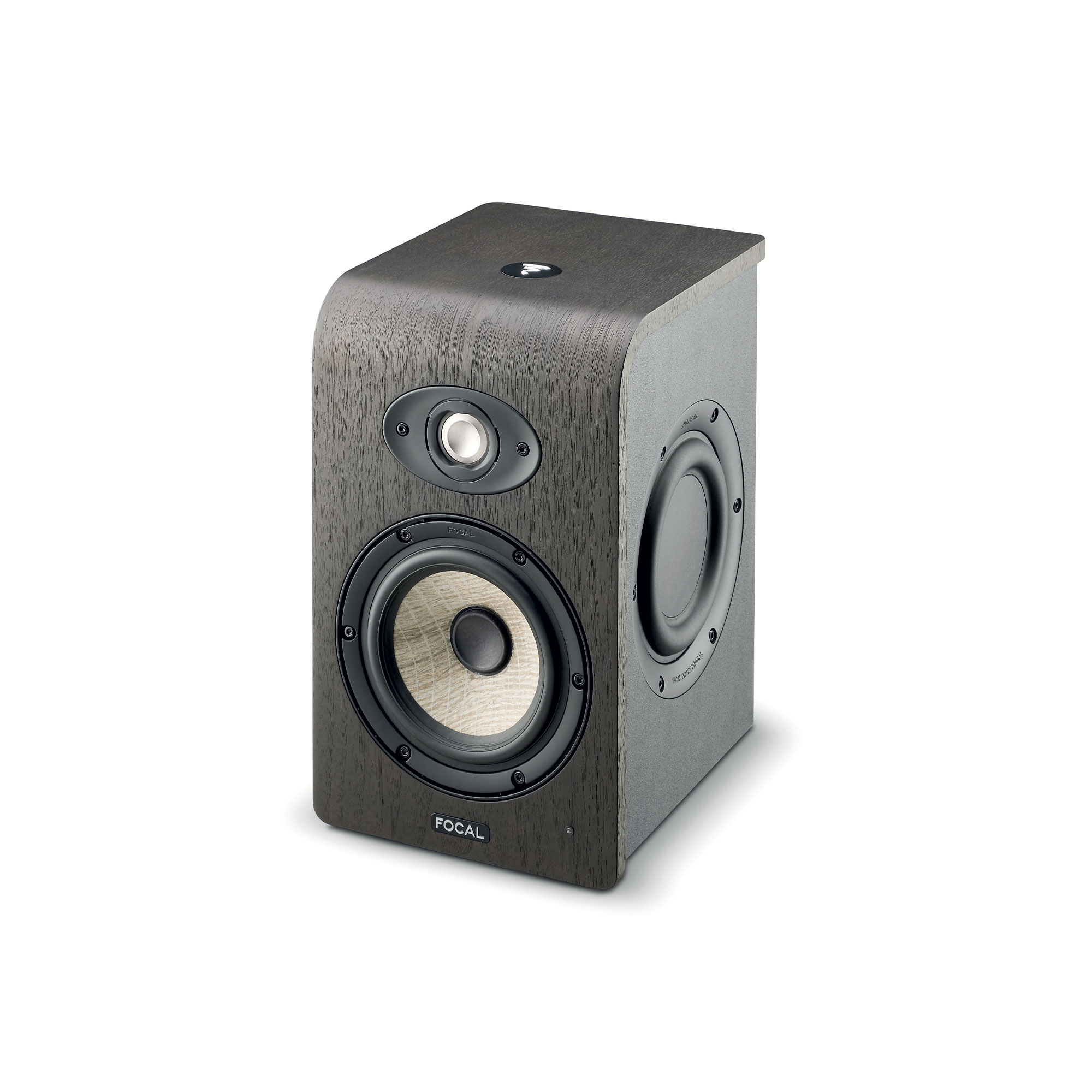

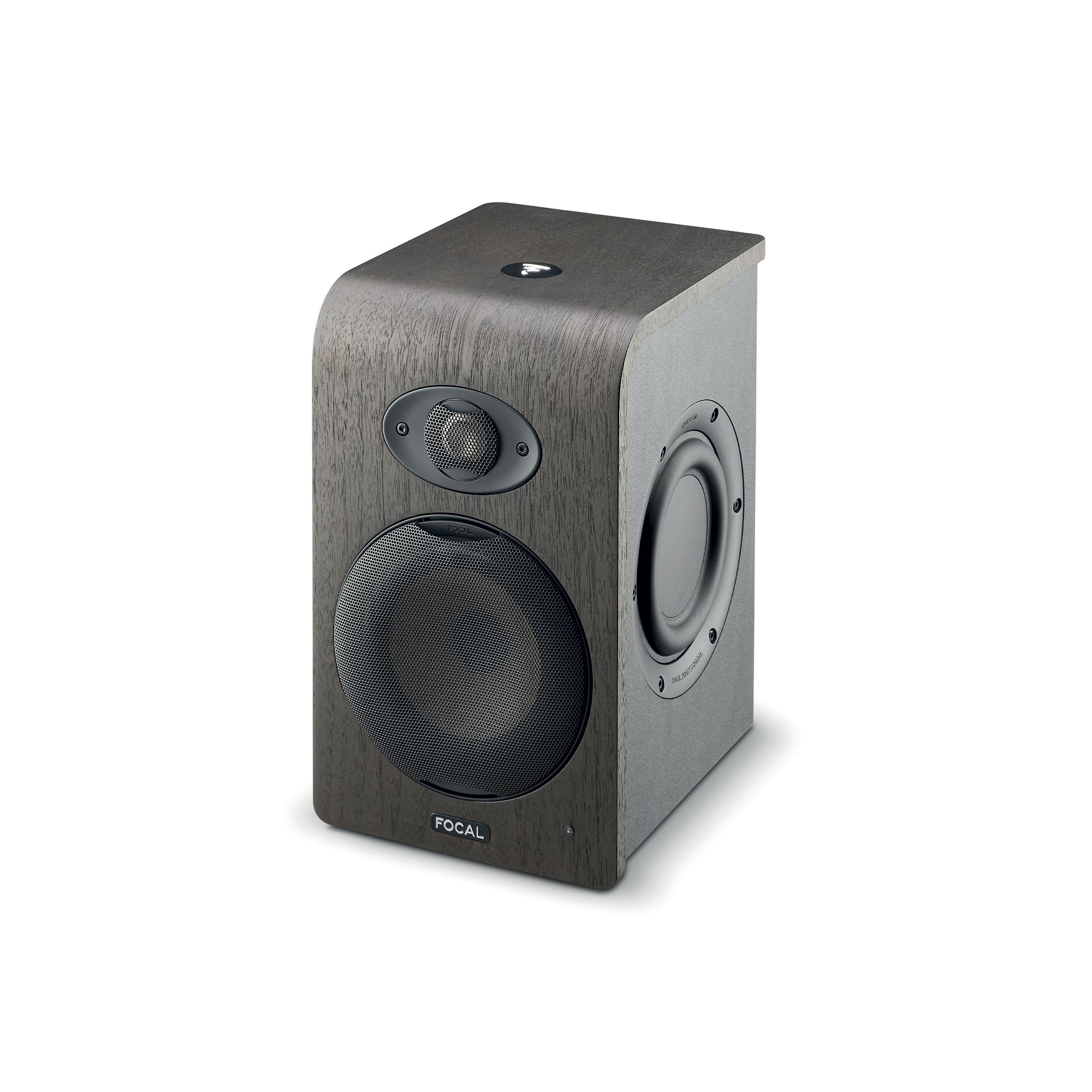

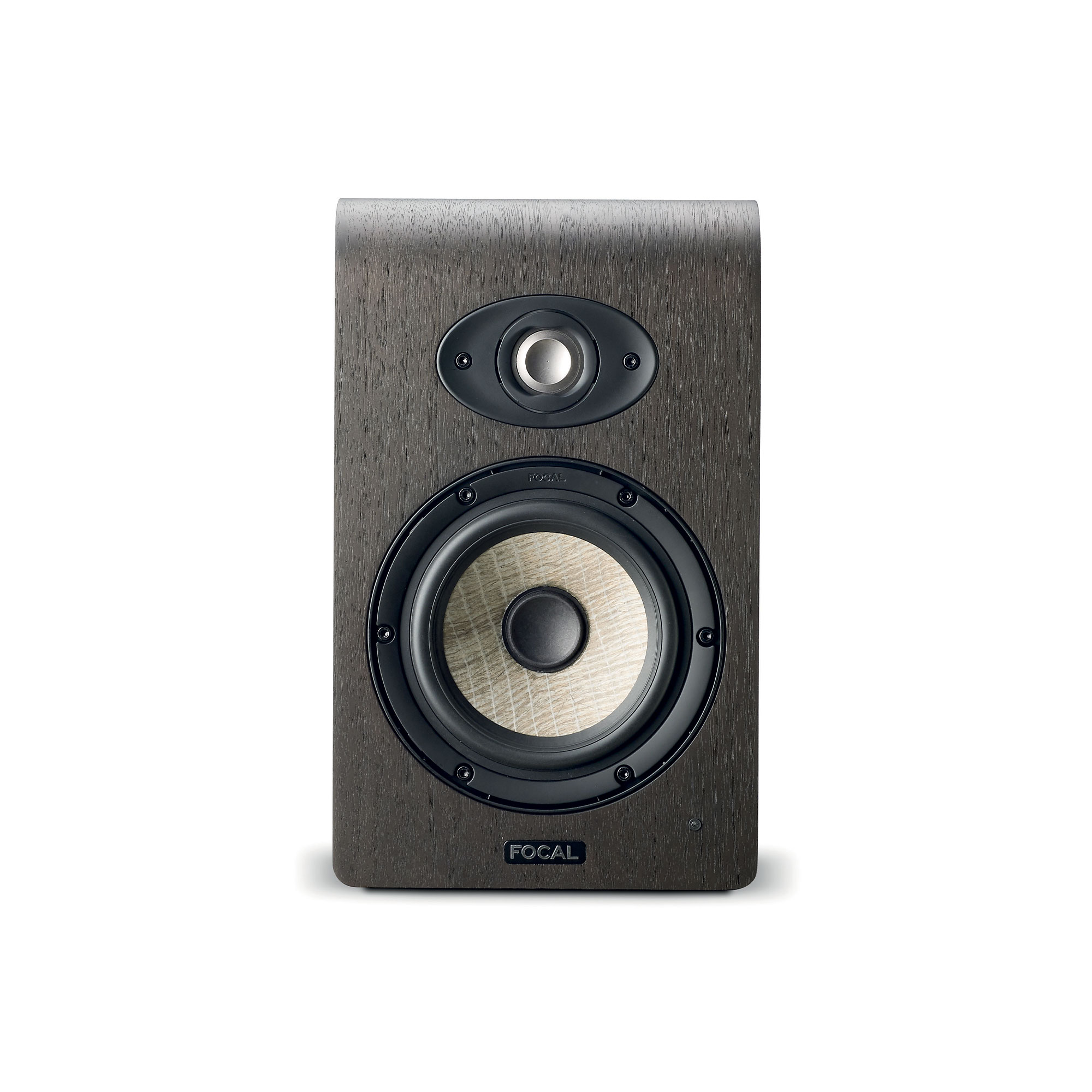

A 5-inch (13cm) Flax cone woofer and 'M'-profile aluminum-magnesium tweeter run on 60W and 25W Class AB amps for 50Hz-35kHz response and 106dB SPL. Its portless cabinet uses a double passive radiator, so it sits close to a wall, with rear-panel EQ on board. It works from 80cm in rooms under 12 m2.
Specifications
| System | SHAPE 50 |
|---|---|
| Frequency response (±3dB) | 50Hz - 35kHz |
| Maximum SPL (musical signal) | 106dB SPL | (peak @ 1m) |
| Inputs / Impedance (Type) | XLR: balanced 10kΩ |
| Inputs / Impedance (Connectors) | RCA: unbalanced 10kΩ | with sensitivity compensation |
| Midrange and low frequency amplifier | 60W, Class AB |
| High frequency amplifier | 25W, Class AB |
| Automatic standby (Standby on) | After approximately 30 | minutes with no signal |
| Automatic standby (Standby off) | Signal detection > 3 mV |
| Electrical supply (Voltages) | 220 - 240V | (T800mAL / 250V fuse) | or 100 - 120V (T1.6AL/250V fuse) |
| Electrical supply (Connection) | IEC plug | and detachable power cord |
| Settings (High pass filter) | Adjustable Full-range | 45 / 60 / 90Hz |
| Settings (Bass (0 - 250Hz)) | Adjustable, ±6dB |
| Settings (Midrange / Bass (160Hz, Q=1)) | Adjustable, ±3dB |
| Settings (High (4.5 - 35kHz)) | Adjustable, ±3dB |
| Settings (Power On / Power Off) | On / Off switch on rear panel |
| Standby consumption | < 0.5W |
| Displays and controls | LED for power On / Off | and standby |
| Woofer | 5" (13cm) | Flax Cone |
| Tweeter | 1" (25mm) 'M' profile | Aluminum-Magnesium |
| Construction | 0.6" (15mm) MDF |
| Finish | Vinyl, real walnut | and black painting |
| Dimensions with four rubber feet (H x W x D) | 12.3 x 7.5 x 9.5" | (312 x 191 x 242mm) |
| Weight | 14.3lbs (6.5kg) |
| Wall mount | K&M* Fixing kit 24471 + K&M* 24359 adapter |
| Ceiling mount | K&M* Fixing kit 24496 + K&M* 24359 adapter |
| Table stand / Microphone stand | K&M* Fixing kit 232 |
