Shape Twin
The Shape Twin is the flagship of the Shape line, with dual 5-inch woofers built into one cabinet for the highest SPL in the range.
fig. 01 · studio monitors
Shape Twin
8 photographs · 5 shown
From Focal

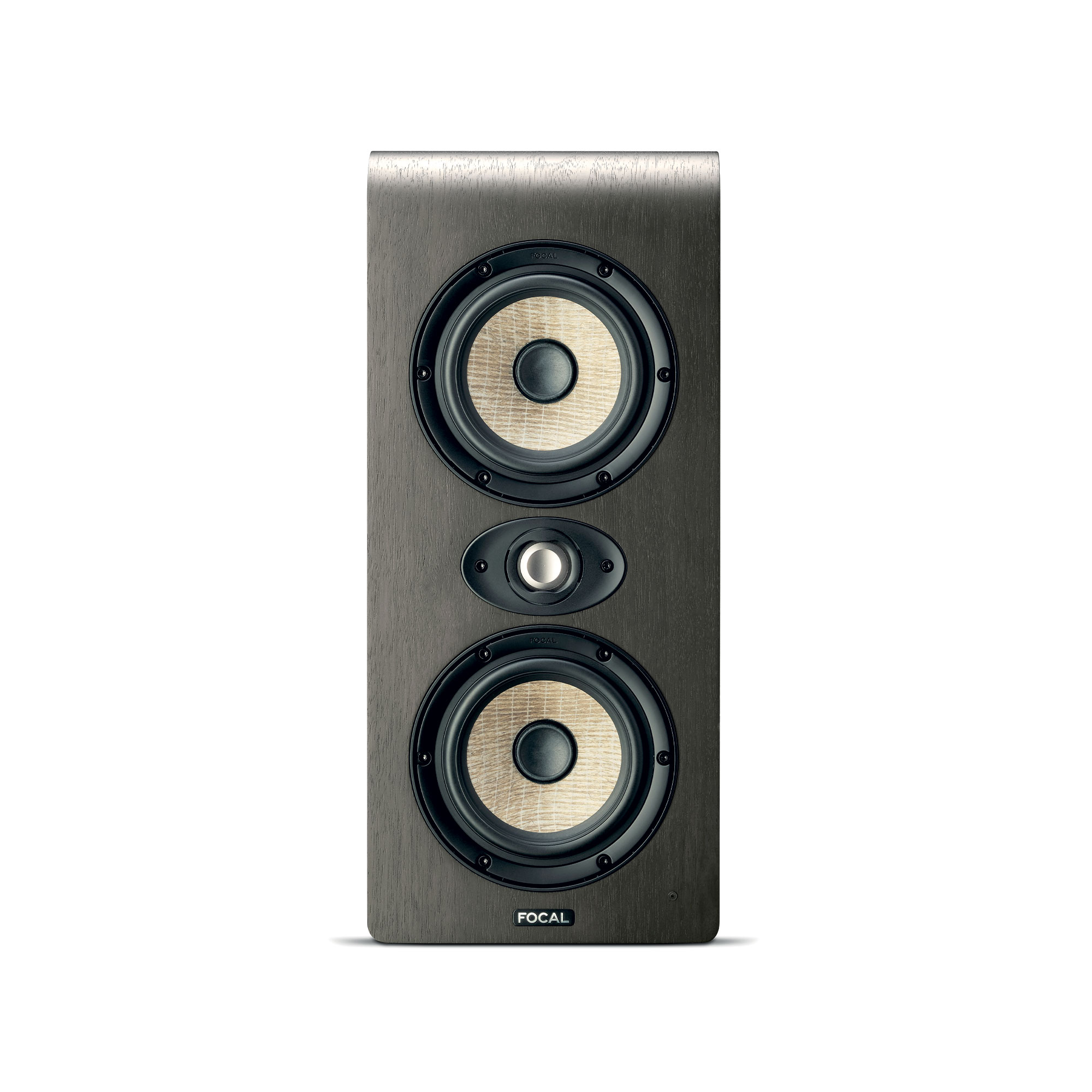

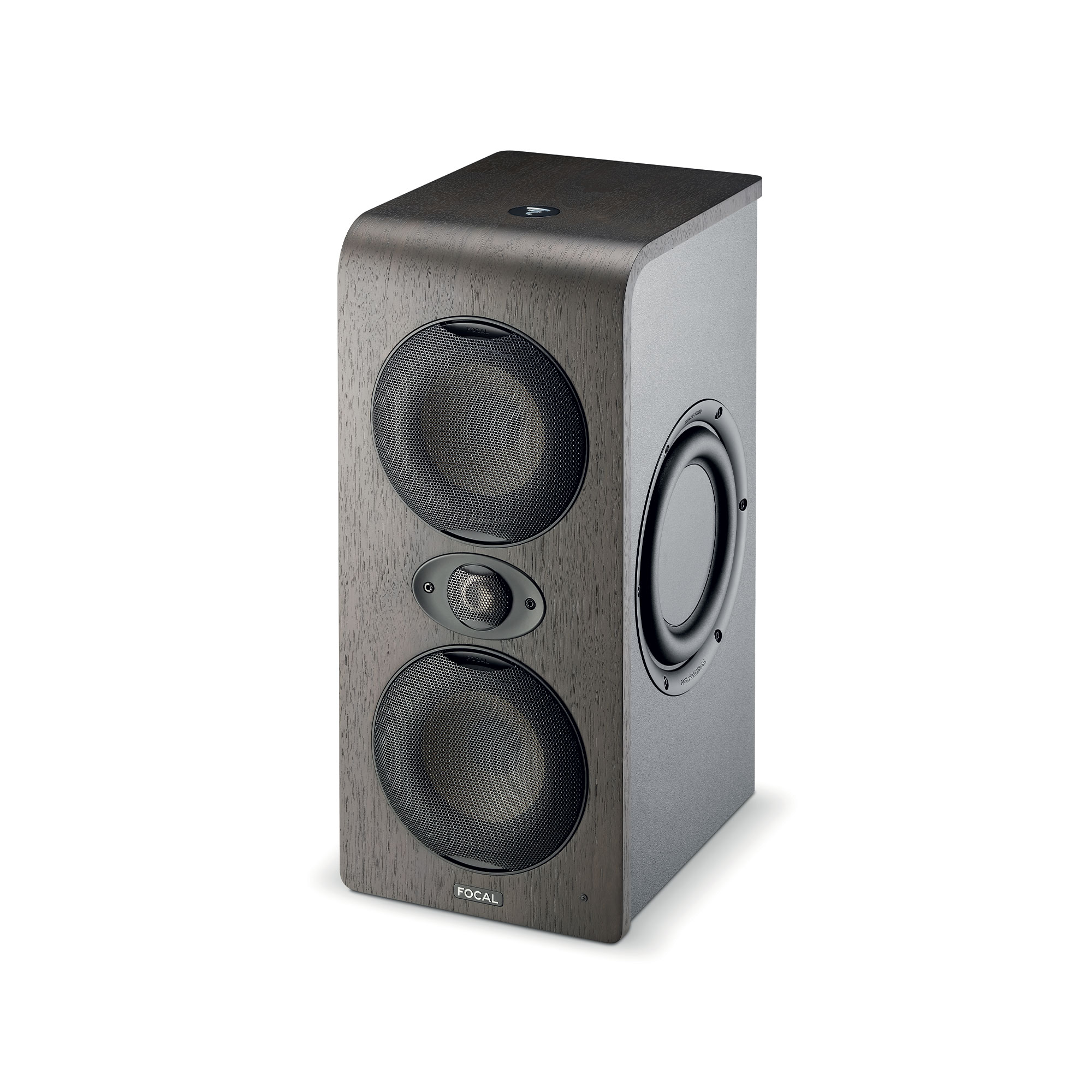

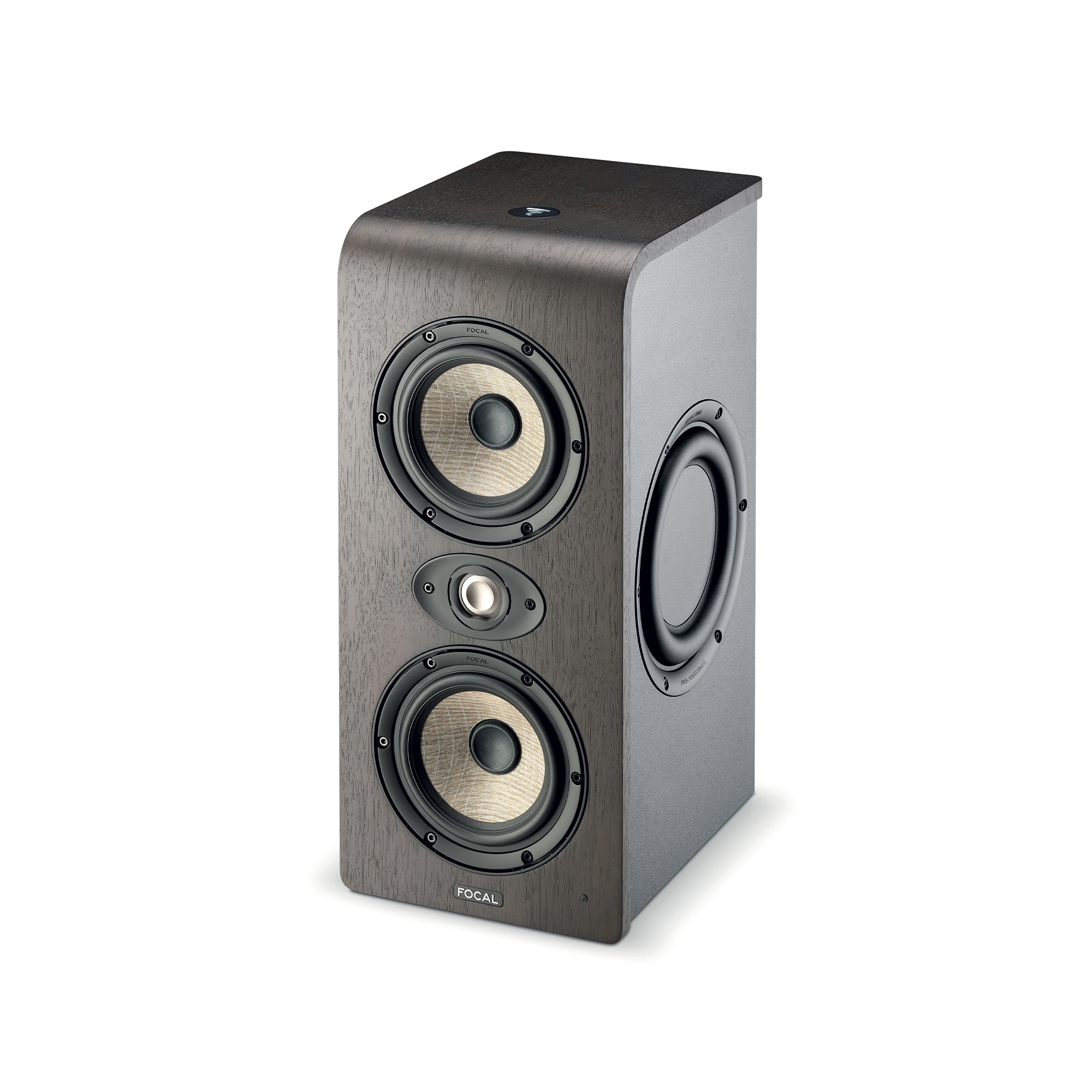

Two 5-inch (13cm) Flax cone woofers and an 'M'-shaped aluminum-magnesium tweeter form a 2.5-way design in one cabinet, run by two 80W and one 50W Class AB amps for 40Hz-35kHz response and 110.5dB SPL, the line's highest. It's portless (double passive radiator), sits near a wall, with rear-panel EQ.
Specifications
| System | SHAPE TWIN |
|---|---|
| Frequency response (± 3dB) | 40Hz - 35kHz |
| Maximum SPL (of musical signals) | 110.5dB SPL (peak at @ 1m) |
| Inputs / Impedance (Type) | XLR: balanced 10kΩ |
| Inputs / Impedance (RCA connectors) | Unbalanced 10k Ω with sensitivity compensation |
| Mid-range and low frequency amplifier | 2 x 80W, Class AB |
| High frequency amplifier | 50W, Class AB |
| Automatic standby (Off) | Approximately 30 minutes with no signal |
| Automatic standby (Deactivate standby) | Signal detection > 3mV |
| Power supply (Voltage) | 220 - 240V (fuse T2AL / 250V) | or 100 - 120V (fuse T3.15AL / 250V) |
| Power supply (Connexion) | IEC connector and detachable power cable |
| Settings (High-pass filter) | Adjustable Full-range 45 / 60 / 90Hz |
| Settings (Bass level (0 - 250Hz)) | Adjustable, ±6dB |
| Settings (Midrange / Bass (160 Hz, Q=1)) | Adjustable, ±3dB |
| Settings (Treble level (4.5 - 35kHz)) | Adjustable, ±3dB |
| Settings (Power On / Off) | On/Off switch on rear panel |
| Power consumption in standby | < 0.5W |
| Displays and controls | LED for power On / Off and standby |
| Woofers | 2 x 5" (13cm) Flax Cone woofers |
| Tweeter | 1" (25mm) 'M'-shaped | Aluminum - Magnesium |
| Construction | 0.6" (15mm) MDF |
| Finish | Vinyl, real walnut and black paint |
| Dimensions including 4 rubber feet (H x L x D) | 18.8 x 8.3 x 11" (478 x 211 x 279mm) |
| Weight | 24lbs (11kg) |
| Wall mounting kit | K&M* 24471 + K&M* 24359 adapter |
| Ceiling mounting kit | K&M* 24496 + K&M* 24359 adapter |
