Focal · Speakers
Sib Evo Dolby Atmos 5.1.2

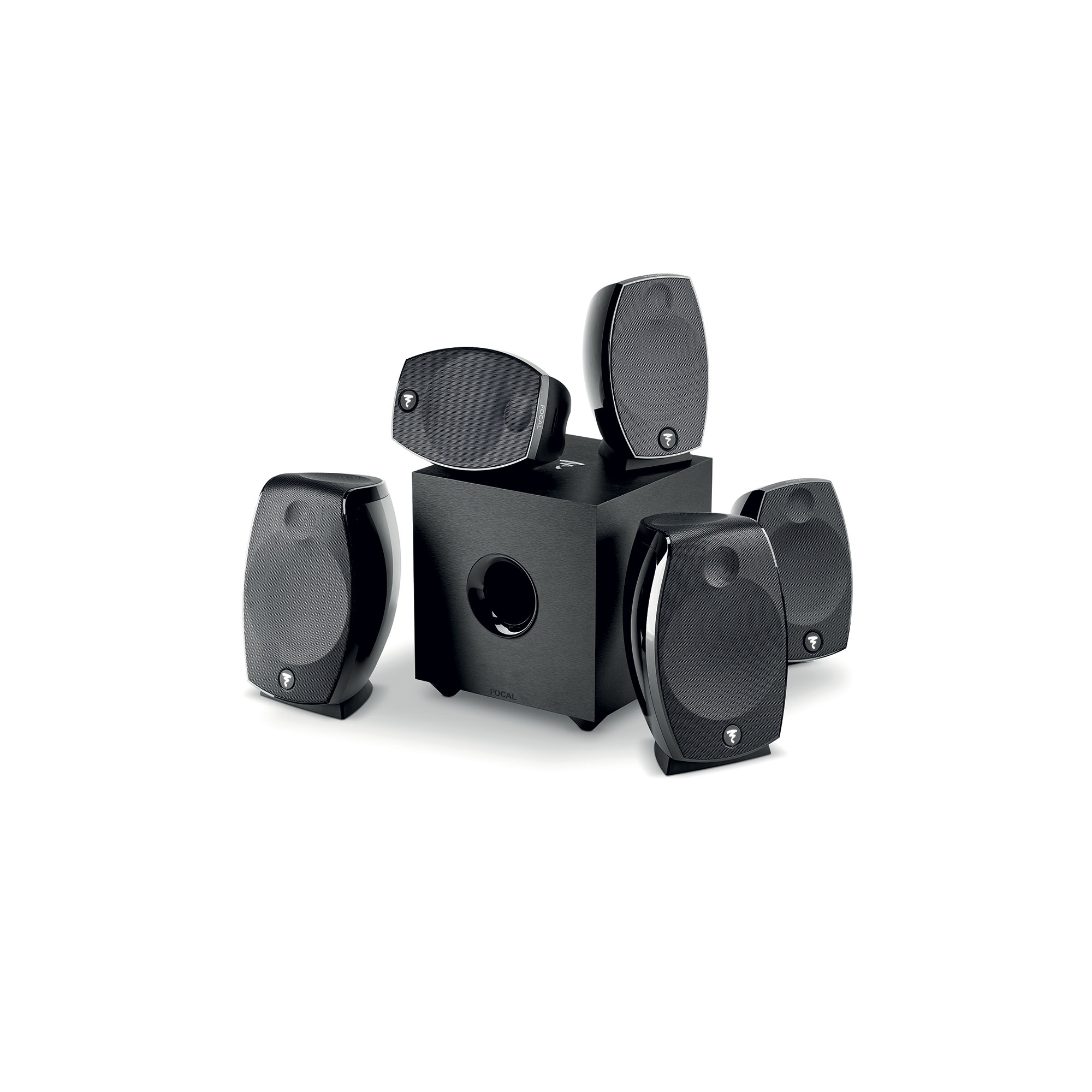

A 5.1.2 Dolby Atmos home-cinema pack combining Sib Evo satellites with an active bass-reflex subwoofer.
fig. 01 · speakers
Sib Evo Dolby Atmos 5.1.2
8 photographs · 5 shown
From Focal
This 5.1.2 pack combines Sib Evo satellites with an active bass-reflex subwoofer. Front channels use a 5-inch Polyflex woofer with a 3/4-inch dome tweeter, while the Atmos channels add a 4-inch up-firing driver that reproduces vertical effects from the ceiling.
Specifications
| Type of loudspeaker | Two-way compact bass-reflex loudspeaker | Active bass-reflex subwoofer |
|---|---|
| Speakers | 5" (13cm) Polyflex woofer 3/4" (19mm) soft dome tweeter | Front Channel: 5" (13cm) Polyflex woofer | 3/4" (19mm) soft dome tweeter | Atmos* Channel: 4" (10cm) full-range speaker |
| Frequency response (+/-3dB) | 70Hz to 25kHz |
| Low frequency point (-6dB) | 66Hz |
| Sensibility (2.83V/1m) | 90dB |
| Nominal Impedance | 6 Ohms |
| Crossover Frequency | 3.5kHz |
| Recommended Amplifier Power | 25 - 200W |
| Dimensions (HxWxD) | 9 15/16 "x6 3/8 "x6 3/8 " | (252x162x162mm) | 11 5/8 "x7 11/16 "x7 1/2 " | (295x195x190mm) |
| Weight (unit) | 4lbs (1.8kg) | 7lbs (3.25 kg) |
| Speaker | 81/4" (21cm) Polyflex woofer |
| Frequency response (+/- 3dB) | 35Hz - 150Hz |
| Cutoff frequency (-6dB) | 30Hz |
| RCA input | Right, left LFE |
| Cut-off frequency | 3.5kHz |
| Phase adjustment | Phase inverter 0° / 180° |
| Amplifier power | 200W Class-D amplifier |
| Power mode | On / Autopower (0.5W) |
| Dimensions (H x W x D) | 2" x 11 1/8 " x 11 3/4 " | (305x282x299mm) |
| Weight (per unit) | 17.5lbs (8kg) |
| Type | Front Channel: Two-way bass-reflex loudspeaker | Atmos* Channel: Fullrange sealed loudspeaker |
| Frequency Response (+/-3dB) | Front Channel: 65Hz to 25KHz | Atmos* Channel: 90Hz to 20KHz |
| Low frequency point -6dB | Front Channel: 60Hz | Atmos* Channel: 75Hz |
| Nominal impedance | 6 Ohms |
| Reference | Pack 5.1.2 Sib Evo Dolby Atmos⁻ |
| Item code | ESIBPA5121 |
| Packaging Dimension (LxPxH) | 23 35/64 "x15 5/32 "x26 49/64 " (59,8x38,5x68cm) |
| Net weight | 58.4lbs (26.5kg) |
