Focal · Studio Monitors
Solo6

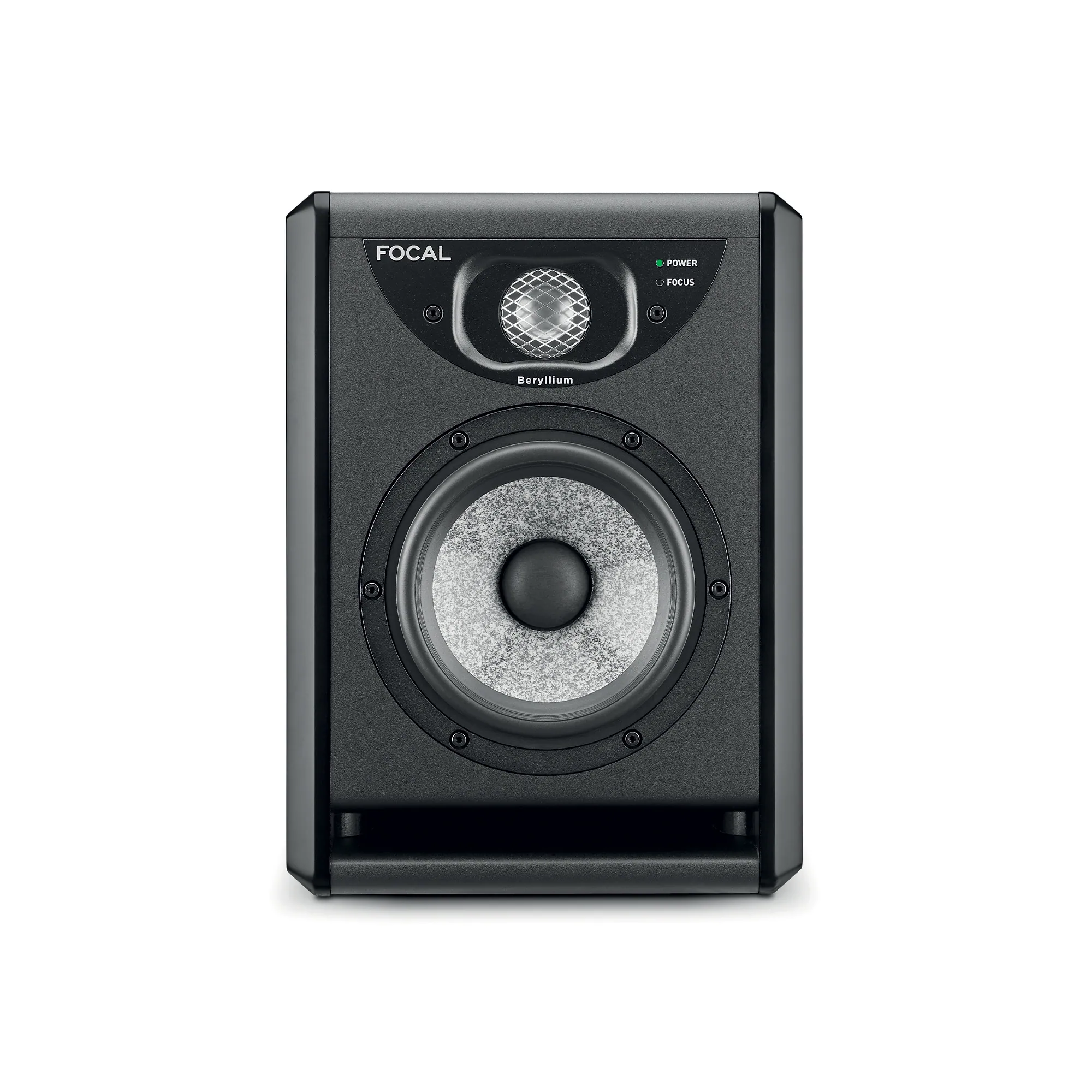

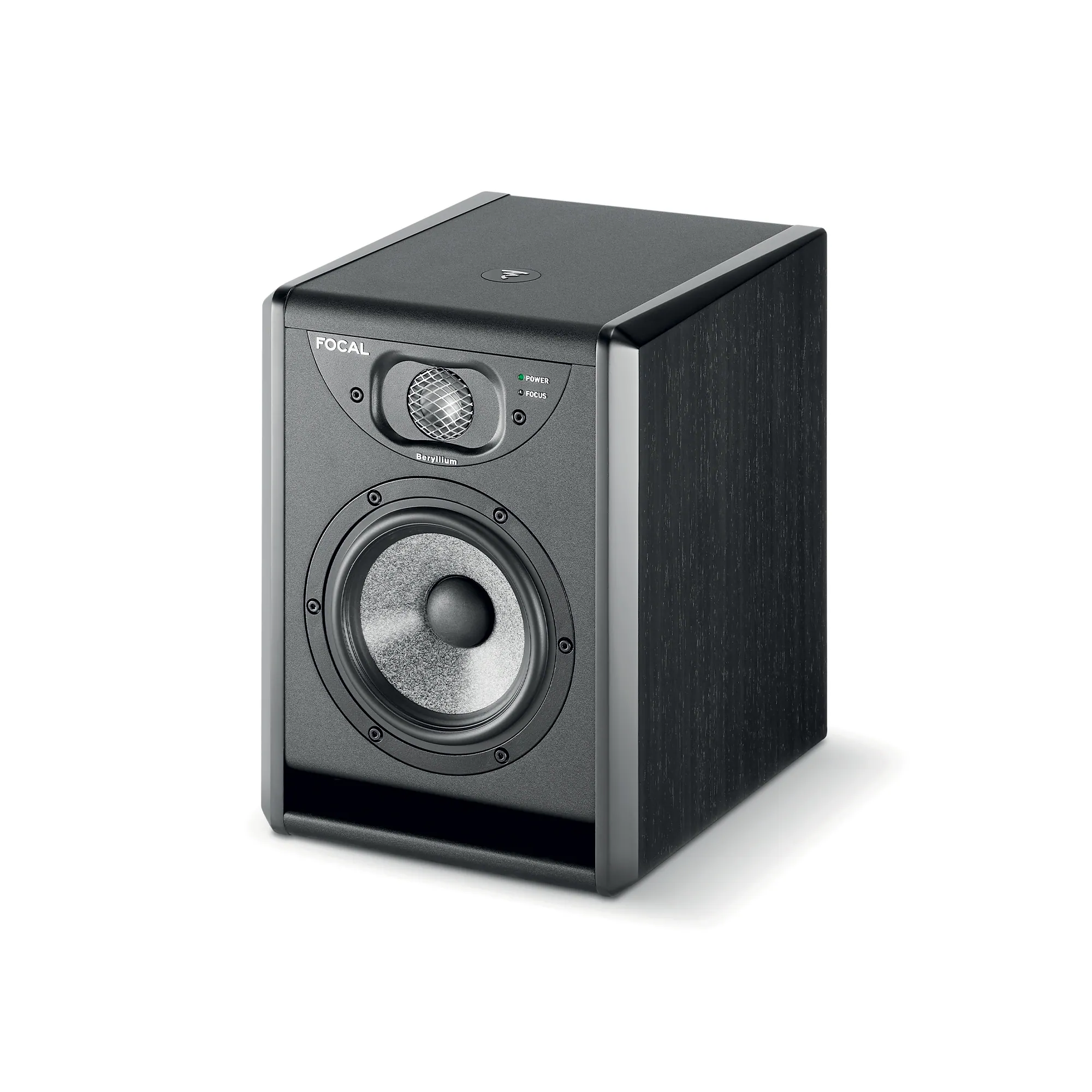

Solo6 is a 2-way nearfield studio monitor pairing a 6.5-inch W-cone woofer with a Beryllium tweeter and Focus Mode.
fig. 01 · studio monitors
Solo6
8 photographs · 5 shown
From Focal
Its 6.5-inch W-cone woofer and 1.5-inch Beryllium inverted-dome tweeter run on separate 80W and 50W RMS amp stages, covering 40Hz to 40kHz at up to 110dB SPL. Focus Mode collapses it to a single full-range woofer, checking mix translation on smaller systems during nearfield mixing and mastering.
Specifications
| Type | 2-way monitor |
|---|---|
| Frequency response (@ -3dB) | 40Hz - 40kHz |
| Focus mode | 110Hz - 10kHz |
| Maximum SPL (Average CEA2034 50-10kHz free field @ 1m) | 110dB |
| Focus mode (Average CEA2034 100-10kHz free field @ 1m) | 109.5dB |
| Input | Balanced XLR 10 kΩ |
| Bass amplifier stage | 80W RMS |
| Treble amplifier stage | 50W RMS |
| Nominal power supply | ~100-120 VAC/220-240 VAC | 50/60Hz |
| User controls | Sensitivity, stand-by HPF, |
| Fuses | ~100-120V, T2.5AL/250V |
| Bass | 6.5" (16.5cm) "W" cone |
| Treble | 1.5" (38mm) Beryllium |
| Shielding | no |
| Construction | 7/8" (22mm) MDF |
| Finish | Black natural veneering side panels, |
| Dimensions (HxWxD) | 13 1/8 "x9 3/4 x11 5/8 " (33.4x24.6x29.5cm) |
| Weight | 28.6lbs (13kg) |
| Temperature range | During use: 5-35°C |
| Wall mounting | K&M® 24471 fixing kit |
| Ceiling mounting | K&M® 24496 fixing kit |
