Focal · Subwoofers
SUB 1000F

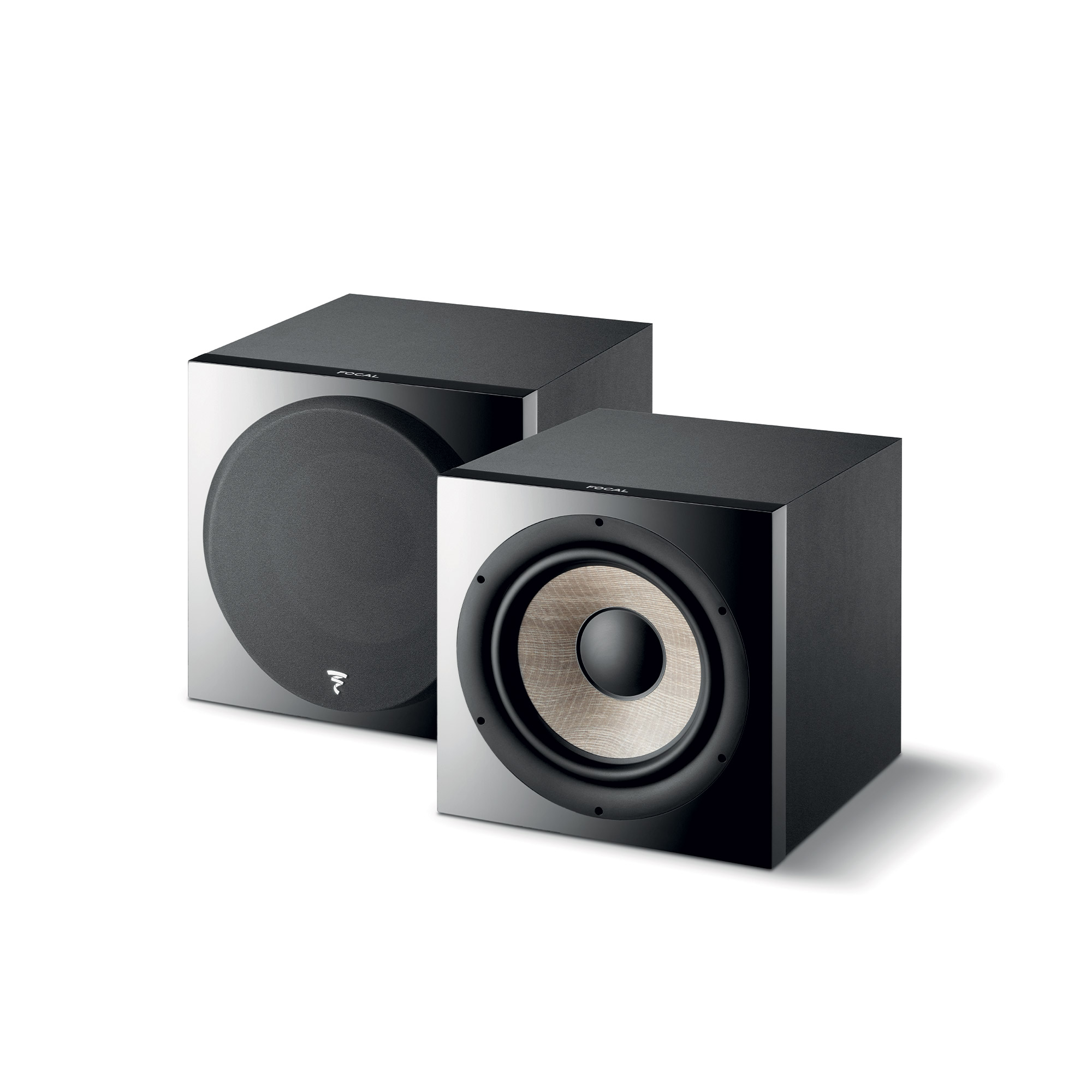

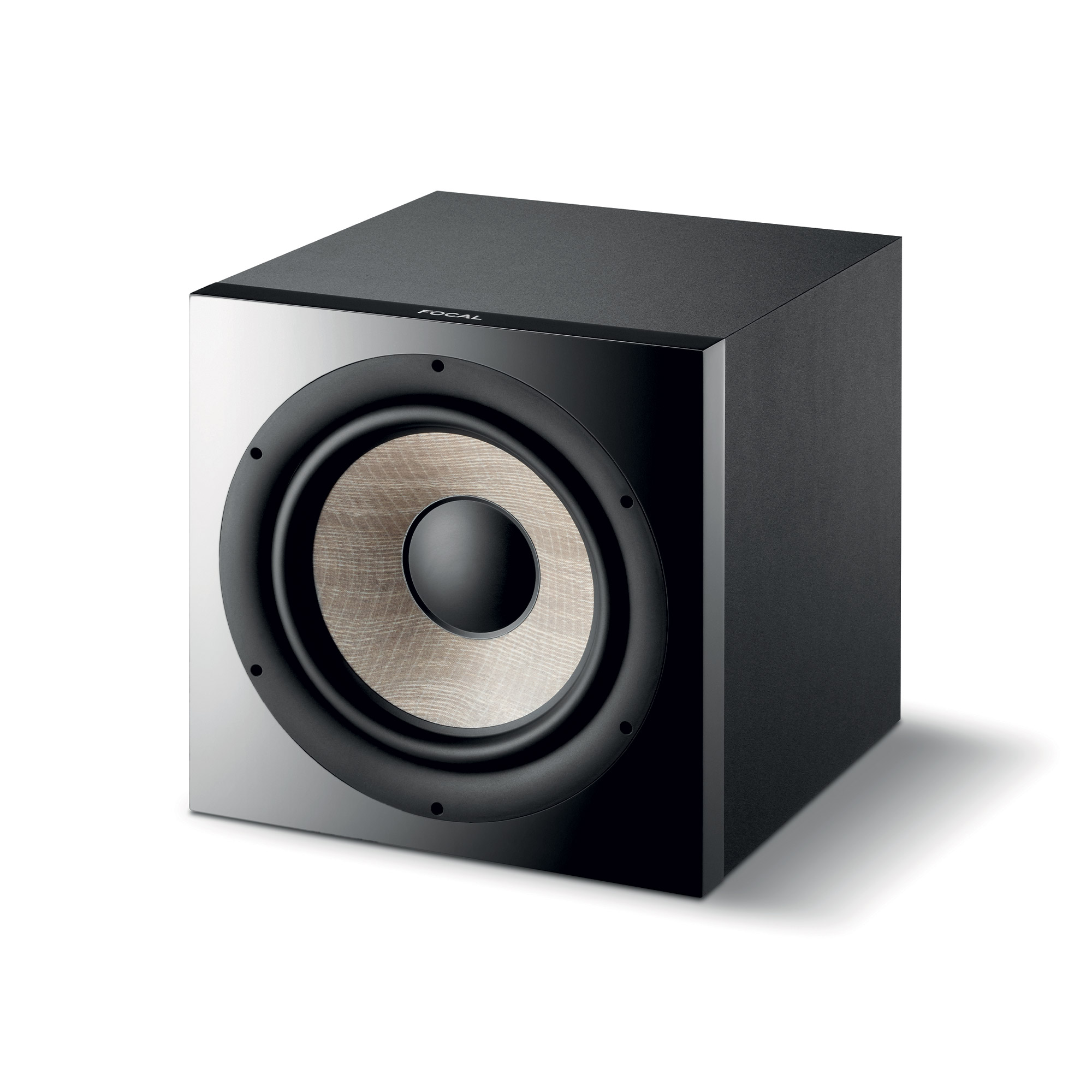

SUB 1000F is a self-powered sealed subwoofer with a 12-inch Flax woofer, built for home cinema systems.
fig. 01 · subwoofers
SUB 1000F
8 photographs · 5 shown
From Focal
SUB 1000F is a sealed active subwoofer driven by a 12-inch (30cm) Flax woofer that reaches down to 22Hz (-6dB). Stereo line and LFE inputs connect it to a music or home cinema system, with crossover adjustable from 40Hz to 160Hz and 0°/180° phase switching. The stiff Flax cone keeps bass tight and distortion-free.
Specifications
| Type | Active sealed subwoofer |
|---|---|
| Drivers | 12" (30cm) Flax woofer |
| Cut-off frequency (-6dB) | 22Hz |
| Frequency response (±3 dB) | 24Hz - 200Hz |
| Crossover frequency | 40 to 160Hz |
| Inputs | Stereo line inputs | Direct line LFE |
| Phase | 0° / 180° |
| Power mode | on / auto |
| Dimensions (HxWxD) | 420 x 400 x 420mm | 1617/32" x 153/4" x 1617/32" |
| Net weight | 47lbs (21.5kg) |
