Focal · Subwoofers
SUB Air
SUB Air is a slim, wireless active subwoofer with a built-in 150W BASH amplifier for 5.1 home theater systems.
fig. 01 · subwoofers
SUB Air
8 photographs · 5 shown
From Focal

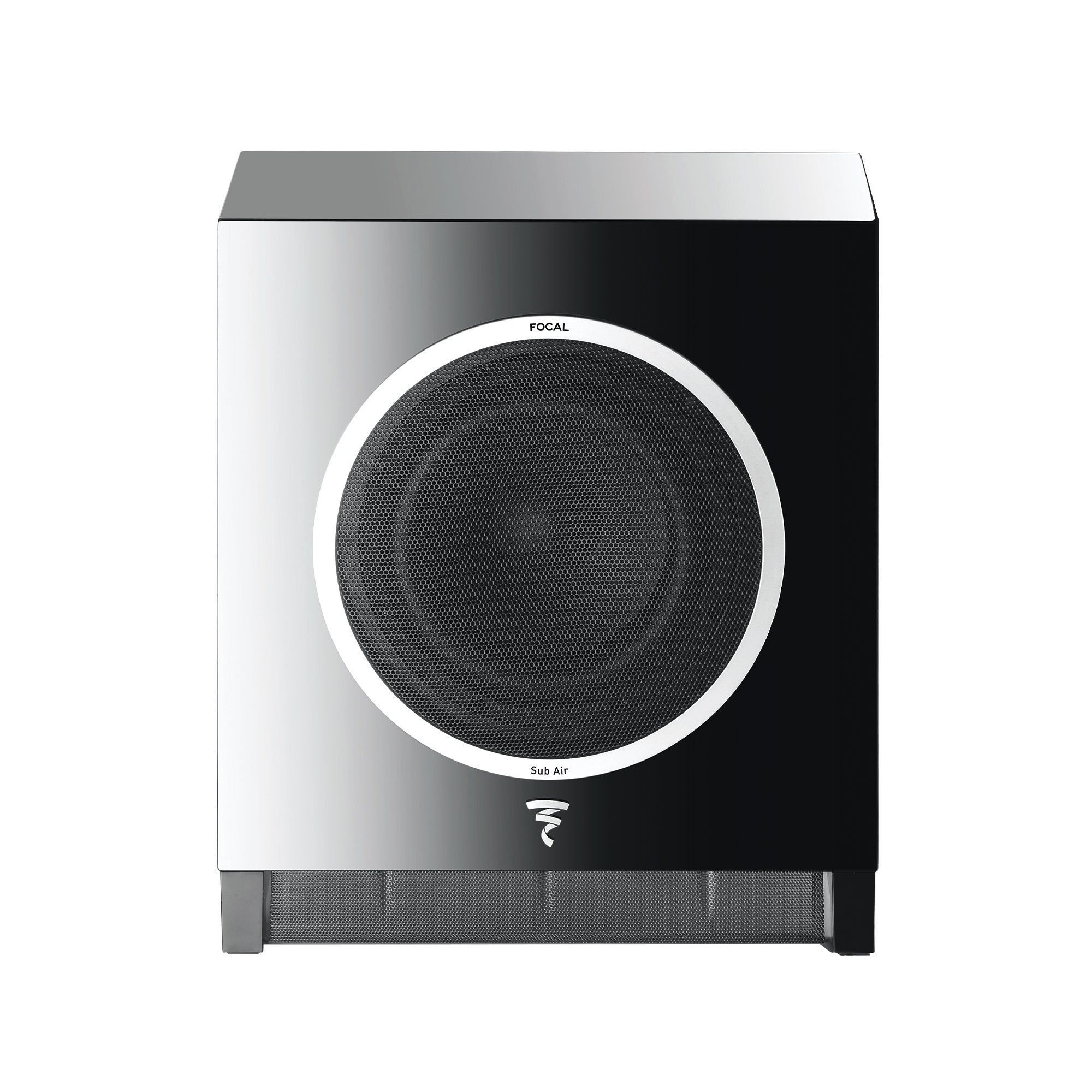

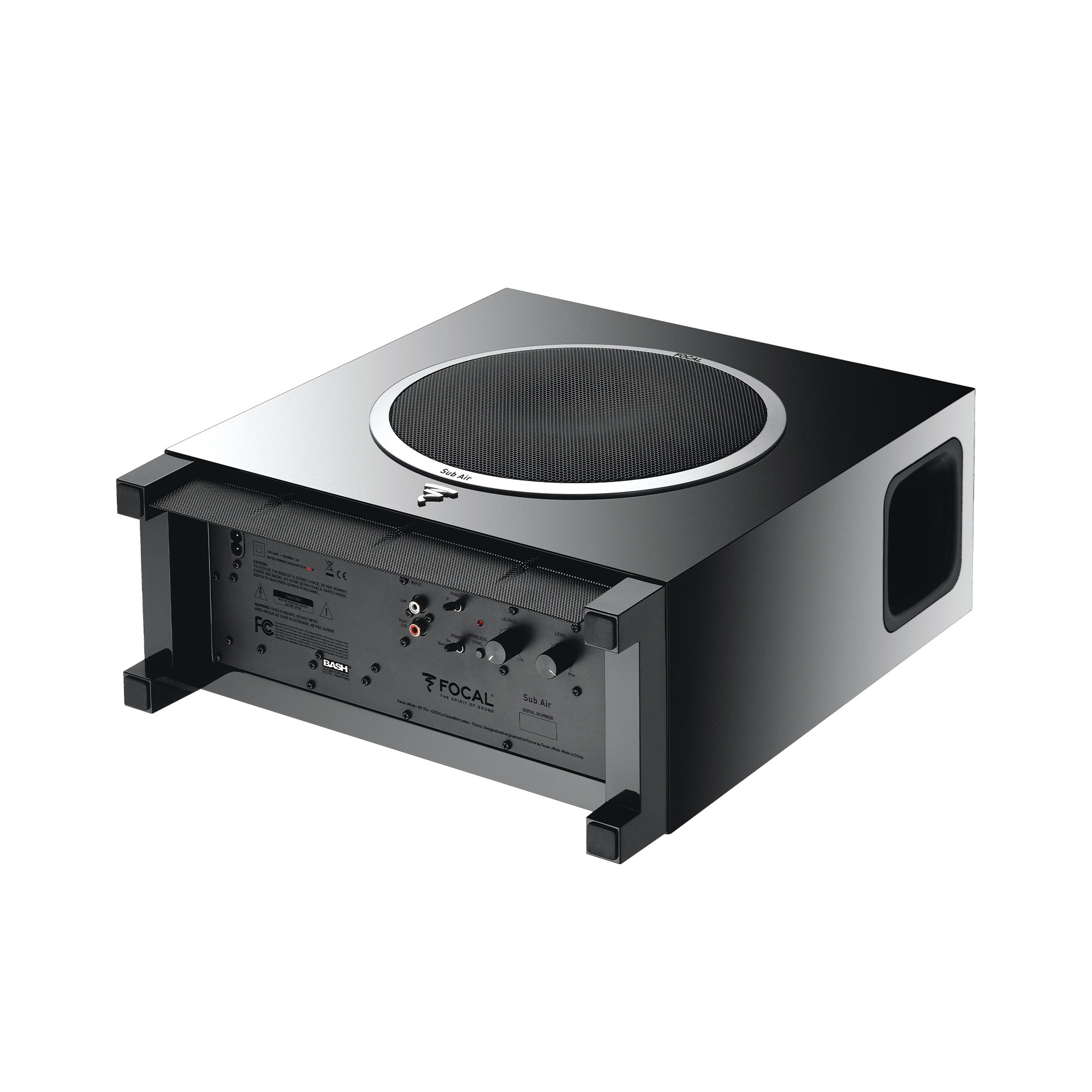

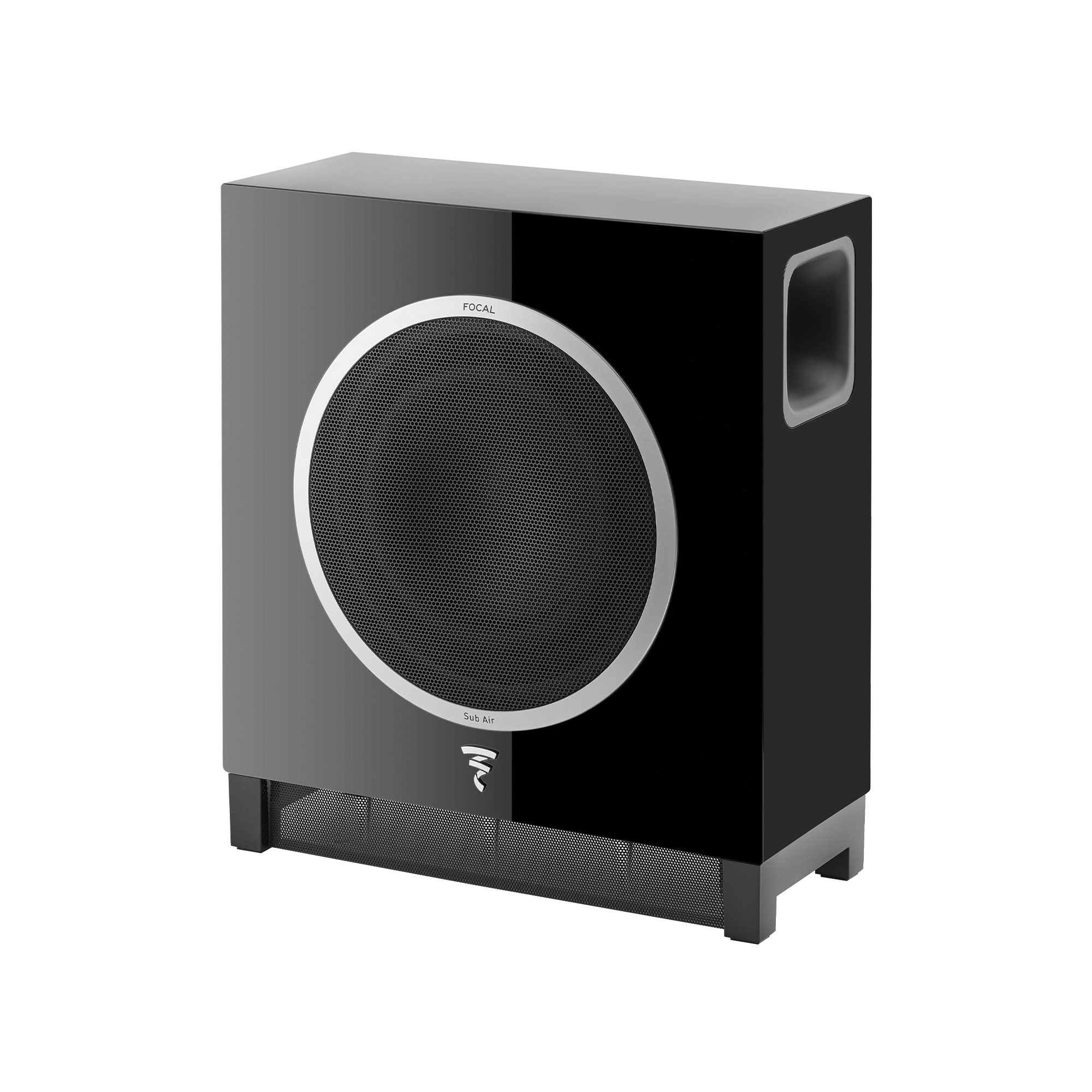

SUB Air is a flat, compact bass-reflex subwoofer just 6.3 inches deep, built for 5.1 home cinema setups. Its built-in 150W BASH amplifier (110W continuous) drives an 8-inch woofer down to 35Hz (-6dB), and a 2.4GHz wireless link reaches up to 15 meters so there's no cable run to the main system.
Specifications
| Type | <ul> <li>Flat bass-reflex subwoofer, | integrated 150W BASH* amp</li> </ul> | <ul> <li>Wireless connection</li> </ul> |
|---|---|
| Speaker driver (diameter) | • 8" (21cm) |
| Bass cutoff frequency (-6dB) | • 35Hz |
| Frequency response (+/- 3dB) | • 40Hz - 200Hz |
| Crossover cutoff frequency | • Variable 50Hz - 200Hz |
| Input panel | • Left Right / LFE |
| Continuous power output | • 110W |
| Peak power | • 150 W |
| Phase adjustment | • 0 - 180° switch |
| Power functions | • ON Auto (1W) OFF (0,5W) |
| Dimensions (HxWxD) | • 16.1"x14.2"x6.3" | (410mmx360mmx160mm) |
| Weight | • 17lbs (7.65kg) |
| Range in Meter | • 15m (in a room) |
| Sound Sampling | • 16 bits |
| ampling Frequency | • 44.1kHz |
| Coding delay (latency) | • 13ms |
| adio transmission owers or sensitivity | • OdBm |
| Radio transmission requency band | • 2.4Ghz ISM band |
