Theva N°3-D
Focal's 3-way Theva N°3-D, the Dolby Atmos floorstander in the Theva line with an upward-firing channel.

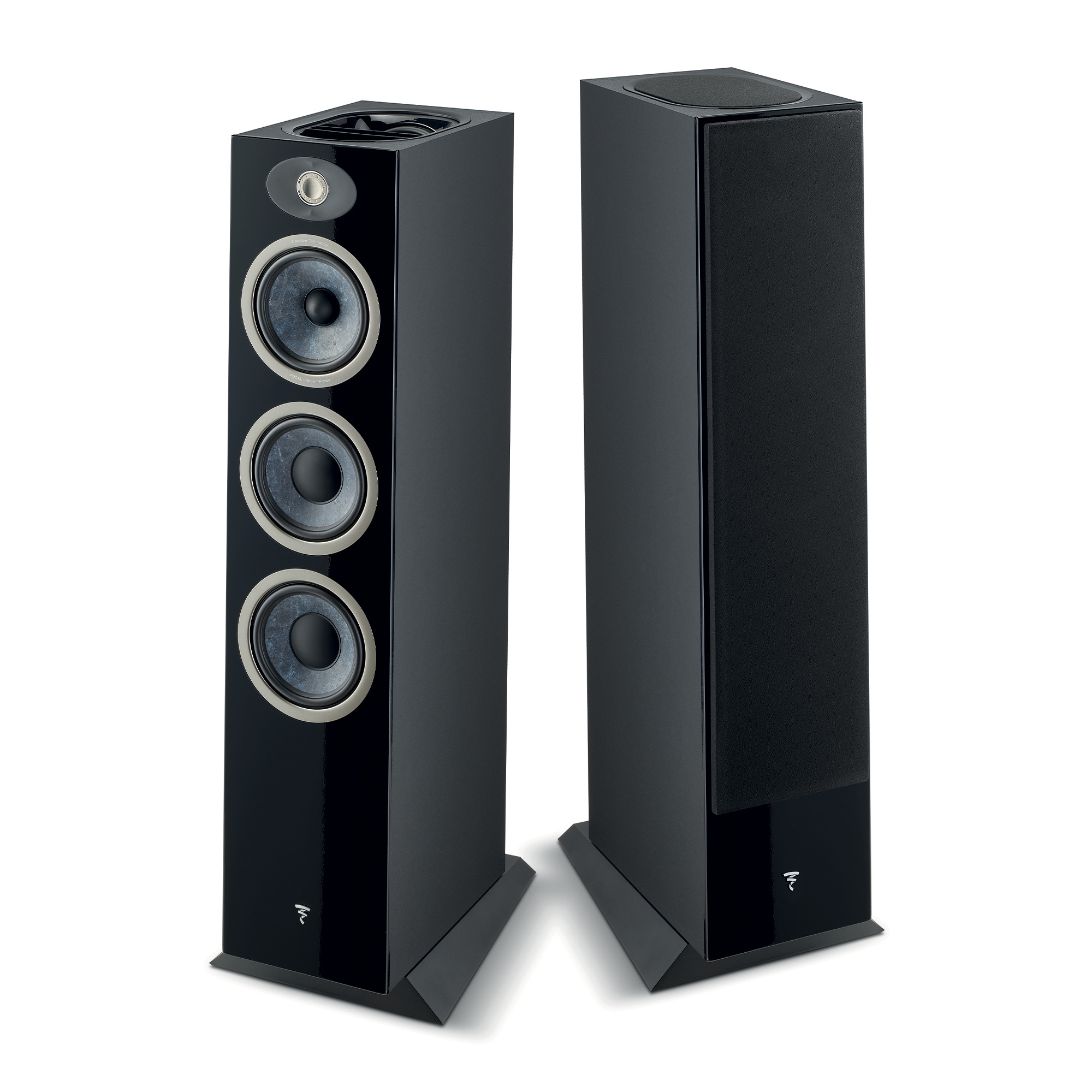

fig. 01 · speakers
Theva N°3-D
8 photographs · 5 shown
From Focal
The Theva N°3-D is the Dolby Atmos floorstanding speaker in Focal's Theva line, a 3-way design with 3 front channels plus a vertical channel that fires sound up to the ceiling. That upward channel bounces sound back down, adding height and space to music and film.
Specifications
| Type | Bass-reflex 3-way floorstanding loudspeaker | 1-way closed |
|---|---|
| Speaker drivers | 2 x 6 1/2 " (16.5cm) Slatefiber bass | 6 1/2 " (16.5cm) Slatefiber midrange | 1" (25mm) Al/Mg inverted dome TNF tweeter | 5" (13cm) full-range speaker driver |
| Sensitivity | 91dB |
| Bandwidth | 48Hz - 28kHz | 100Hz - 20kHz |
| Low-frequency cut-off | 39Hz | 90Hz |
| Nominal impedance | 8 Ω | 6 Ω |
| Minimal impedance | 2.9 Ω |
| Recommended amp power | 40 - 250W |
| Crossover frequency | 270Hz - 2700Hz |
| Dimensions (HxWxD) | 40 1/8 "x8 3/8 "x15 1/4 " (101.9x21.2x38.8cm) |
| Net weight (with grille) | 48.5lbs (22kg) |
| Box dimensions (HxWxD) | 45 5/8 "x13 3/8 "x18 7/8 " (116x34x48cm) |
| Net weight (with packaging) | 58.42lbs (26.5kg) |
