Focal · Studio Monitors

Trio11 Be

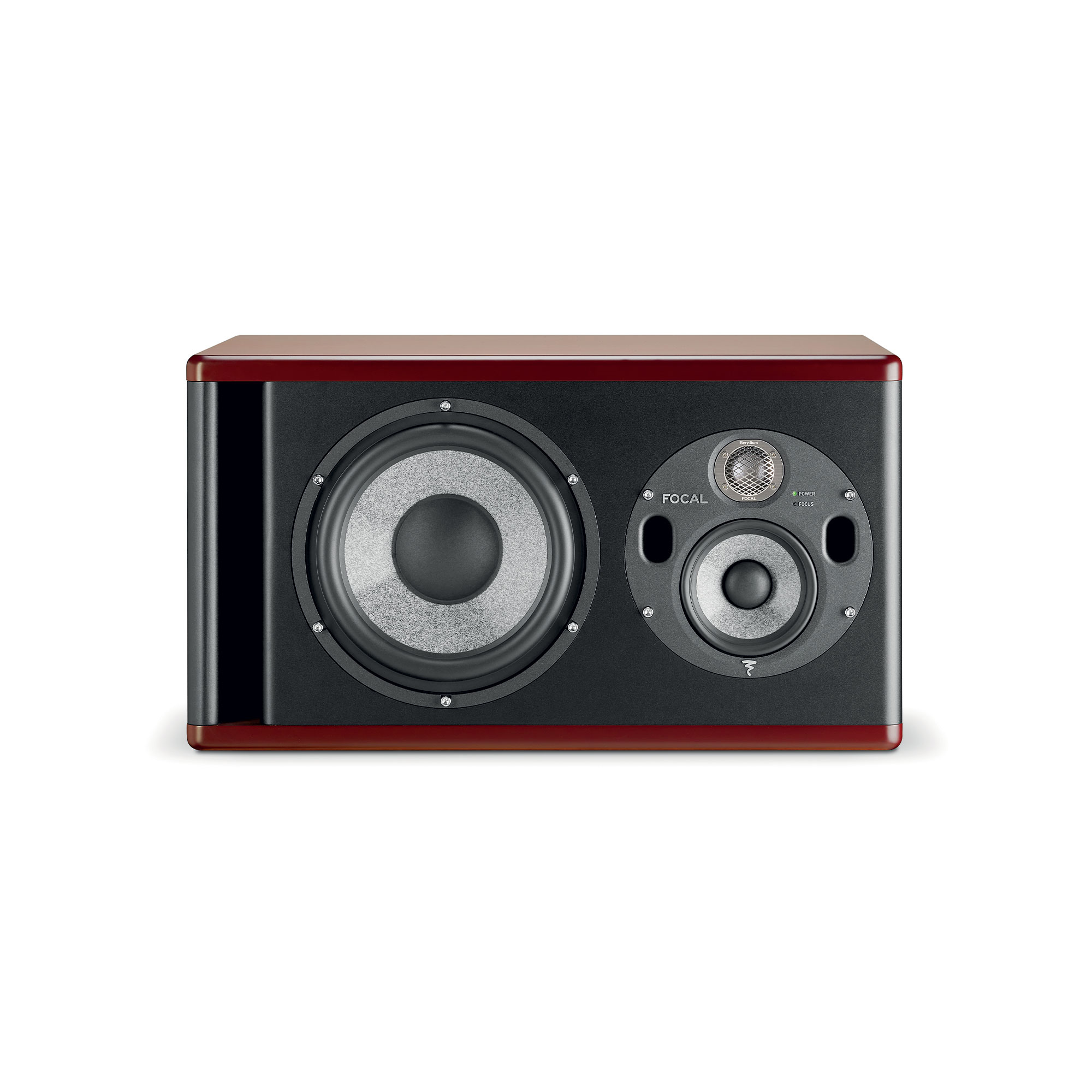

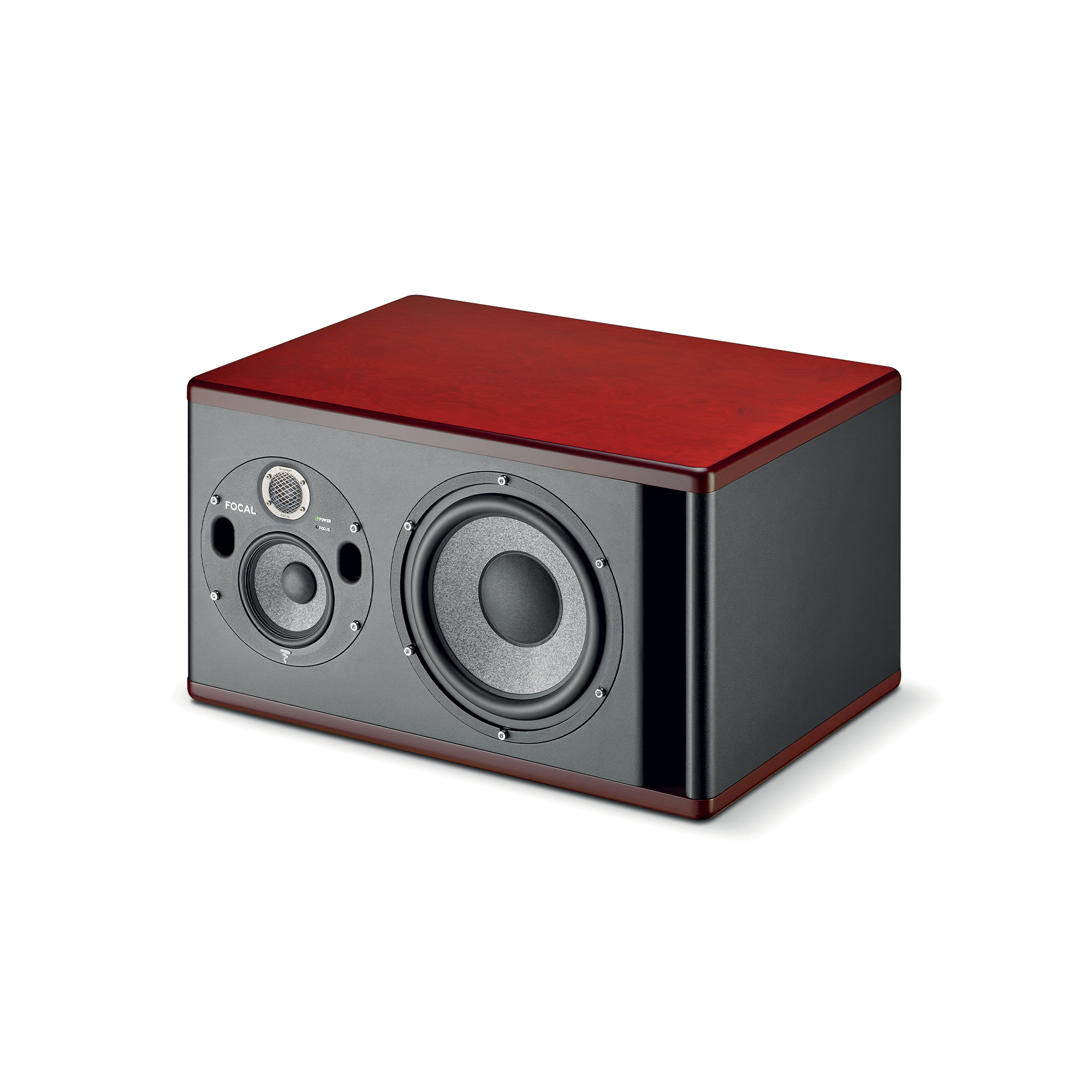

Trio11 Be is a large 3-way nearfield/midfield studio monitor with a 10-inch W-cone woofer, 5-inch midrange, and pure Beryllium tweeter.

fig. 01 · studio monitors

Trio11 Be

From Focal

Trio11 Be pairs 10-inch and 5-inch W-cone drivers (300W/150W class-G) with a 1-inch pure Beryllium tweeter (100W class-AB), for 30Hz-40kHz at up to 118dB SPL. A rotating mid-treble plate mounts horizontally or vertically; a remote foot-switch drops it into 2-way Focus mode for translation checks.

Specifications

Frequency response (3-way mode)	30Hz - 40kHz (+/- 3dB)
Frequency response (2-way mode (Focus))	90Hz - 20kHz (+/- 3dB)
Maximum SPL (3-way mode)	118dB (peak @ 1m)
Maximum SPL (2-way mode (Focus))	105dB (peak @ 1m)
Inputs	Type/Impedance \| Connectors \| Sensitivity \| Electronically balanced / 10KOhms \| XLR \| Adaptable, +4 dBu or -10 dBv
Bass • Midrange • Treble	300W, class G \| 150W, class G \| 100W, class AB
Power supply	Local supply \| Wiring \| 230V (1.6A T fuse) - 115V (3.5A T fuse) \| Connection Detachable IEC inlet power cord
indicators and controls	Rear panel \| Input sensitivity selector (+4dBu/-10dBV) \| Low frequency shelving (+/- 3dB from 35 to 250Hz) \| High frequency shelving (+/- 3dB from 4.5 to 40kHz) \| Low-mid EQ frequencies (+/- 3dB to 160Hz, Q factor = 1) \| FOCUS input / FOCUS output
Auto standby	Auto standby switch on the back of the loudspeaker: enable / disable switch
LED	Focus power on, clipping and default LED on front panel
Subwoofer	10W96701D \| Focal 913/16" (25cm) speaker driver with 'W' composite sandwich cone
Médium	5W04702 \| Focal 51/8" (13cm) speaker driver with 'W' composite sandwich cone
Tweeter	TB872 \| Focal 1" pure Beryllium inverted dome tweeter
Construction	13/16 and 13/16" (21mm and 30mm) panels with internal braces
Finish	Natural veneering side panels Dark red burr ash, black body
Dimensions with four rubber feet (HxDxW)	25" x 139/16" x 173/4" (635 x 345 x 450mm)
Weight	82.2lbs (37.3kg)

All 17 specificationsFewer specifications
