Trio6

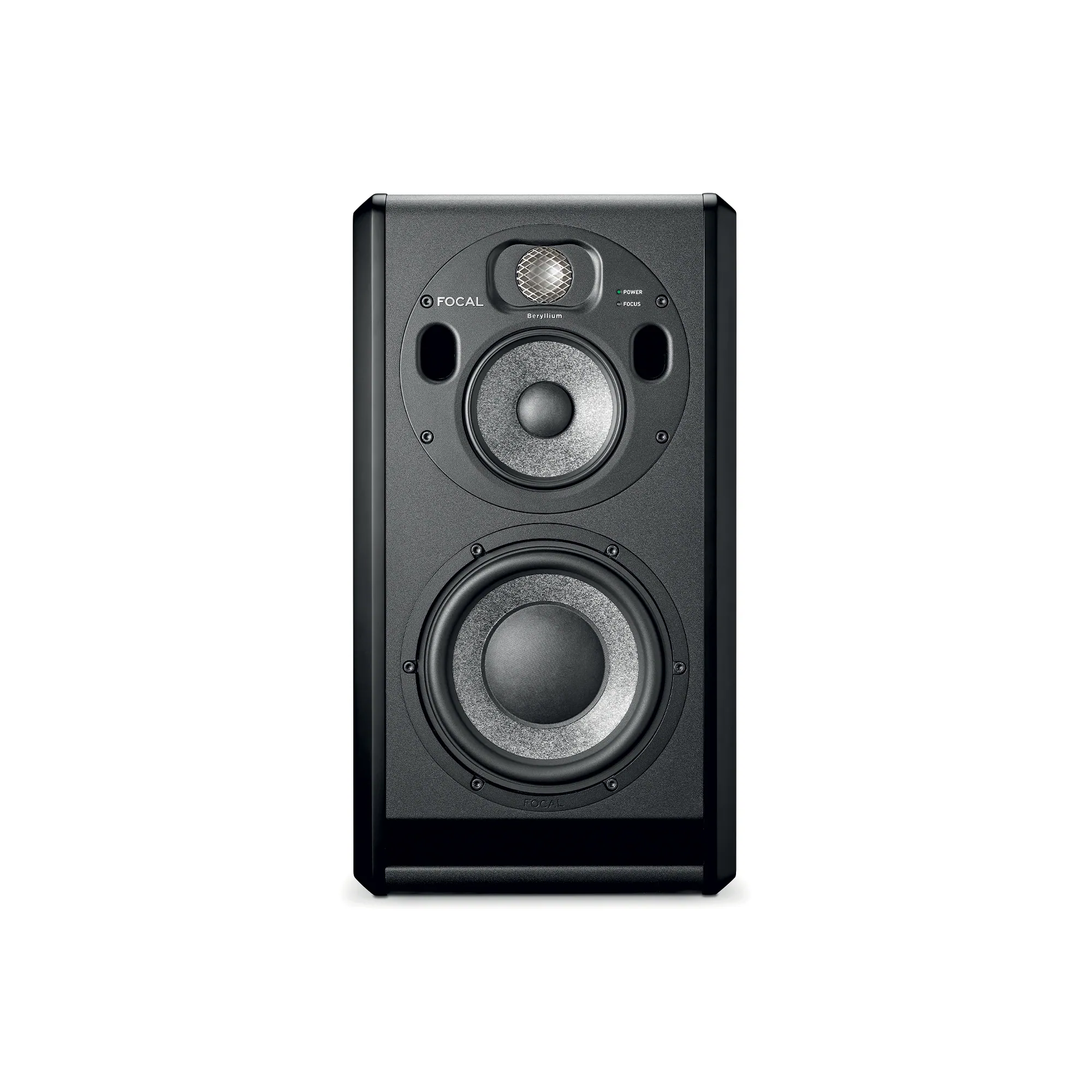

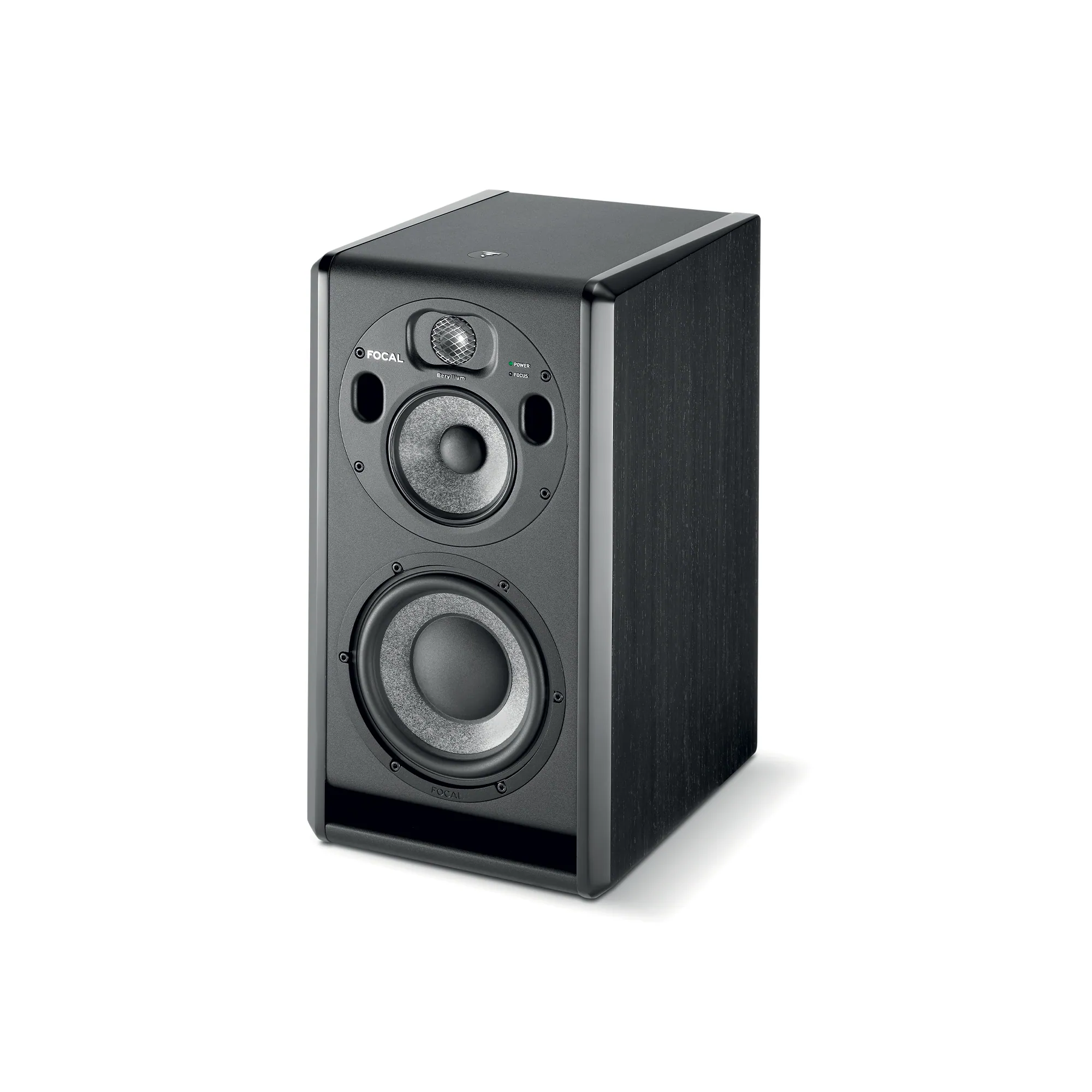

Trio6 is a 3-way nearfield studio monitor with an 8-inch and 5-inch W-cone driver pair, a Beryllium tweeter, and dual Focus Mode.
fig. 01 · studio monitors
Trio6
8 photographs · 5 shown
From Focal
Trio6 drives its 8-inch W-cone woofer and 5-inch W-cone midrange at 100W RMS G-class each, plus a 1.5-inch Beryllium tweeter at 50W RMS AB-class, for 35Hz-40kHz at up to 115dB SPL. Dual Focus Mode switches between 3-way, 2-way, and single-driver modes: three monitors in one cabinet for mixing.
Specifications
| Type | 3-way monitor |
|---|---|
| Frequency response (@ -3dB) | 35Hz – 40kHz |
| Focus mode 1 | 100Hz – 15kHz |
| Focus mode 2 | 80Hz – 40kHz |
| Maximum SPL (Average CEA2034 50–10kHz free field @ 1m) | 115dB |
| Focus mode 1 (Average CEA2034 100–10kHz free field @ 1m) | 112dB |
| Focus mode 2 (Average CEA2034 100–10kHz free field @ 1m) | 112dB |
| Input | Balanced XLR 10kΩ |
| Bass amplifier stage | 100W RMS, G-class |
| Midrange amplifier stage | 100W RMS, G-class |
| Treble amplifier stage | 50W RMS, AB-class |
| Nominal power supply | 100 – 120V~ 50/60Hz | 220 – 240V~ 50/60Hz |
| User controls | Sensitivity, Auto standby, | Focus mode, HPF, LF Shelv, | LMF EQ, HF Shelv |
| Fuses | ~100–120V, 50/60Hz, | T3.15AH/250V~220–240V, | 50/60Hz, T1.6AH/250V |
| Bass | 8" 'W' cone |
| Midrange | 5" 'W' cone |
| Treble | 1.5" Beryllium |
| Shielding | No |
| Construction | 7/8" (22mm) MDF |
| Finish | Black natural veneering side | panels, black body |
| Dimensions (H x L x D) | 211/8"x111/2"x141/2" | (53.7 x 29.2 x 36.9cm) |
| Weight | 55.12lbs (25kg) |
| Temperature range | During use: 5–35°C | During storage: 0–50°C |
