Focal · Studio Monitors
Twin6

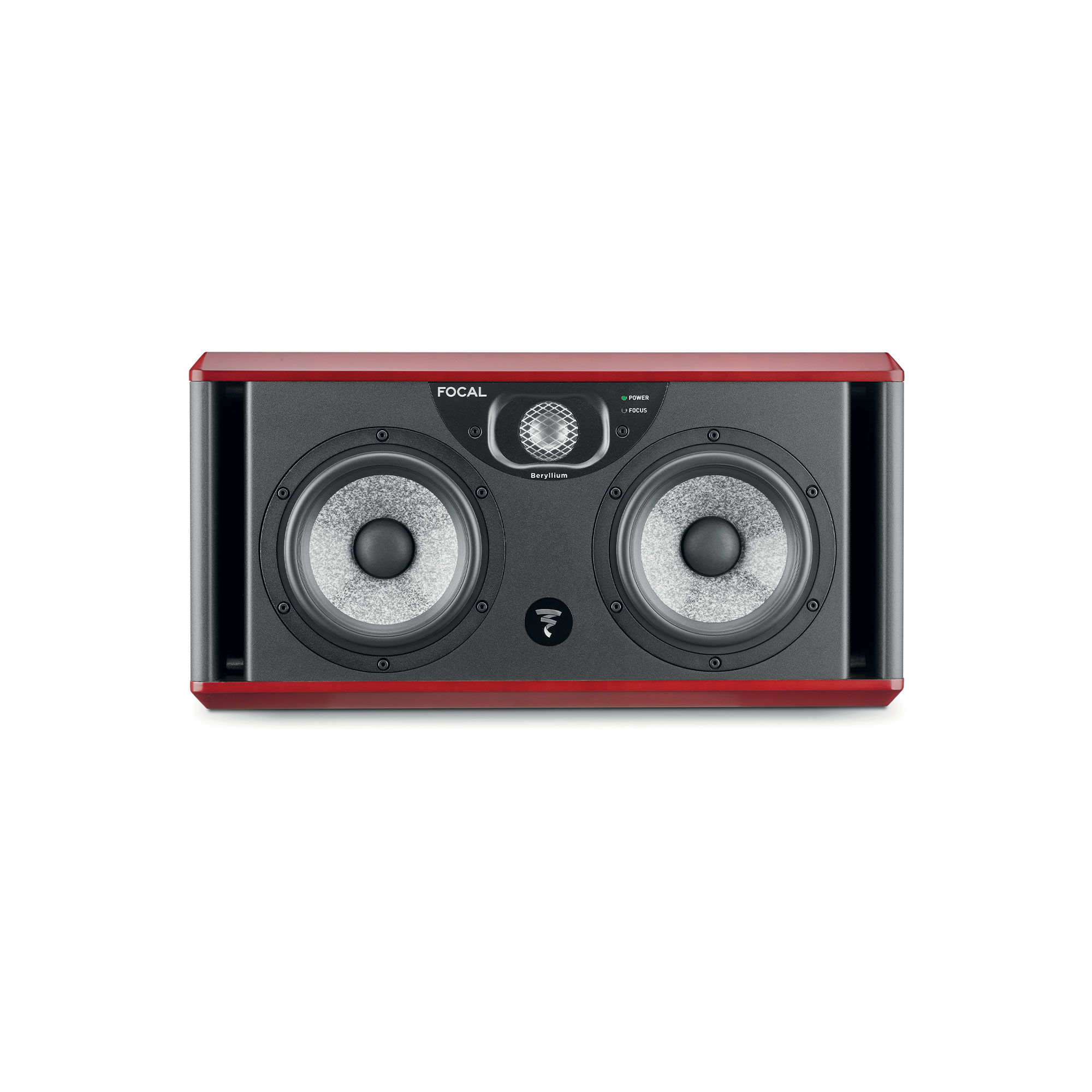

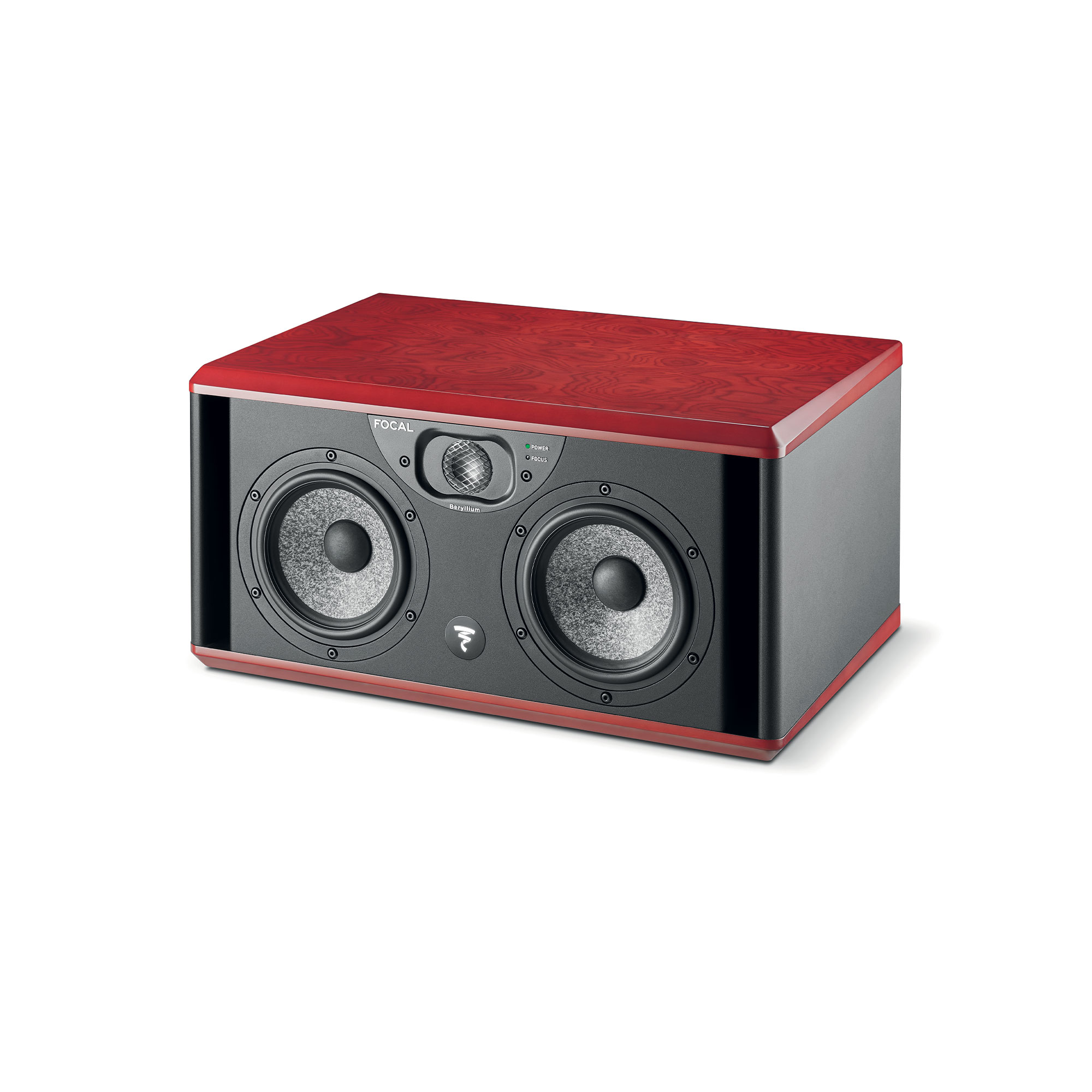

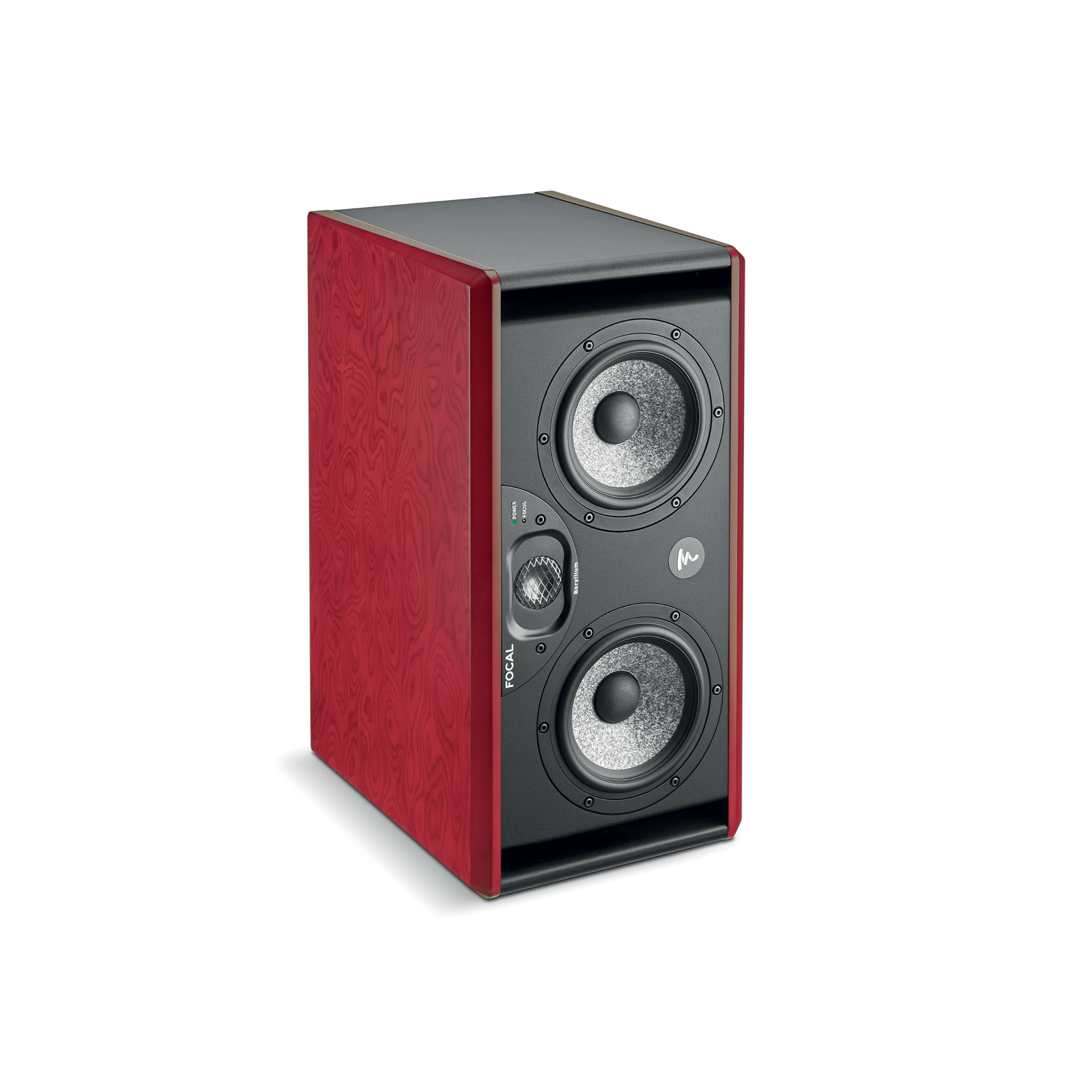

Twin6 is a 2.5-way nearfield studio monitor with two 6.5-inch W-cone woofers, a Beryllium tweeter, and Focus Mode.
fig. 01 · studio monitors
Twin6
8 photographs · 5 shown
From Focal
Two 6.5-inch W-cone woofers and a 1.5-inch Beryllium inverted-dome tweeter split across 2x70W and 50W RMS amp stages give Twin6 a 40Hz-40kHz response and 112dB max SPL. Focus Mode narrows it to a single-woofer full-range monitor for translation checks, covering recording, mixing, and mastering.
Specifications
| Type | 2.5-way monitor |
|---|---|
| Frequency response (@ -3dB) | 40Hz - 40kHz |
| Focus mode | 110Hz - 10kHz |
| Maximum SPL (Average CEA2034 50-10kHz free field @ 1m) | 112dB |
| Focus mode (Average CEA2034 100-10kHz free field @ 1m) | 111.5dB |
| Input | Balanced XLR 10 kΩ |
| Bass amplifier stage | 2 x 70W RMS |
| Treble amplifier stage | 50W RMS |
| Nominal power supply | -100-120 VAC/220-240 VAC | 50/60Hz |
| User controls | Sensitivity, stand-by, |
| Fuses | ~100-120V, T3.15AL/250V |
| Bass | 2 x 6.5" (16.5cm) "W" cone |
| Treble | 1.5" (38mm) Beryllium |
| Shielding | no |
| Construction | 7/8" (22mm) MDF |
| Finish | Dark red natural veneering side |
| Dimensions (HxWxD) | 10 1/8 x20 1/4 x13 1/2 " (25.8x51.4x34.4cm) |
| Weight | 48.5lbs (22kg) |
| Temperature range | During use: 5-35°C |
