Utopia Main 112

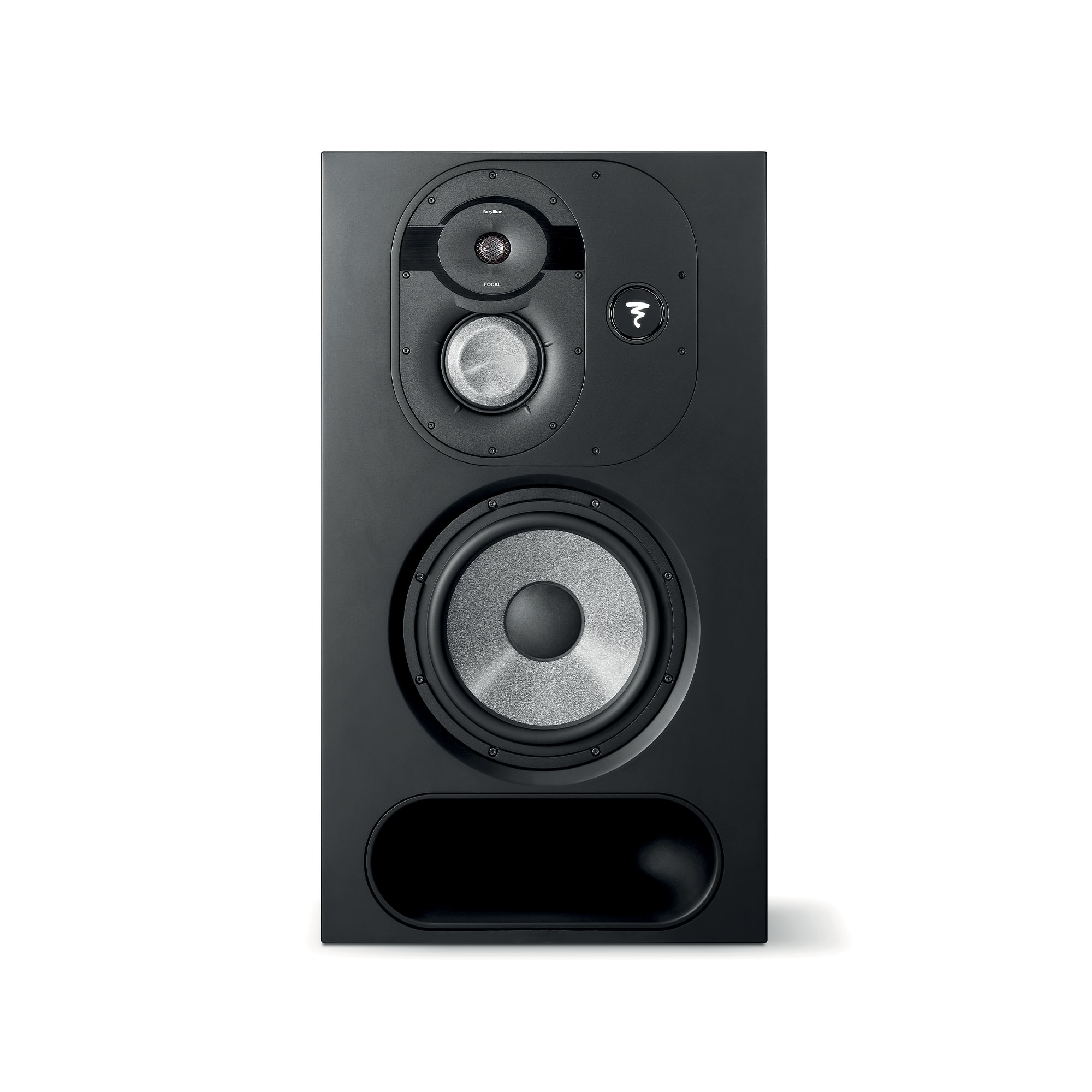

Utopia Main 112 is Focal's flagship 3-way main monitor with a 13-inch W-cone woofer, 5-inch midrange, and Beryllium tweeter.
fig. 01 · studio monitors
Utopia Main 112
8 photographs · 5 shown
From Focal

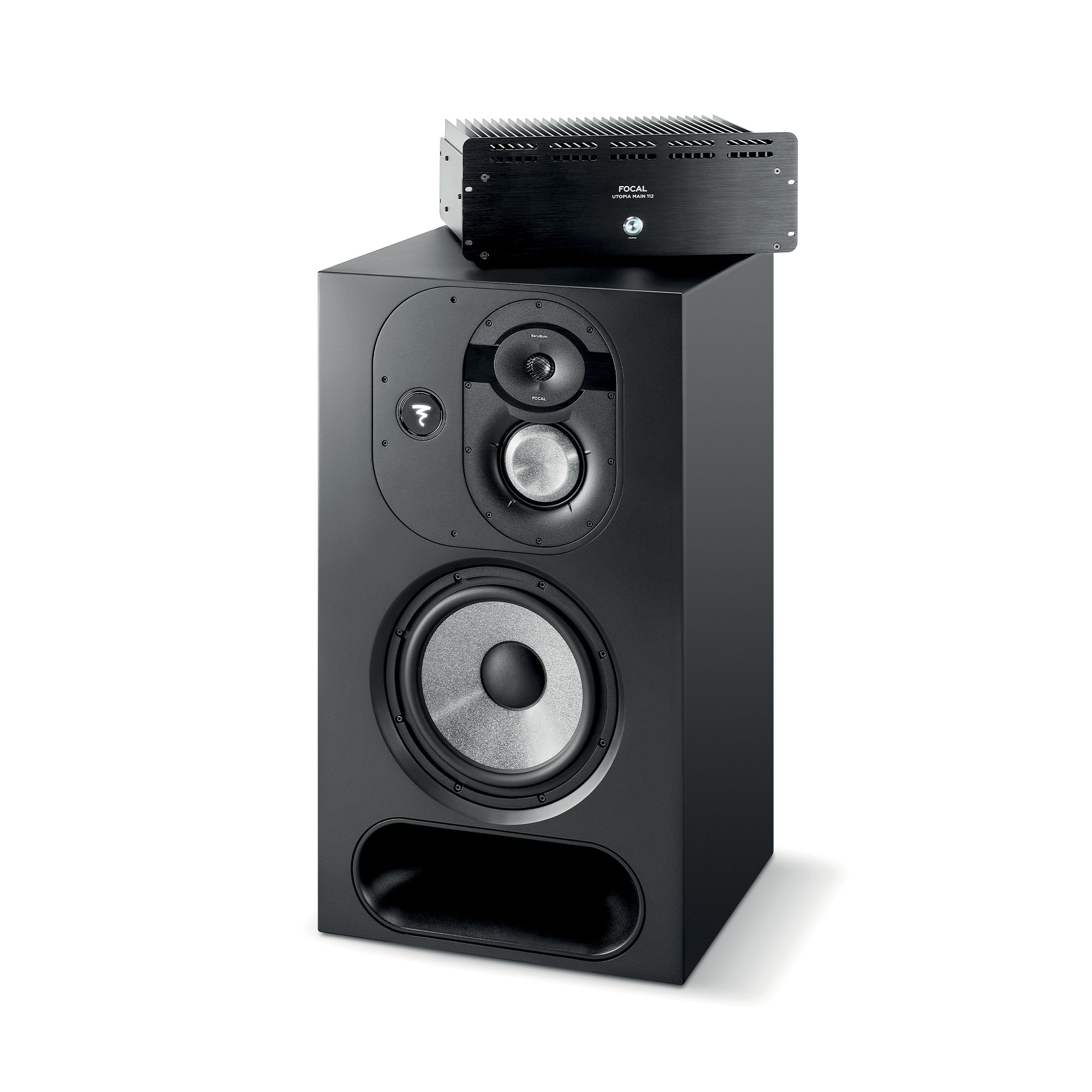

Utopia Main 112 pairs a 13-inch W-cone woofer, 5-inch M-shaped midrange, and 1.5-inch M-shaped Beryllium tweeter on 500W/180W/90W RMS, mid and treble Current Mode class-H, for 28Hz-40kHz at up to 120dB SPL. It ships with a 4U rack amp and a port plug for sealed or ported bass, for full-scale mastering.
Specifications
| Frequency response (@ -3dB) | 28Hz-40kHz |
|---|---|
| Maximum SPL (CEA2034 standard 50-10kHz free-field @ 1m) | 120dB |
| Input | Balanced XLR 10kΩ |
| Bass amplifier stage | 500W RMS class-D |
| Midrange amplifier stage | 180W RMS class-H | Current mode |
| Treble amplifier stage | 90W RMS class-H | Current mode |
| Nominal power supply (Alternating voltage) | -100 - 120V, 50/60Hz | -220 - 240V, 50/60Hz |
| Nominal power consumption | 500W |
| Fuses | T10AH/25V, T5AH/250V | -100-120V -220-240V |
| Crossover frequencies | 330Hz/2.7kHz |
| Dimensions (H x W x D) | 7 3/8 " x 19" x 17 1/2 " | 37" x 20 7/8 " x 18 1/8 " | (94 x 53 x 46cm) |
| Rack Height | 4U |
| Weight | 51,6lbs (23,4kg) | 171lb (77.6kg) |
| Automatic standby mode | After approximately 14 minutes with no signal |
| Power consumption in standby mode | <0.5W |
| Power consumption when the amplifier is off | <0.1W |
| Transducers Woofer | 13" (33cm) 'W' cone |
| Midrange | 5" (12.7cm) 'M'-shaped 'W' cone |
| Tweeter | 1.5" (38mm) 'M'-shaped Beryllium |
| i weetei | i.3 (30iiiii) iii -siiapeu beryiiiuiii |
| Construction | 1 1/8 " (30mm) MDF |
| Finish | Black |
