Chartwell LS6
The Chartwell LS6 is a 17-litre monitor by Derek Hughes, sized between the LS3/5 and the LS5/9.
fig. 01 · speakers
Chartwell LS6
From Graham

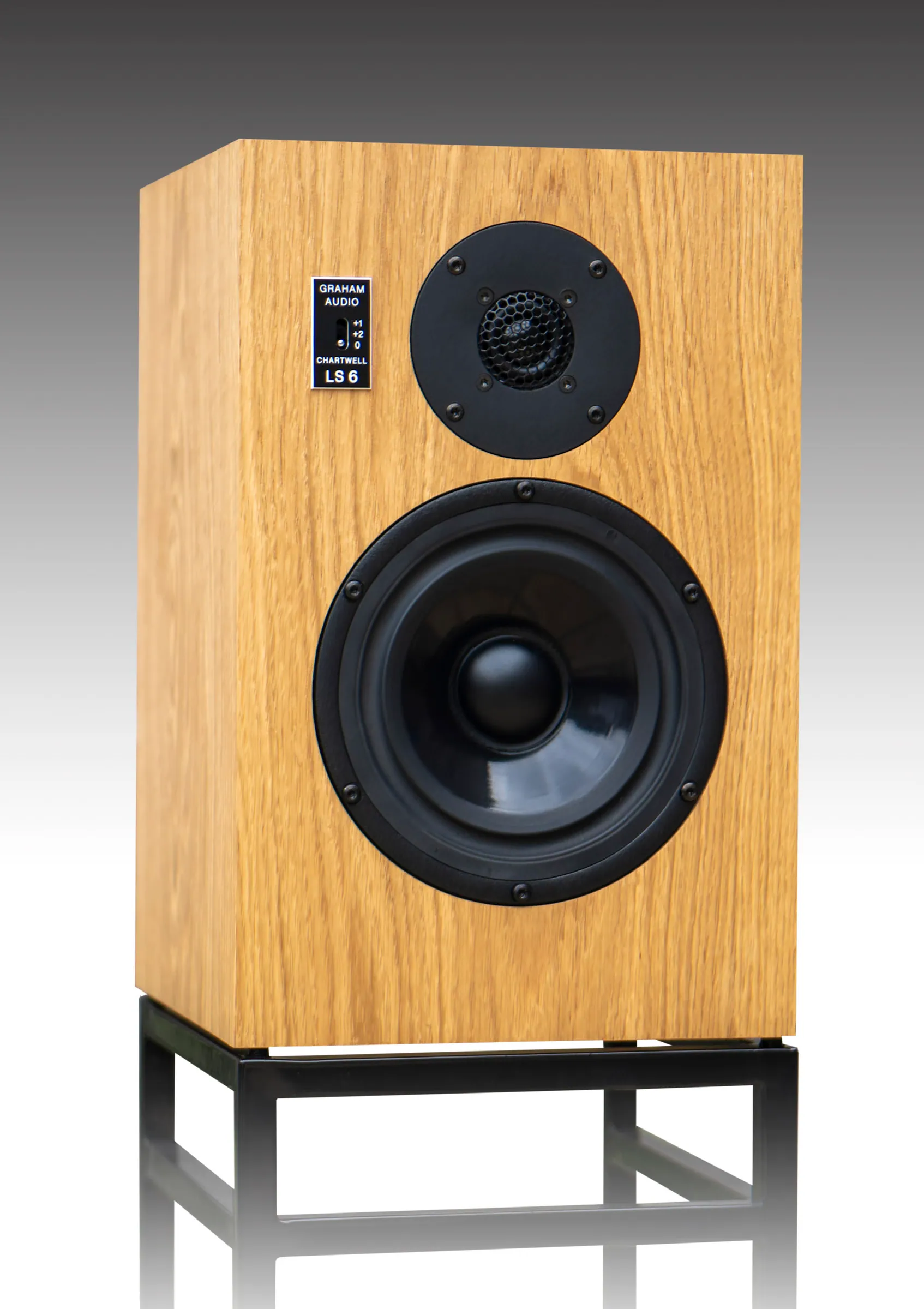

Derek Hughes built the LS6 to sit between the LS3/5 and the LS5/9. A custom 6-inch long-throw bass driver in a 17-litre cabinet gives bass extension close to the LS5/9's, and the bespoke 19mm dome tweeter runs past 20kHz. A front-baffle switch lifts the tweeter by 1 or 2dB.
Specifications
| System | 2 Way, reflex loading |
|---|---|
| Enclosure | Thin wall damped construction |
| Finish | Real wood veneer |
| Dimensions (w/h/d) | 24cm by 37cm by 26cm |
| Weight | 9.5kg |
| Frequency response | 45Hz to 20kHz, ±2dB |
| Nominal impedance | 8Ω |
| Sensitivity | 87dB SPL (2.83V, 1m) |
| Maximum output | Over 100dB for a pair at 2m |
| Bass/midrange | 165mm polypropylene |
| Tweeter | 19mm dome tweeter |
| Recommended amplifier power | 50 to 150 watts unclipped programme |
