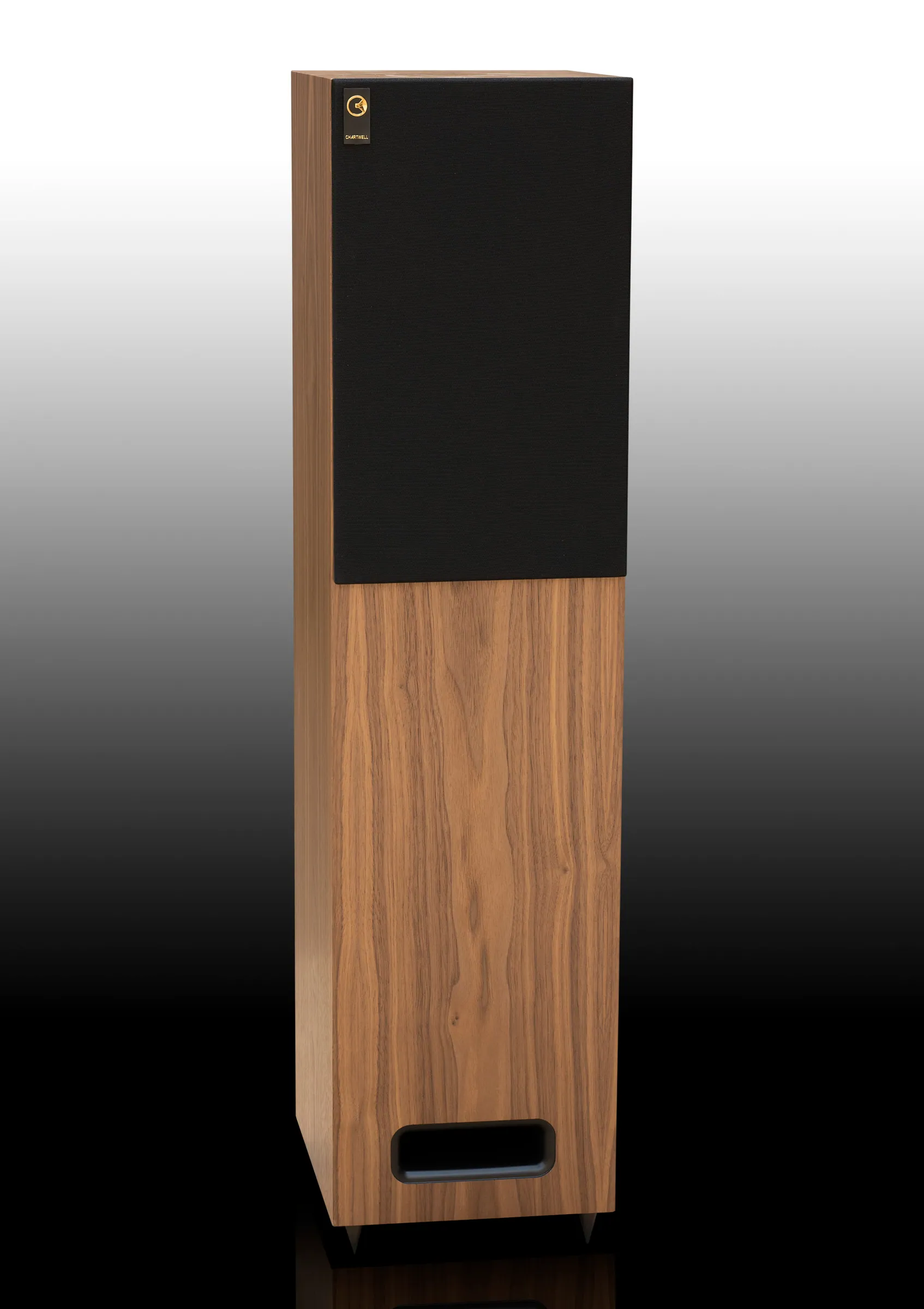

Chartwell LS6F
The Chartwell LS6F is the floorstanding LS6, using the same drive units on a ported plinth.
fig. 01 · speakers
Chartwell LS6F
From Graham
The LS6F takes the stand-mount LS6's drive units into a floorstanding cabinet. Its plinth shapes the airflow from the port, cutting distortion at high levels, and the crossover is reworked with premium parts to even out the response in free space. A front-panel switch adds 1 or 2dB of tweeter level.
Specifications
| System | 2 Way, reflex loading |
|---|---|
| Enclosure | Thin wall damped construction |
| Finish | Real wood veneer |
| Dimensions (w/h/d) | 32cm by 96cm by 32cm (including plinth) |
| Weight | 21kg |
| Frequency response | 40Hz to 20kHz, ±2dB |
| Nominal impedance | 8Ω |
| Sensitivity | 87dB SPL (2.83V, 1m) |
| Maximum output | Over 100dB for a pair at 2m |
| Bass/midrange | 165mm polypropylene |
| Tweeter | 19mm dome tweeter |
| Recommended amplifier power | 50 to 150 watts unclipped programme |
