Graham LS4/4
The Graham LS4/4 is Derek Hughes' scaled-down LS5/5, built to bring studio dynamics into smaller rooms.

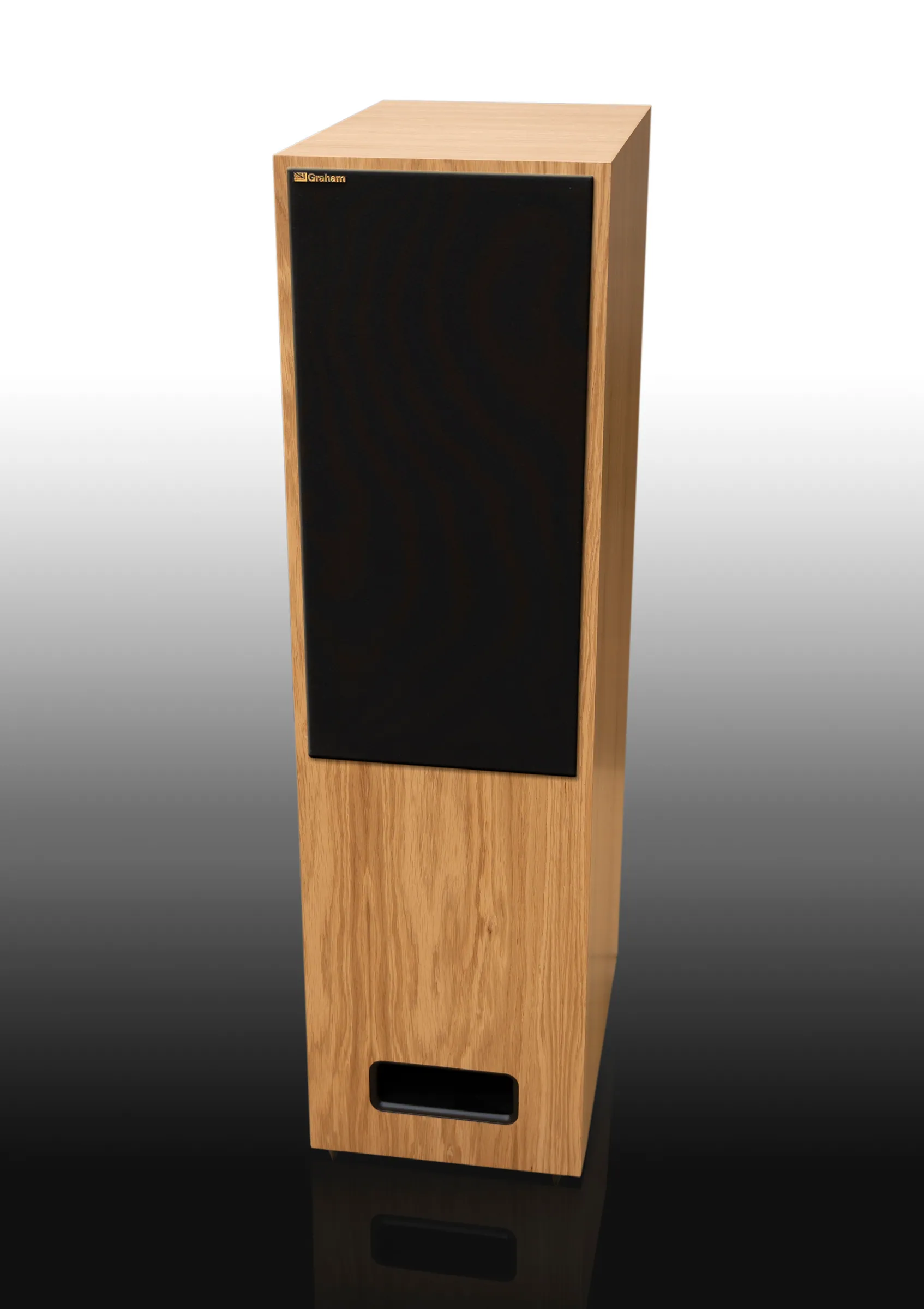

fig. 01 · speakers
Graham LS4/4
From Graham
Derek Hughes developed the LS4/4 out of the LS5/5, the BBC studio speaker built for large control rooms. It keeps that speaker's tweeter and midrange driver but drops to a 270mm bass unit for domestic rooms. The slot loading stays, which holds the focus and widens the sweet spot.
Specifications
| System | 3 Way, reflex loading |
|---|---|
| Enclosure | Thin wall damped construction, birch plywood, floor standing |
| Finish | Real wood veneer |
| Dimensions (w/h/d) | 31cm by 110cm by 48cm |
| Weight | 45kg |
| Frequency response | 40Hz to 20kHz, ±2dB |
| Nominal impedance | 8Ω |
| Sensitivity | 88dB SPL (2.83V, 1m) |
| Maximum output | Over 103dB for a pair at 2m |
| Bass | Long throw 270mm |
| Midrange | 200mm |
| Tweeter | 25mm soft dome |
| Recommended amplifier power | 50 to 200 watts unclipped programme |
| Crossover | 400Hz, 3.5kHz |
| Connectors | Gold plated terminals |
