Graham · Speakers · Floor-standing Speakers
Graham LS5/5F

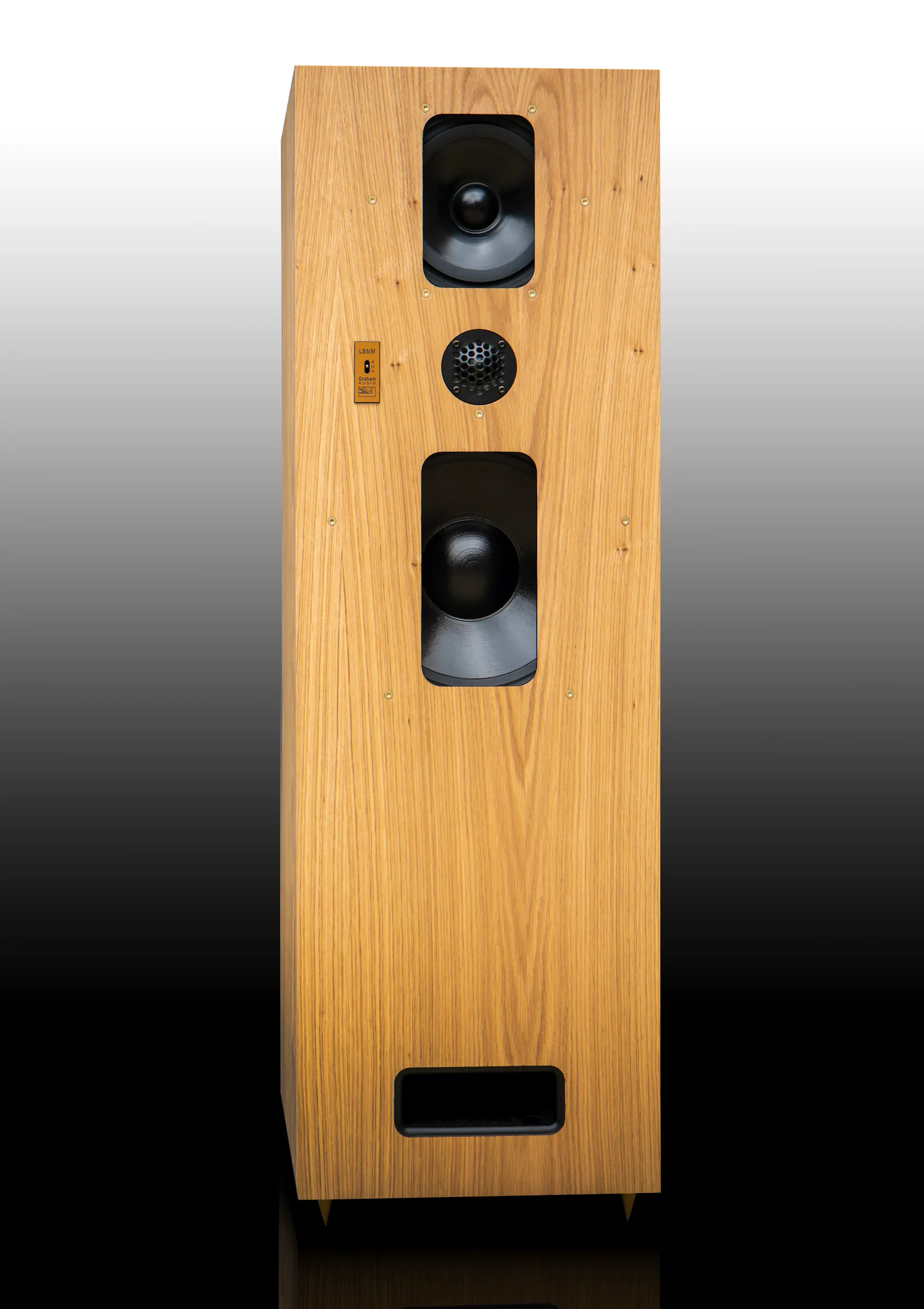

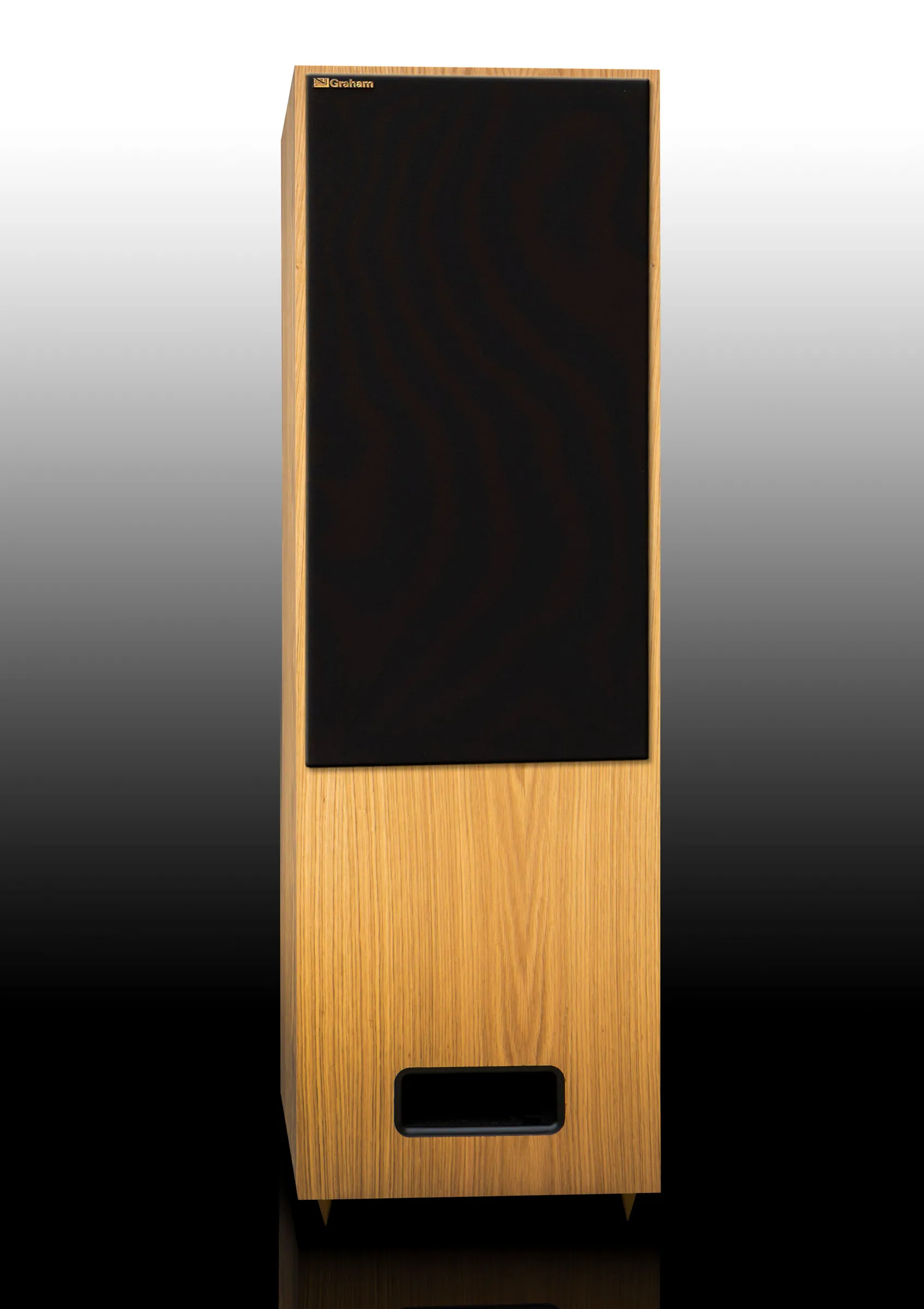

The Graham LS5/5F is the floorstanding LS5/5, with more bass extension and a front-panel tweeter control.
fig. 01 · speakers
Graham LS5/5F
From Graham
The LS5/5F keeps the LS5/5's drive units and crossover points in a larger cabinet, which reaches well below its 35Hz minus-2dB point in practice. A front-panel control moves tweeter level up or down by 1dB, subtle with most material and useful for tuning to a room.
Specifications
| System | 3 Way, reflex loading |
|---|---|
| Enclosure | Thin wall damped construction, floor standing |
| Finish | Real wood veneer |
| Dimensions (w/h/d) | 36cm by 111cm by 48cm |
| Weight | 46kg |
| Frequency response | 35Hz to 20kHz, ±2dB |
| Nominal impedance | 8Ω |
| Sensitivity | 88dB SPL (2.83V, 1m) |
| Maximum output | Over 104dB for a pair at 2m |
| Bass | 300mm long throw |
| Midrange | 200mm |
| Tweeter | 25mm soft dome tweeter |
| Recommended amplifier power | 50 to 250 watts unclipped programme |
| Crossover | 400Hz, 3.5kHz |
