Graham LS5/9F
The Graham LS5/9F is the floorstanding LS5/9, with a larger cabinet and a tweeter level switch.

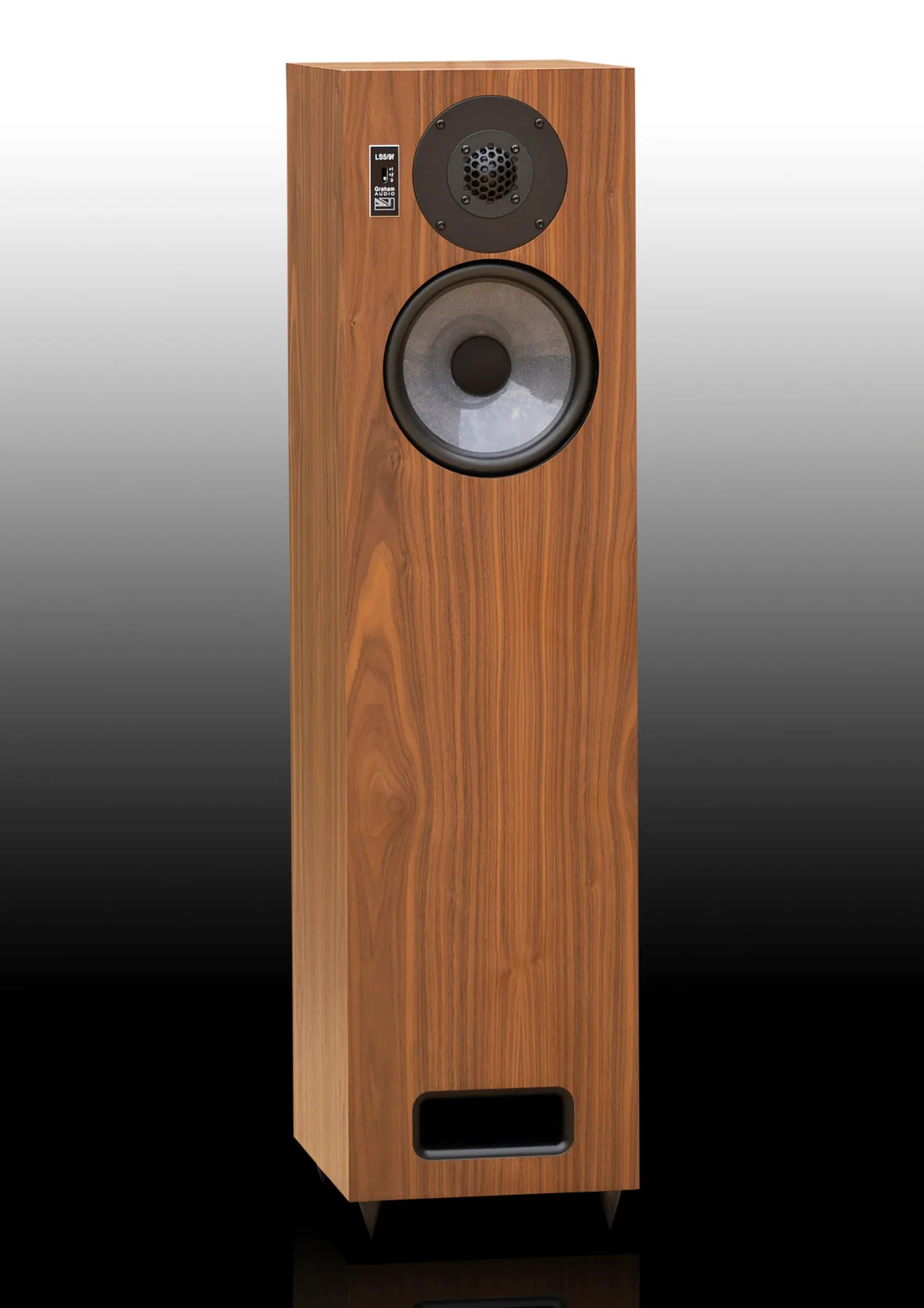

fig. 01 · speakers
Graham LS5/9F
From Graham
The LS5/9F uses the same handmade Volt bass/midrange driver and 34mm Audax tweeter as the LS5/9, in a larger cabinet that extends the bass and the dynamics. A discrete switch replaces the soldered tweeter calibration, which helps in rooms with a lot of absorbent furnishing.
Specifications
| System | 2 Way, reflex loading |
|---|---|
| Enclosure | Thin wall construction |
| Finish | Real wood veneer |
| Dimensions (w/h/d) | 35cm by 105cm by 37cm (including plinth) |
| Weight | 25kg |
| Frequency response | 40Hz to 16kHz, ±3dB |
| Nominal impedance | 8Ω |
| Sensitivity | 87dB SPL (2.83V, 1m) |
| Maximum output | Over 100dB for a pair at 2m |
| Bass/midrange | 200mm Diaphnatone polypropylene |
| Tweeter | Son Audax HD13D34H |
| Recommended amplifier power | 50 to 200 watts unclipped programme |
