Graham LS8/1

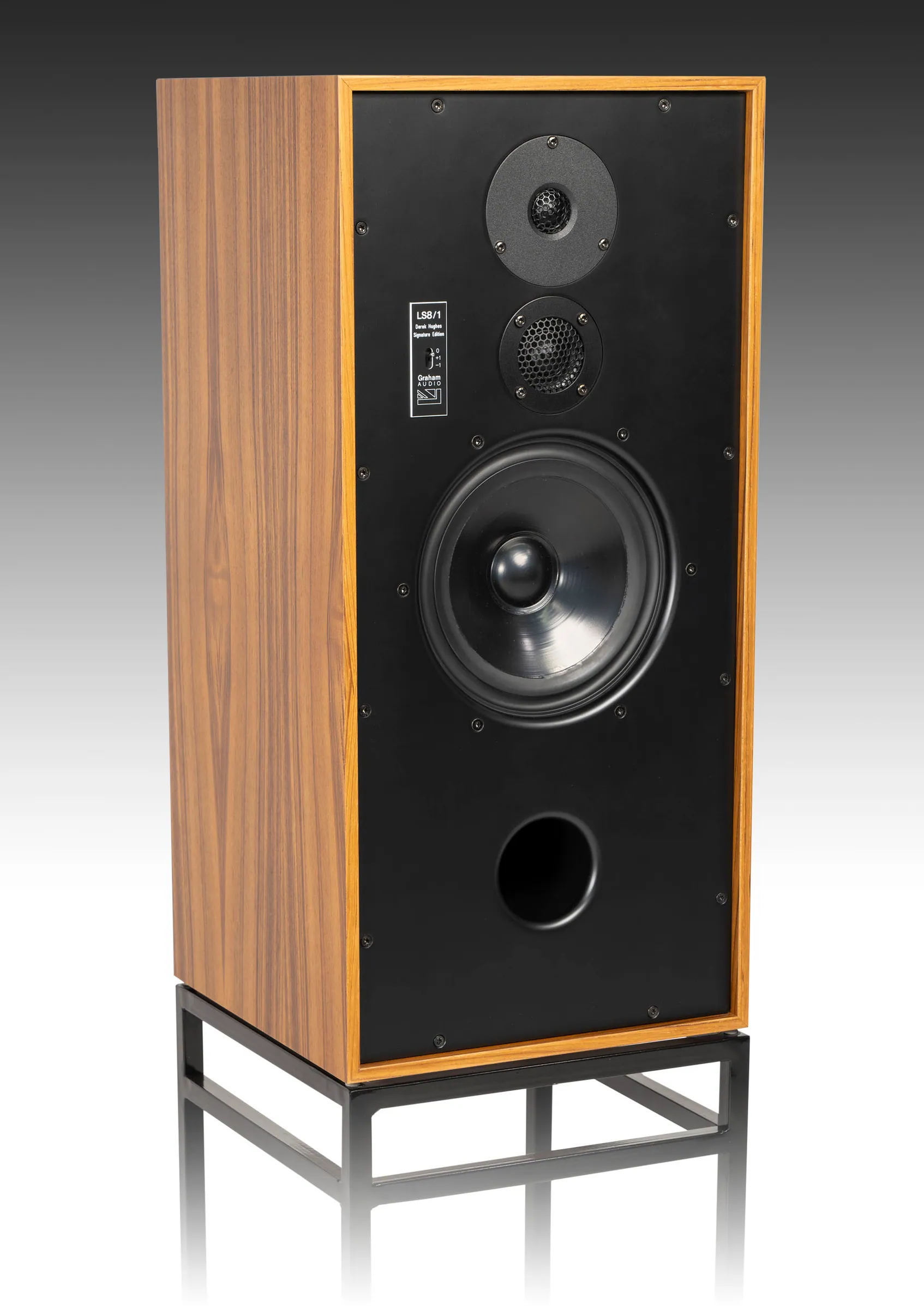

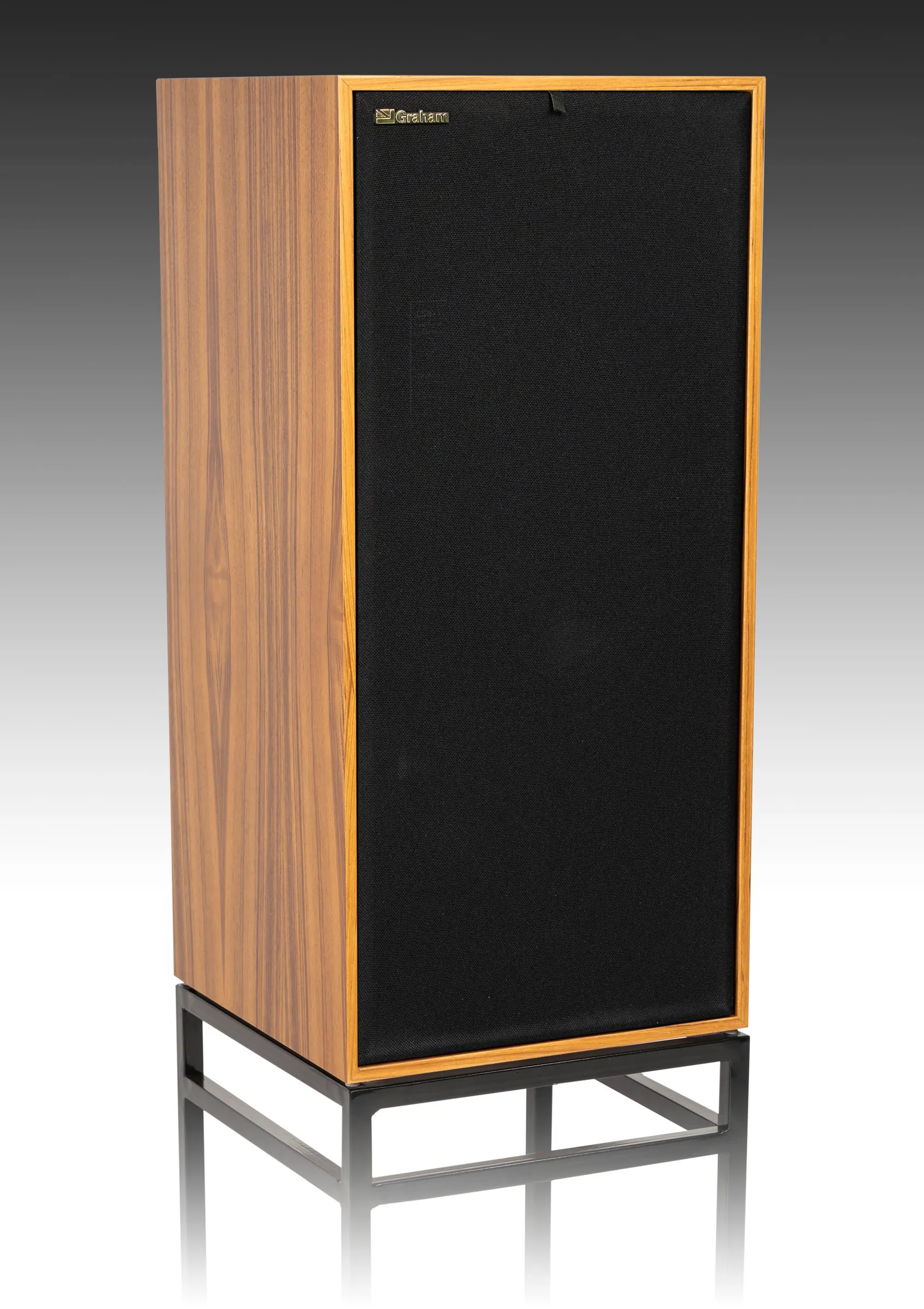

The Graham LS8/1 is a three-way monitor on the classic 8-inch driver in a 2-cubic-foot box, with a super-tweeter.
fig. 01 · speakers
Graham LS8/1
From Graham
The LS8/1 is Graham's take on the 8-inch driver in a 2-cubic-foot box, the format Derek Hughes' father Spencer used for the BBC LS3/6. High-temperature motor materials raise power handling while keeping the LS3/6's midrange openness. Tweeter and super-tweeter both sit behind metal grilles.
Specifications
| System | 3 Way, reflex loading |
|---|---|
| Enclosure | Thin wall damped construction, birch plywood |
| Finish | Real wood veneer |
| Dimensions (w/h/d) | 30cm by 63.5cm by 30cm |
| Weight | 17kg |
| Frequency response | 45Hz to 20kHz, ±3dB |
| Nominal impedance | 8Ω |
| Sensitivity | 87dB SPL (2.83V, 1m) |
| Maximum output | Over 100dB for a pair at 2m |
| Bass | 200mm |
| Tweeter | 26mm soft dome |
| Super tweeter | 19mm soft dome |
| Recommended amplifier power | 50 to 250 watts unclipped programme |
| Crossover | 3.5kHz, 14kHz |
