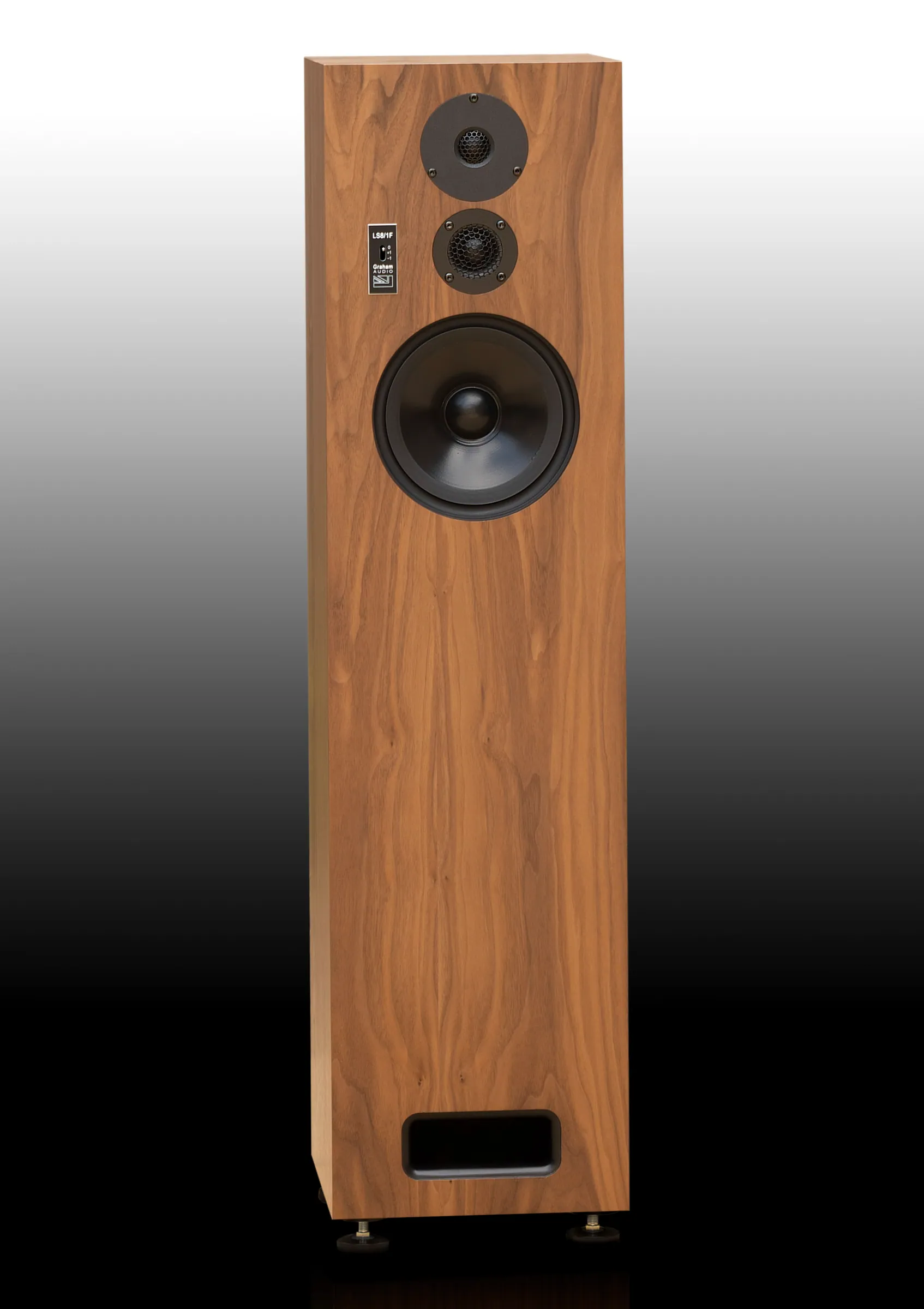

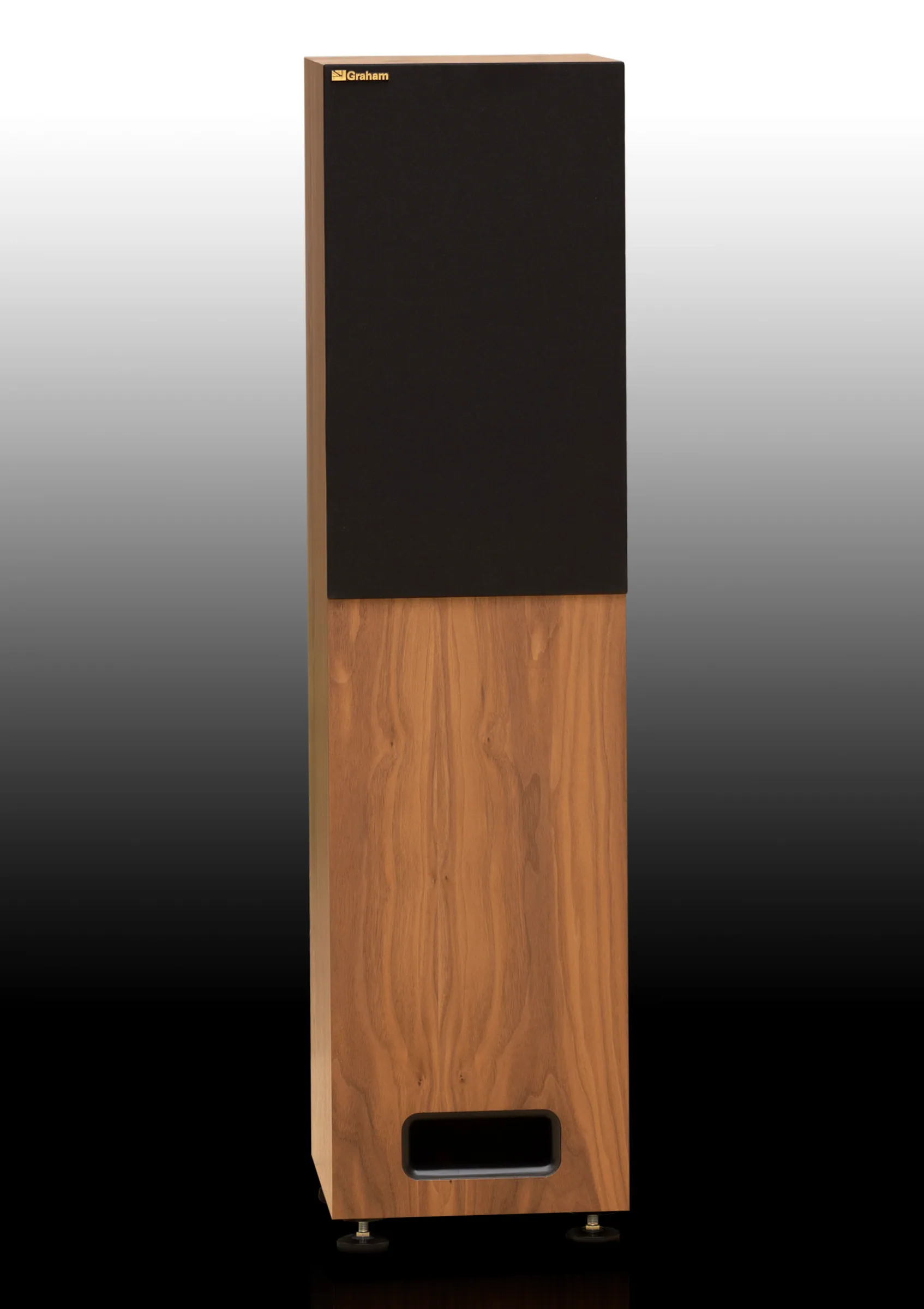

Graham LS8/1F
The Graham LS8/1F is the floorstanding LS8/1, one of Derek Hughes' newer three-way designs.
fig. 01 · speakers
Graham LS8/1F
From Graham
The 8/1F is the floorstanding version of the 8/1 monitor. Every feature of the monitor carries over, and the larger cabinet lets the low end run easier while the three-way's spacious soundstage opens up. It handles classical through modern material in a cabinet this compact.
Specifications
| System | 3 Way, reflex loading |
|---|---|
| Enclosure | Thin wall damped construction, birch plywood |
| Finish | Real wood veneer |
| Dimensions (w/h/d) | 34cm by 100cm by 35cm (inc. plinth) |
| Weight | 23kg |
| Frequency response | 43Hz to 20kHz, ±3dB |
| Nominal impedance | 8Ω |
| Sensitivity | 87dB SPL (2.83V, 1m) |
| Maximum output | Over 100dB for a pair at 2m |
| Bass/Midrange | 200mm |
| Tweeters | 26mm soft dome |
| Super tweeter | 19mm soft dome |
| Recommended amplifier power | 50 to 250 watts unclipped programme |
| Crossover | 3.5kHz, 14kHz |
