LS3/5A Special Edition

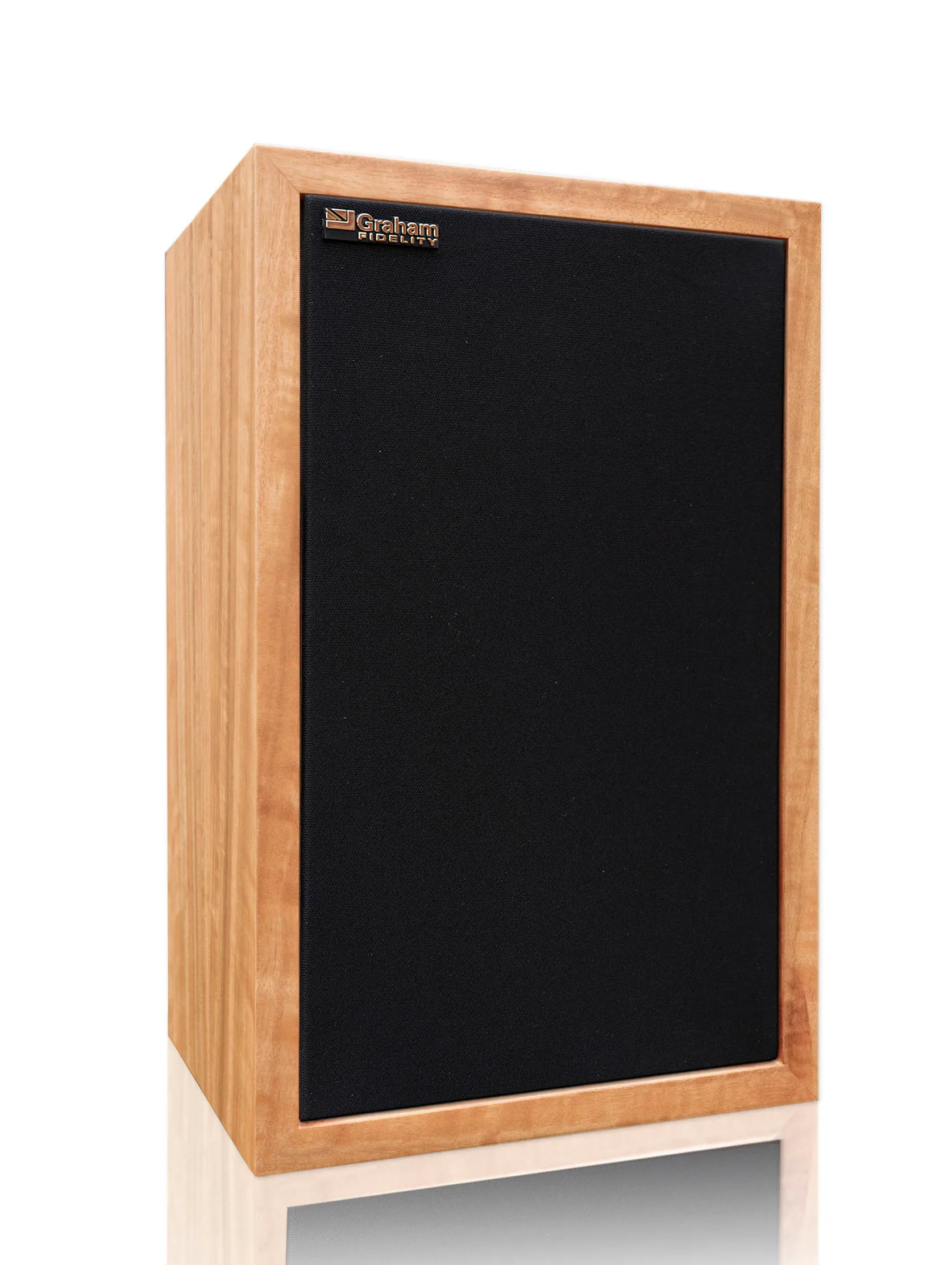

The LS3/5A Special Edition is a limited-run LS3/5A with a rear HF switch, eucalyptus veneer, and a black baffle.
fig. 01 · speakers
LS3/5A Special Edition
From Graham

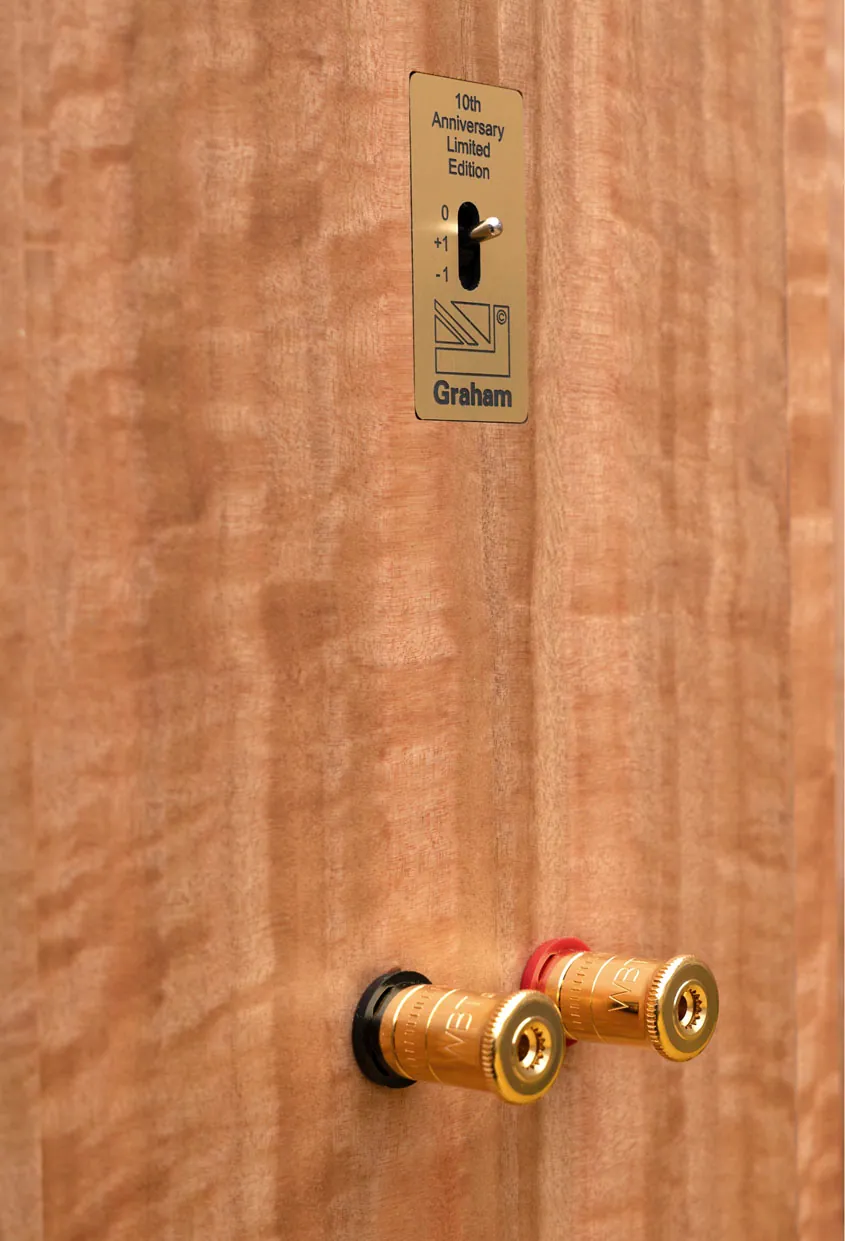

This limited edition adds a rear-panel HF switch to the LS3/5A, a first for the model. The crossover moves to polypropylene capacitors and metal-cased resistors for better thermal behaviour, with Van Den Hul cabling and gold-plated WBT terminals.
Specifications
| System | 2 Way, sealed enclosure |
|---|---|
| Enclosure | Thin wall damped construction |
| Finish | Eucalyptus with black baffles |
| Dimensions (w/h/d) | 19cm by 30cm by 17cm |
| Weight | 5.3kg |
| Frequency response | 70Hz to 20kHz, ±3dB |
| Nominal impedance | 11Ω |
| Sensitivity | 83dB SPL (2.83V, 1m) |
| Maximum output | 95dB for a pair at 2m |
| Bass/midrange | 110mm |
| Tweeter | 19mm dome tweeter |
| Recommended amplifier power | 25 to 50 watts unclipped programme |
| Connectors | Gold plated terminals |
