LS5/9 Special Edition
The LS5/9 Special Edition is a limited-run LS5/9 with an upgraded tweeter, a reworked port, and a front-panel switch.
fig. 01 · speakers
LS5/9 Special Edition
From Graham

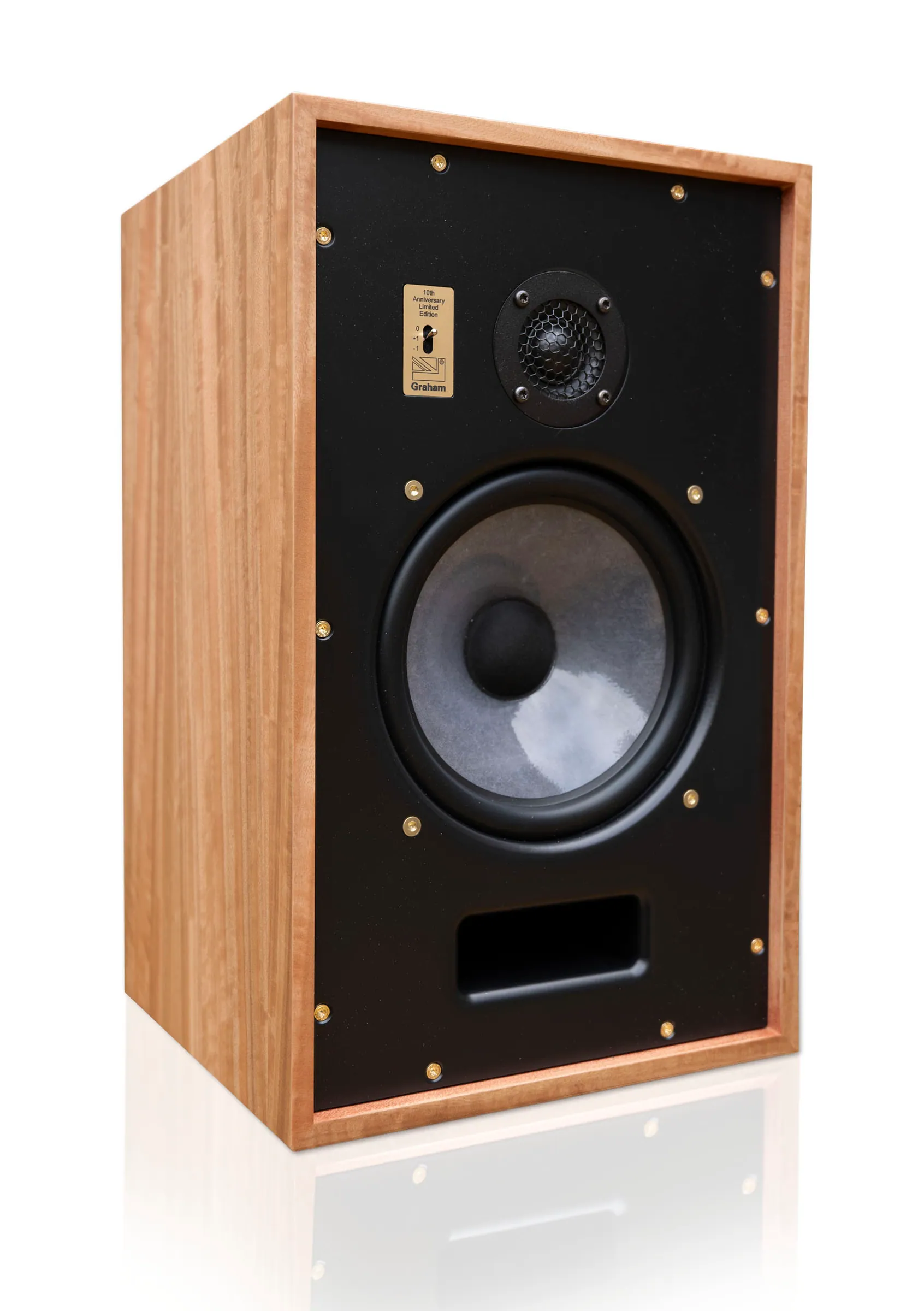

This limited edition reworks the LS5/9 with polypropylene crossover capacitors, Van Den Hul cabling, and gold WBT terminals. The revised dome tweeter reaches 20kHz and sits closer to the bass driver, tightening the response through the crossover.
Specifications
| System | 2 Way, reflex loading |
|---|---|
| Enclosure | Thin wall damped construction |

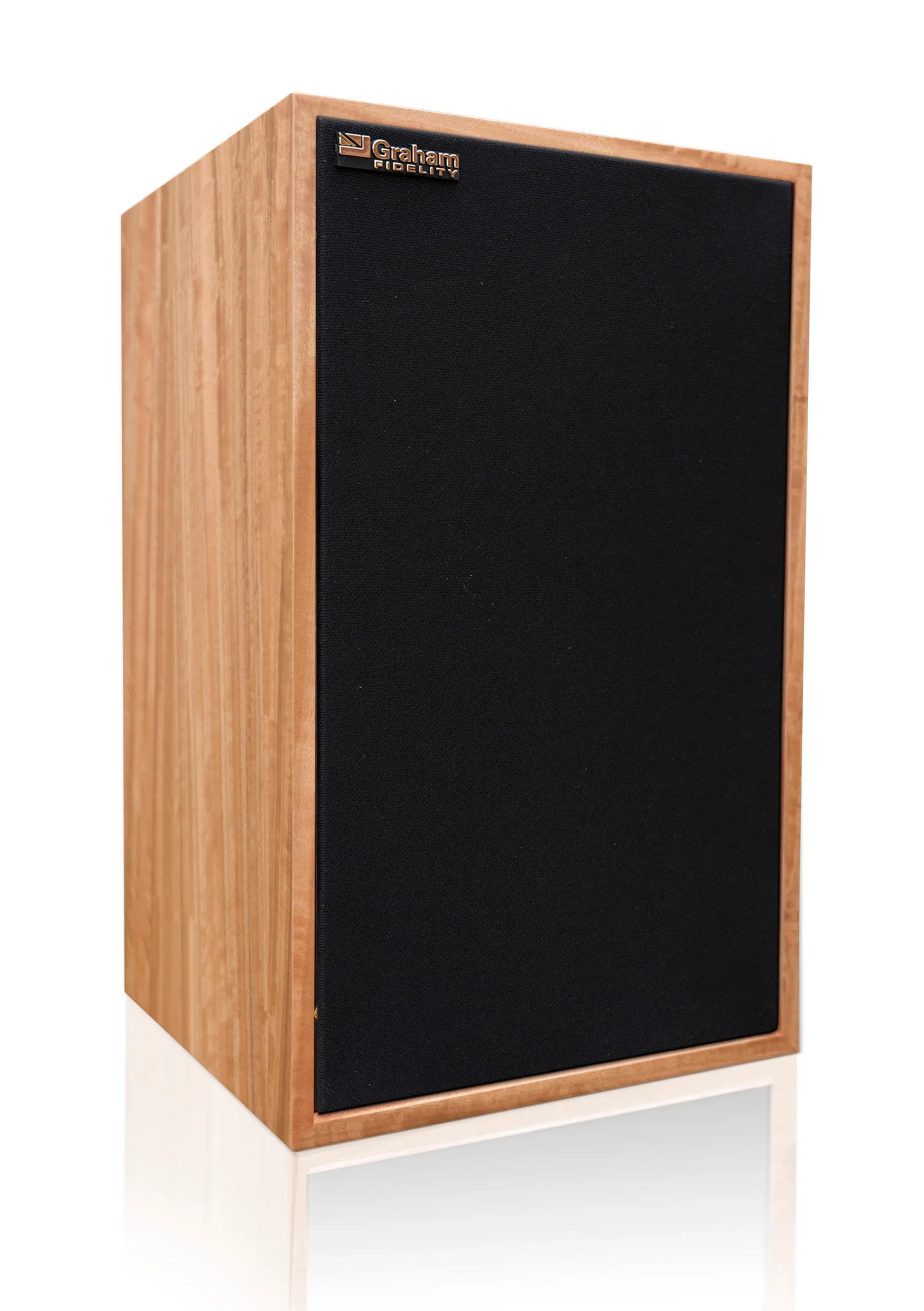

| Finish | Eucalyptus with black baffles |
| Dimensions (w/h/d) | 28cm by 46cm by 27.5cm |
| Weight | 14kg |
| Frequency response | 50Hz to 20kHz, ±3dB |
| Nominal impedance | 8Ω |
| Sensitivity | 87dB SPL (2.83V, 1m) |
| Maximum output | Over 100dB for a pair at 2m |
| Bass/midrange | 200mm Diaphnatone Polypropylene |
| Tweeter | 25mm soft dome |
| Recommended amplifier power | 50 to 200 watts unclipped programme |

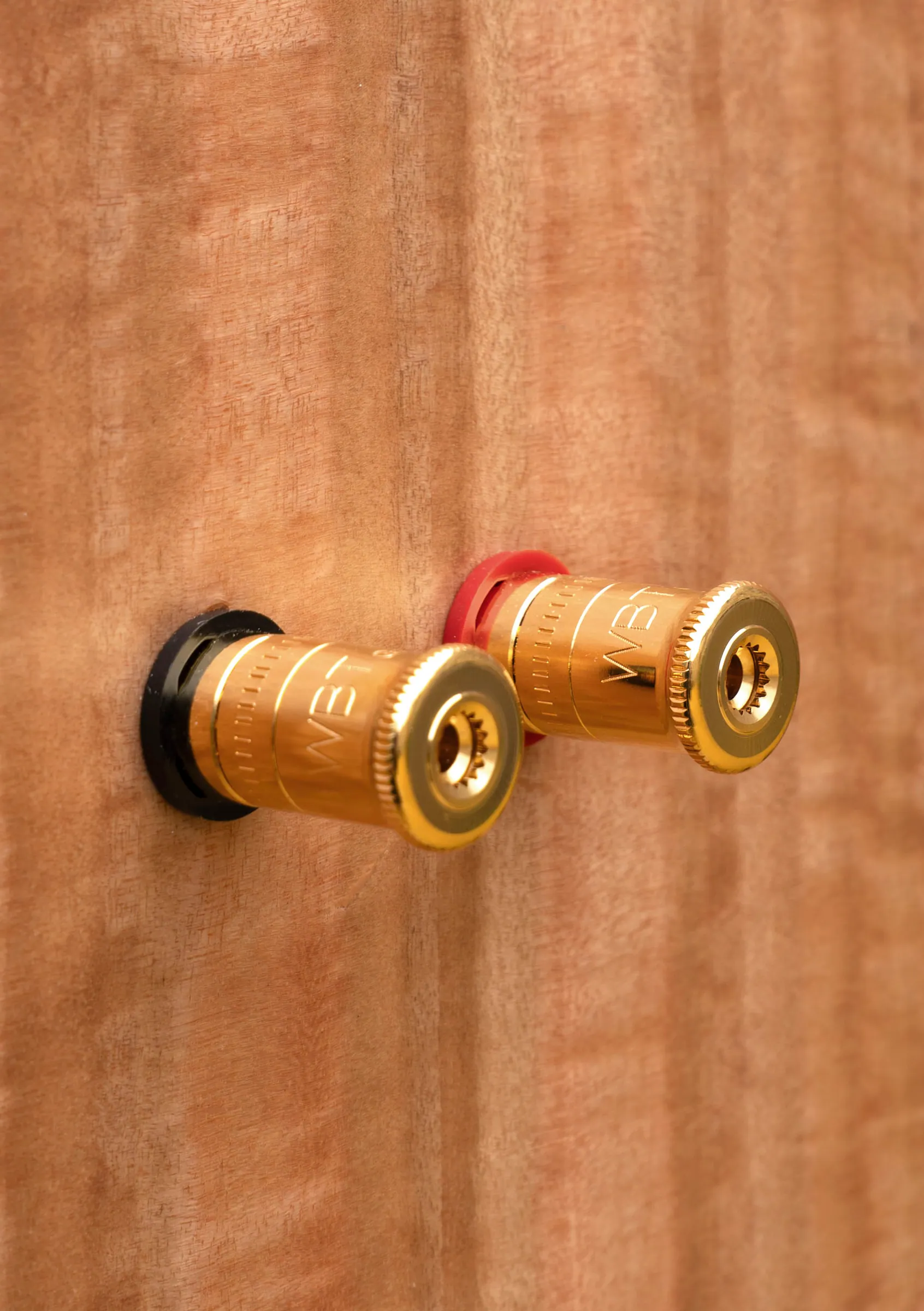

| Connectors | WBT-730.01 Gold plated terminals |
