LS6 Special Edition
The LS6 Special Edition is a limited-run LS6 by Derek Hughes, with a front-firing port and a eucalyptus veneer.
fig. 01 · speakers
LS6 Special Edition
From Graham

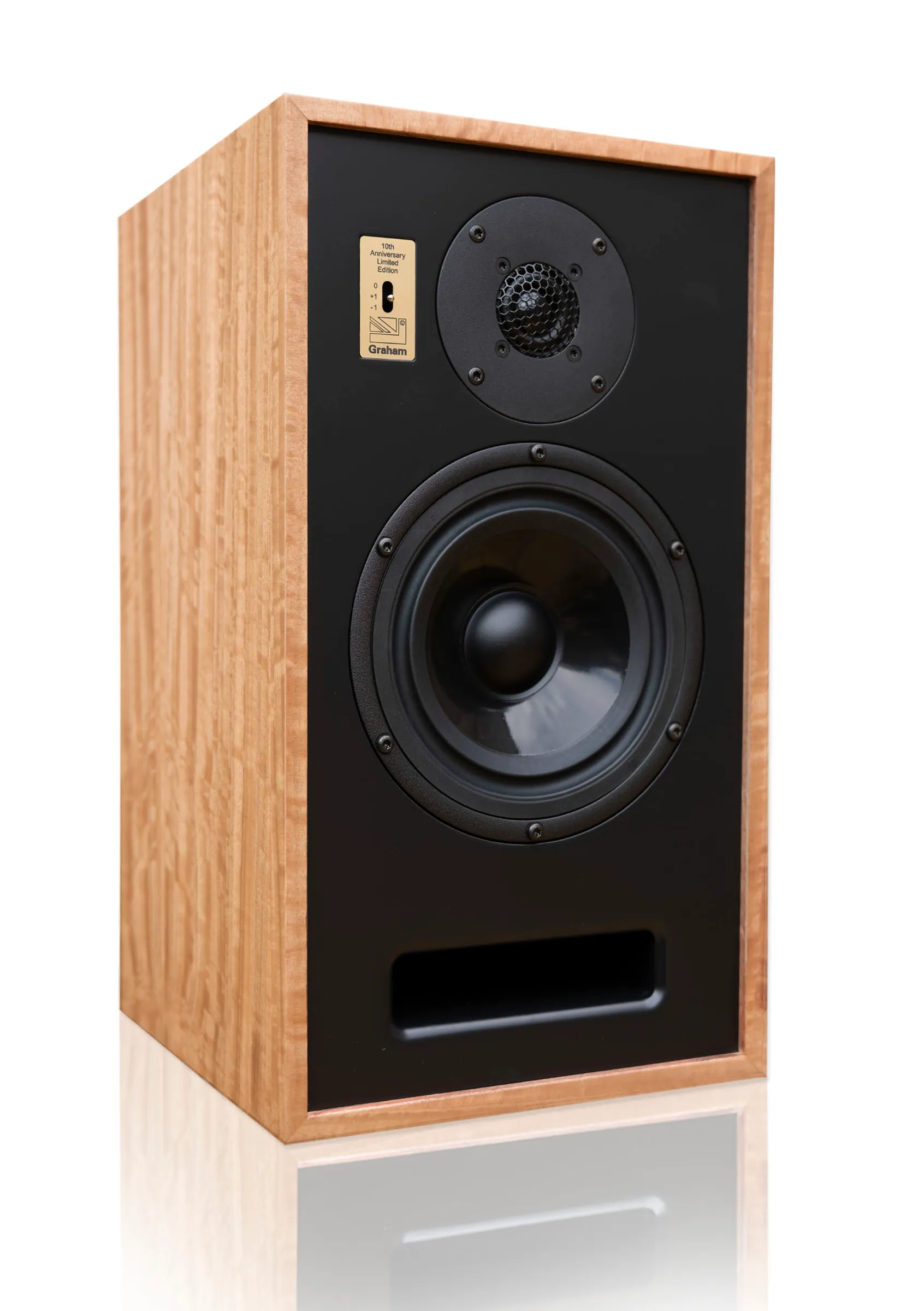

Derek Hughes designed this limited edition around an upgraded crossover with polypropylene capacitors, metal-cased resistors, Van Den Hul cabling, and gold-plated WBT terminals. A larger internal volume and a front-baffle port open up placement options.
Specifications
| System | 2 Way, reflex loading |
|---|---|
| Enclosure | Thin wall damped construction |
| Finish | Eucalyptus with black baffles |
| Dimensions (w/h/d) | 24cm by 43cm by 26cm |
| Weight | 9.5kg |
| Frequency response | 45Hz to 20kHz, ±2dB |
| Nominal impedance | 8Ω |
| Sensitivity | 87dB SPL (2.83V, 1m) |
| Maximum output | Over 100dB for a pair at 2m |
| Bass/midrange | 165mm Polypropylene |
| Tweeter | 19mm soft dome |
| Recommended amplifier power | 50 to 150 watts unclipped programme |

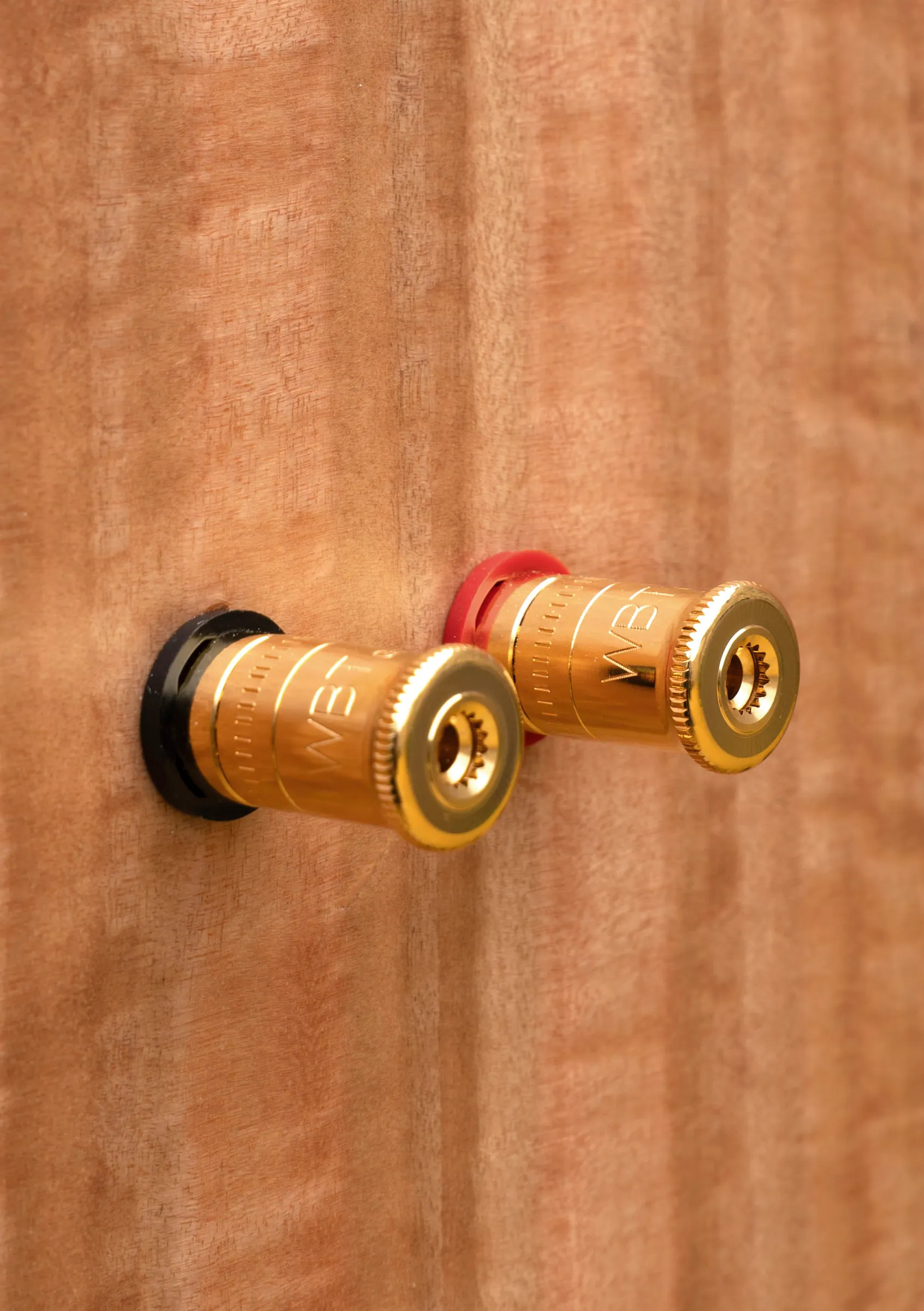

| Connectors | WBT-730.01 Gold plated terminals |
