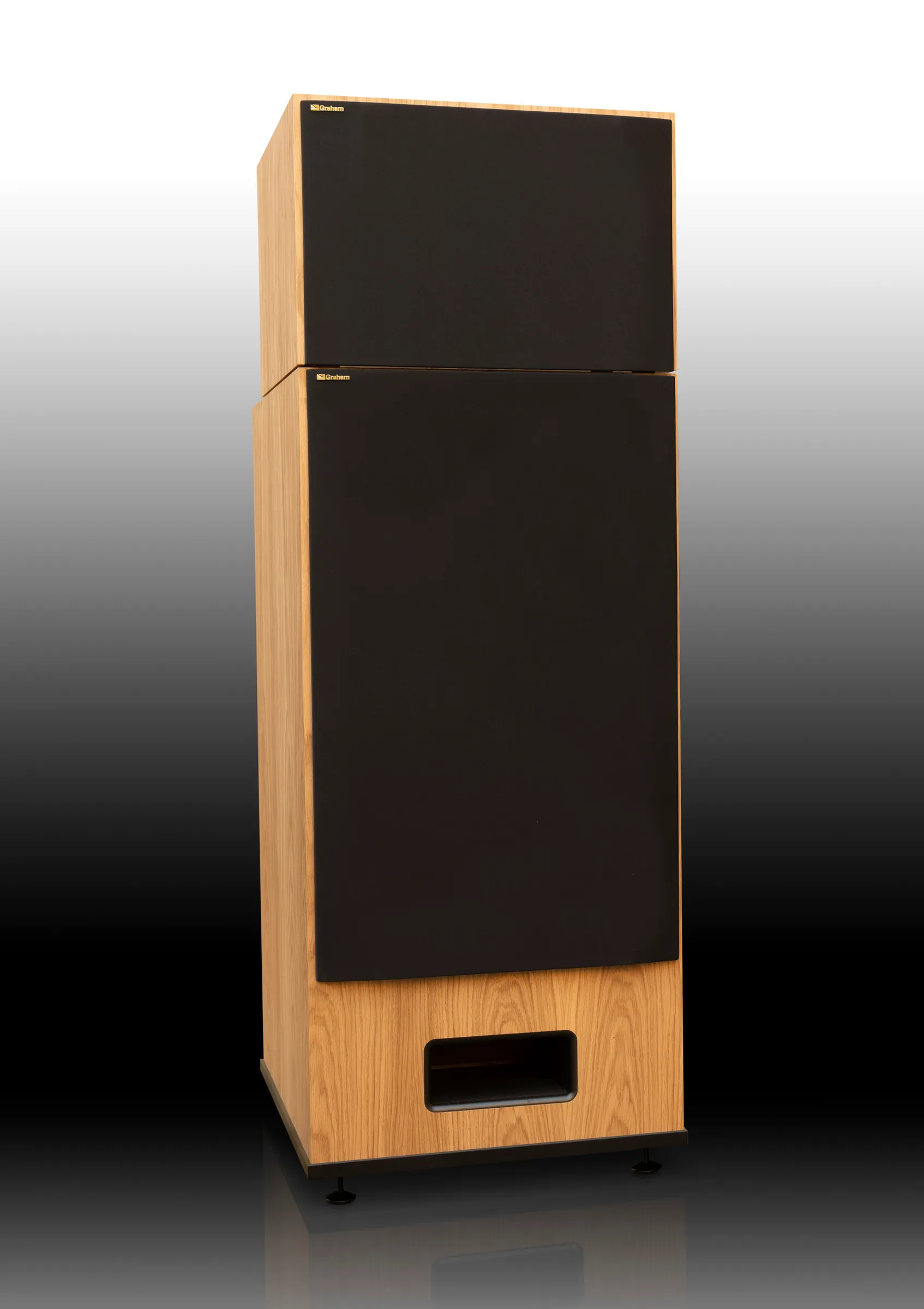

VOTU Mirama
The VOTU Mirama is Graham's flagship, developed out of the SYSTEM3D loudspeaker built for the Royal Opera House.
fig. 01 · speakers
VOTU Mirama
From Graham
VOTU stands for Voice of the Universe. The Mirama grew out of the bespoke SYSTEM3D, a professional sound reinforcement loudspeaker built for the Royal Opera House in Covent Garden. It carries the technology from the revised LS5/5 and LS5/5F, balancing midrange clarity against extension at both ends.
Specifications
| System | 4 Way, reflex loading |
|---|---|
| Finish | Real wood veneer to order |
| Dimensions (w/h/d) | 66cm by 164cm by 66cm |
| Weight | 110kg |
| Frequency response | 25Hz to 20kHz, ±3dB |
| Crossover points | 150Hz, 1kHz, 5kHz |
| Sensitivity | 90dB SPL (2.83V, 1m) |
| Maximum output | Over 100dB for a pair at 2m |

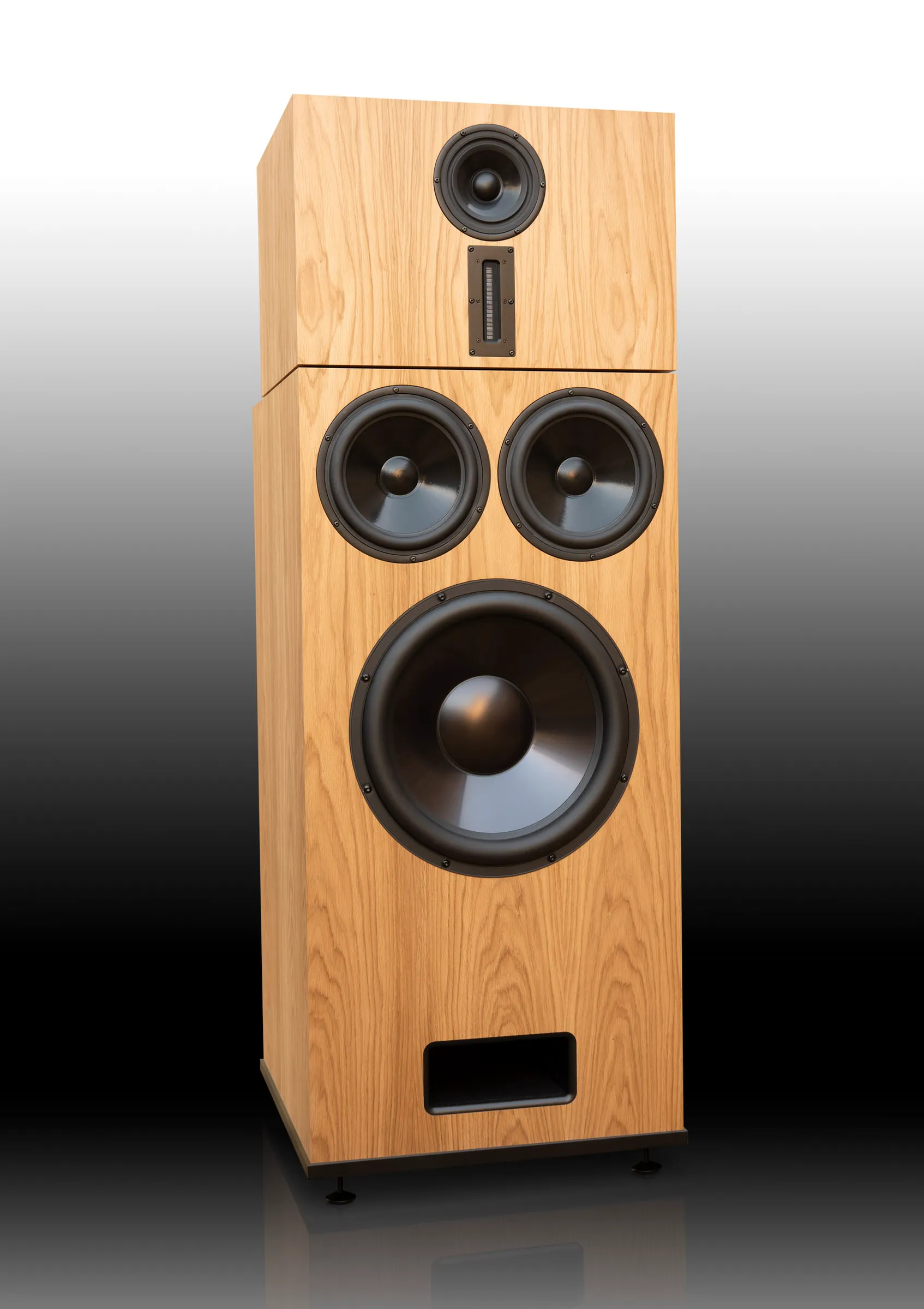

| Sub Bass Driver | 1 x 450mm |
| Mid Bass Drivers | 2 x 250mm |
| Midrange | 165mm Polypropylene |
| Tweeter | 13mm Ribbon |
| Recommended amplifier power | 250 to 1000 watts unclipped programme |

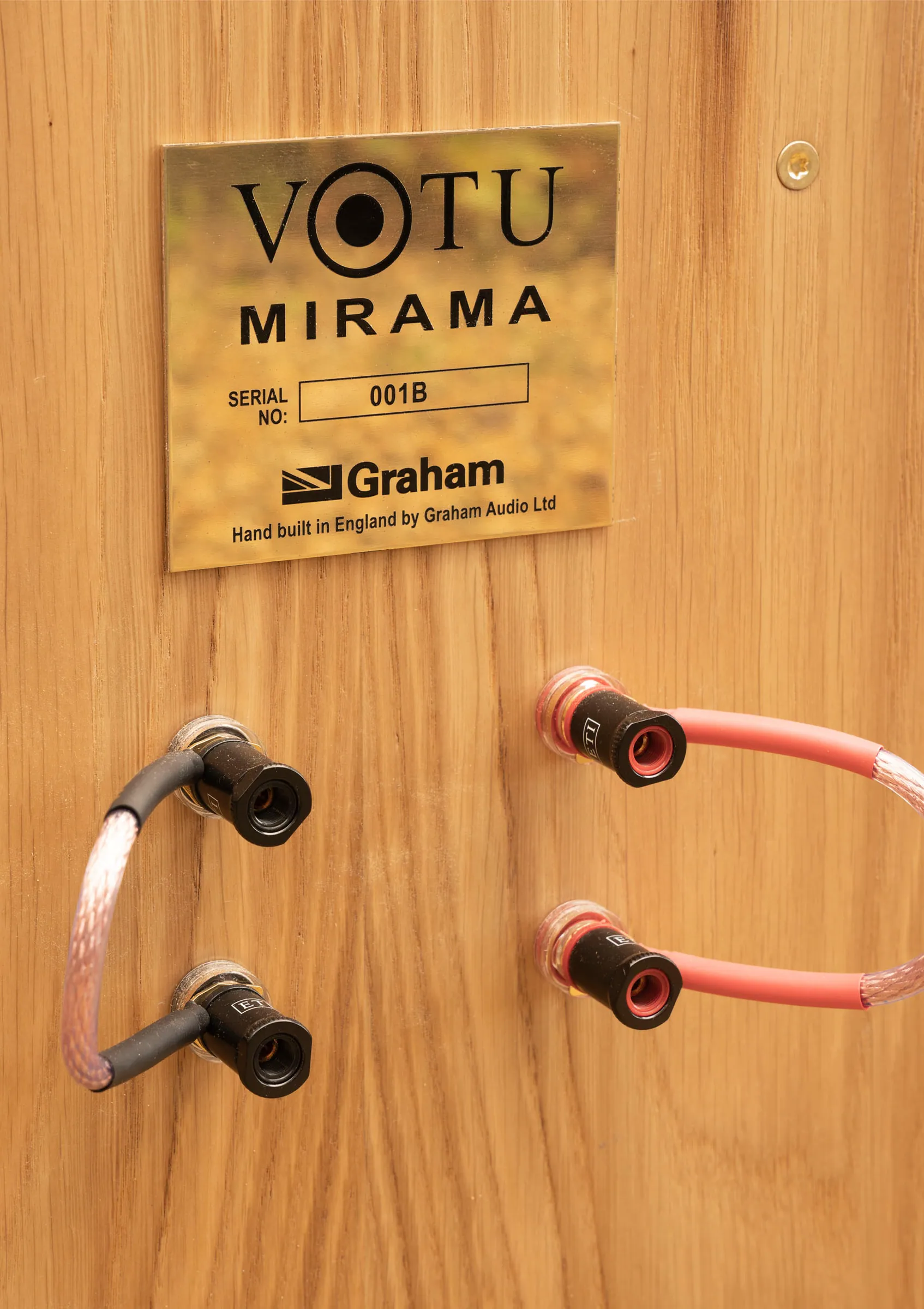

| Connectors | Gold plated Terminals, bi-wired |
