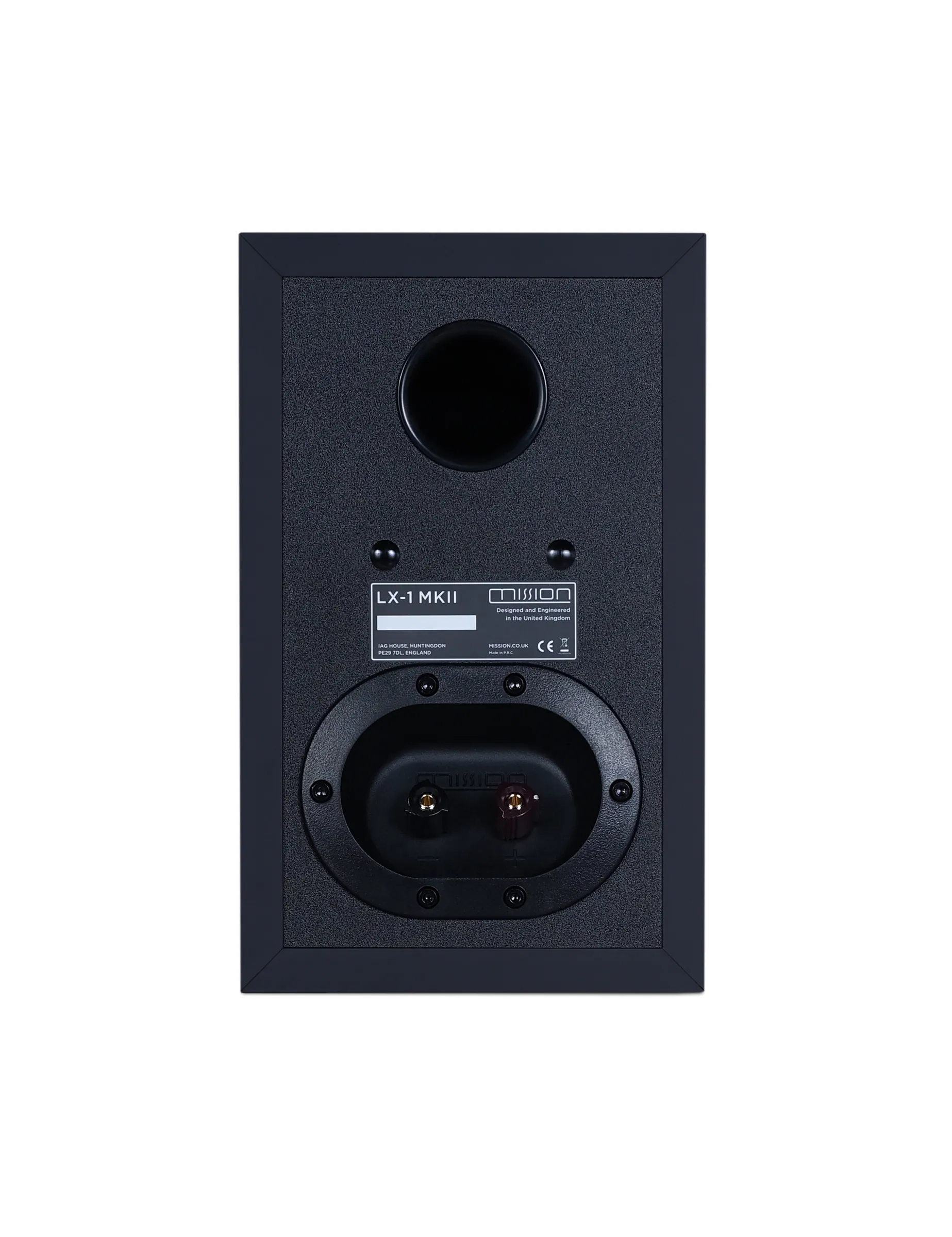

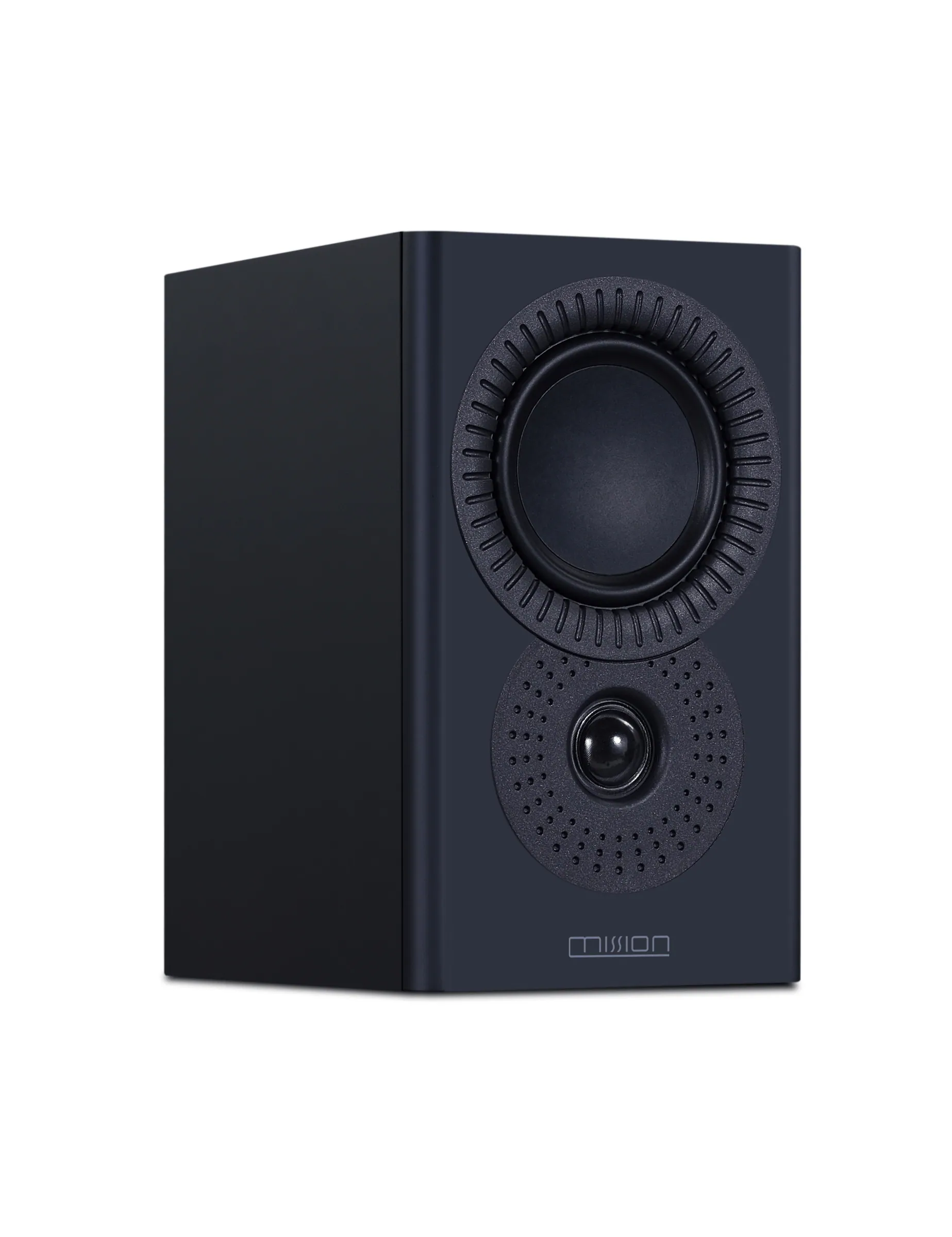

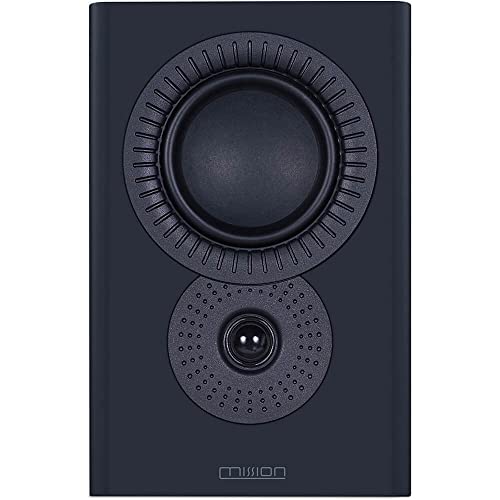

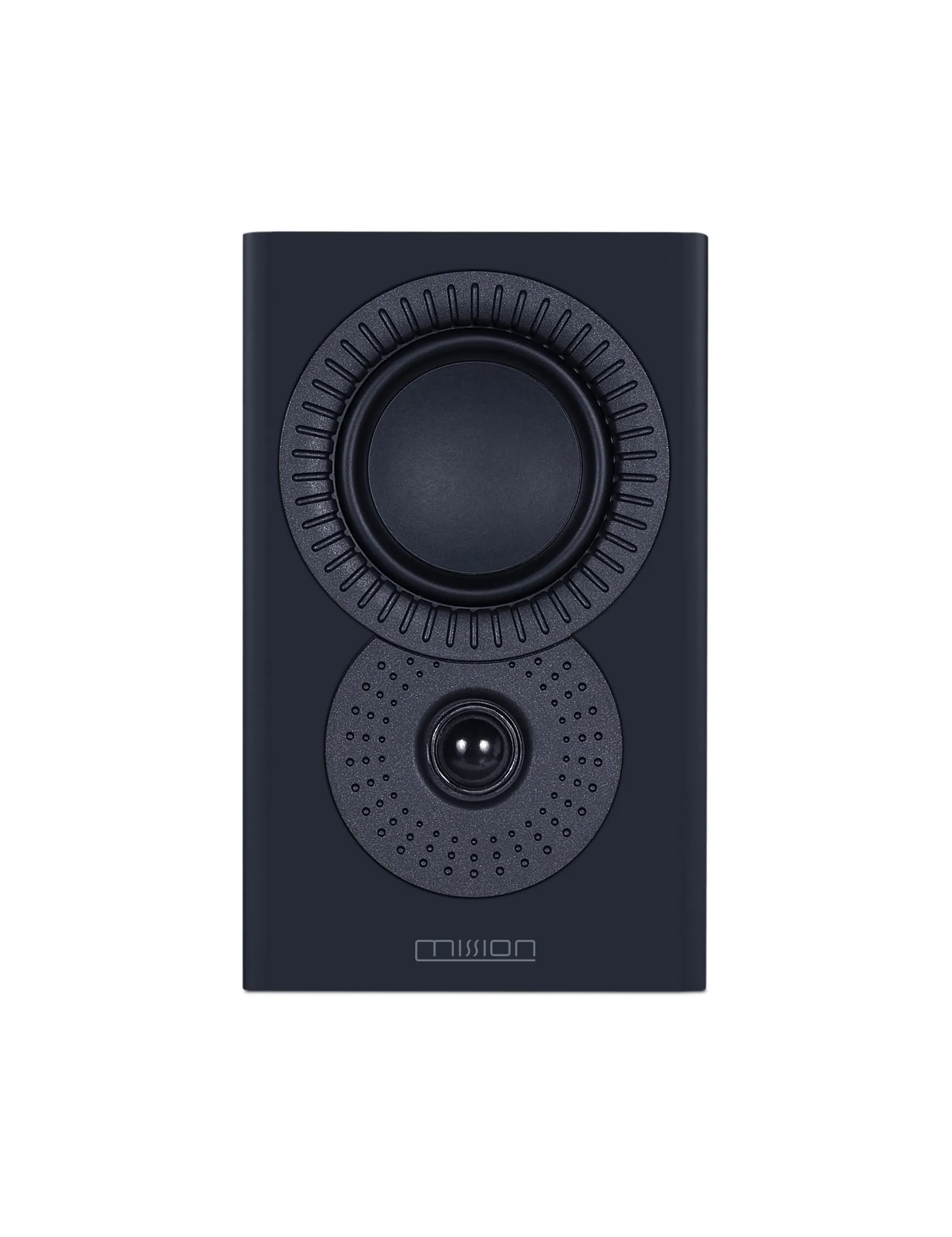

LX-1 MKII
The LX-1 MKII is a 2-way bookshelf loudspeaker in Mission's LX MKII Series, with a 4-inch composite-fibre bass driver, 25 mm tweeter, and bass-reflex cabinet.
fig. 01 · speakers
LX-1 MKII
538822
out of stock
6 photographs · 5 shown
From Mission
The LX-1 MKII is a 2-way bookshelf loudspeaker in Mission's LX MKII Series. It has a 4-inch bass driver, a 1-inch soft-dome treble unit, Mission's Inverted Driver Geometry layout, and DiaDrive bass-unit engineering carried over from the ZX line. The bass-reflex cabinet delivers 58 Hz to 20 kHz frequency response and 86 dB sensitivity, recommended for 20 to 80 W amplifiers, and each speaker weighs 4.13 kg.
Specifications
| General description | 2-way bookshelf speaker Bass extension(-6dB) 55Hz |
|---|---|
| Enclosure type | Bass reflex Crossover frequency 2.7kHz |
| Transducer complement | 2-way Cabinet Volume (in litres) 5.5L |
| Bass driver | 4"(100mm) composite fibre Height (on plinth) 260mm |
| Treble driver | 25mm microfibre dome Width 160mm |
| AV shield | No Depth (with terminals) (200+8)mm |
| Sensitivity (2.83V @ 1m) | 86dB Carton size 440 x 290 x 345mm |
| Recommended amplifier power | 20-80w Net weight 4.13kg/pcs |
| Peak SPL | 99dB Gross weight 9.42kg/ctn |
| Nominal impedance | 8 Ohms Compatible Finish Walnut Pearl / Lux White / Lux Black |
| Minimum impedance | 4.2 Ohms |
| Frequency response (+/-3dB) | 58Hz ~ 20kHz |
| Product type | bookshelf loudspeaker |
| Series | LX MKII |
| Speaker type | 2-way bookshelf loudspeaker |
