LX-2 MKII

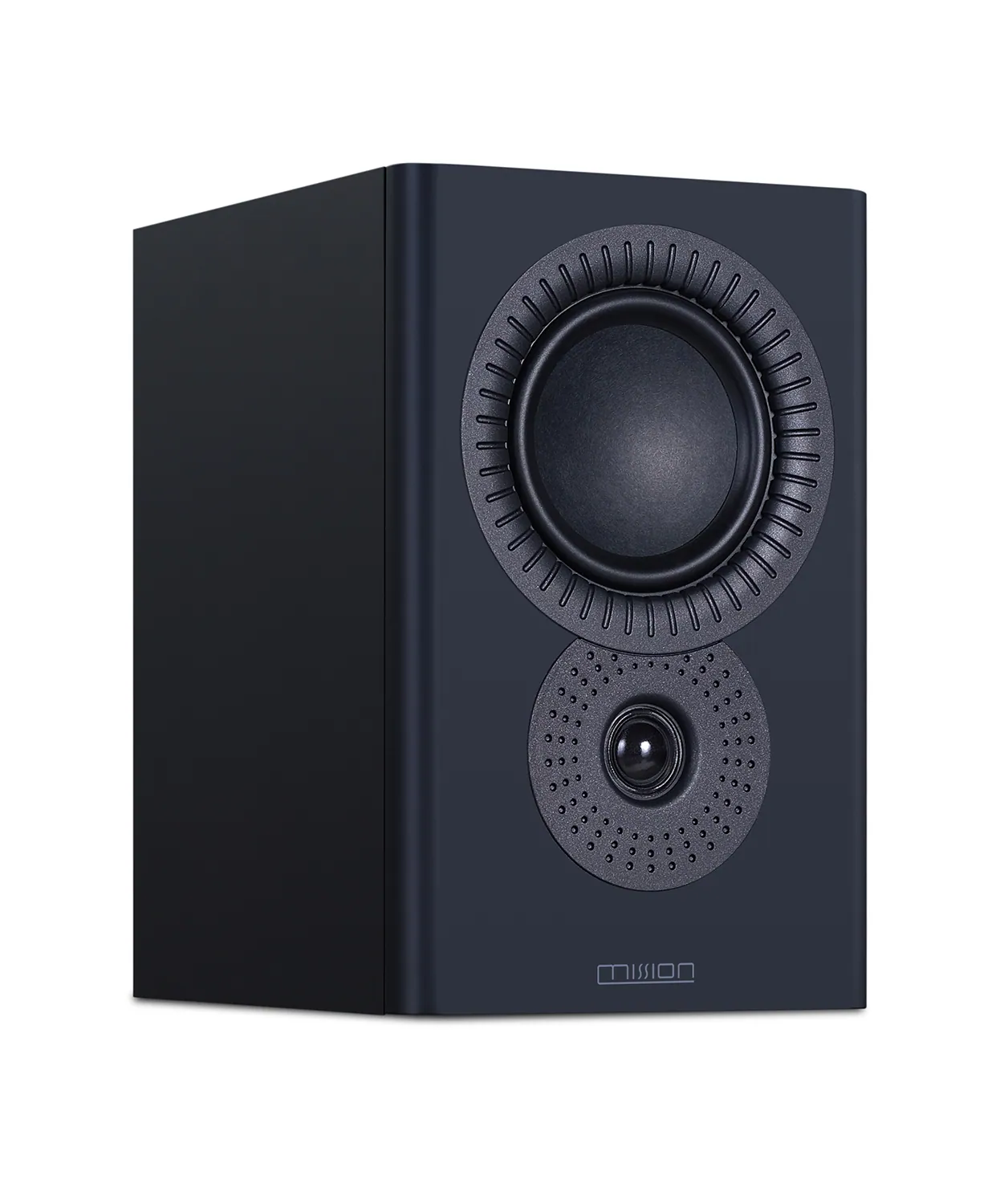

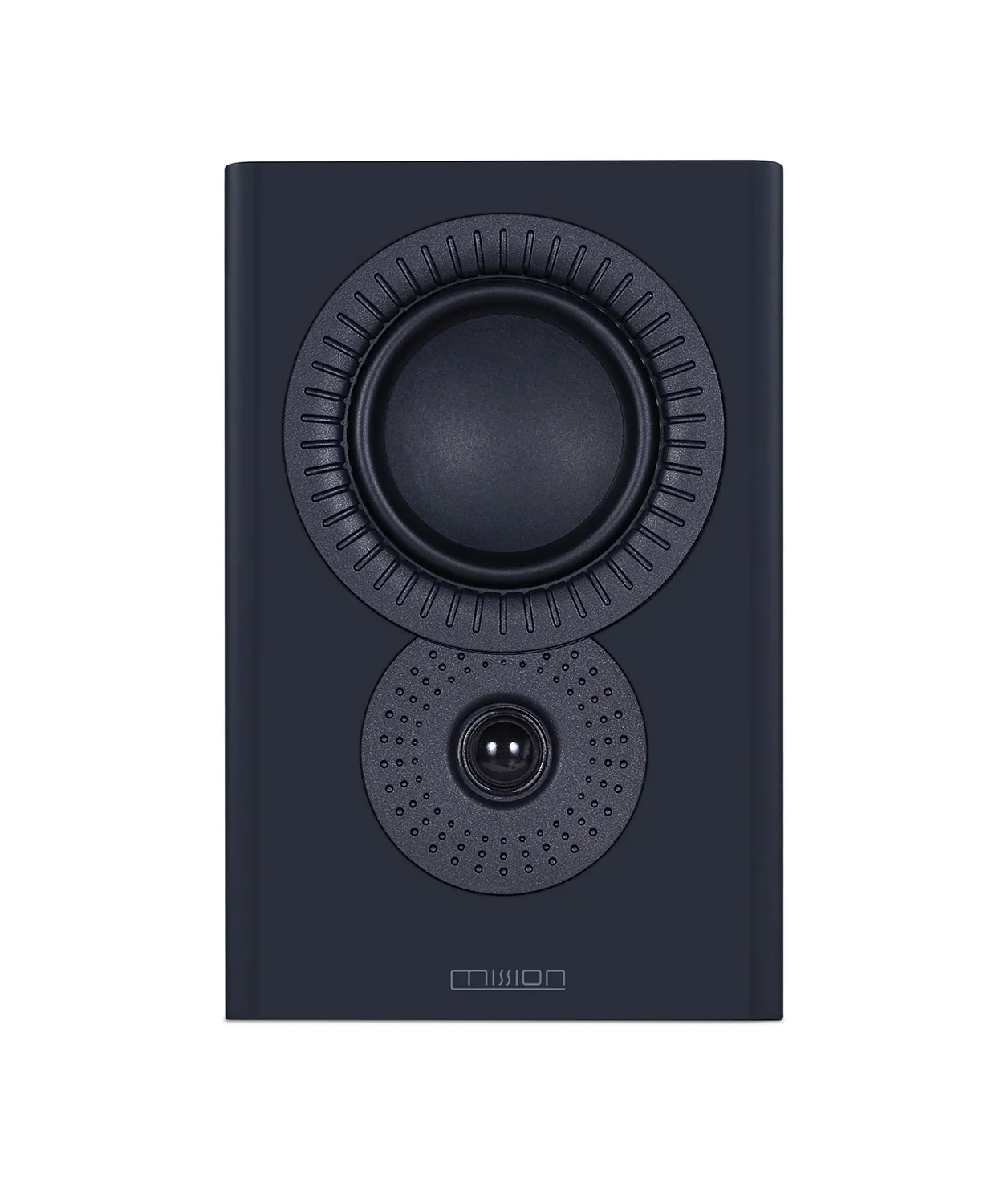

The LX-2 MKII is a 2-way bookshelf loudspeaker in Mission's LX MKII Series, with a 5-inch composite-fibre bass driver, 25 mm tweeter, and bass-reflex cabinet.
fig. 01 · speakers
LX-2 MKII
538825
current
From Mission
The LX-2 MKII is a 2-way bookshelf loudspeaker in Mission's LX MKII Series. It has a 5-inch bass driver, a 1-inch soft-dome treble unit, Inverted Driver Geometry layout, and DiaDrive bass-unit engineering carried over from the ZX line. The bass-reflex cabinet delivers 55 Hz to 20 kHz frequency response and 87 dB sensitivity, recommended for 20 to 100 W amplifiers, and each speaker weighs 6.34 kg.
Specifications
| General description | 2-way bookshelf speaker Bass extension(-6dB) 50Hz |
|---|---|
| Enclosure type | Bass reflex Crossover frequency 3.2kHz |
| Transducer complement | 2-way Cabinet Volume (in litres) 8.5L |
| Bass driver | 5"(130mm) composite fibre Height (on plinth) 305mm |
| Treble driver | 25mm microfibre dome Width 200mm |
| AV shield | No Depth (with terminals) (250+8)mm |
| Sensitivity (2.83V @ 1m) | 87dB Carton size 535 x 350 x 400mm |
| Recommended amplifier power | 20-100W Net weight 6.34kg/pcs |
| Peak SPL | 103dB Gross weight 14.4kg/ctn |
| Nominal impedance | 8 Ohms Compatible Finish Walnut Pearl / Lux White / Lux Black |
| Minimum impedance | 3.8 Ohms |
| Frequency response (+/-3dB) | 55Hz ~ 20kHz |
| Product type | bookshelf loudspeaker |
| Series | LX MKII |
| Speaker type | 2-way bookshelf loudspeaker |
