LX-3 MKII

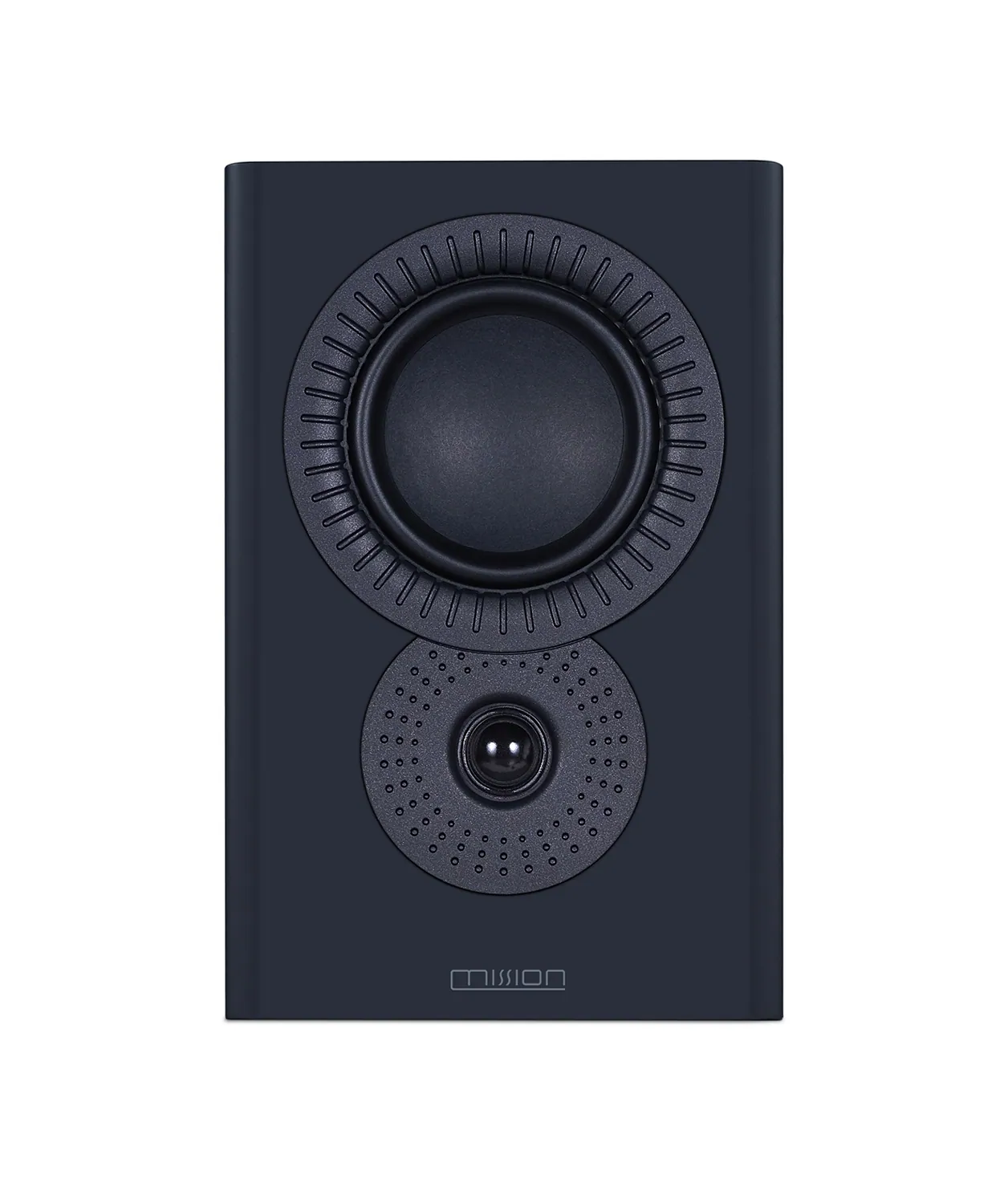

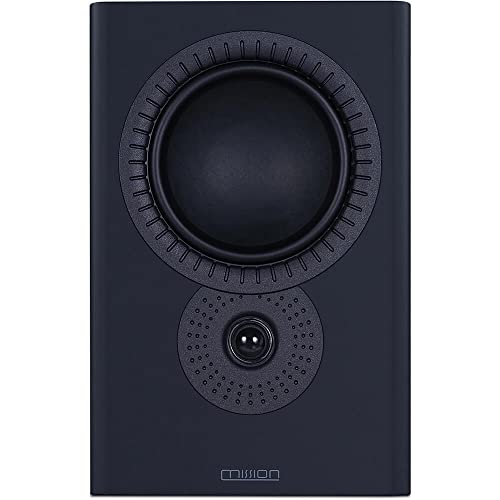

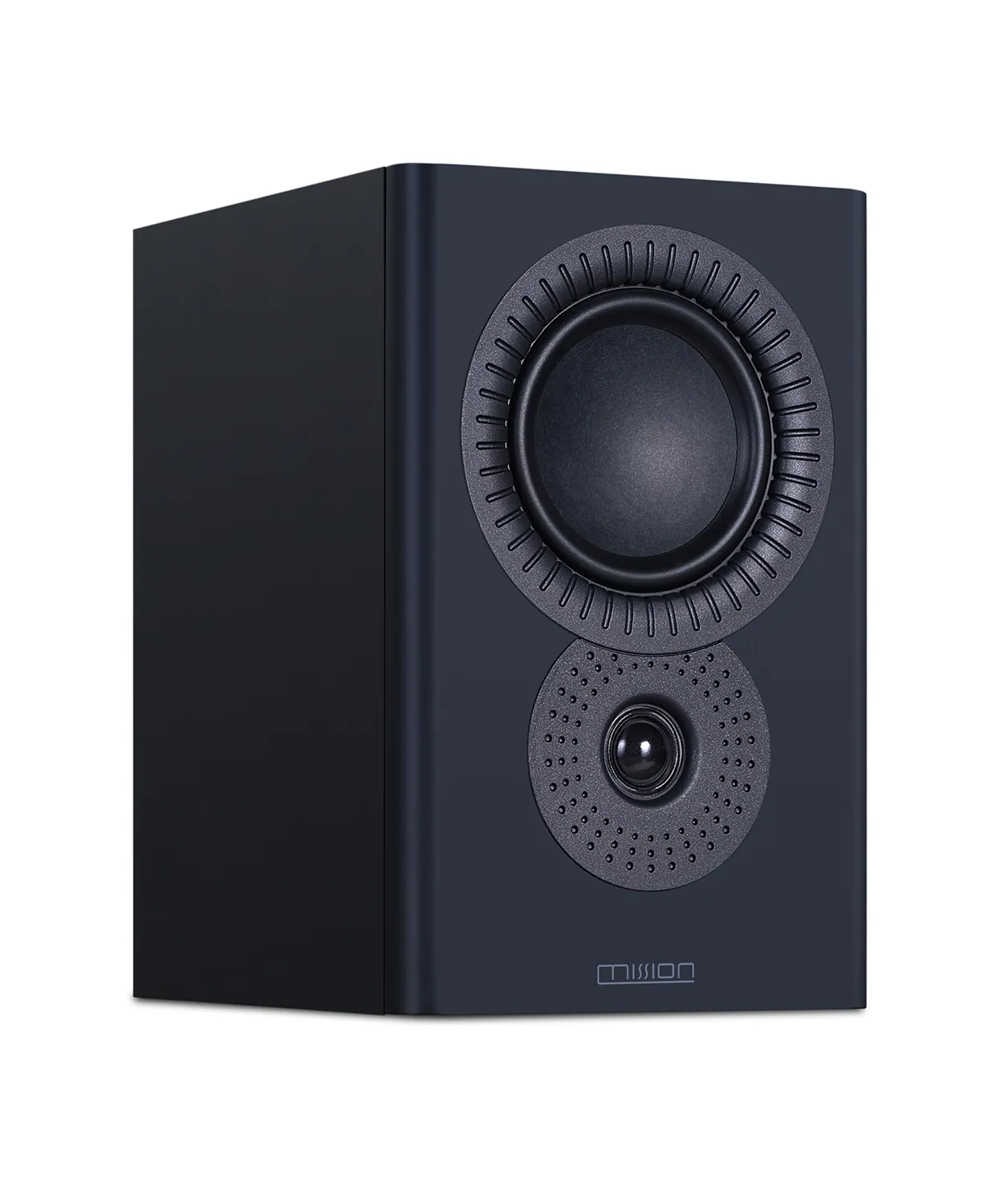

The LX-3 MKII is a 2-way bookshelf loudspeaker in Mission's LX MKII Series, with a 6.5-inch composite-fibre bass driver, 25 mm tweeter, and bass-reflex cabinet.
fig. 01 · speakers
LX-3 MKII
538828
out of stock
From Mission
The LX-3 MKII is a 2-way bookshelf loudspeaker in Mission's LX MKII Series, built in the larger of the series' bookshelf cabinets. It has a 6.5-inch bass driver, a 1-inch soft-dome treble unit, Inverted Driver Geometry layout, and DiaDrive bass-unit engineering carried over from the ZX line. The bass-reflex cabinet delivers 45 Hz to 20 kHz frequency response and 88 dB sensitivity, recommended for 20 to 120 W amplifiers, and each speaker weighs 8.42 kg.
Specifications
| General description | 2-way bookshelf speaker Bass extension(-6dB) 40Hz |
|---|---|
| Enclosure type | Bass reflex Crossover frequency 3.2kHz |
| Transducer complement | 2-way Cabinet Volume (in litres) 13.2L |
| Bass driver | 6.5"(165mm) composite fibre Height (on plinth) 345mm |
| Treble driver | 25mm microfibre dome Width 226mm |
| AV shield | No Depth (with terminals) (300+8)mm |
| Sensitivity (2.83V @ 1m) | 88dB Carton size 590 x 400 x 450mm |
| Recommended amplifier power | 20-120W Net weight 8.42kg/pcs |
| Peak SPL | 105dB Gross weight 18.9kg/ctn |
| Nominal impedance | 8 Ohms Compatible Finish Walnut Pearl / Lux White / Lux Black |
| Minimum impedance | 4.1 Ohms |
| Frequency response (+/-3dB) | 45Hz ~ 20kHz |
| Product type | bookshelf loudspeaker |
| Series | LX MKII |
| Speaker type | 2-way bookshelf loudspeaker |
