LX-3D MKII

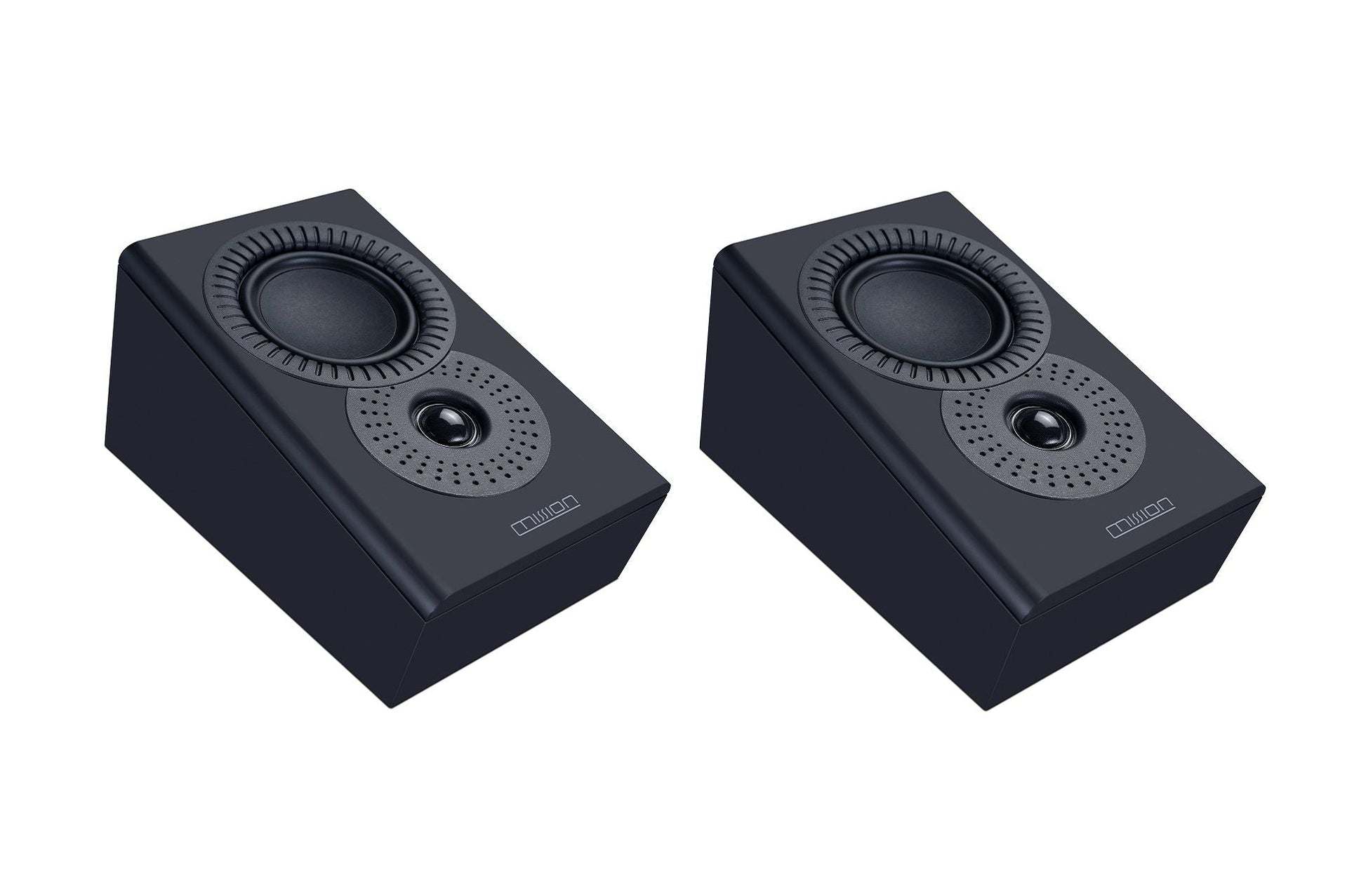

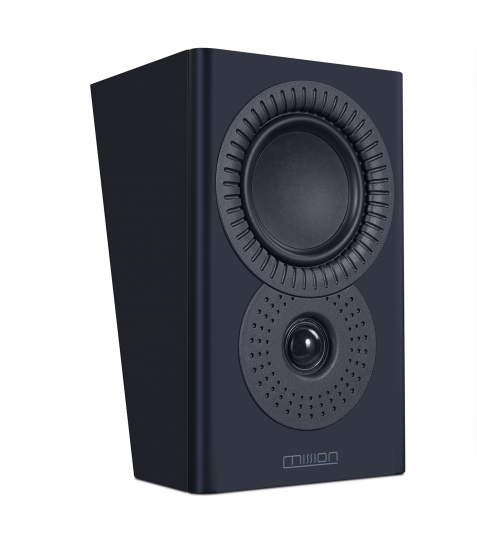

The LX-3D MKII is an LX MKII Series Atmos/surround loudspeaker with a 4-inch composite-fibre bass driver, 25 mm tweeter, and closed-box cabinet.
fig. 01 · speakers
LX-3D MKII
538904
out of stock
6 photographs · 5 shown
From Mission
The LX-3D MKII is an LX MKII Series Atmos/surround loudspeaker with a 2-way driver layout. It has a 4-inch bass driver, a 1-inch soft-dome treble unit, Mission's Inverted Driver Geometry layout, and DiaDrive bass-unit engineering carried over from the ZX line. The closed-box cabinet delivers 105 Hz to 20 kHz frequency response and 86 dB sensitivity, recommended for 20 to 80 W amplifiers, and it weighs 2.85 kg.
Specifications
| General description | 2-way bookshelf speaker Bass extension(-6dB) 90Hz |
|---|---|
| Enclosure type | closed-box system Crossover frequency 2.8kHz |
| Transducer complement | 2-way Cabinet Volume (in litres) 2.2L |
| Bass driver | 4"(100mm) composite fibre Height (on plinth) 180mm |
| Width | 160mm |
| Treble driver | 25mm microfibre dome Depth (with terminals) 260mm |
| AV shield | No Carton size 365 x 345 x 245mm |
| Sensitivity (2.83V @ 1m) | 86dB Net weight 2.85kg/pcs |
| Recommended amplifier power | 20-80W Gross weight 6.2kg/ctn |
| Peak SPL | 99dB Finish Walnut Pearl / Lux White / Lux Black |
| Nominal impedance | 8 Ohms Compatible |
| Minimum impedance | 4.5 Ohms |
| Frequency response (+/-3dB) | 105Hz ~ 20kHz |
| Product type | Atmos / surround loudspeaker |
| Series | LX MKII |
| Speaker type | 2-way surround speaker |
