LX-4 MKII

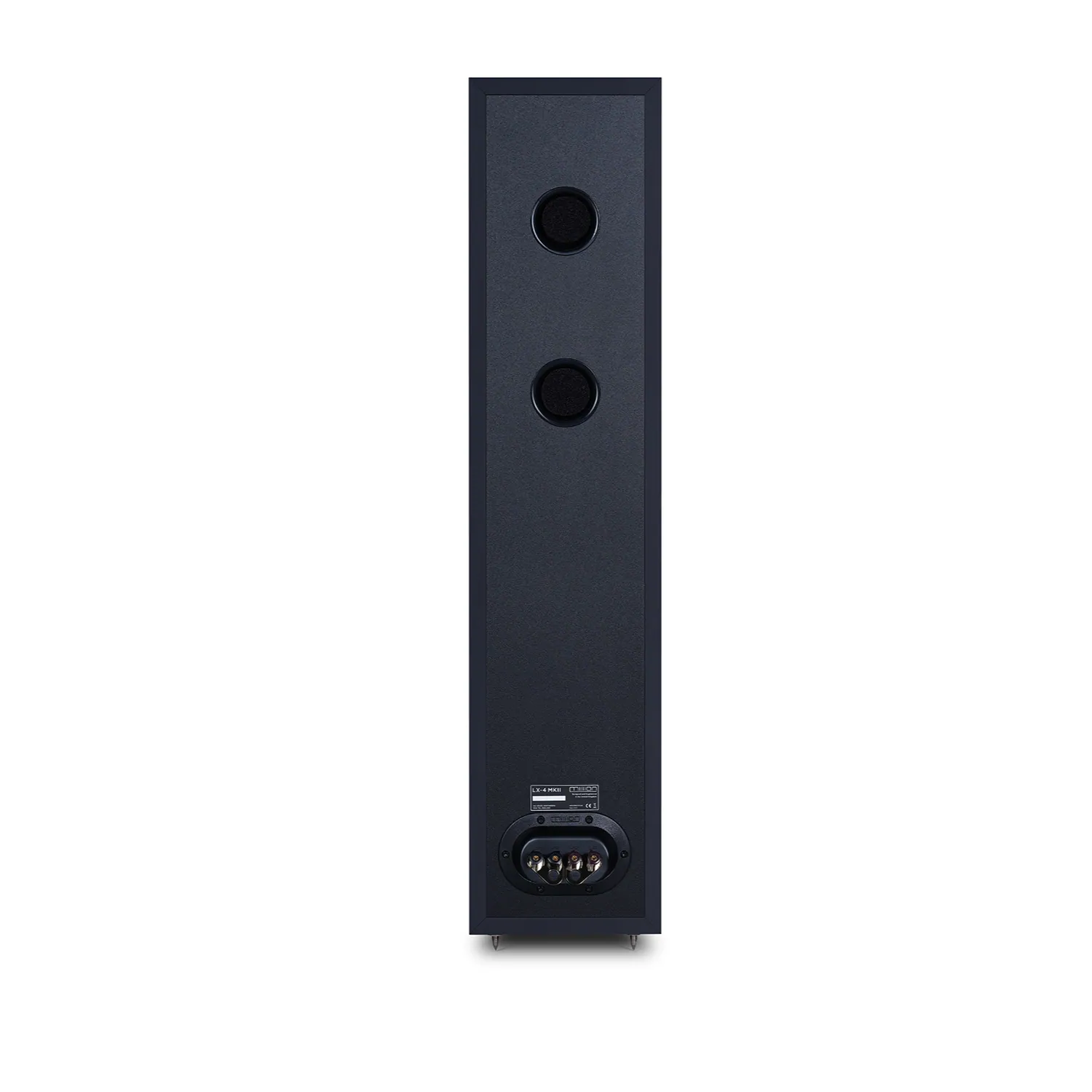

The LX-4 MKII is a floorstanding loudspeaker in Mission's LX MKII Series, with two 5-inch composite-fibre bass drivers, a 25 mm tweeter, and a bass-reflex cabinet.
fig. 01 · speakers
LX-4 MKII
538831
out of stock
From Mission
The LX-4 MKII is a 2-way floorstanding loudspeaker in Mission's LX MKII Series. It has two 5-inch bass drivers, a 1-inch soft-dome treble unit, Mission's Inverted Driver Geometry layout, and DiaDrive bass-unit engineering carried over from the ZX line. The bass-reflex cabinet delivers 45 Hz to 20 kHz frequency response and 89 dB sensitivity, recommended for 30 to 120 W amplifiers, and each speaker weighs 15.5 kg.
Specifications
| General description | 2-way bookshelf speaker Bass extension(-6dB) 40Hz |
|---|---|
| Enclosure type | Bass reflex Crossover frequency 3.0kHz |
| Transducer complement | 2-way Cabinet Volume (in litres) 29L |
| Bass driver | 5"(130mm) composite fibre x2 Height (on plinth) (900+20)mm |
| Treble driver | 25mm microfibre dome Width 200mm |
| AV shield | No Depth (with terminals) (265+8)mm |
| Sensitivity (2.83V @ 1m) | 89dB Carton size 385 x 315 x1015mm |
| Recommended amplifier power | 30-120W Net weight 15.5kg/pcs |
| Peak SPL | 105dB Gross weight 18.5kg/ctn |
| Nominal impedance | 8 Ohms Compatible Finish Walnut Pearl / Lux White / Lux Black |
| Minimum impedance | 4.3 Ohms |
| Frequency response (+/-3dB) | 45Hz ~ 20kHz |
| Product type | floorstanding loudspeaker |
| Series | LX MKII |
| Speaker type | 2-way floorstanding loudspeaker |
| Bass drivers | two 5 inch drivers |
