Mission · Speakers · Floor-standing Speakers
LX-5 MKII

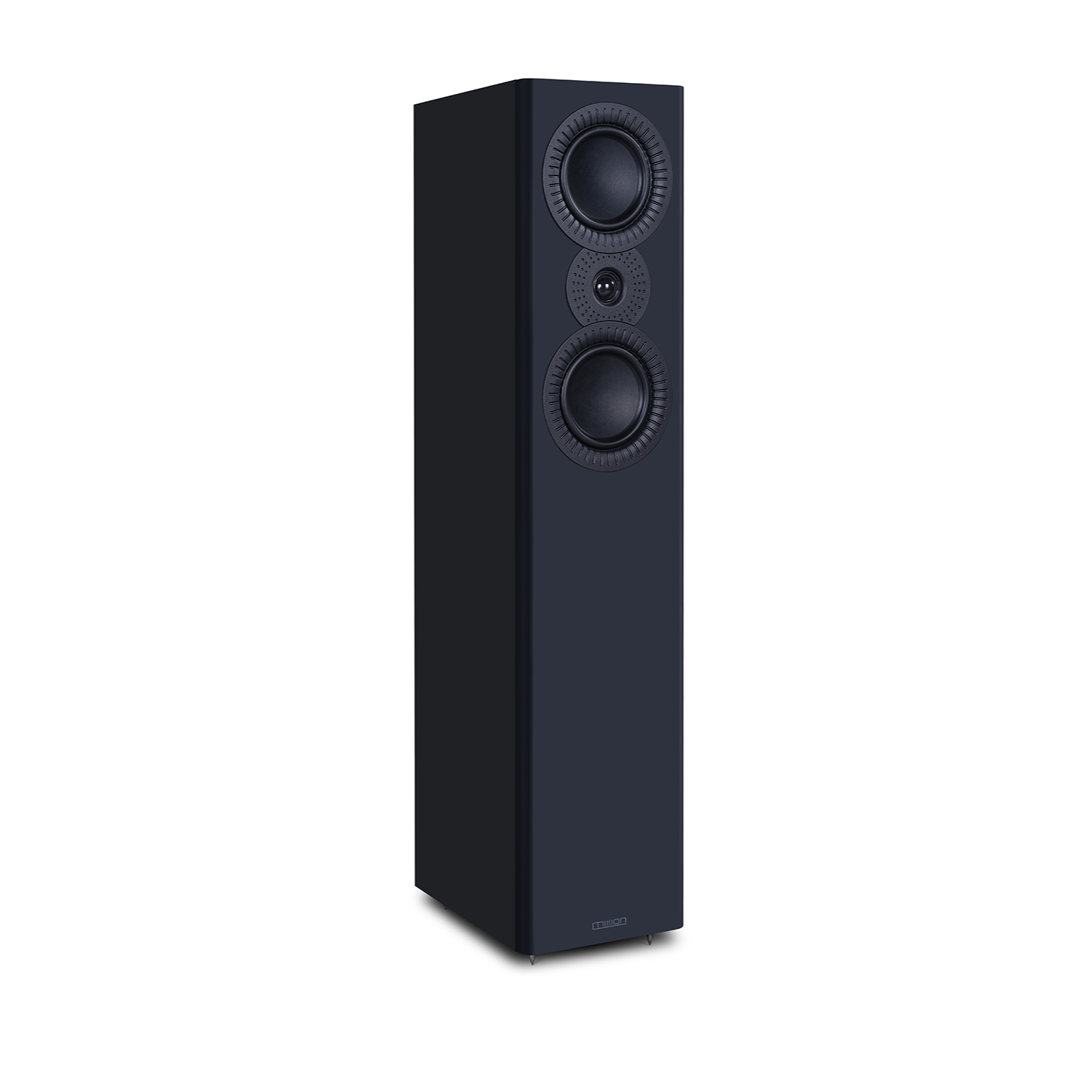

The LX-5 MKII is a floorstanding loudspeaker in Mission's LX MKII Series, with two 6.5-inch composite-fibre bass drivers, a 25 mm tweeter, and a bass-reflex cabinet.
fig. 01 · speakers
LX-5 MKII
538850
out of stock
From Mission
The LX-5 MKII is a 2-way floorstanding loudspeaker in Mission's LX MKII Series. It has two 6.5-inch bass drivers, a 1-inch soft-dome treble unit, Mission's Inverted Driver Geometry layout, and DiaDrive bass-unit engineering carried over from the ZX line. The bass-reflex cabinet delivers 45 Hz to 20 kHz frequency response and 90 dB sensitivity, recommended for 30 to 150 W amplifiers, and each speaker weighs 19.1 kg.
Specifications
| General description | 2-way bookshelf speaker Bass extension(-6dB) 38Hz |
|---|---|
| Enclosure type | Bass reflex Crossover frequency 2.3kHz |
| Transducer complement | 2-way Cabinet Volume (in litres) 42L |
| Bass driver | 6.5"(165mm) composite fibre x2 Height (on plinth) (975+20)mm |
| Treble driver | 25mm microfibre dome Width 226mm |
| AV shield | No Depth (with terminals) (300+8)mm |
| Sensitivity (2.83V @ 1m) | 90dB Carton size 420 x 340 x 1090mm |
| Recommended amplifier power | 30-150W Net weight 19.1kg/pcs |
| Peak SPL | 106dB Gross weight 22.4kg/ctn |
| Nominal impedance | 8 Ohms Compatible Finish Walnut Pearl / Lux White / Lux Black |
| Minimum impedance | 4.2 Ohms |
| Frequency response (+/-3dB) | 45Hz ~ 20kHz |
| Product type | floorstanding loudspeaker |
| Series | LX MKII |
| Speaker type | 2-way floorstanding loudspeaker |
| Bass drivers | two 6.5 inch drivers |
